Description

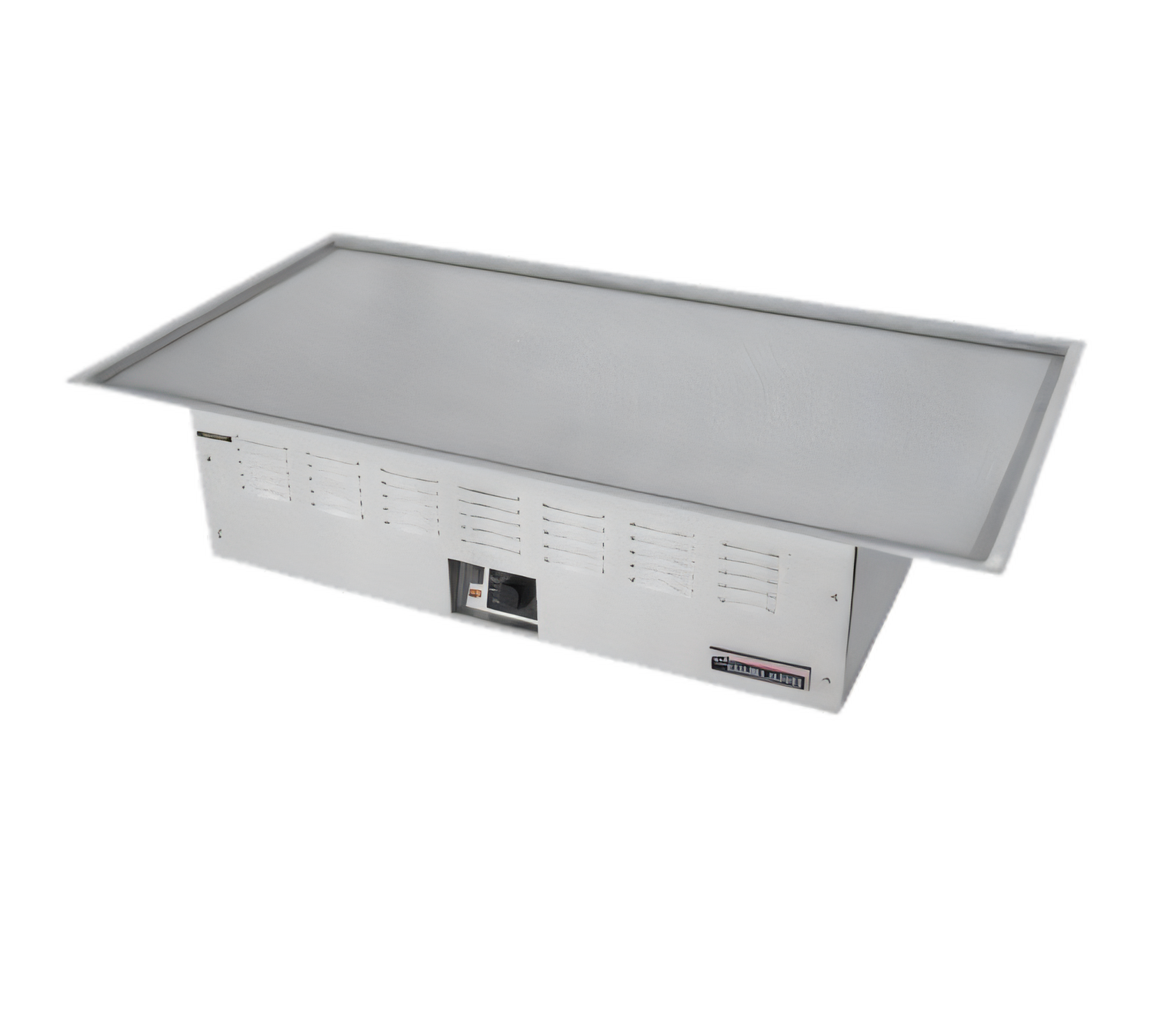

Garland Teppan-Yaki Drop-In Electric Griddle – 72" (Model E22-36-72GMX)
71-5/8" W × 24-1/16" D grill size | 6.7 kW | cCSAus & NSFCreate show-stopping hibachi presentations and unmatched sear marks with Garland’s largest Teppan-Yaki drop-in griddle. A powerful 6.7 kW element energises a 3/4" thick steel plate, while the precise electronic thermostat locks temperatures in up to 500 °F (260 °C). The 11" × 34" hot zone sits centre-stage for high-heat cooking, leaving the surrounding surface perfect for finishing, holding or plating.
Key Features
- Stainless-steel front and sides for long-lasting, easy-clean durability.
- 3/4" (19 mm) polished steel plate ensures even heat distribution and rapid recovery.
- 11" × 34" (279 × 864 mm) dedicated heated zone—ideal for simultaneous sear-and-hold cooking.
- Electronic thermostat accurately controls surface temps up to 500 °F (260 °C).
- 6.7 kW output, field wired for 208 or 240 V, single or 3-phase.
- 4" (102 mm) stainless sanitary legs included.
- Optional 1" (25 mm) flange edge for seamless, flush counter installation.
- cCSAus & NSF listed—ready for code-compliant commercial kitchens.
Why Teppan-Yaki?
- Engage guests with theatre-style cooking stations and live chef interaction.
- Hot-zone/hold-zone design speeds service by reducing cross-station movement.
- Low-profile drop-in mount keeps sightlines clear and maximises front-of-house appeal.
Technical Specifications
Model | E22-36-72GMX |
---|---|
Overall dimensions (with 1" flange) | 73-5/8" W × 26-9/16" D (1870 × 675 mm) |
Cut-out (less flange) | 71-13/16" W × 24-1/4" D (1824 × 616 mm) |
Heated cooking zone | 11" × 34" (279 × 864 mm) |
Plate thickness | 3/4" (19 mm) steel |
Temperature range | Ambient to 500 °F (260 °C) |
Electrical load | 6.7 kW | 208 / 240 V, 1- or 3-phase |
Amps @ 240 V | Single-phase 27.9 A • 3-phase 13.9 A/phase |
Amps @ 208 V | Single-phase 32.2 A • 3-phase 16.1 A/phase |
Shipping weight | 400 lb (182 kg) |
Certifications | cCSAus, NSF |
Minimum clearance to combustible construction: 1/2" (12.5 mm) at sides and rear.
