Garland E22-36-60GMX Teppanyaki Griddles
Garland E22-36-60GMX Teppanyaki Griddles is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Description

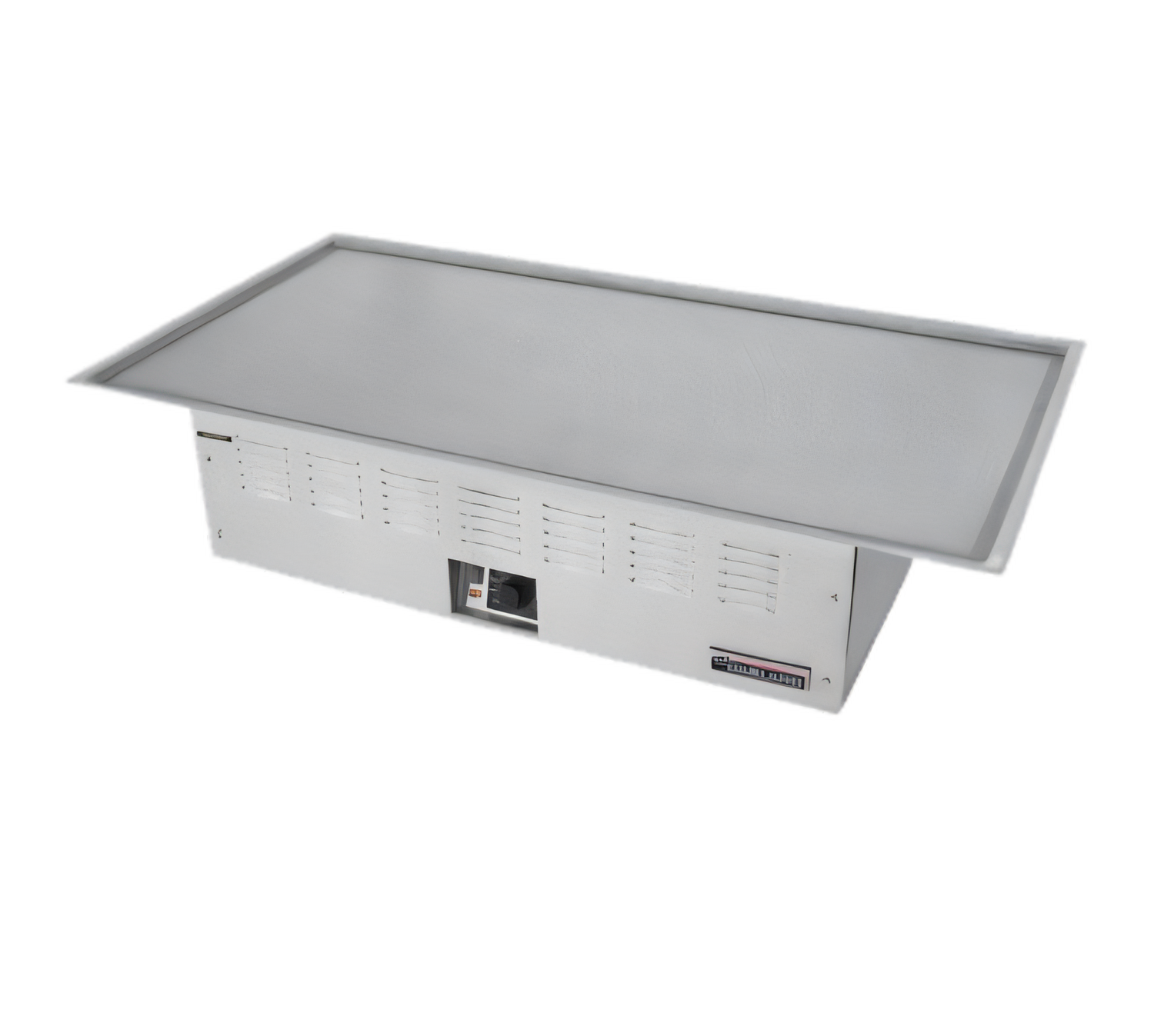

Garland Teppan-Yaki Drop-In Griddle – 60" / 6.7 kW

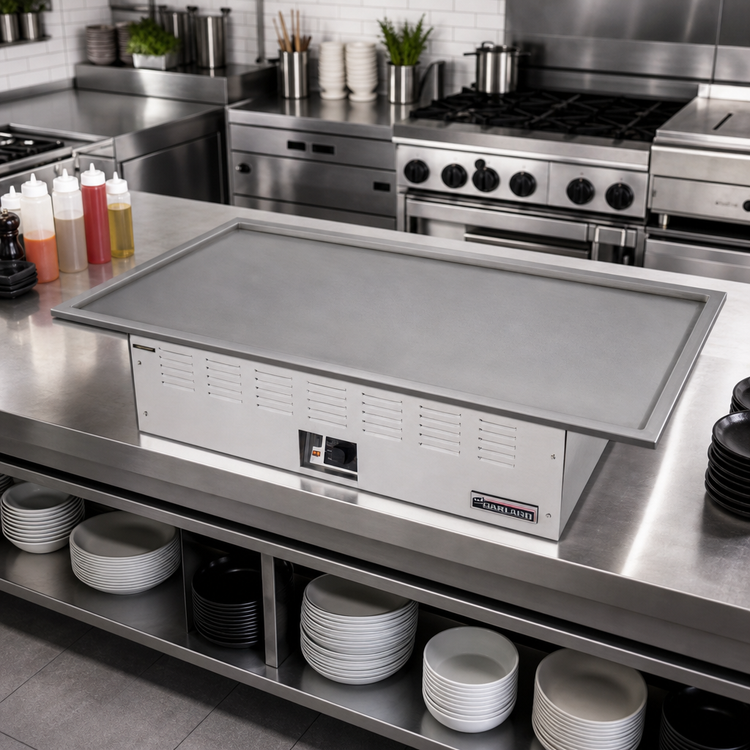

Model E22-36-60GMX | cCSAus & NSF ListedBring authentic teppan-yaki flair to your commercial kitchen with Garland’s 60 inch electric drop-in griddle. Engineered for consistency and built to thrive in high-volume environments, this unit delivers a powerful 6.7 kW of even heat across an 11" × 34" hot zone, all housed in a sleek stainless-steel chassis designed to sit flush in your chef counter or buffet line.
Key advantages
- Stainless-steel front and sides resist scratches, dings and daily wear.
- 3/4" (19 mm) thick polished steel plate stores and distributes heat evenly for perfect sears and quick recovery times.
- Electronic thermostat accurately maintains set temperatures up to 500 °F (260 °C).
- Versatile 208 or 240 V operation, field-wired for single- or three-phase service.

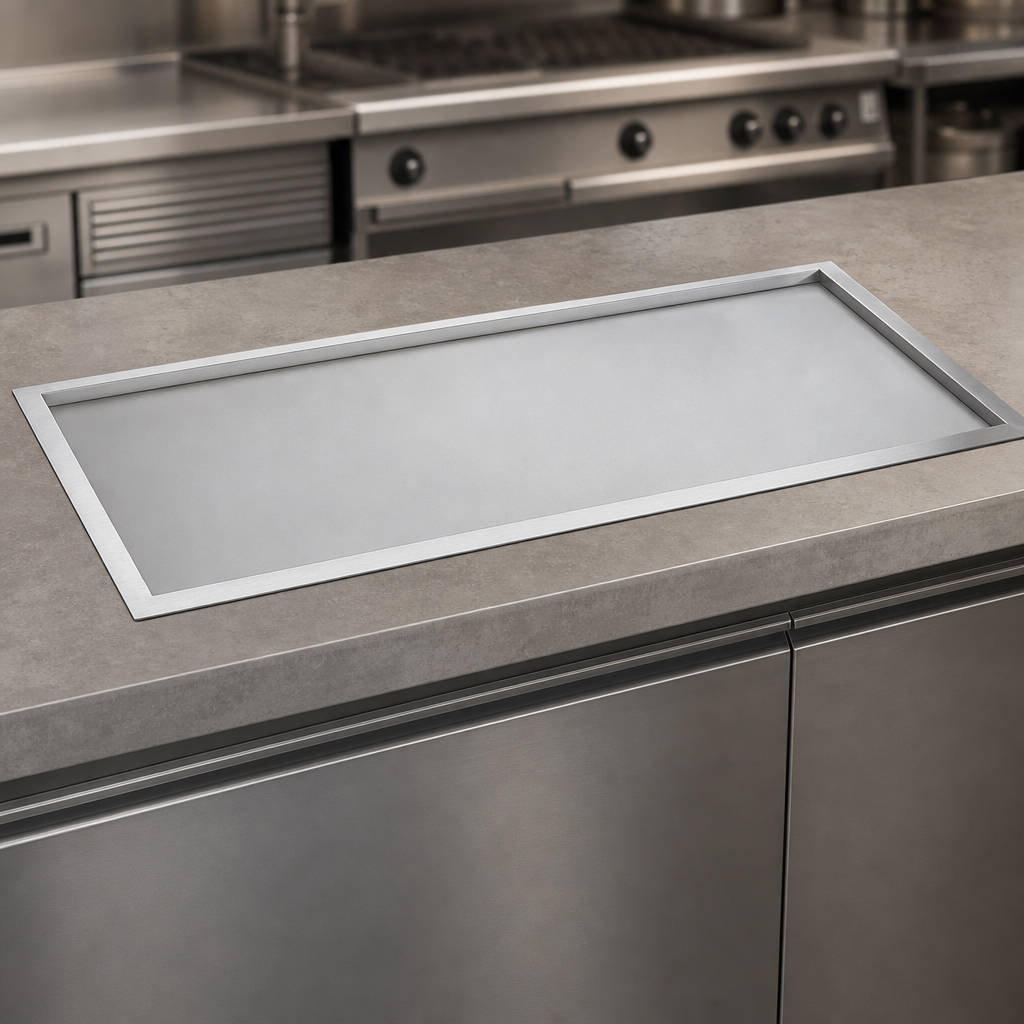

- Optional 1" (25 mm) flange edge makes drop-in installation fast and sanitary.
- 4" (102 mm) stainless sanitary legs supplied for counter applications.
- cCSAus & NSF certifications meet North-American safety and sanitation codes.
Performance you can count on

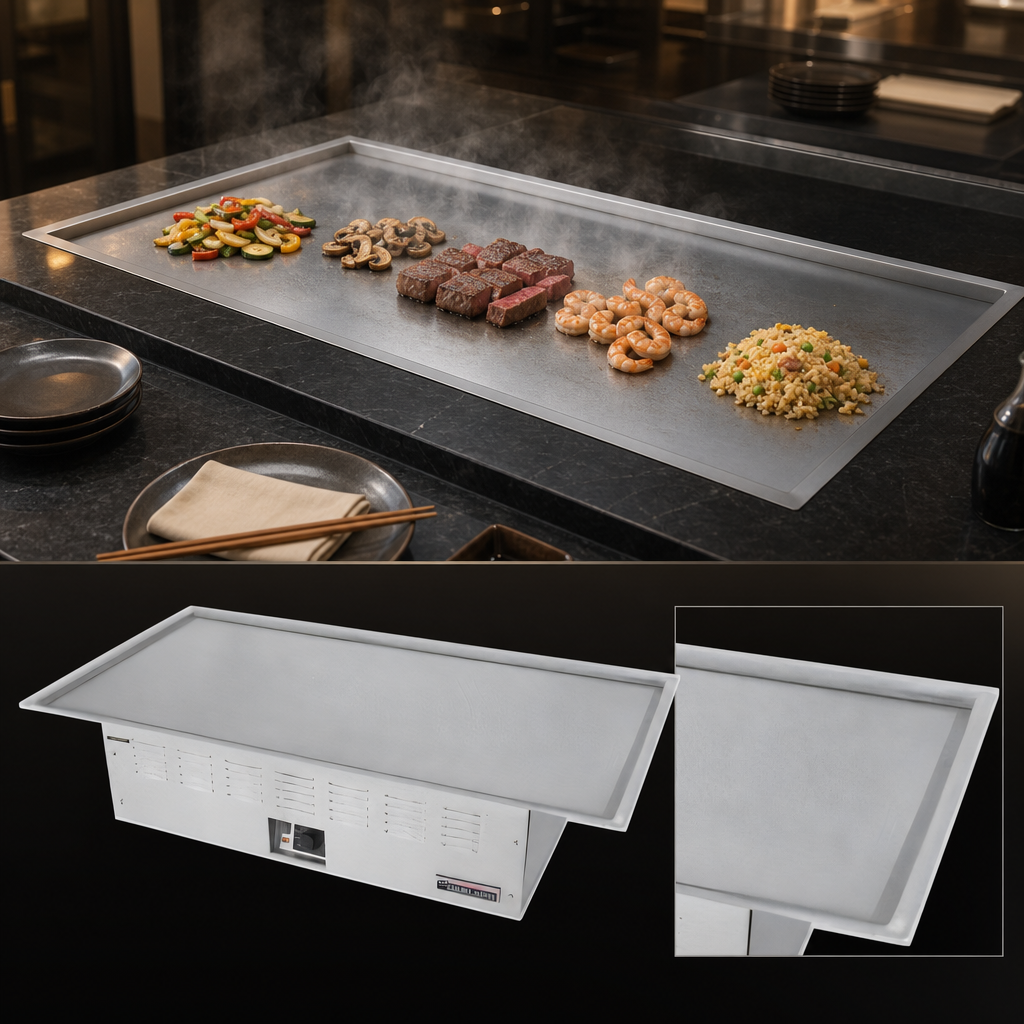

Whether you’re flash-searing steak, caramelising seafood or putting on a front-of-house show, the Garland Teppan-Yaki griddle gives chefs a generous sweet spot of uniform heat while keeping perimeter zones cooler for staging or resting. The result: faster service times, reduced energy waste and unforgettable dining experiences.
Technical specifications
Heated cooking zone | 11" × 34" (279 × 864 mm) |
---|---|
Griddle plate | 3/4" (19 mm) polished steel |
Temperature range | Up to 500 °F (260 °C) |
Total power | 6.7 kW |
Electrical | 208 or 240 V; single- or three-phase, field-selectable |
Nominal amps (1-phase) | 27.9 A @ 240 V | 32.2 A @ 208 V |
Nominal amps per phase (3-phase) |
240 V: 24.2 A / 14.0 A / 14.0 A 208 V: 28.0 A / 16.1 A / 16.1 A |
Dimensions (with flange) | 61 5/8" W × 26 9/16" D (1565 × 675 mm) |
Cut-out size (less flange) | 59 13/16" W × 24 1/4" D (1520 × 616 mm) |
Shipping weight | ≈ 385 lb (175 kg) |
Certifications | cCSAus, NSF |
Note: Garland equipment is intended for commercial use only. Installation must comply with local electrical codes and clearances for non-combustible construction.
