Garland E22-36-36GMX Teppanyaki Griddles
Description

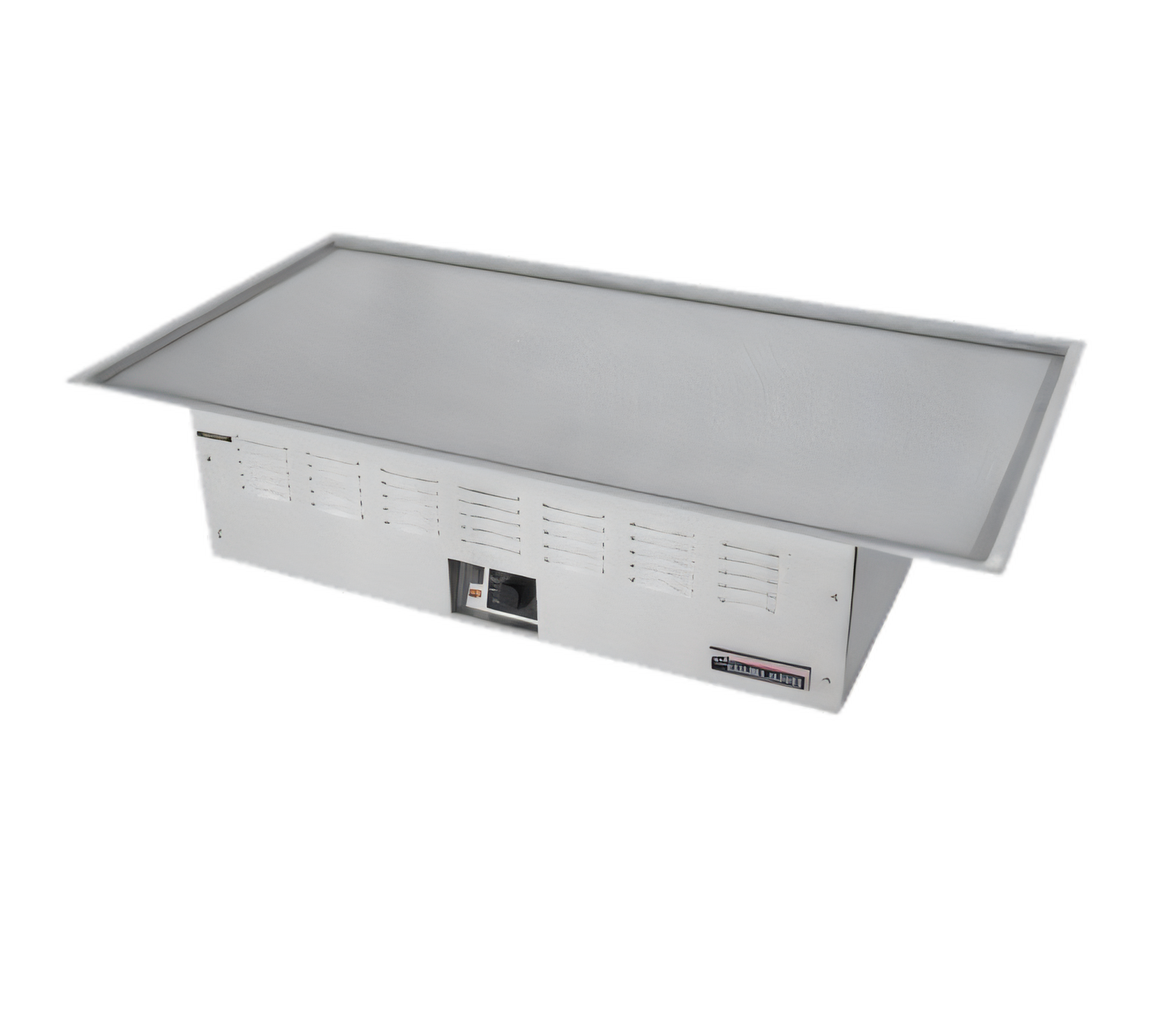

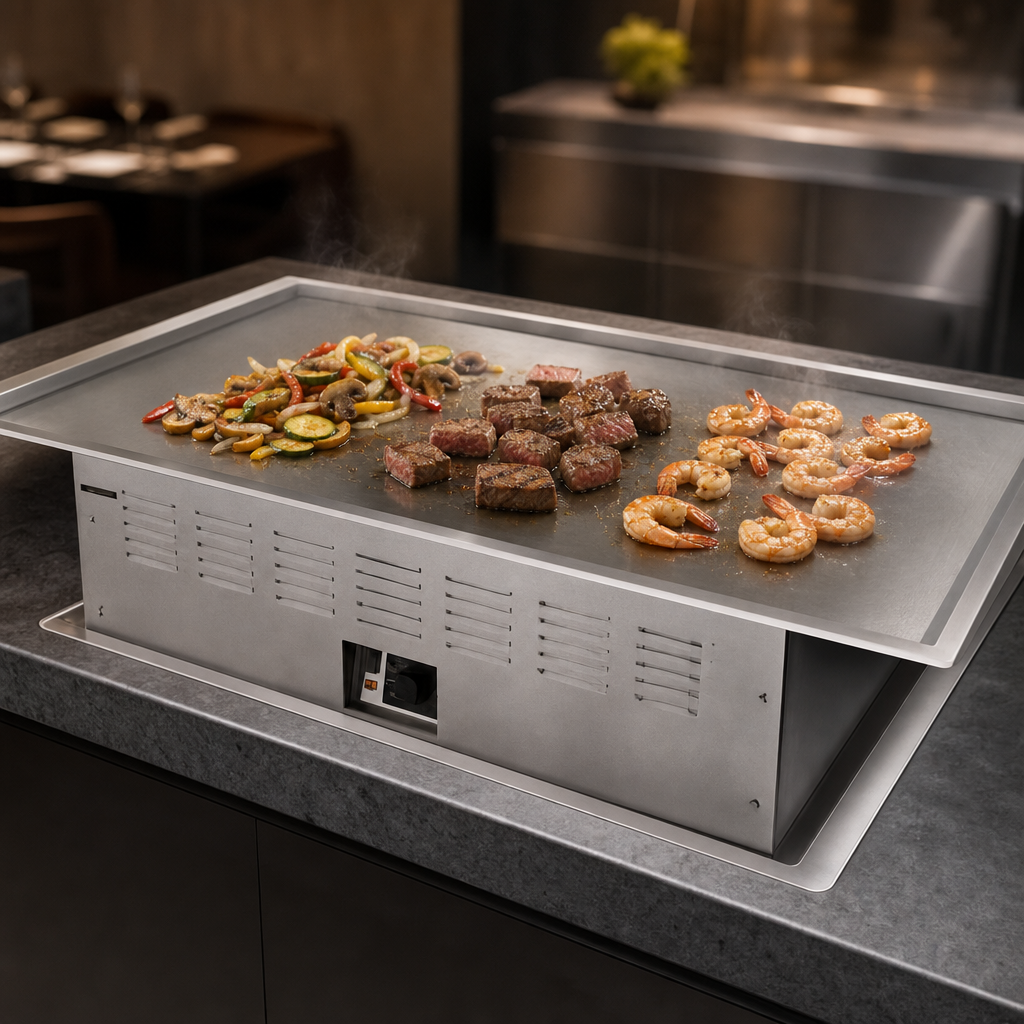

Garland E22-36-36GMX Teppan-Yaki Drop-In Electric Griddle – 36"
11" × 34" heated zone • 6.7 kW • NSF & cCSAusDesigned for high-volume sushi bars, hibachi tables and exhibition kitchens, Garland’s E22-36-36GMX delivers the traditional teppan-yaki experience in a sleek, drop-in package. The 3⁄4" thick steel plate heats fast, stays flat and provides the even, high heat required for dramatic stir-fry, searing and tabletop cooking – all while giving you the precision of an electronic thermostat up to 500 °F (260 °C).
Key Features

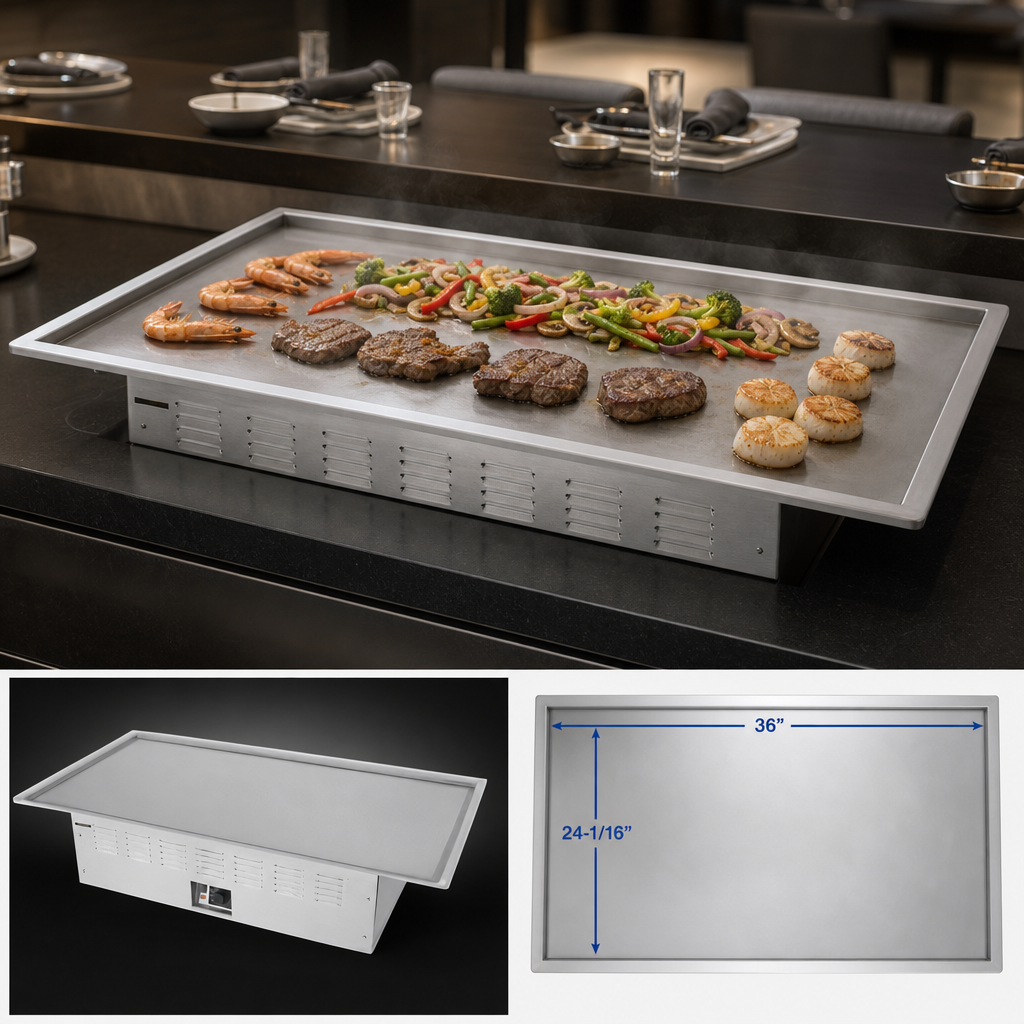

- 11" × 34" (279 × 864 mm) dedicated heated zone concentrates heat where you need it.
- 3⁄4" (19 mm) thick polished steel griddle plate resists warping and ensures even heat distribution.
- Electronic thermostat (+/- 10 °F accuracy) allows exact temperature selection up to 500 °F (260 °C).
- Rugged stainless-steel front & sides match modern open-kitchen aesthetics and wipe clean quickly.

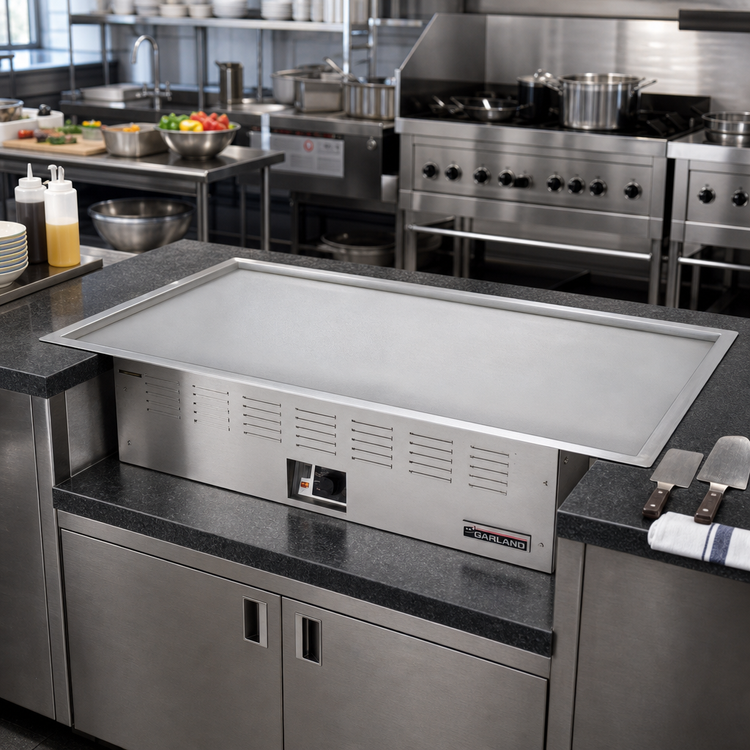

- Drop-in design sits flush in a non-combustible countertop for a seamless, guest-facing installation.
- 208 V or 240 V, single- or three-phase field-wireable connection (6.7 kW total).
- 4" (102 mm) stainless sanitary legs included for easy service bench setup.
- NSF listed & cCSAus certified for use in the United States and Canada.
Product Specifications
| Model | E22-36-36GMX |
|---|---|
| Cooking surface (usable) | 11" × 34" (279 × 864 mm) |
| Overall size (drop-in) | 35-13/16" W × 24-1/4" D (910 × 616 mm) |
| Overall size (with optional flange) | 37-5/8" W × 26-9/16" D (957 × 675 mm) |
| Plate thickness | 3⁄4" (19 mm) |
| Heat output | 6.7 kW total |
| Temperature range | Up to 500 °F (260 °C) |
| Shipping weight | 330 lb (150 kg) |
Electrical Requirements
| Voltage | Phase | Amperage |
|---|---|---|
| 240 V | Single | 27.9 A |
| Three | 24.2 A / phase | |
| 208 V | Single | 32.2 A |
| Three | 27.9 A / phase |
Field-convertible between single and three phase. Hard-wire connection required.
Installation Notes
- For non-combustible countertops only; ½" (12 mm) minimum side & rear clearance.
- Optional 1" (25 mm) flange available for faster drop-in mounting (sold separately).
- Refer to specification sheet for cut-out dimensions and cable entrance locations.
