Garland C48-NRS Garland Cuisine Gas Ranges
Description

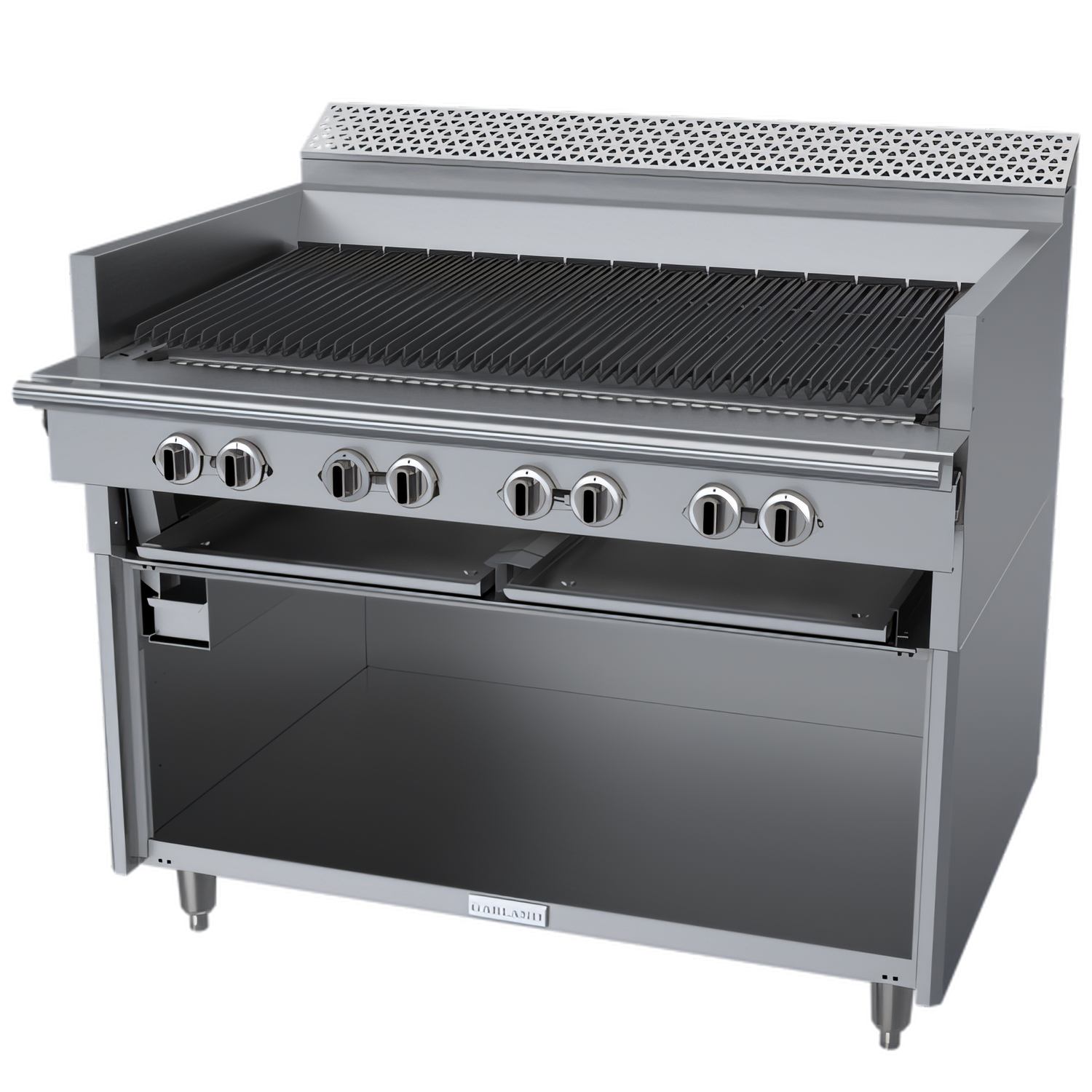

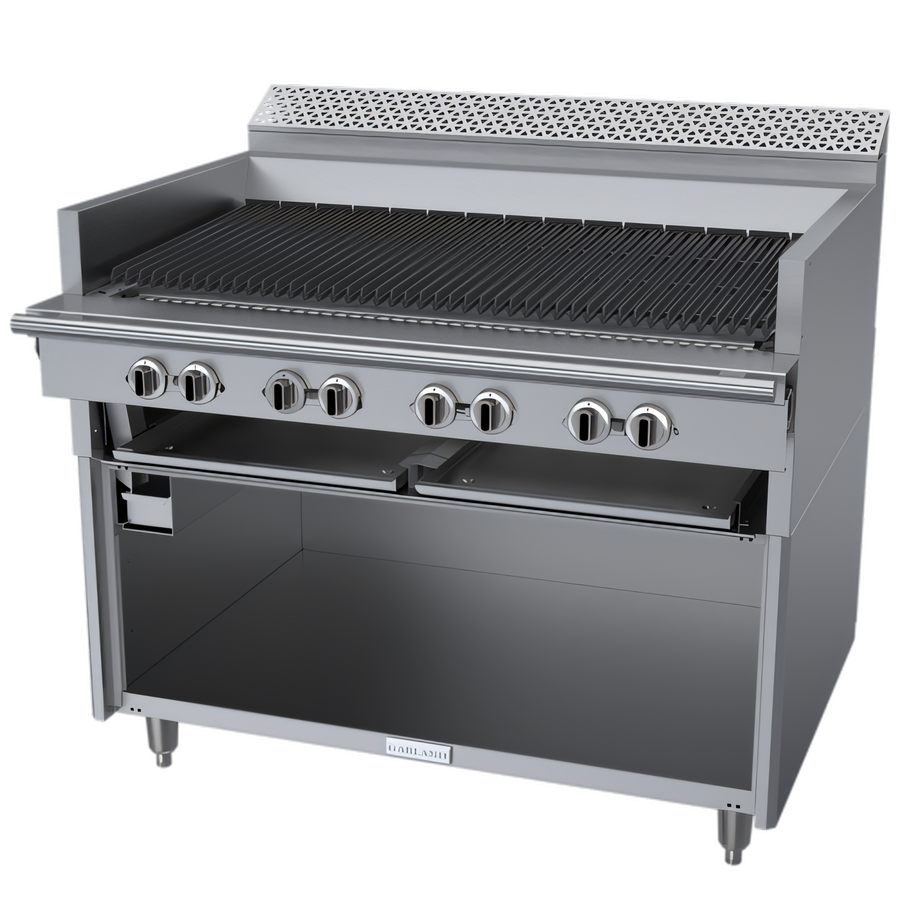

Cuisine Series 48" Heavy-Duty Radiant Charbroiler Range
Garland Model C48-NRS • 144,000 BTU Gas • Open Cabinet BaseTurn out steakhouse-quality sear marks night after night with the Garland Cuisine Series C48-NRS. Eight powerful 18 k BTU radiant burners sit beneath fixed, three-bar cast-iron grates to deliver the intense, even heat professional kitchens demand—while a rugged stainless-steel chassis stands up to years of punishing service.
Why you’ll love it
- Serious firepower – 144,000 BTU/h total input from (8) 18 k BTU burners.

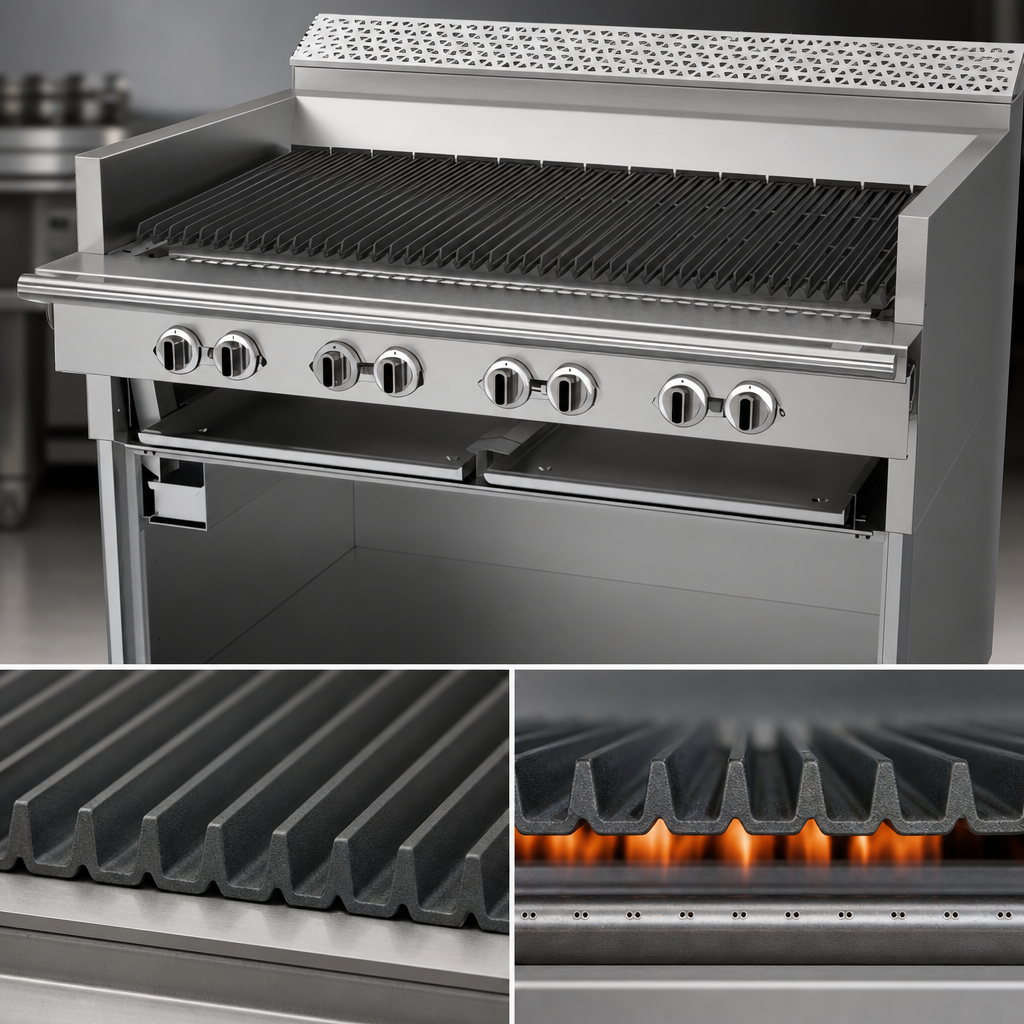

- Even, radiant heat – heavy cast-iron radiants below each burner tame open flames and minimise flare-ups.

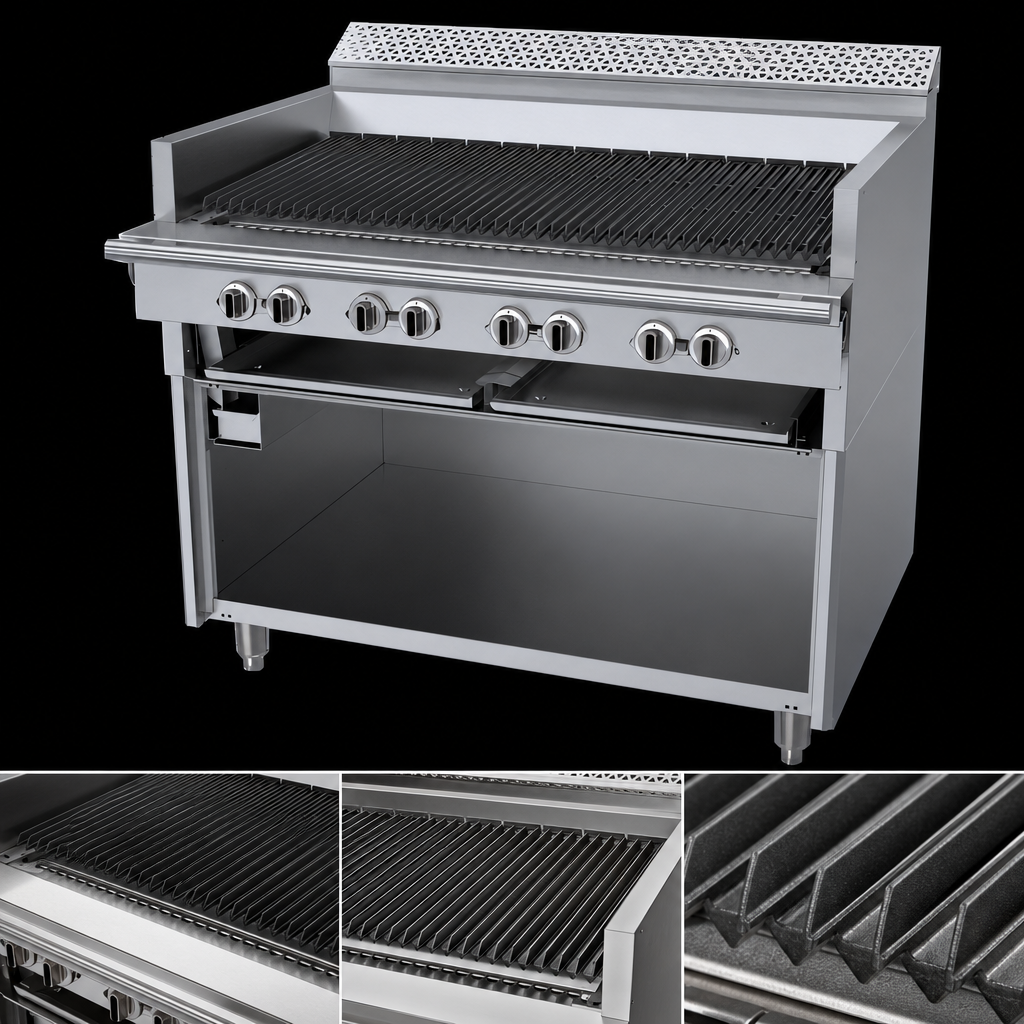

- Fixed cast-iron grate assembly – reversible three-bar design; one side features a grease trough for lean proteins & vegetables.
- Individual 6" burner controls – dial in zones for rare to well-done all on the same deck.
- Built for abuse – stainless-steel front, sides, stub-back, front rail and burner box resist dents and corrosion.

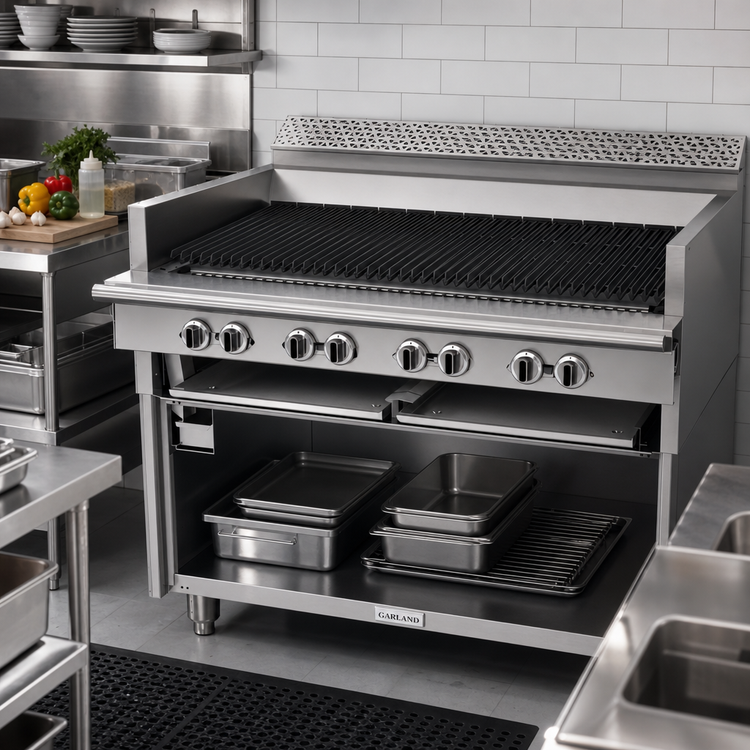

- Open cabinet base – keep sheet pans, hotel pans or utensils close at hand; optional doors available.
- Simple cleanup – split extra-large grease container lifts out from the front.
- Field-convertible gas – ships natural-gas ready; LP or rear-gas connection kits available.
- Safety & compliance – CSA Flame, CSA Star and NSF listed.
Technical Specifications
| Model | C48-NRS (radiant broiler, non-adjustable racks) |
|---|---|
| Overall width | 48 in / 1,219 mm |
| Overall depth | 32-5/8 in / 830 mm |
| Working height * | 38-7/8 in / 987 mm |
| Total BTU input | 144,000 BTU/h (NAT or LP) |
| Burner configuration | (8) × 18,000 BTU cast-iron radiant burners |
| Gas connection | 1-1/4" NPT front manifold (standard) — optional rear 3/4" NPT |
| Manifold pressure | 6" WC (Natural) / 10" WC (LP) |
| Clearances (combustible) |
Sides 10" / Back 6" |
| Legs | 6" stainless-steel, height-adjustable |
| Certifications | CSA Flame, CSA Star, NSF |
*Height shown on supplied 6" legs; casters or curb mounting will affect final height.
Popular Options & Accessories
- Rear 3/4" gas connection kit
- Stainless-steel cabinet doors
- Flanged feet for floor-bolting
- 5" or 6" non-marking swivel casters (front brakes)
- 1/9-pan rail extension
Give your kitchen the muscle it needs—upgrade to the Garland Cuisine Series 48" Heavy-Duty Charbroiler Range today and taste the difference power makes.
