Garland C48-1S Garland Cuisine Gas Ranges
$9,329.00
Unit price
/
Unavailable
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Garland C48-1S Garland Cuisine Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Garland C48-1S Garland Cuisine Gas Ranges
$9,329.00
Unit price
/
Unavailable
Description
Garland Cuisine Series 48" Heavy-Duty Gas Griddle Range – Storage Base (Model C48-1S)
120,000 BTU | Hi-Lo Valve Control | CSA & NSF ListedBuilt for demanding, high-volume kitchens, the Garland Cuisine C48-1S combines a full-size 48 inch griddle with a rugged, stainless-steel storage base, giving chefs the performance they need on the line and the organization they want below it.
Key benefits

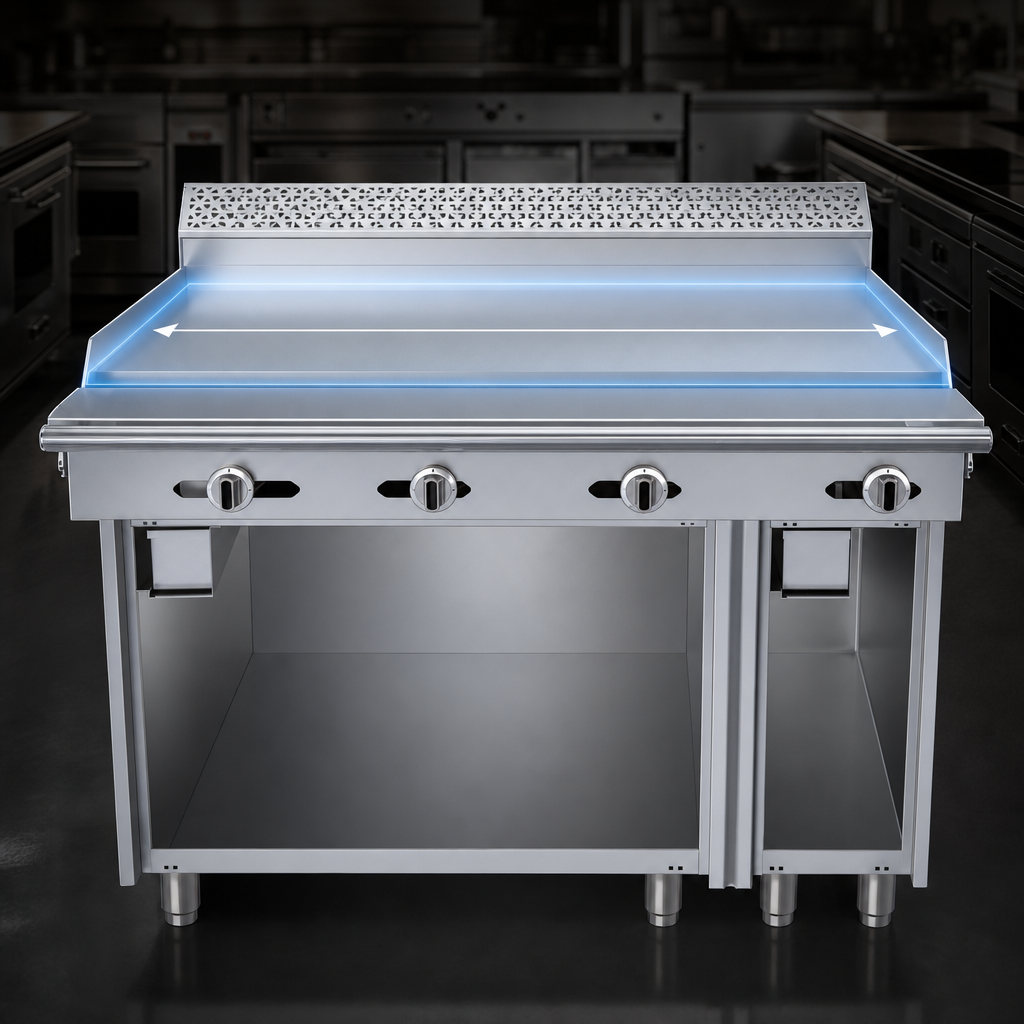

- Massive cooking surface – 48" (1219 mm) griddle with a 1" (25 mm) thick polished steel plate for superior heat retention and recovery.
- Power to spare – Four 30,000 BTU burners (one every 12") deliver a combined 120,000 BTU/h for fast sears and consistent production.

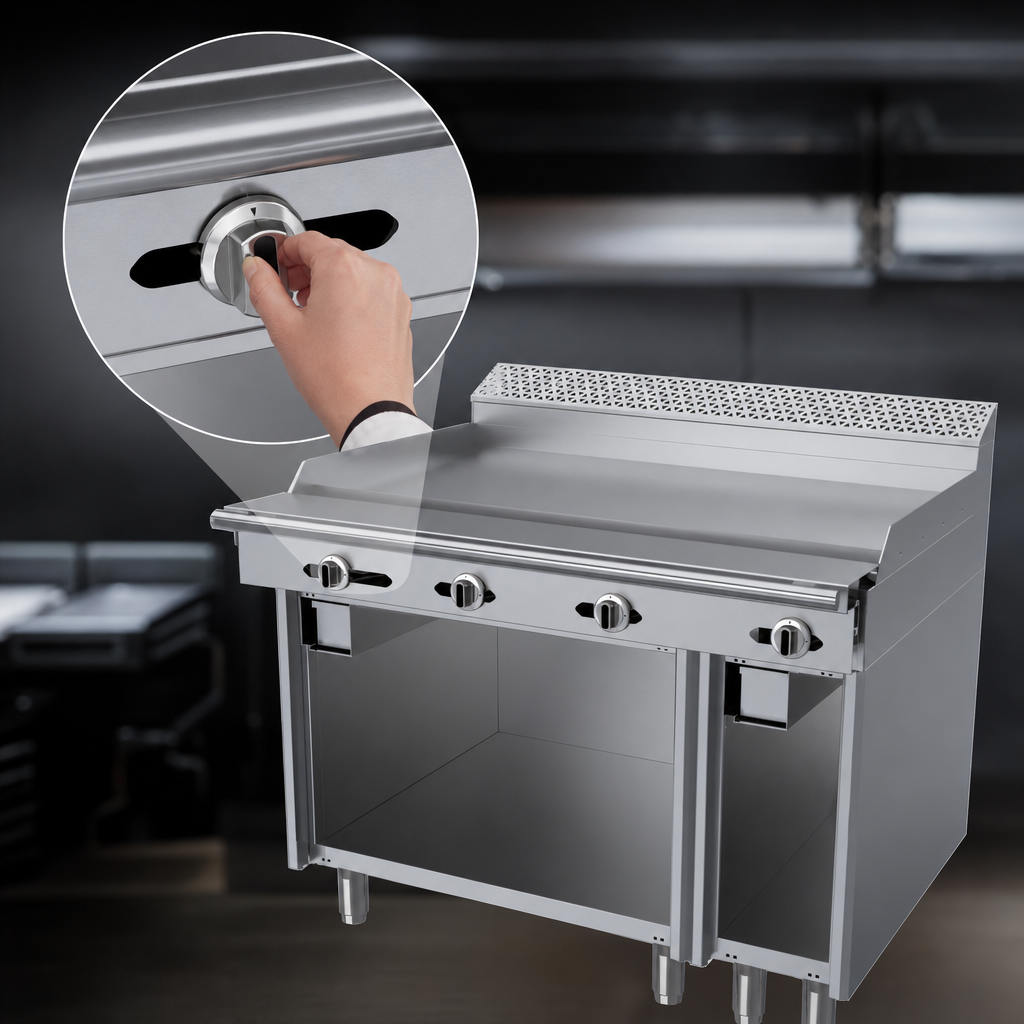

- Precision manual control – Hi-Lo valve knobs allow instant flame adjustment for each 12" zone.
- Cleaner, safer workspace – 3" (76 mm) wide grease trough and large front-mounted grease drawer keep drippings contained.
- Durable, all-stainless exterior – Front, sides, plate rail and burner box resist corrosion and wipe down easily.
- Integrated storage – Open cabinet base with two compartments (36" LH & 12" RH) keeps sheet pans, utensils or smallwares right where you need them.
- 7" stainless stub back protects surrounding walls and simplifies chef-side installation.
- Adjustable 6" legs provide a level stance on uneven floors and meet sanitation clearances.
- Field-ready – 1 ¼" NPT front gas manifold, ¾" NPT rear connection, and factory CSA Flame / Star & NSF certifications.
Applications
- Short-order & diner griddle stations
- High-volume institutional kitchens
- Hotel banquet production lines
- Chain restaurants standardizing 48" cook zones
Technical specifications
| Cooking surface | 48" W x 24" D, 1" thick steel plate with 3" grease trough |
|---|---|
| Heat input | 120,000 BTU/h (4 × 30,000 BTU burners) |
| Controls | Hi-Lo manual valves – one per 12" section |
| Base configuration | Open cabinet; two storage areas: 36" left / 12" right |
| Gas connection | Front 1 ¼" NPT manifold; rear ¾" NPT (Nat. 7" WC min / 6" WC operating | Prop. 11" WC min / 10" WC operating) |
| Exterior construction | Stainless steel front, sides, plate rail, burner box & 7" backguard |
| Overall dimensions (W × D × H) | 48" × 38 ⅜" × 37 ⅜" (to cook surface) / 65 ½" with optional high shelf |
| Legs | 6" stainless steel, adjustable |
| Shipping weight | ≈ 940 lb / 426 kg |
| Certifications | CSA Flame, CSA Star, NSF |
Optional accessories (sold separately)
- Single or double deck high-shelf/back riser
- Stainless steel cabinet doors
- 5" or 6" locking swivel casters
- Gas flex hose with quick disconnect
Need a thermostat-controlled plate, convection oven base, or modular top? Explore the full Garland Cuisine line or chat with us for a tailored quote.
Installation note: Gas equipment must be installed by a licensed professional and connected with an approved restraint when mounted on casters. Verify local code requirements prior to purchase.
Features & Specs
Features & Specs
Manufacturer
Garland
Brand_name
Garland Cuisine
Certifications
NSF, CSA Star, CSA Flame
Height
42.0in
Width
48.0in
Depth
39.88in
Shipping Weight
940.0lbs
Plate Thickness
1.000" = 1"
Exterior Finish
stainless steel front & sides
Base
cabinet(s)
Top
(1) griddle
Specifications
Garland Cuisine Series Heavy Duty Range, gas, 48", (1) 48" griddle with 1" thick steel plate, Hi-lo valve controls, 7" backguard, stainless steel front, sides, plate rail & burner box, open cabinet base with (2) storage areas: 36" left and 12" right, 6" adjustable legs, 120,000 BTU, CSA Flame, CSA Star, NSF (Garland)
