Garland C48-1M Garland Cuisine Gas Ranges

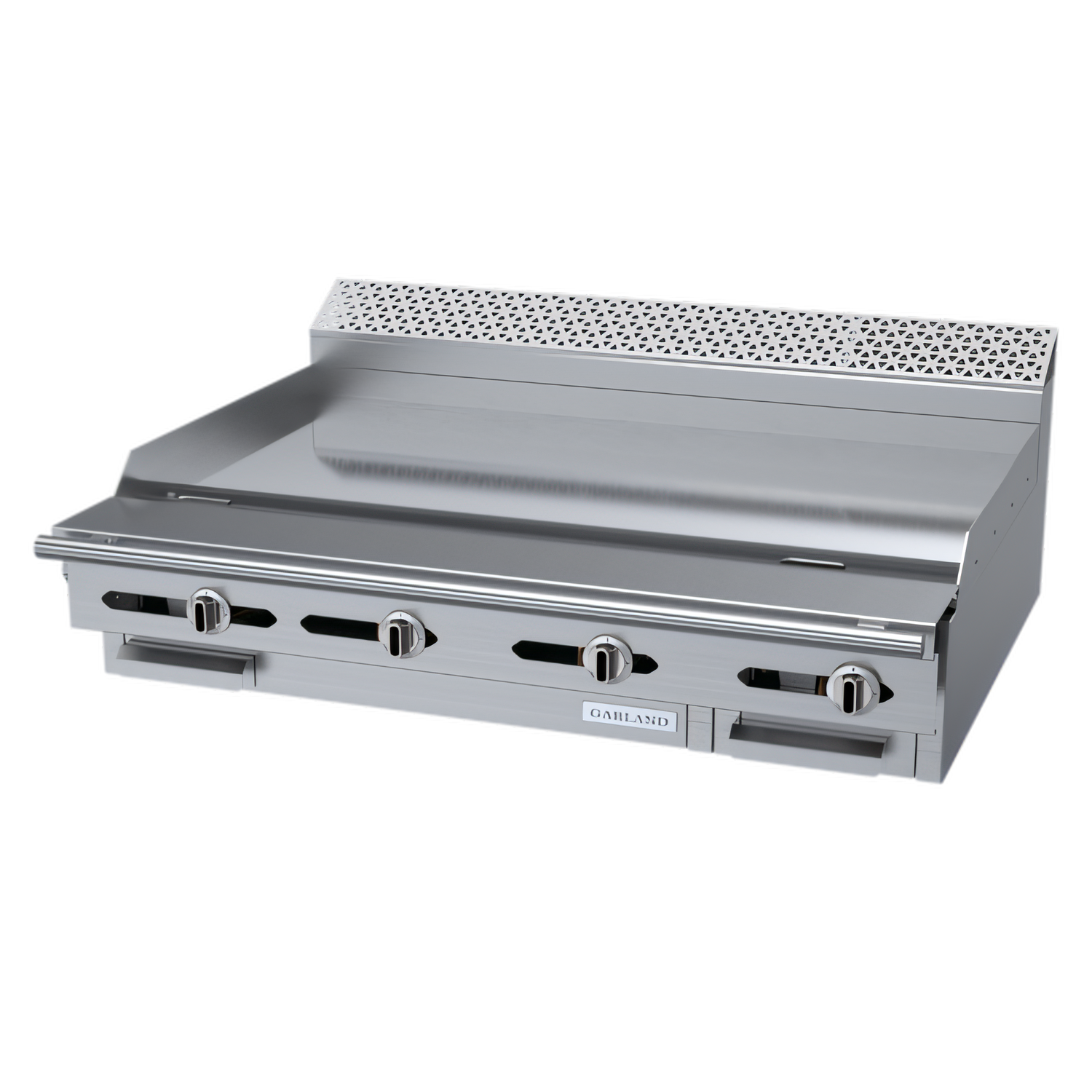

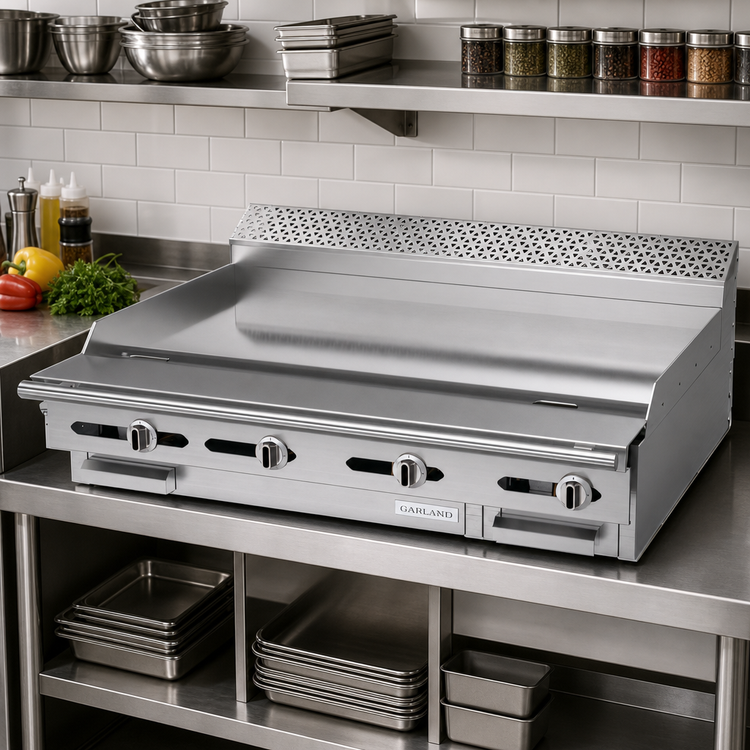

Garland Cuisine Series 48" Heavy-Duty Modular Gas Griddle Range

Deliver nonstop breakfast, lunch and dinner service with the power and durability of Garland’s Cuisine Series. The C48-1M packs a full 48 inches of 1-inch thick steel griddle into a compact modular top that drops easily onto a stand, refrigerated base or chef’s counter.

Key Features

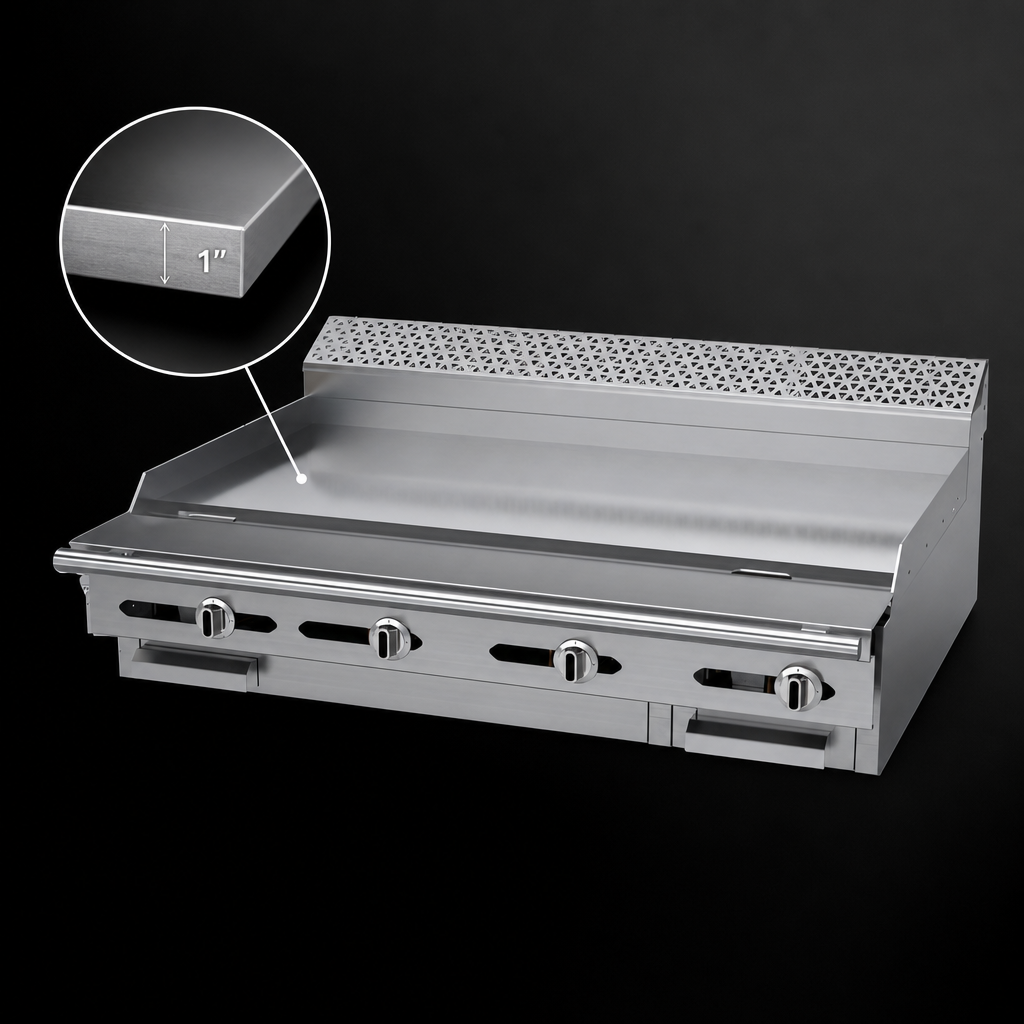

• 1" (25 mm) thick polished steel griddle plate for superior heat retention and recovery.
• Four 30,000 BTU cast-iron burners (one every 12") — total input 120,000 BTU/hr.

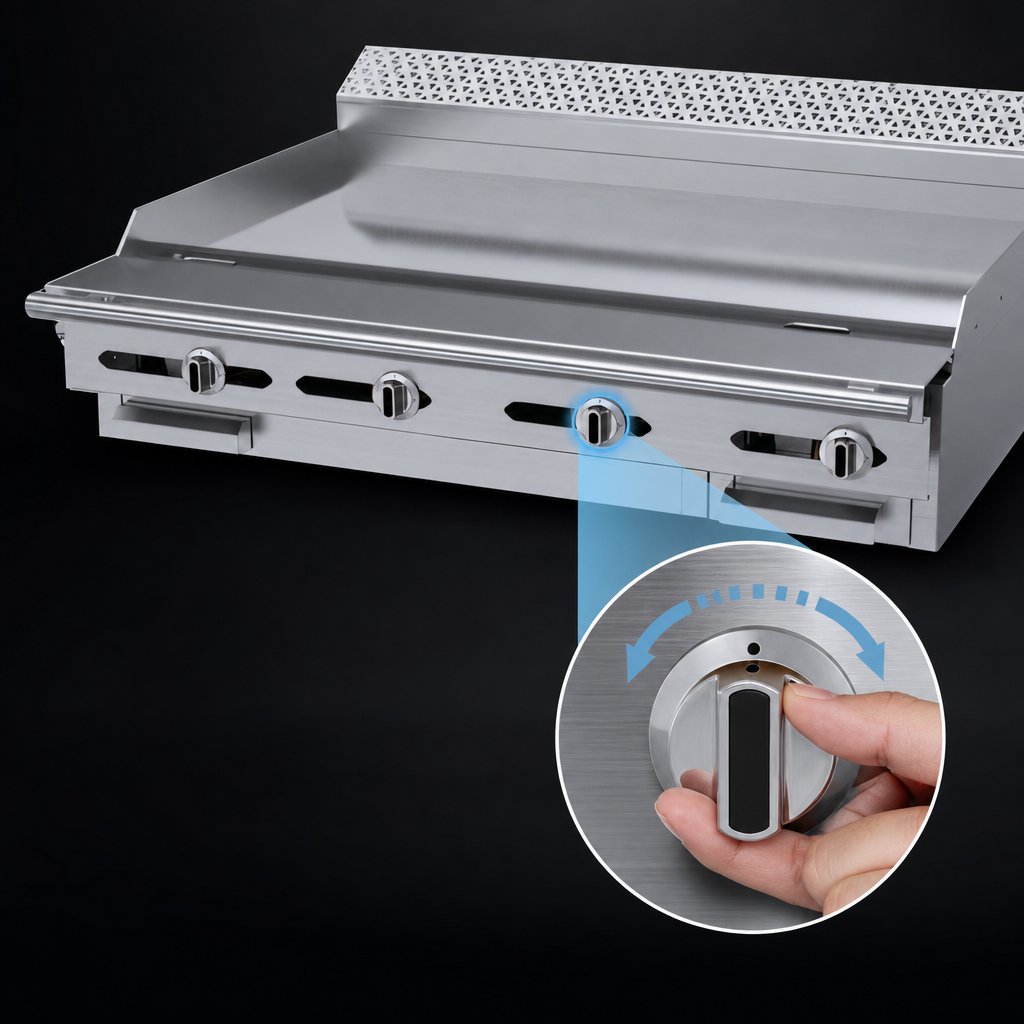

• Independent hi-lo valve controls with standing pilots for instant, precise zone management.
• Generous 3" (76 mm) front grease trough and large removable drawer for fast clean-up.
• 7" (178 mm) stainless stub backguard keeps splatter contained without sacrificing visibility.
• All-stainless exterior (front, sides, continuous plate rail & burner box) resists corrosion and wipes clean.
• 1 1/4" NPT front gas manifold allows single-piece installation or easy battery connection.
• 6" (152 mm) adjustable stainless steel legs supplied; optional casters or floor stand available.
• Modular construction mounts directly on Polar Cuisine refrigerated bases or equipment stands.
• Certified to CSA Flame, CSA Star and NSF standards.

At-a-Glance Specifications

*Height shown is for the griddle module only. Working height is approximately 36" when installed on legs or a stand.

Ideal For

• High-volume diners & family restaurants
• Hotels, banquet & room-service kitchens
• QSR & fast-casual concepts needing an all-purpose flat-top
• Catering commissaries & ghost kitchens

Popular Options & Accessories

• Full-height or double-deck stainless steel high shelves
• 5" non-marking swivel casters (front brakes)
• Equipment stand with undershelf
• Gas flex-hose kits & regulators (¾" – 1¼")
• Grooved or half-grooved griddle surface
