Garland  |  Garland Cuisine  |  SKU: C48-1C

Garland C48-1C Garland Cuisine Gas Ranges

$11,149.00
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Cutsheet Cutsheet Garland cuisine models guide Owner's manual Check list Brochure
Related Searches
Commercial Gas Ranges Commercial Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

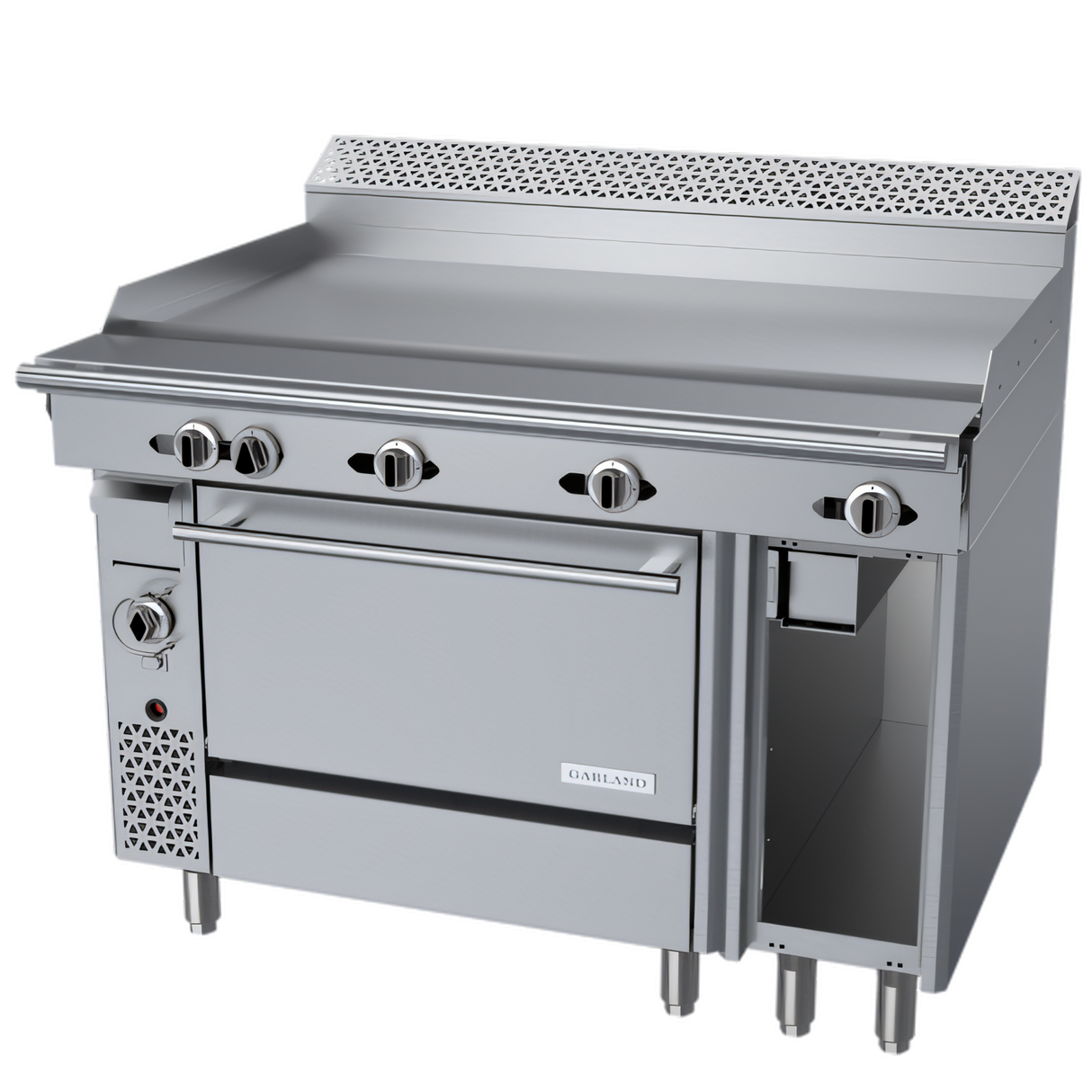

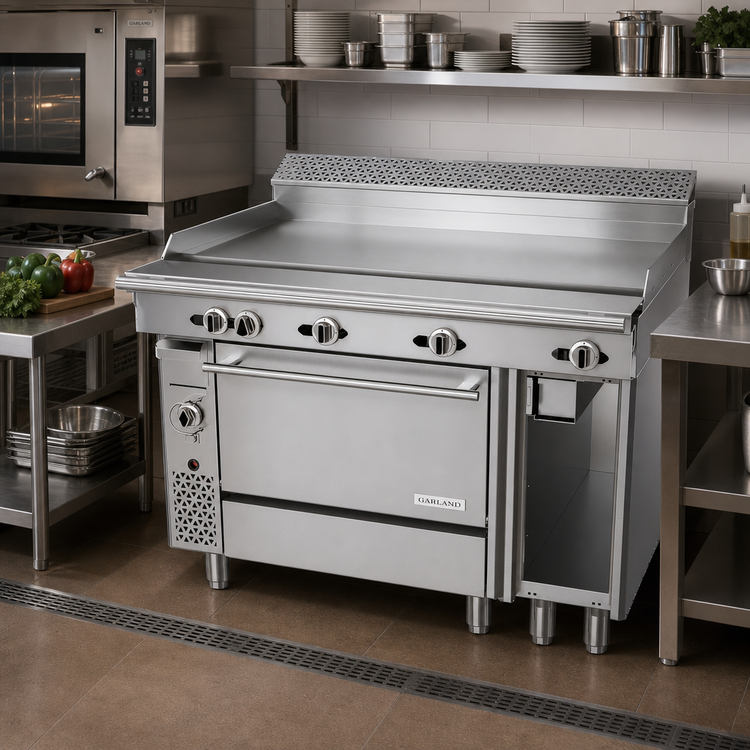

Garland Cuisine Series 48" Heavy-Duty Gas Griddle Range with Convection Oven & Right-Side Storage

Model C48-1C-RSB | Natural Gas

Built for high-volume operations that need both high-heat searing and dependable baking, this Garland Cuisine Series range combines a full-width 1" steel griddle, a high-performance convection oven, and an open storage base in one rugged 48″ footprint.

Top Features

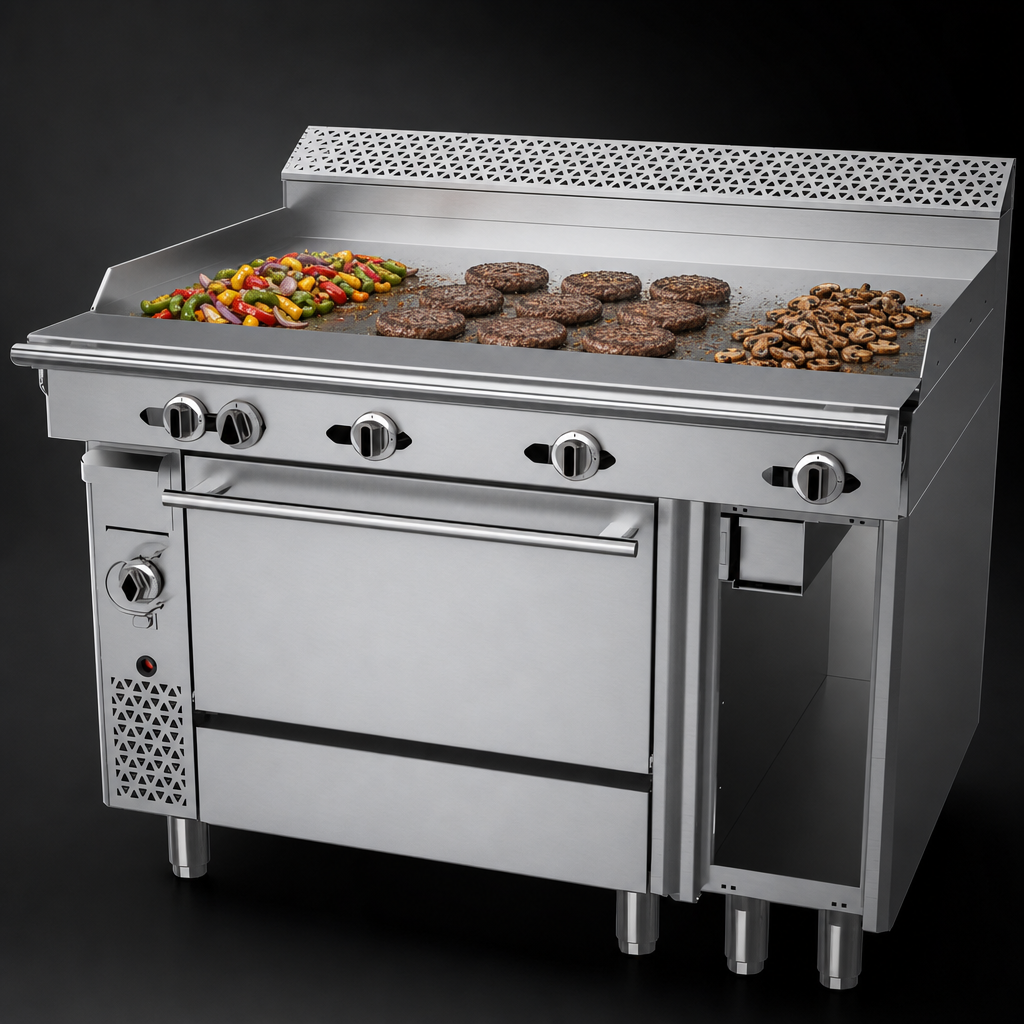

  • 48″ griddle surface forged from 1″ (25 mm) thick polished steel for exceptional heat retention & recovery.

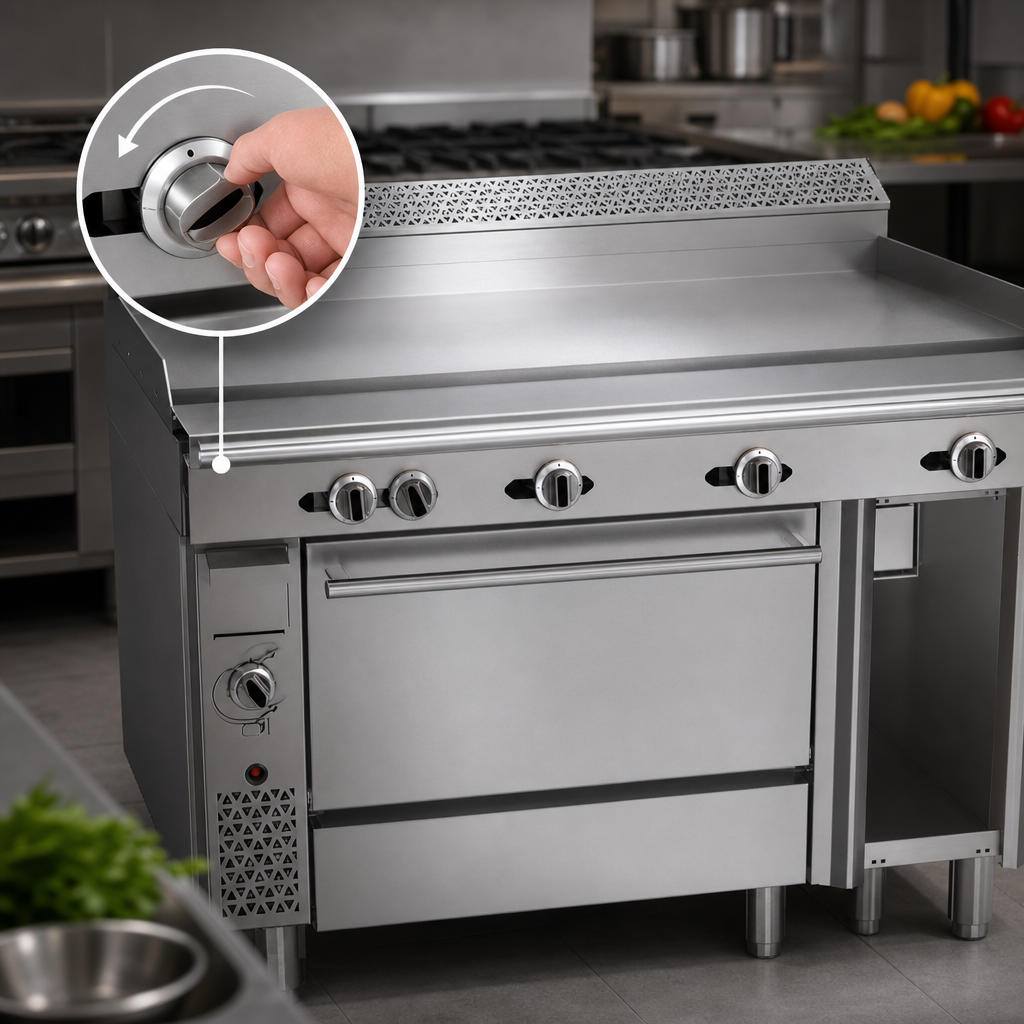

  • Four 30,000 BTU cast-iron burners (one per 12″ section) with simple Hi-Lo valve controls.
  • 3″ (76 mm) wide grease trough and front-mounted drawer for quick, mess-free clean-up.
  • 7″ (178 mm) stainless stub backguard protects walls while maintaining a low profile.
  • Left-side convection oven (37,000 BTU) with forced-air circulation, 3 chrome racks, and 3 rack positions.
  • Open right-side storage base keeps sheet pans, utensils, or cleaning supplies within reach.
  • All-stainless front, sides, plate rail, and burner box resist corrosion and wipe clean effortlessly.
  • 6″ (152 mm) adjustable stainless legs for easy leveling and floor cleaning access.
  • Front 1-1/4″ NPT gas manifold – battery easily with additional Cuisine Series units.
  • 120 V, 0.6 A convection-fan motor with factory-installed NEMA 5-15P cord & plug.

Why It’s Better

  • Thick plate plus powerful burners mean lightning-fast temperature recovery after loading.
  • Convection oven cuts bake times by up to 25 % versus standard ovens.
  • Open base adds valuable storage without increasing overall width.
  • Durable stainless exterior gives your cookline a clean, professional look shift after shift.

Certifications

  • CSA Flame & CSA Star (gas safety)
  • NSF (sanitation)

Technical Specifications

Cook surface width 48″ / 1219 mm
Overall depth 39 3⁄8″ / 1001 mm
Height (to cook surface) 37 3⁄8″ / 950 mm
Height (to backguard top) 41 5⁄8″ / 1058 mm
Total input (Natural Gas) 160,000 BTU/h
Griddle burners 4 × 30,000 BTU/h
Convection oven burner 1 × 37,000 BTU/h
Gas connection 1-1/4″ NPT (front)
Gas pressure (min. supply) 7″ WC (Natural Gas)
Electrical 120 V / 60 Hz / 1-ph, 0.6 A, NEMA 5-15P
Oven interior (W × D × H) 26 1⁄4″ × 25″ × 13 1⁄2″ (667 × 635 × 343 mm)
Combustible clearances 10″ sides  |  6″ rear
Legs 6″ adjustable stainless steel

Looking for a thermostatic griddle, rear gas connection, or custom battery line-up? Ask our team about additional Garland Cuisine configurations and accessories.

Installation Note: This unit ships for Natural Gas and must be installed by a qualified technician. When mounted on casters, a suitable restraining device is required by code.

Features & Specs

Manufacturer

Garland

Brand_name

Garland Cuisine

Certifications

NSF, CSA Star, CSA Flame

Height

42.0in

Width

48.0in

Depth

32.69in

Shipping Weight

1140.0lbs

Plate Thickness

1.000" = 1"

Top

(1) griddle

Base

cabinet(s)

Exterior Finish

stainless steel front & sides

Specifications

Garland Cuisine Series Heavy Duty Range, gas, 48", (1) 48" griddle with 1" thick steel plate, Hi-Lo valve controls, 7" backguard, stainless steel front, sides, plate rail & burner box, (1) convection oven w/ 3 racks, (1) open storage base on right only, 6" adjustable legs, 160,000 BTU (NG), 120V/60/1-ph, 0.6A, NEMA 5-15P cord & plug, CSA Flame, CSA Star, NSF (Garland)
