Garland C48-1-1R Garland Cuisine Gas Ranges
Description

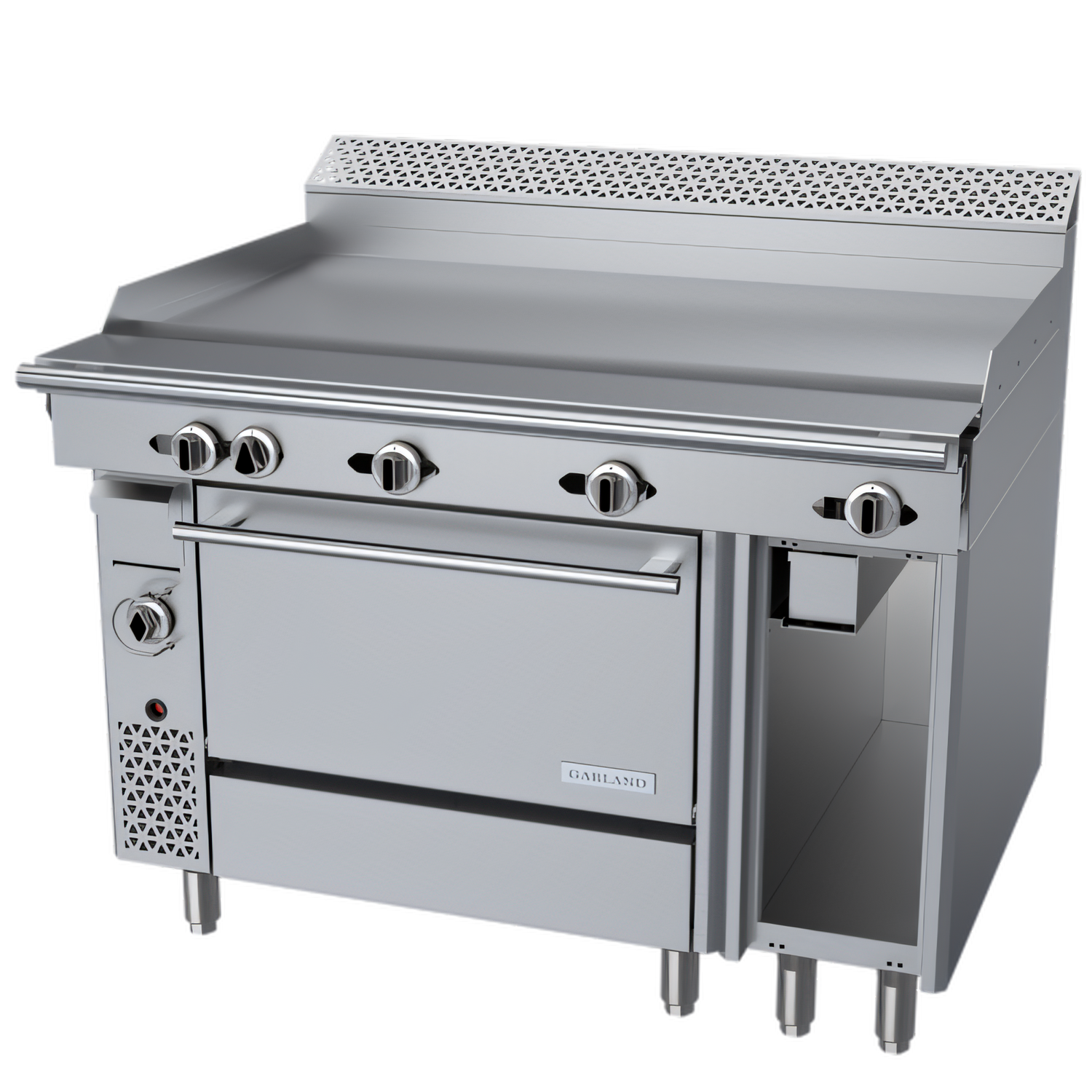

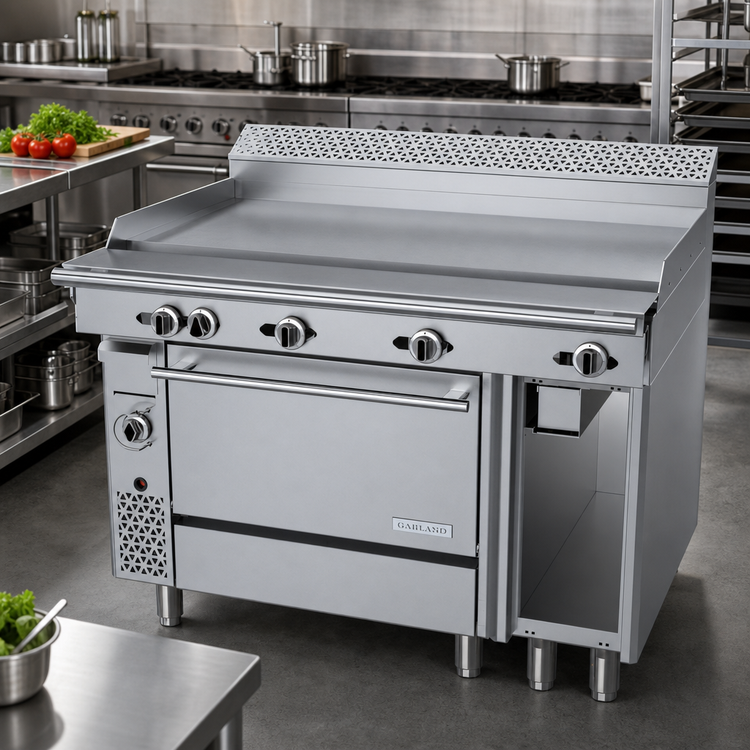

Garland Cuisine Series 48" Heavy-Duty Gas Range with Thermostatic Griddle & Standard Oven
Model C48-1-1R | 160,000 BTU (Natural Gas)Engineered for relentless commercial service, the Garland Cuisine Series C48-1-1R combines a full-width 1" thick thermostatic griddle, a high-performance standard oven, and a convenient open right-hand storage base—delivering the speed, consistency and rugged durability busy kitchens demand.
Why You’ll Love It

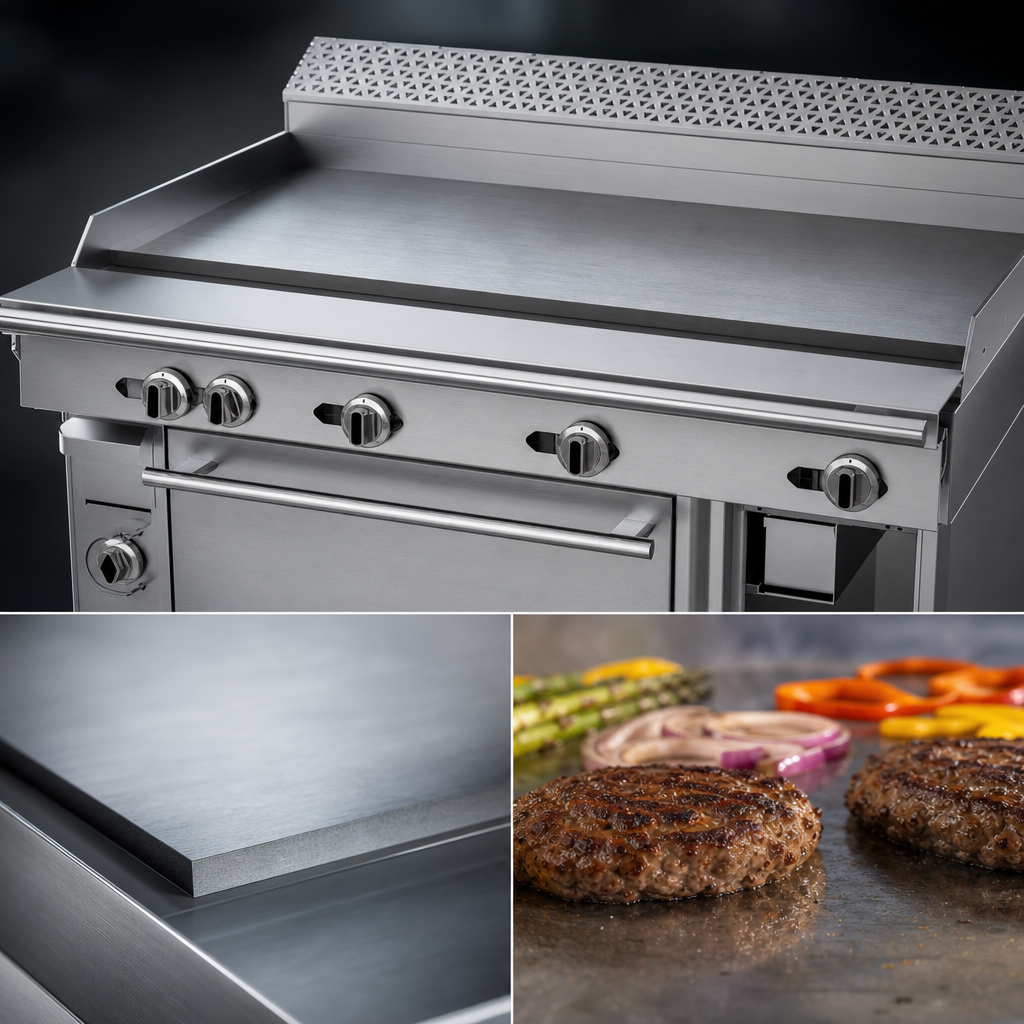

- 1" (25 mm) thick, 48" griddle plate distributes heat evenly and recovers fast during peak periods.

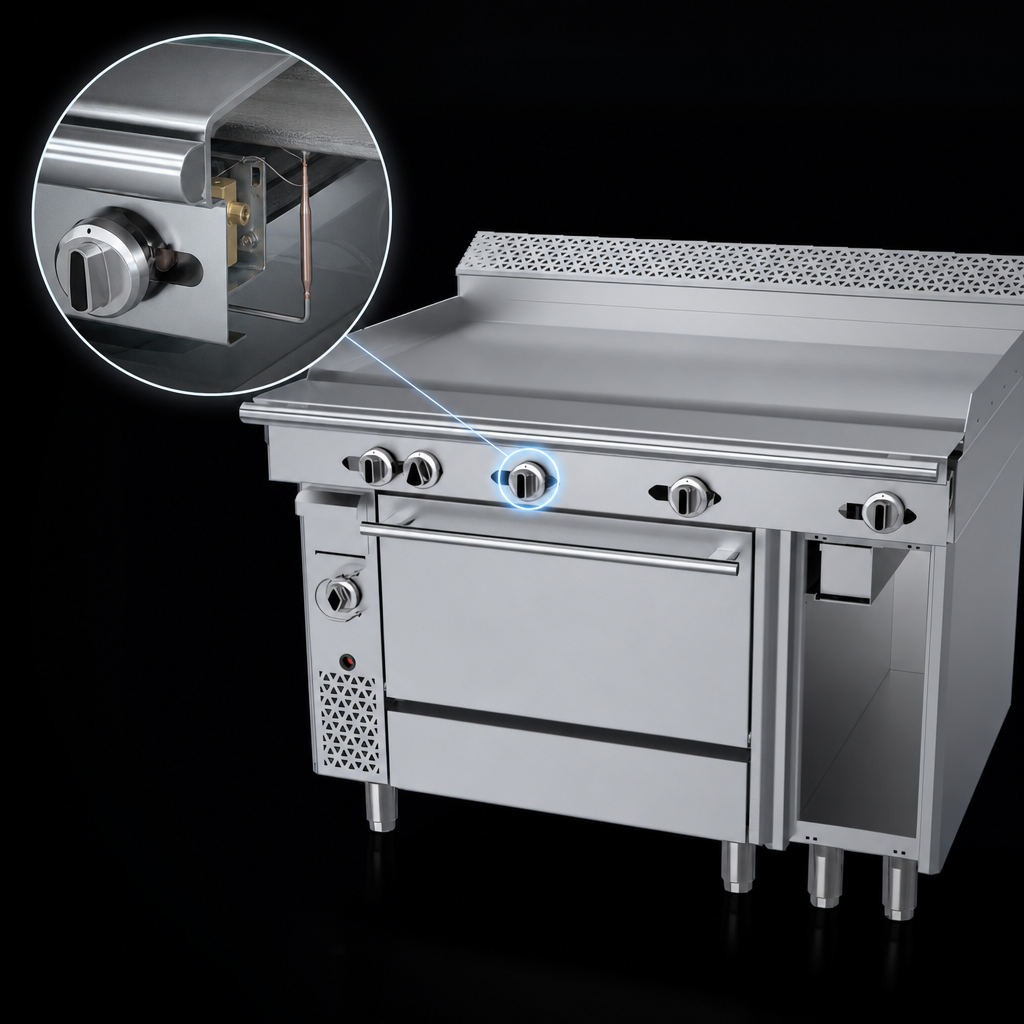

- Embedded-bulb thermostatic controls hold set temperatures from low to 450 °F (232 °C) for precise results across breakfast, lunch and dinner menus.
- 160,000 BTU total output (4 × 30 k BTU griddle burners + 40 k BTU oven burner) keeps production moving.
- Standard oven accepts full-size sheet pans front-to-back; 4 rack positions and 1 chrome rack included.
- Open storage base on the operator’s right keeps sauté pans, hotel pans or smallwares within easy reach.
- All-stainless exterior—front, sides, plate rail and burner box—stands up to daily heavy use and wipes clean quickly.
- 7" stainless stub backguard protects the wall while maintaining a low profile for island cooking or chef-side service.
- 6" adjustable stainless steel legs simplify leveling and let you clean underneath the unit with ease.
- 1¼" NPT front gas manifold enables quick tie-in to existing cookline batteries; optional rear connection available.
- Certified to CSA Flame, CSA Star and NSF standards for safety and sanitation.
Performance & Technical Specifications
| Overall width | 48" / 1219 mm |
|---|---|
| Cooking surface | 48" × 24" griddle, 1" thick steel plate |
| Griddle temperature range | Low – 450 °F (232 °C) |
| Total BTU (Natural Gas) | 160,000 BTU/h |
| Griddle burners | 4 × 30,000 BTU/h |
| Oven burner | 40,000 BTU/h | Thermostat 150 – 500 °F (66 – 260 °C) |
| Oven interior (H × W × D) | 13.5" × 26.25" × 29" (343 × 667 × 737 mm) |
| Open storage base | 12" right-hand section, open front |
| Gas connection | 1¼" NPT front manifold (rear optional) |
| Required gas pressure | Min 7" WC (NAT) | 11" WC (LP) |
| Combustible clearances | Sides 10" (254 mm) | Back 6" (152 mm) |
| Shipping weight | ≈ 1,140 lb / 517 kg |
| Certifications | CSA Flame, CSA Star, NSF |
Perfect For
- High-volume diners and cafés
- Hotel and resort production kitchens
- Catering commissaries & ghost kitchens
- Institutional foodservice—schools, healthcare & correctional facilities
Need a different backguard height, rear gas connection or casters? Our specialists can configure a Garland Cuisine Range to match your exact line-up—contact us for details.
