Garland C48-1-1M Garland Cuisine Gas Ranges
Description
Garland Cuisine Series 48" Heavy-Duty Thermostatic Griddle (Modular Top)
Model C48-1-1M | 120,000 BTU | CSA Flame & Star • NSFBuilt for the long haul and engineered for precise, repeatable results, the Garland Cuisine Series modular griddle range puts 48 inches of true 1-inch steel power on your cookline—without tying you to a fixed oven base. Add it to a battery, drop it on a stand or mount it on a refrigerated base—the choice is yours.
Key Benefits

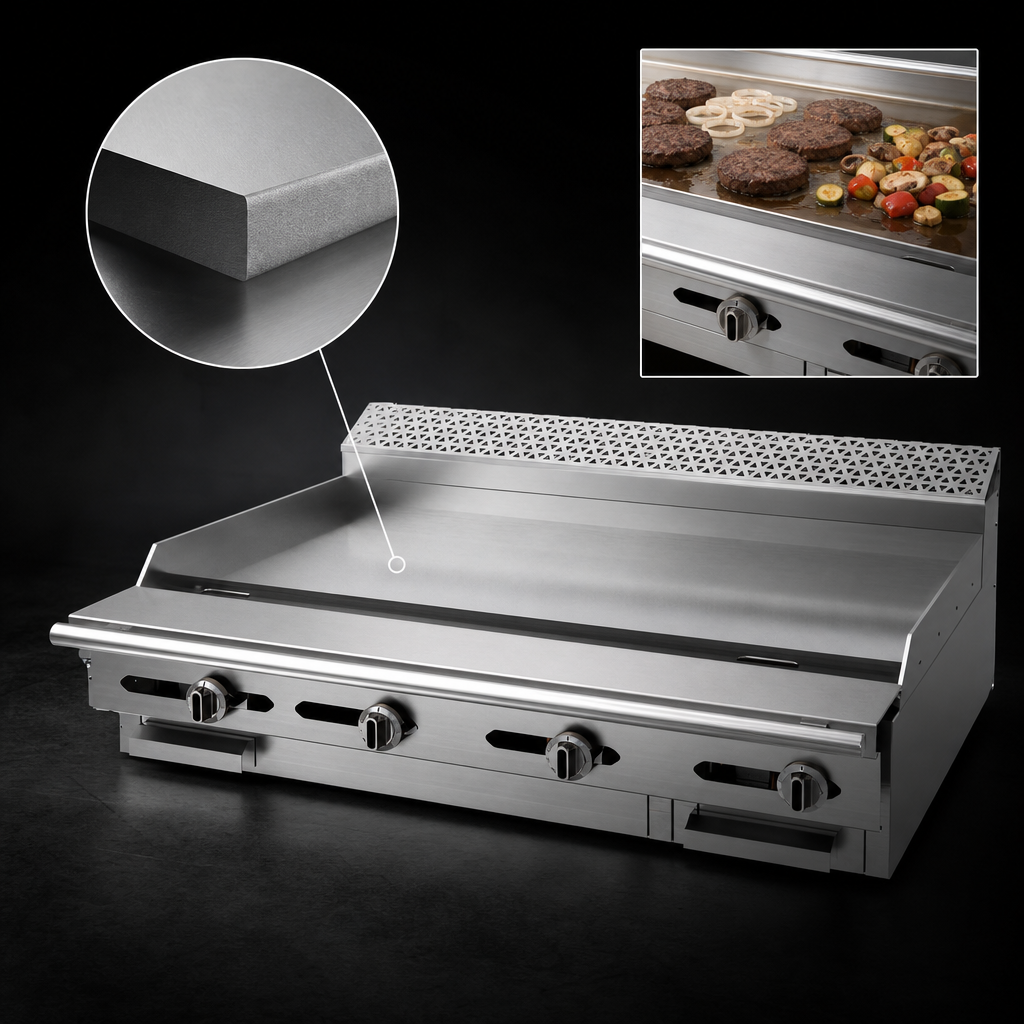

- 1" (25 mm) thick steel griddle plate—exceptional heat retention, warp-resistant and easy to season.
- Four 30,000 BTU cast-iron burners (one every 12") for even, high-output coverage—120,000 BTU total.

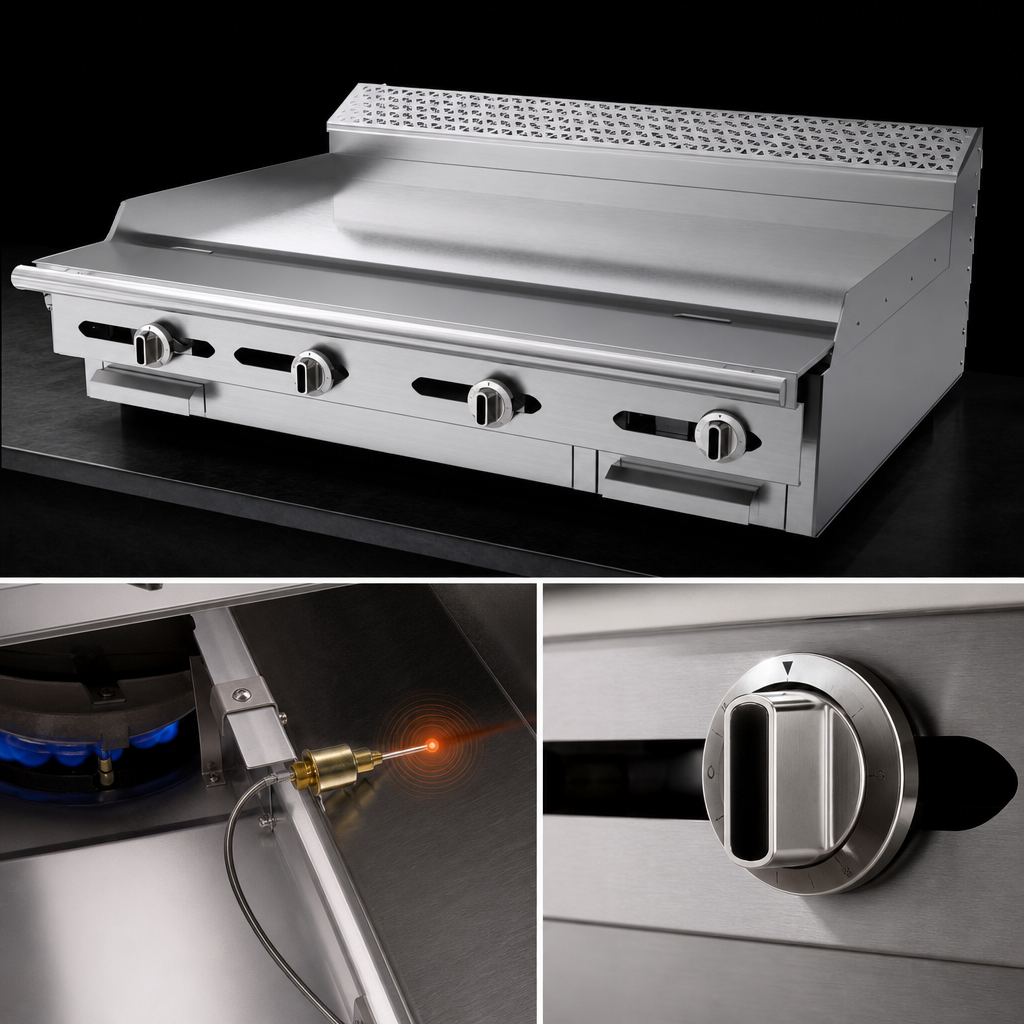

- Embedded-bulb thermostatic controls per 12" zone with a precise 150 °F – 450 °F (66 °C – 232 °C) range.
- 3" (76 mm) wide grease trough plus front-pull drawer keeps the surface clear and cleaning quick.
- Heavy-gauge stainless steel front, sides, plate rail and welded burner box for unmatched durability.
- 7" (178 mm) stainless stub backguard protects walls while fitting flush in island suites.
- 1-1/4" NPT front gas manifold—daisy-chain multiple Cuisine Series units or install as a stand-alone.
- Low-profile modular design—mounts on equipment stands, refrigerated bases or curb installations.
- Certified safe & sanitary: CSA Flame, CSA Star and NSF listed.
Performance Specifications
| Griddle surface | 48" W × 24" D, 1" steel |
|---|---|
| Total input | 120,000 BTU/h (natural or propane) |
| Individual burners | 4 × 30,000 BTU cast-iron |
| Thermostat range | 150 °F – 450 °F (66 °C – 232 °C) |
| Gas connection (std.) | 1-1/4" NPT front manifold; optional 3/4" rear |
| Manifold pressure | 6" W.C. natural | 10" W.C. propane |
| Minimum supply | 7" W.C. natural | 11" W.C. propane |
| Exterior dimensions | 48" W × 32-5/8" D × 10" H +7" backguard (1219 × 829 × 254 mm + backguard) |
| Shipping weight | ≈ 640 lb (290 kg) |
| Combustible clearances | 10" sides | 6" rear |
Perfect For
- High-volume diners & breakfast houses
- Hotel, resort and institutional kitchens building battery suites
- Ghost kitchens & food halls where footprint is premium
- Operations that already have dedicated ovens and need extra griddle horsepower
Need a matching stand, refrigerated base or battery hardware? Our team stocks the full line of Garland Cuisine Series accessories—just let us know at checkout.
