Garland C48-1-1C Garland Cuisine Gas Ranges
Description

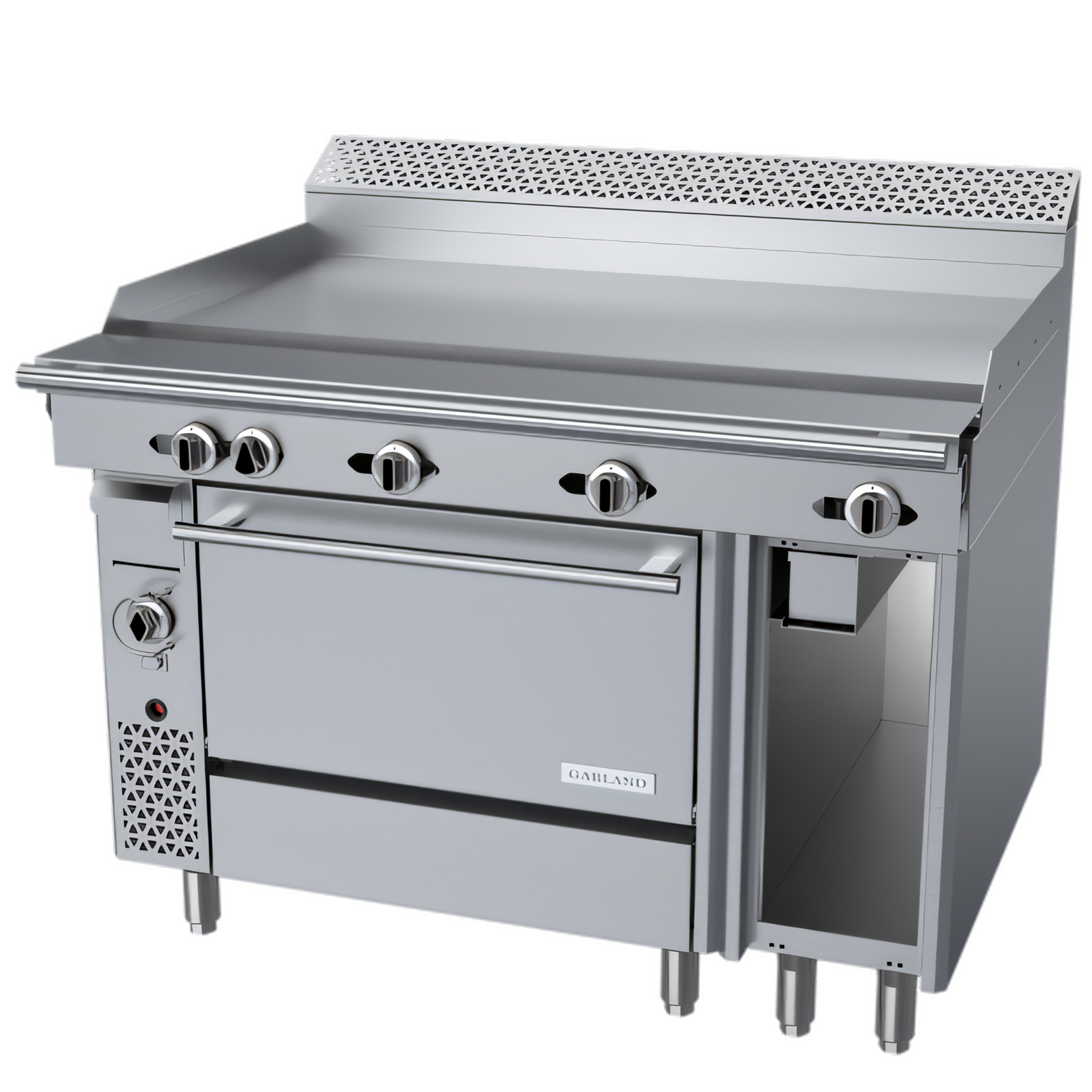

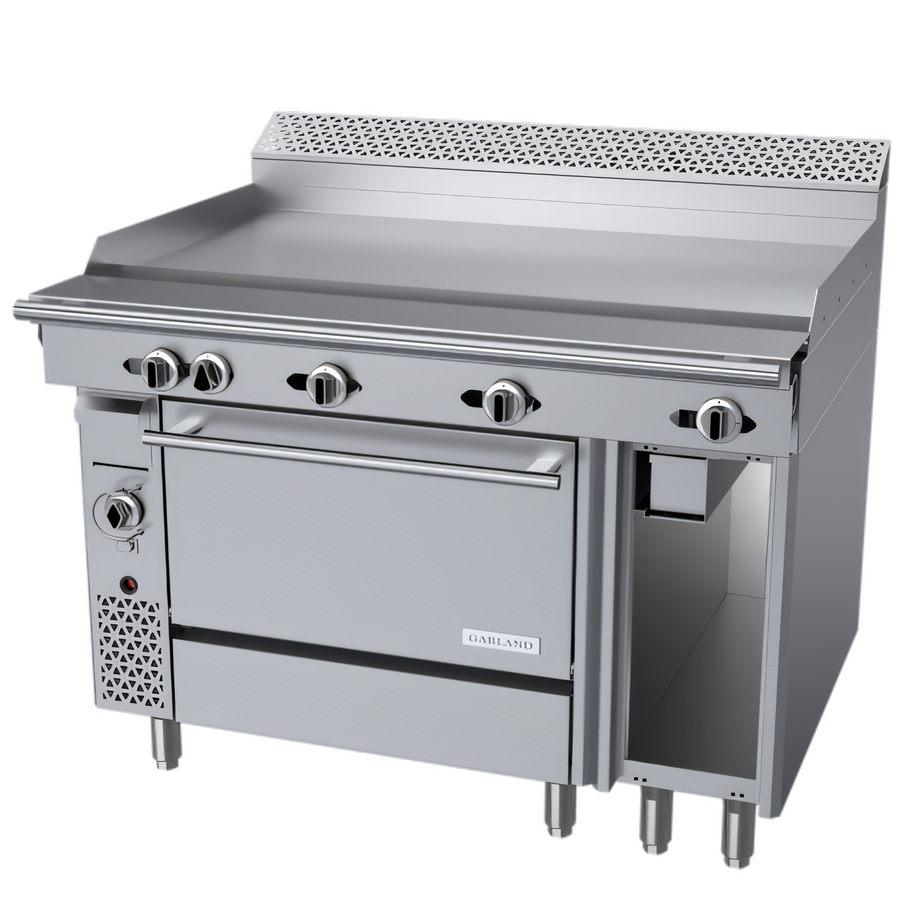

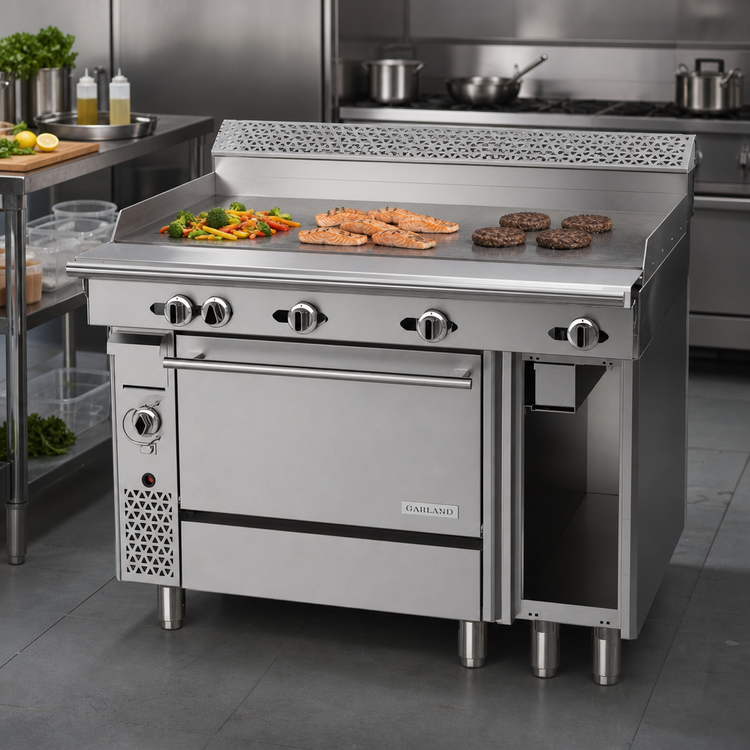

Garland Cuisine Series 48" Heavy-Duty Gas Griddle Range
Thermostatic Griddle • Convection Oven Base • Open Storage RightBuilt for the demands of high-volume kitchens, the Garland Cuisine Series 48" Heavy-Duty Range combines a precision-controlled 1" thick griddle with a powerful convection oven and convenient open storage. Rugged stainless-steel construction, accurate temperature management, and 157,000 BTU of total cooking power give chefs the consistency and speed they need—shift after shift.
Key Features

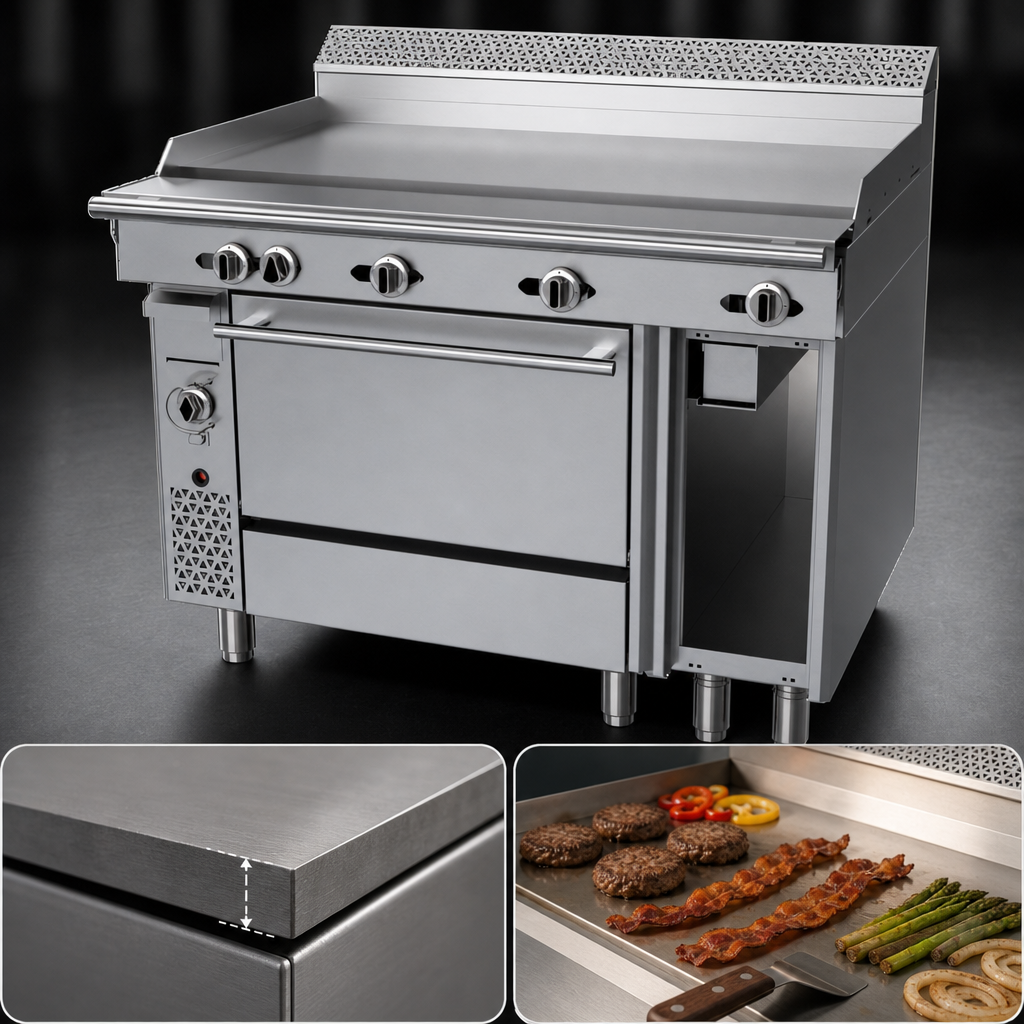

- 1" (25 mm) thick, 48" wide griddle plate with embedded thermostat sensor for even heat across the surface

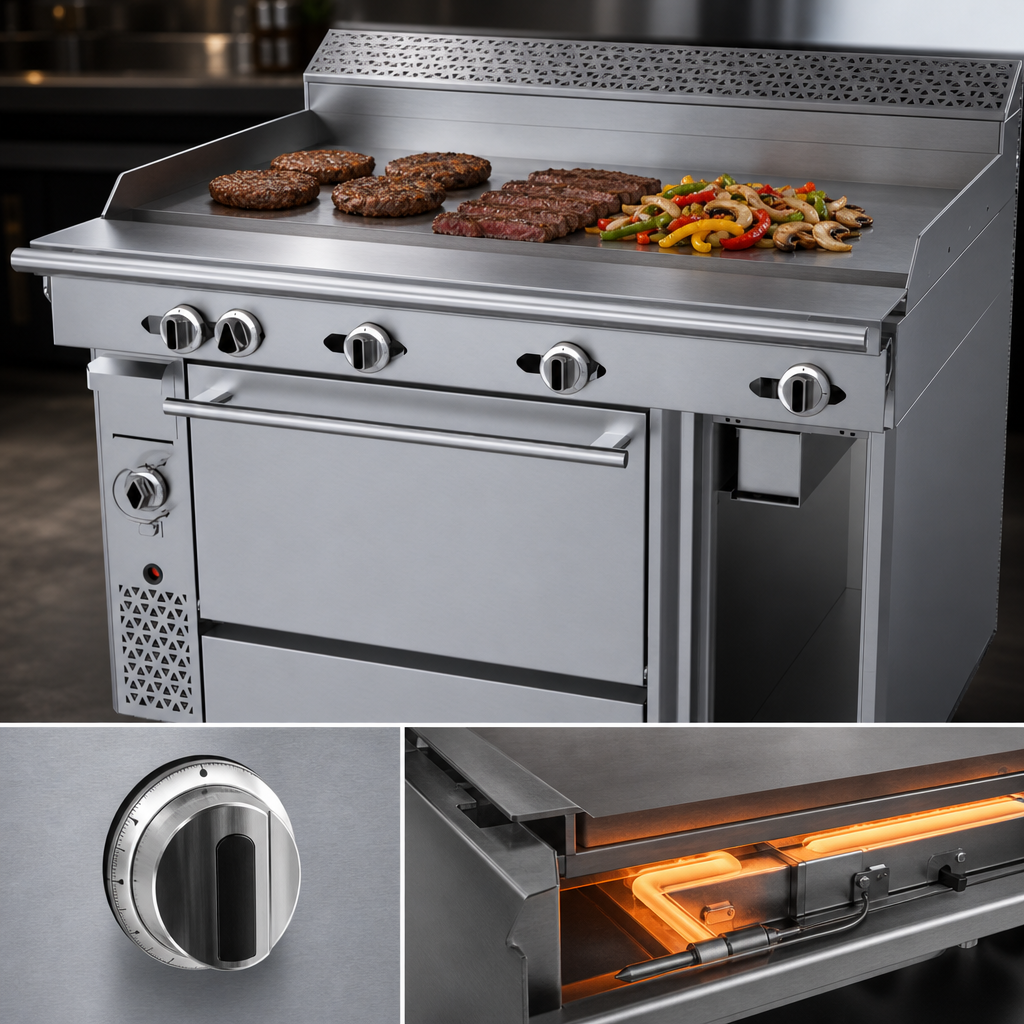

- Four 30,000 BTU griddle burners (120,000 BTU total) with Low–450 °F (232 °C) thermostatic control
- 3" (76 mm) grease trough and large, removable drawer for fast, mess-free cleanup
- Full stainless-steel front, sides, plate rail & burner box resist corrosion and make wipe-downs quick
- 7" stainless stub backguard protects walls without sacrificing low-profile installation
- Convection oven base
- 37,000 BTU burner with fan-forced air for even baking & roasting
- Temperature range: 150 °F – 500 °F (66 °C – 260 °C)
- Three chrome racks, three rack positions
- Stainless interior with porcelain bottom for easy care
- 1/3 HP fan motor, 120 V / 60 Hz / 1-ph, 0.6 A with included NEMA 5-15P plug
- Open storage base (right side) keeps sheet pans, utensils, or smallwares within arm’s reach
- 6" (152 mm) stainless adjustable legs for level positioning on uneven floors
- Front 1-1/4" NPT gas manifold simplifies single-point connections or battery line-ups
- Certified: CSA Flame, CSA Star & NSF
At-a-Glance Specs
| Model | C48-1-1C (natural gas) |
|---|---|
| Overall width | 48" / 1219 mm |
| Total input | 157,000 BTU/hr |
| Griddle input | 4 × 30,000 BTU (120,000 BTU) |
| Convection oven input | 37,000 BTU |
| Electrical | 120 V, 0.6 A, single-phase, NEMA 5-15P (convection fan only) |
| Oven interior (H×W×D) | 13-1/2" × 26-1/4" × 25" (343 × 667 × 635 mm) |
| Gas connection | 1-1/4" NPT (front manifold) |
| Recommended gas pressure | 7" W.C. (natural) |
| Clearances | Sides 10" / 254 mm Back 6" / 152 mm (combustible) |
| Certifications | CSA Flame, CSA Star, NSF |
| Shipping weight | ≈1,140 lb / 517 kg |
Why Choose Garland Cuisine?
- Heavy-duty chassis and components engineered for years of trouble-free service
- Self-cooling convection base allows zero-clearance “back-to-back” or “against-the-wall” installations
- Fan-cooled oven thermostat is guarded and located outside the hot zone for superior temperature accuracy
- Part of the modular Cuisine Series line—easily battery with matching fryers, broilers & refrigerated bases
Need a different gas type, backguard height or caster set? Contact us—Garland factory options make it easy to tailor the Cuisine Series to your exact kitchen layout.
