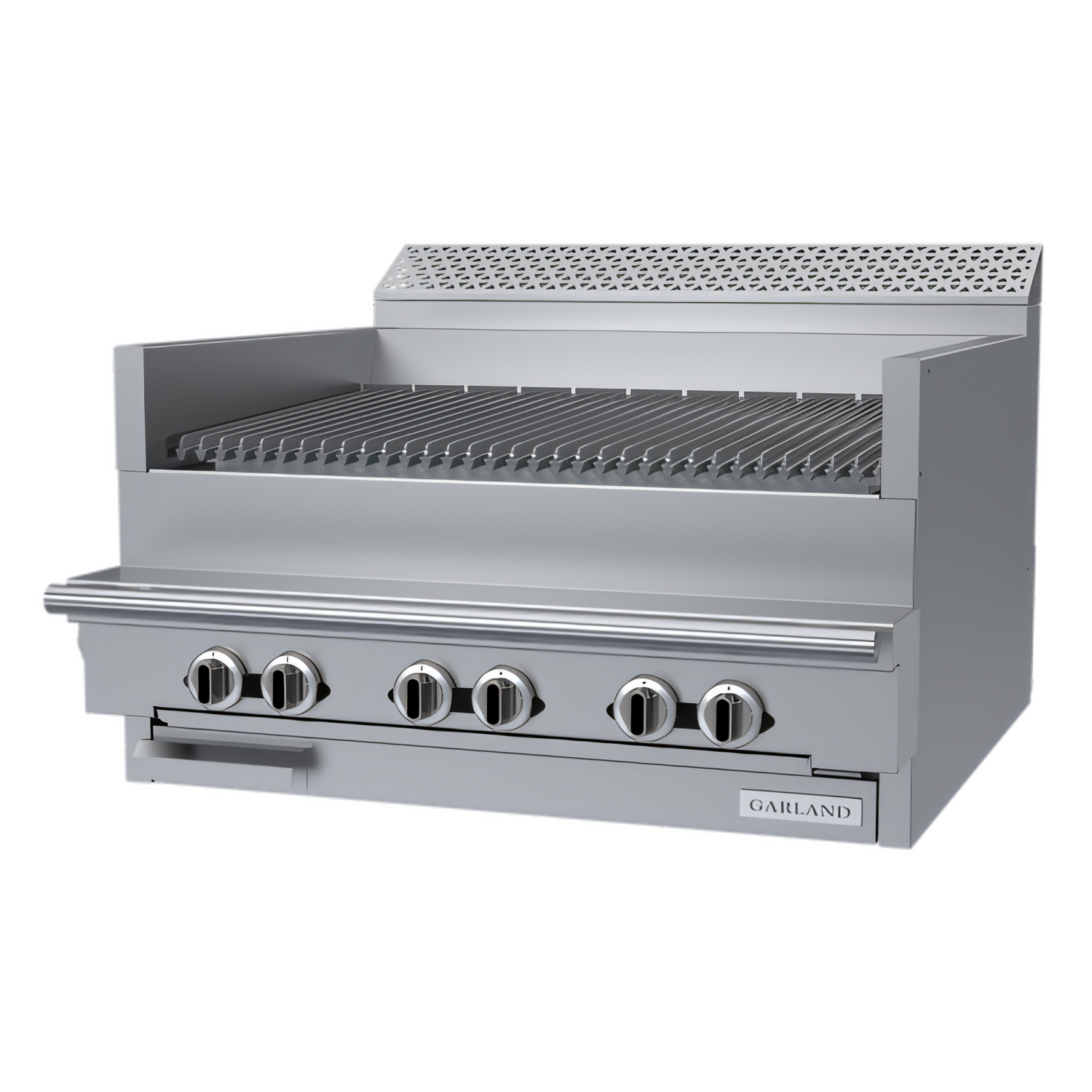

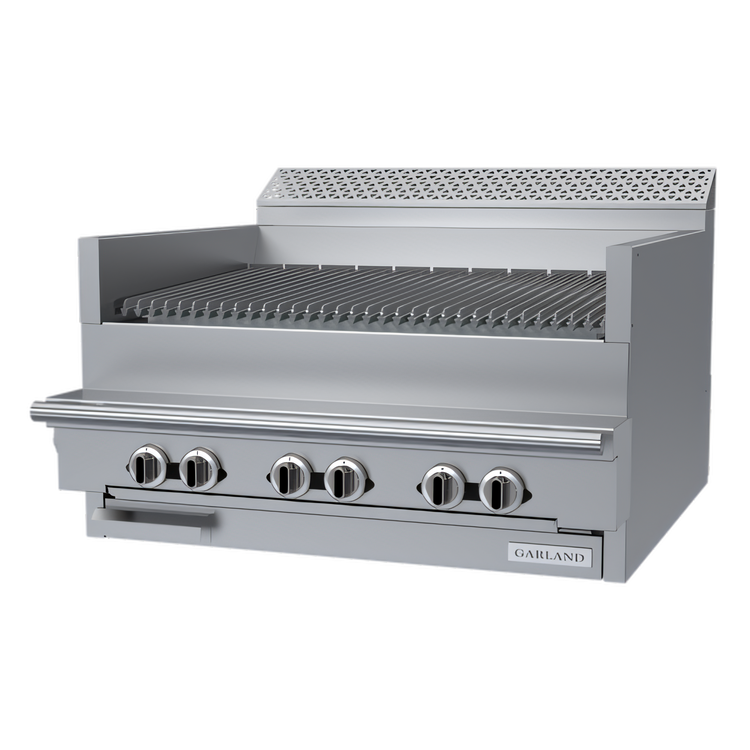

Garland Cuisine Series 36-Inch Gas Radiant Charbroiler Modular Top with Non-Adjustable Grates

108,000 BTU, Stainless Steel Front and Sides, Cast Iron Radiants

Built for high-volume kitchens, this 36-inch modular-top radiant charbroiler delivers 108,000 BTU of dependable heat in a durable stainless steel design.

  • 36-inch modular top radiant charbroiler designed for range-match installations.
  • 108,000 BTU total output for strong, consistent searing performance.
  • Fixed cast iron grid assembly with cast iron radiants for even heat distribution.
  • Stainless steel front, sides, stub back, front rail, and burner box for durability.
  • Individual burner controls every 6 inches help create distinct heat zones.
  • Can be connected individually or in a battery and mounted on a Polar Cuisine refrigerated base.

Overall Dimensions:

36.0"W x 37.88"D x 19.0"H

Product Weight:

380.0 lb

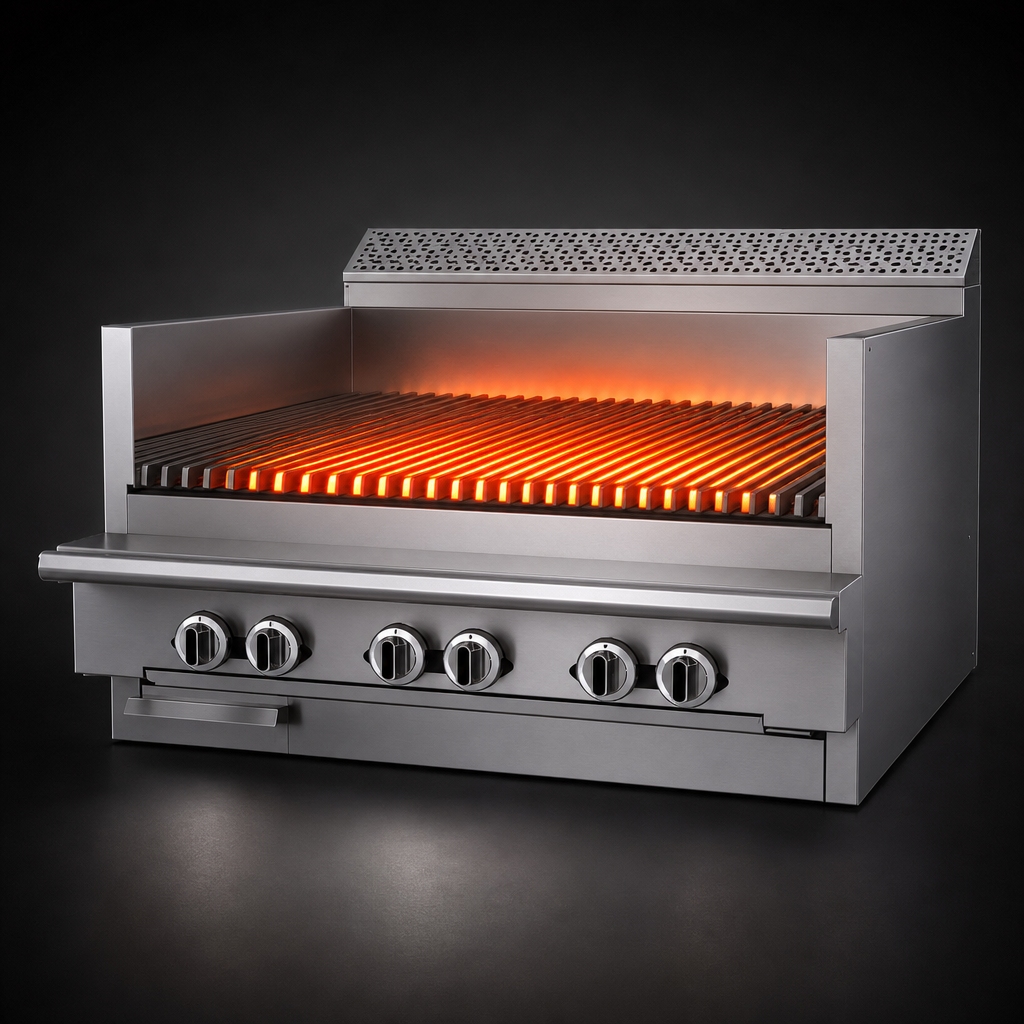

Radiant Charbroiler Design

Cast iron radiants deliver even heat across the grilling surface for consistent results.

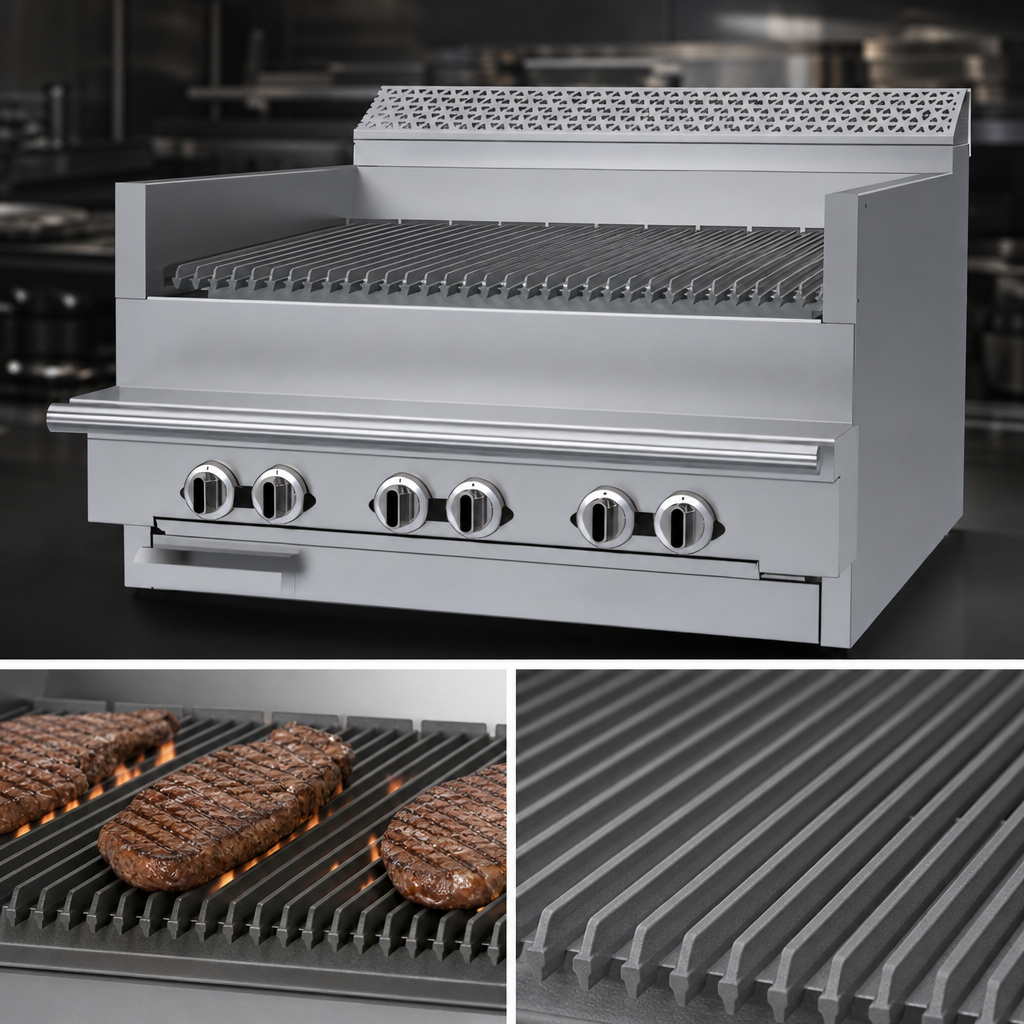

Non-Adjustable Cast Iron Grates

Fixed cast iron grid assembly provides a durable cooking surface for heavy-duty use.

Stainless Steel Construction

Stainless steel front, sides, stub back, front rail, and burner box help improve durability and cleaning.

Individual Burner Controls

Controls every 6 inches provide zone-by-zone heat management.

High Output Performance

108,000 BTU total rating supports demanding grilling and broiling applications.

Battery-Friendly Modular Top

Can be connected individually or in a battery for flexible kitchen layouts.

Mounting Flexibility

Modular unit can be mounted on a Polar Cuisine refrigerated base.

Grease Management

Extra-large grease container helps capture drippings and simplify cleanup.

Type Charbroiler
Style Radiant
Installation Type Floor Model
Controls Individual Burner Controls
Material Stainless Steel
BTU 108,000 BTU
Gas Connection Size 1-1/4 Inches NPT
Selling Unit Each
Units Per Case 1
Shipping Width 36 Inches
Shipping Depth 38 Inches
Shipping Height 19 Inches
Shipping Weight 380 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Check list PDF Download PDF Owner's manual PDF Download PDF Brochure PDF Download PDF Garland cuisine models guide PDF Download

Frequently Asked Questions

It uses a fixed cast iron grid assembly with cast iron radiants for radiant charbroiling.
The unit is rated at 108,000 BTU.
It uses a 1-1/4" NPT front gas manifold.
Yes. It can be connected individually or in a battery.
Yes. The modular unit can be mounted on a Polar Cuisine refrigerated base.
Required combustible wall clearances are 10 inches on the sides and 6 inches at the back.
