Garland C36-ARS Garland Cuisine Gas Ranges
Description

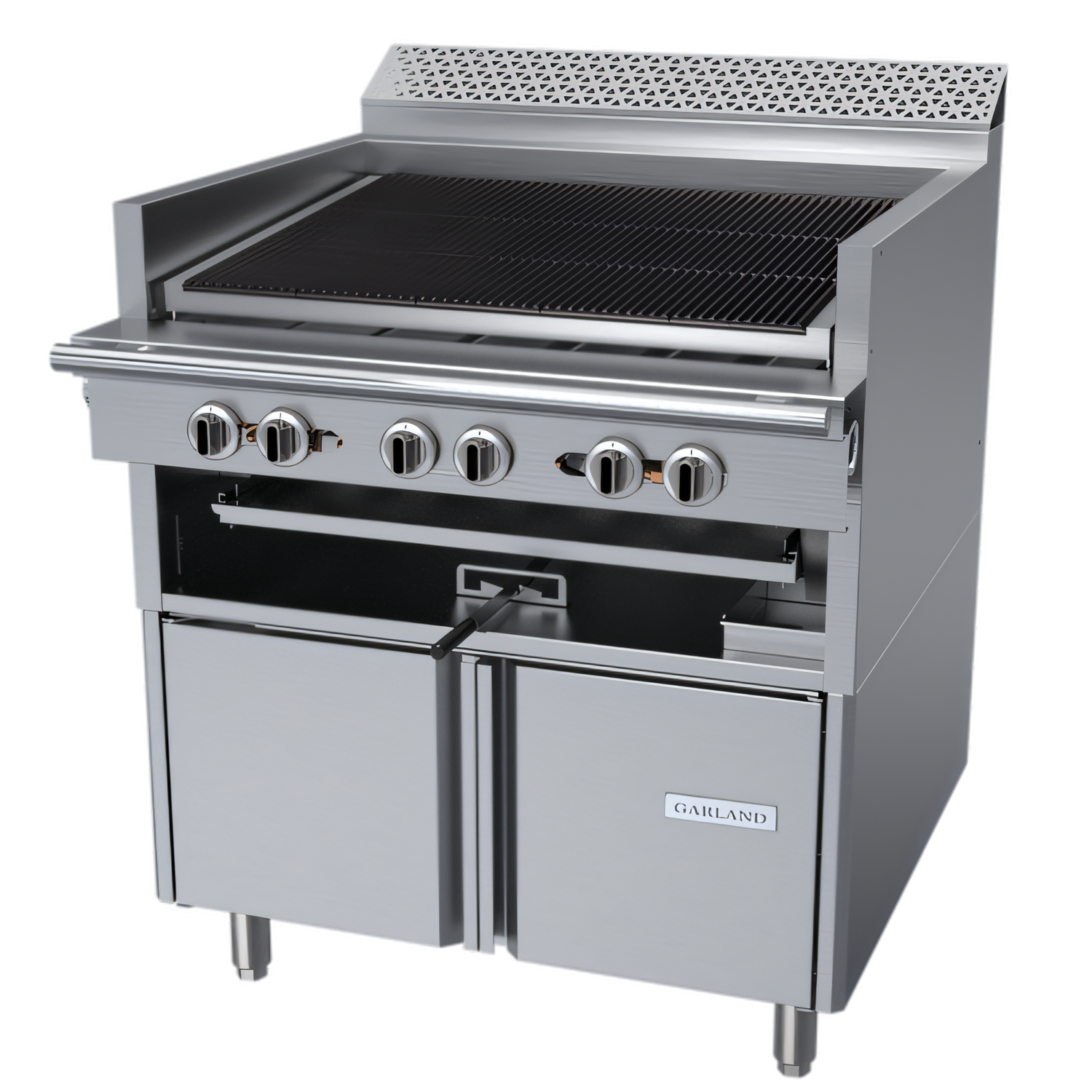

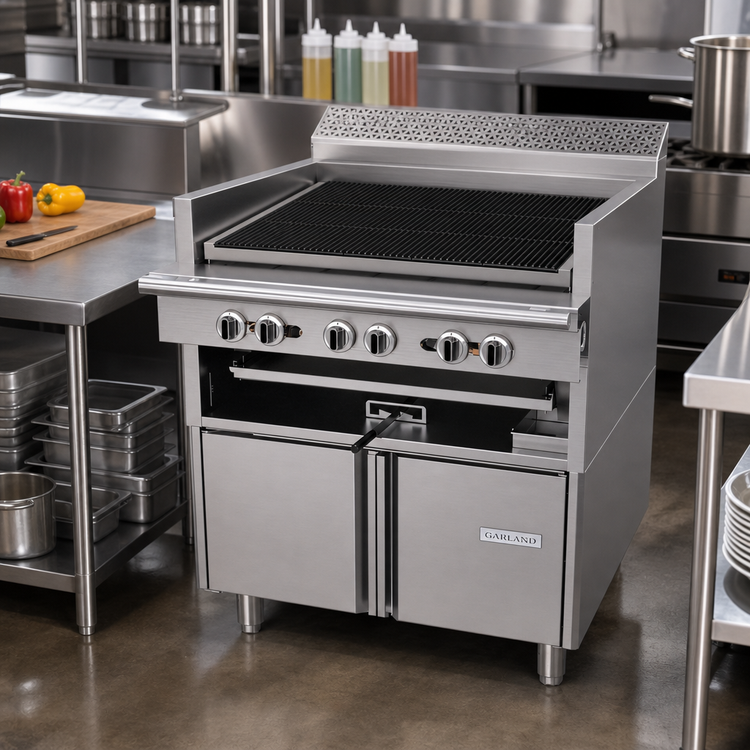

Garland C36-ARS Cuisine Series 36" Heavy-Duty Radiant Charbroiler Range
108,000 BTU | Gas | Open Cabinet Base | CSA & NSF CertifiedBuilt for high-volume kitchens that refuse to compromise on performance, the Garland C36-ARS combines a 36-inch radiant charbroiler top with a convenient open storage base. Cast-iron radiants, six individually controlled 18 K BTU burners and tilting adjustable grates deliver the intense, even heat chefs need for flawless sear marks—shift after shift.
Why You’ll Love It

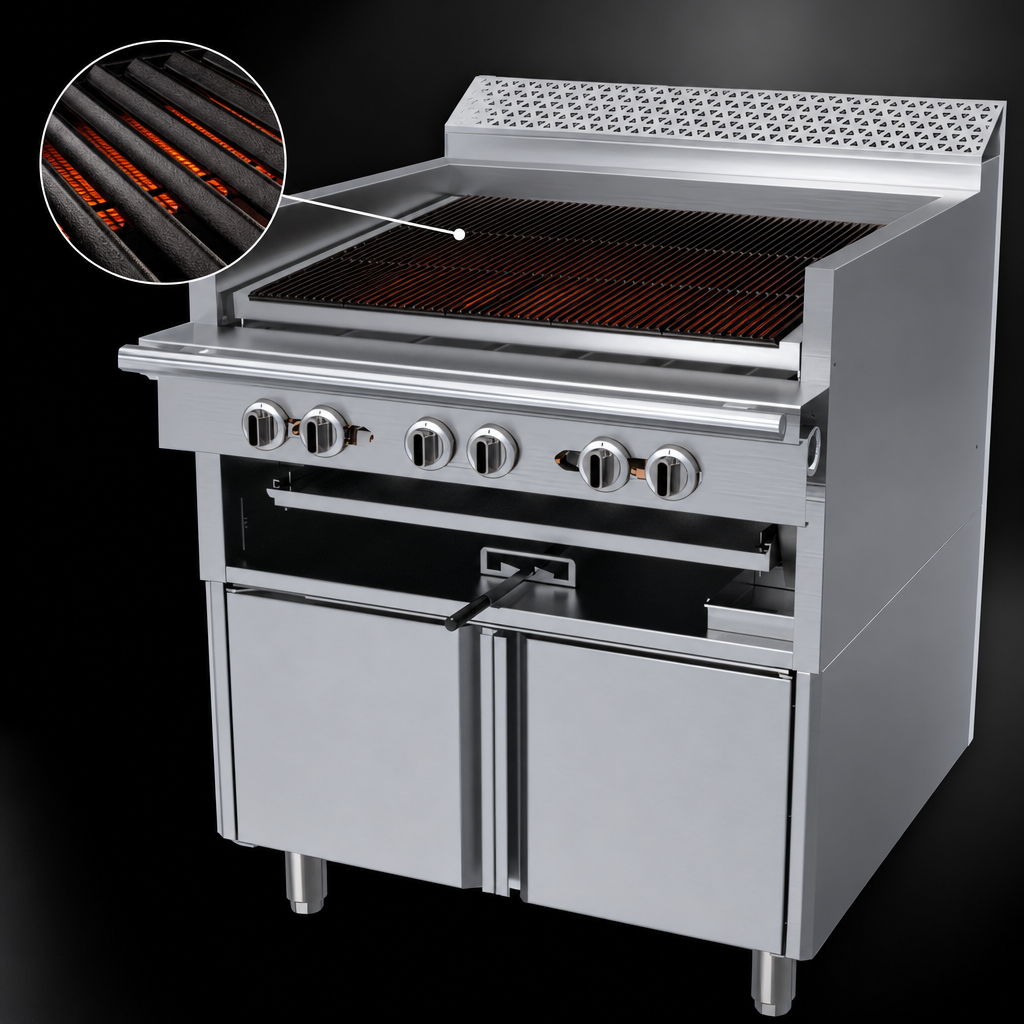

- Six 18,000 BTU cast-iron radiant burners (total 108,000 BTU) for powerful, even heat.

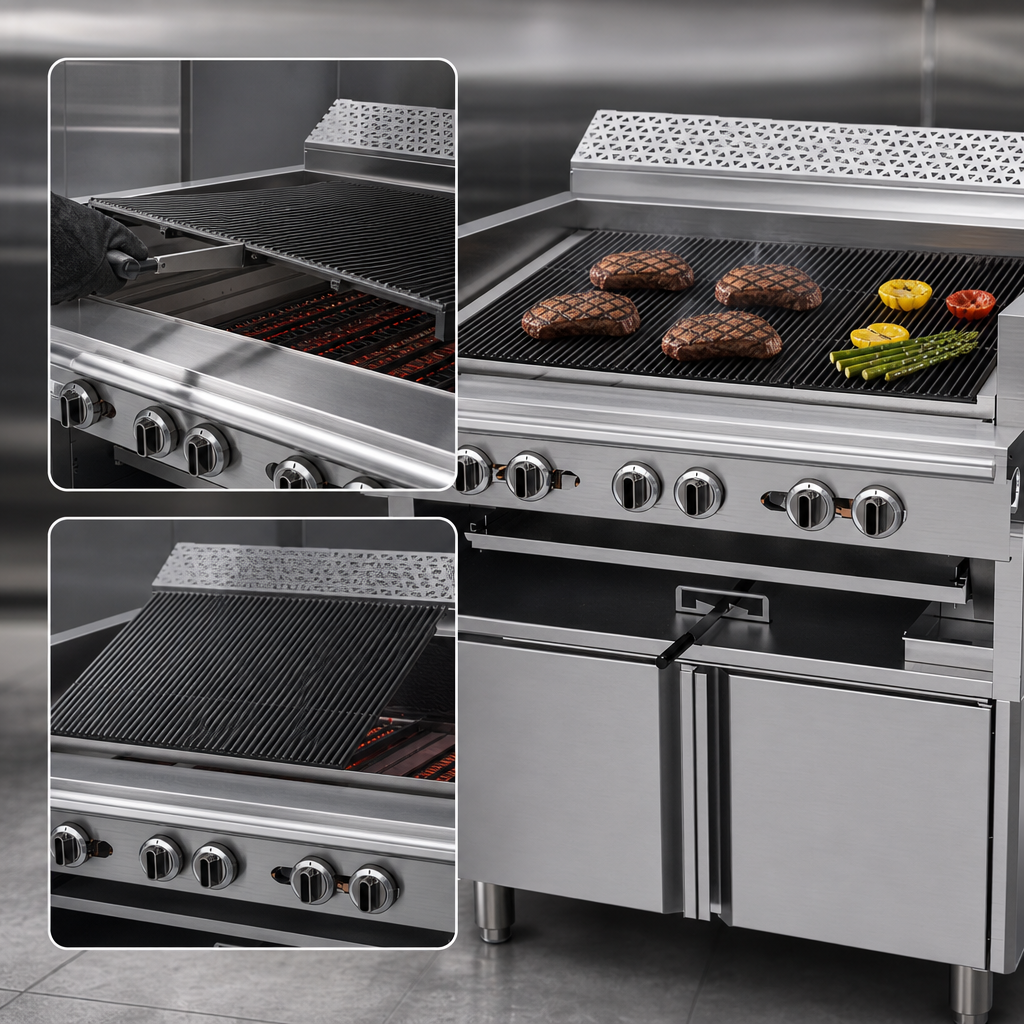

- Tilting, height-adjustable top grates let you control distance from the flame for perfect results on steaks, burgers or seafood.
- Individual burner controls provide true zone cooking – sear on one side, hold on the other.
- Heavy-duty stainless steel front, sides, stub-back, front rail and burner box stand up to the toughest kitchen environments.
- Extra-large, easy-pull grease drawer keeps the cooking surface clear and simplifies clean-up.
- Open cabinet base (20 ½" H x 32 ¼" W x 31" D) puts sheet pans, utensils or hotel pans right where you need them.
- 6" stainless steel adjustable legs for fast leveling on any floor surface.
- Factory-installed 1 ¼" NPT front gas manifold with optional ¾" rear connection.
- Tested & certified: CSA Flame, CSA Star and NSF.
Performance & Dimensions
| Model | C36-ARS |
|---|---|
| Gas Type | Natural or Propane |
| Total Input | 108,000 BTU/h |
| Burners | 6 × 18,000 BTU cast-iron radiant |
| Cooking Surface Width | 36" (914 mm) |
| Overall Depth | 32 ¾" (830 mm) |
| Working Height | 35 ⅛" (893 mm) |
| Stub-Back Height | 7" (178 mm) |
| Gas Inlet (front) | 1 ¼" NPT |
| Min. Supply Pressure | Natural 7" WC | Propane 11" WC |
| Manifold Pressure | Natural 6" WC | Propane 10" WC |
| Clearances - Combustible | Sides 10" (254 mm) | Back 6" (152 mm) |
| Shipping Weight | ≈ 342 lb (155 kg) |
| Certifications | CSA Flame, CSA Star, NSF |
What’s Included
- Open cabinet base with stainless intermediate shelf
- Extra-large front-mounted grease drawer
- 6" adjustable stainless steel legs
- Factory-installed regulator & pressure test ports
- Operator’s manual
Popular Add-Ons (Sold Separately)
- Swivel or flanged casters with front locks
- Stainless steel cabinet doors
- Rear ¾" NPT gas connection kit
- High-back or double-deck riser
- 1/9-pan extension rack
Verify local codes, gas type and available pressure before ordering or installing.
Garland reserves the right to make product improvements without prior notice. Images are for illustration only; actual product may vary slightly.
