Garland C36-ARC Garland Cuisine Gas Ranges
Description

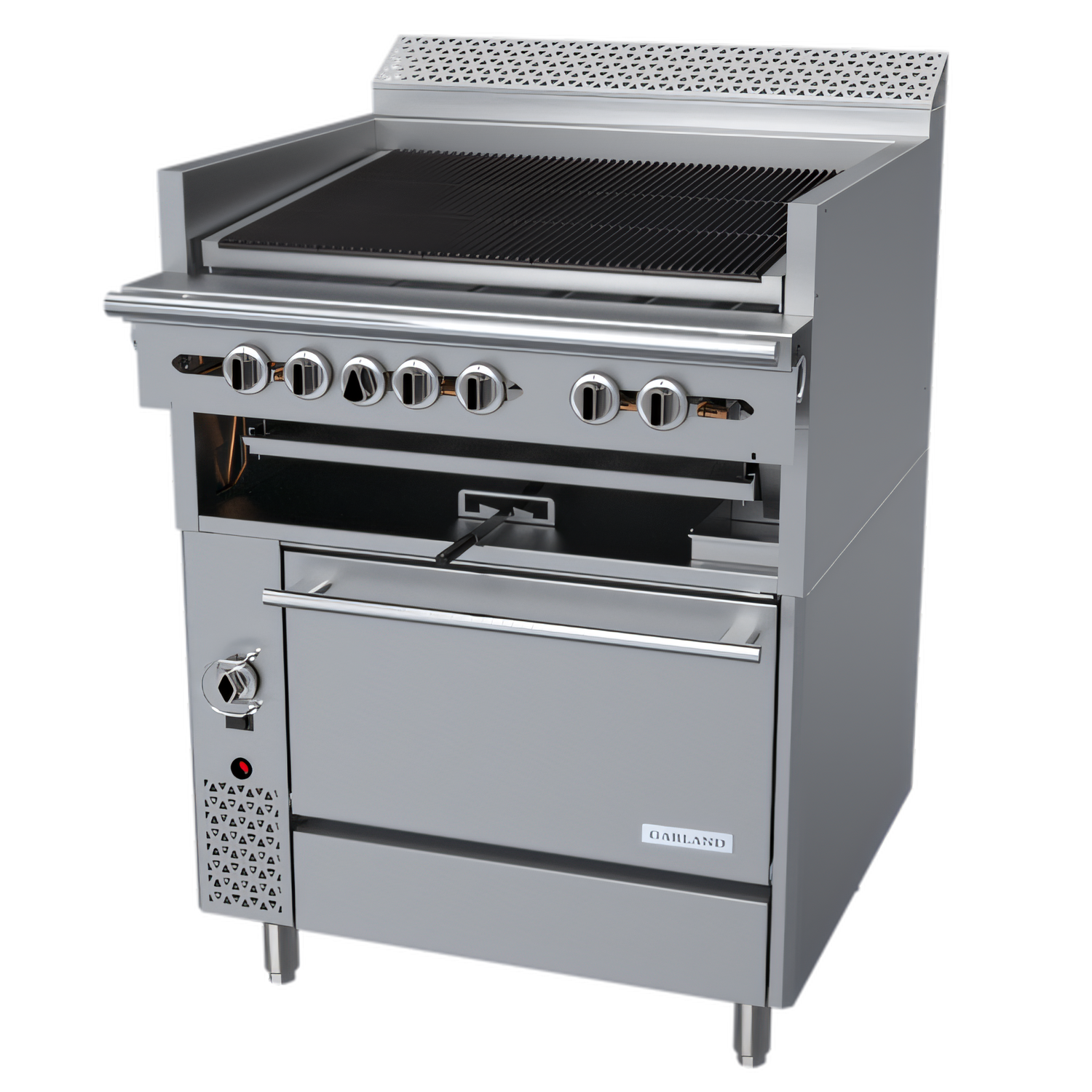

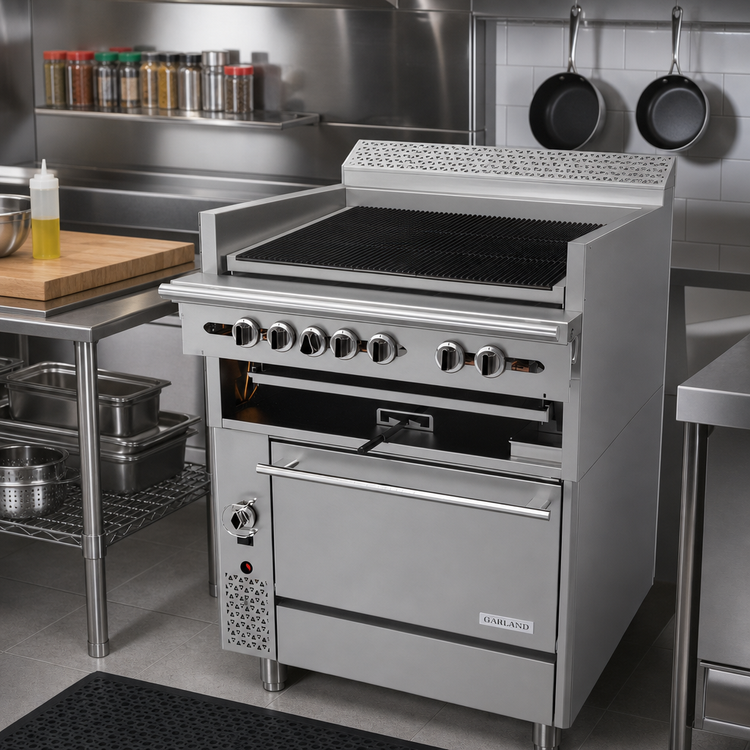

Garland Cuisine C36-ARC Heavy-Duty 36" Radiant Charbroiler Range With Convection Oven
145,000 BTU | Cast-Iron Radiants | 120 V Convection BaseBuilt for the busiest kitchens, the Garland Cuisine Series model C36-ARC unites a powerful 36" charbroiler with a high-performance convection oven in one rugged, all-stainless cabinet. Six 18,000 BTU cast-iron radiant burners deliver the authentic char you expect, while the self-cooling, fan-assisted oven turns out perfectly even bakes and roasts shift after shift.
Key Benefits

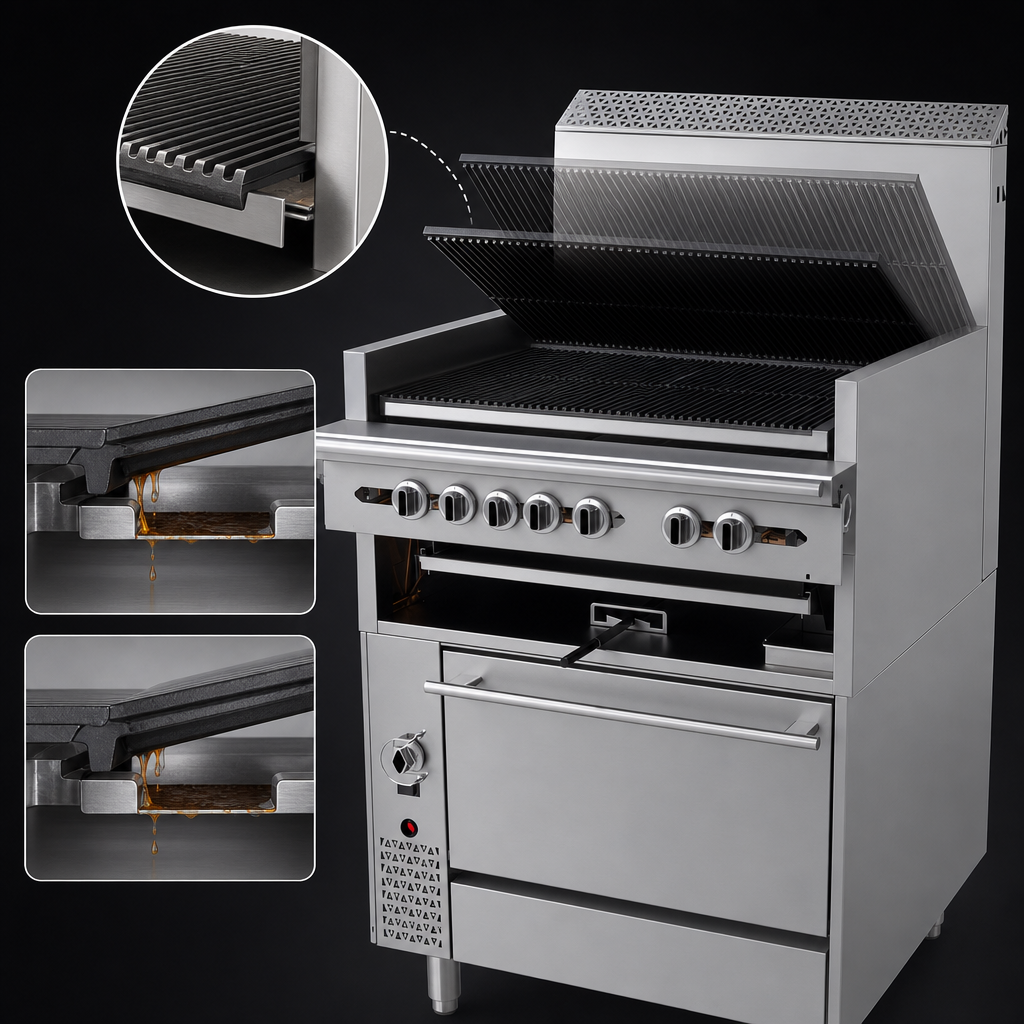

- 36" under-fired radiant charbroiler with 6 × 18,000 BTU burners (adjustable, tilting top grates)

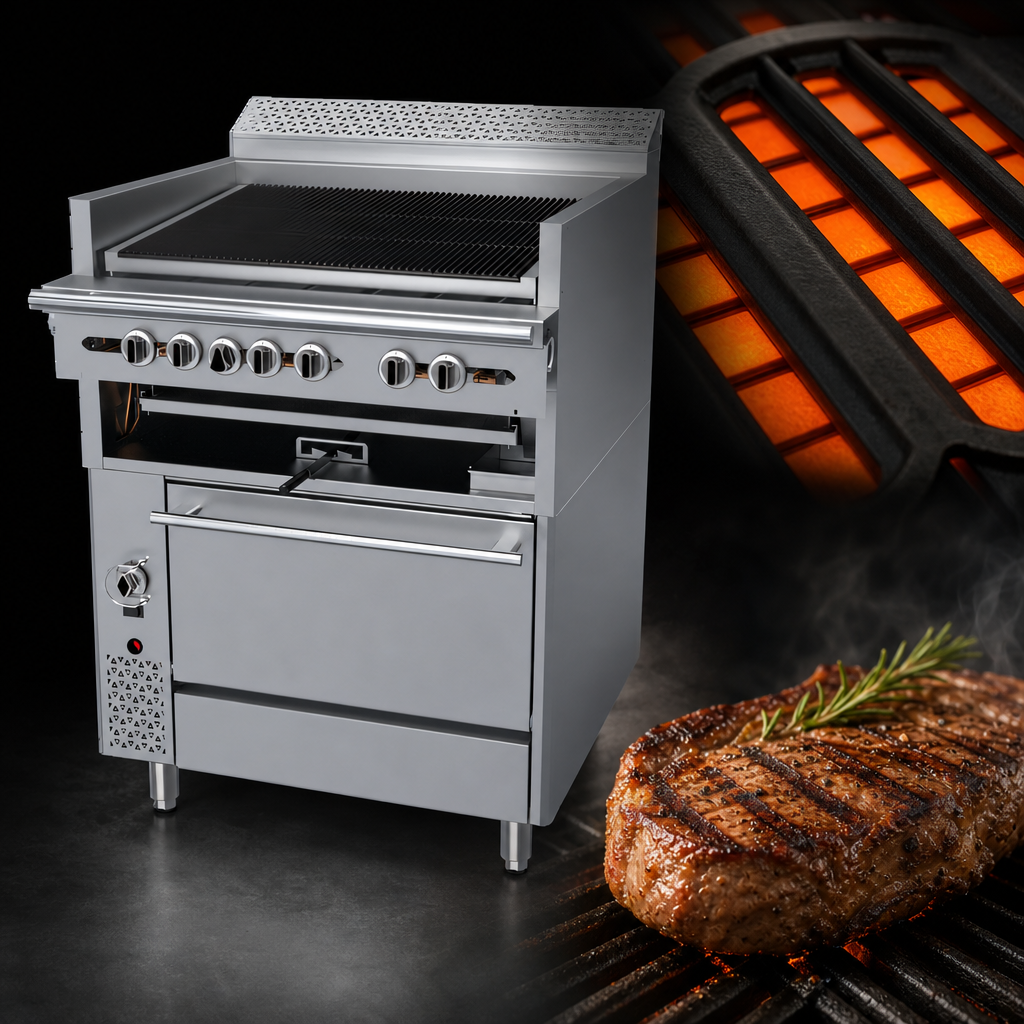

- Heavy-gauge cast-iron radiants maximize heat retention and grill marks
- Range-base convection oven, 37,000 BTU, 1/3 HP fan motor, NEMA 5-15P plug (120 V/0.6 A)
- Three chrome-plated oven racks on 3 positions for full-size sheet pans
- Precise oven thermostat: 150 – 500 °F (66 – 260 °C)
- Individually controlled burners for flexible cooking zones and fuel savings
- Full stainless steel front, sides, stub-back, front rail & burner box—easy to clean and built to last
- Extra-large, removable grease container and split grease trays simplify maintenance
- 6" stainless steel legs with locking adjustable feet for fast, level installation
- Certified safe & sanitary: CSA Flame, CSA Star & NSF
At-a-Glance Specifications
| Model | C36-ARC |
|---|---|
| Cooking Surface | 36" radiant charbroiler, adjustable/tilting grates |
| Total Input (Natural Gas) | 145,000 BTU/h |
| Burner Breakdown | Charbroiler – 6 × 18,000 BTU Convection oven – 37,000 BTU |
| Oven Interior (HxWxD) | 13 1/2" × 26 1/4" × 25" (343 × 667 × 635 mm) |
| Electrical | 120 V / 60 Hz / 1-ph, 0.6 A, 1/3 HP fan, NEMA 5-15P |
| Gas Connection | 1 1/4" NPT front manifold (optional 3/4" rear) |
| Overall Dimensions | 36" W × 32 3/4" D × 54 1/4" H (with 7" stub-back) |
| Working Height | 35 1/8" (893 mm) |
| Shipping Weight | ≈ 635 lb (288 kg) |
| Clearances (Combustible) | Sides 10" (254 mm) | Back 6" (152 mm) |
| Approvals | CSA Flame, CSA Star, NSF |
Ideal For
- Steakhouses & grill concepts seeking true char flavor
- High-volume restaurants that need simultaneous grilling and baking
- Hotels, resorts and institutional kitchens demanding long-term durability
Need a different configuration? The Garland Cuisine Series offers a full lineup of broiler, griddle, hot-top and open-burner ranges to match your exact menu. Contact our team for custom quotes and lead times.
