Garland C36-ABS Garland Cuisine Gas Ranges
Description

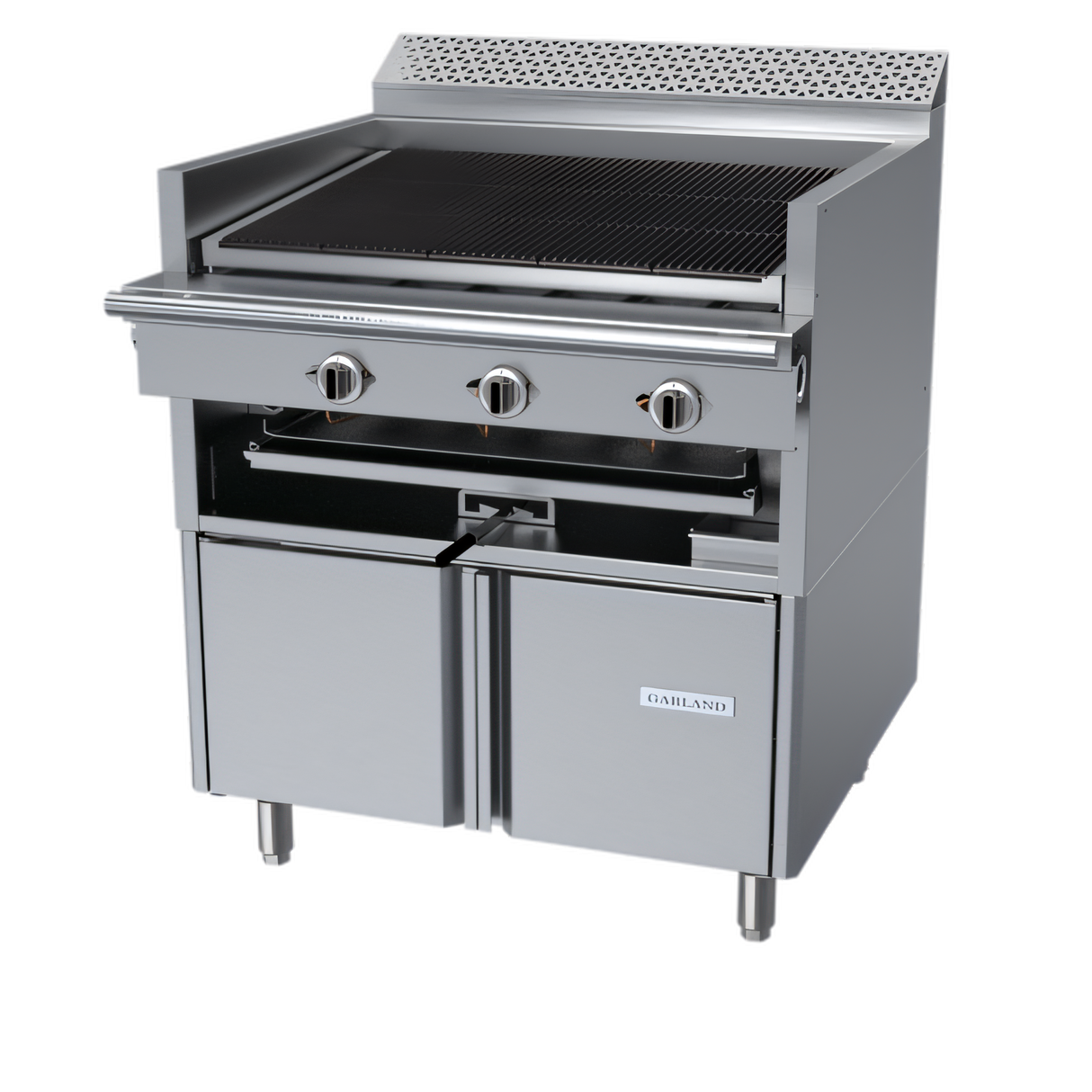

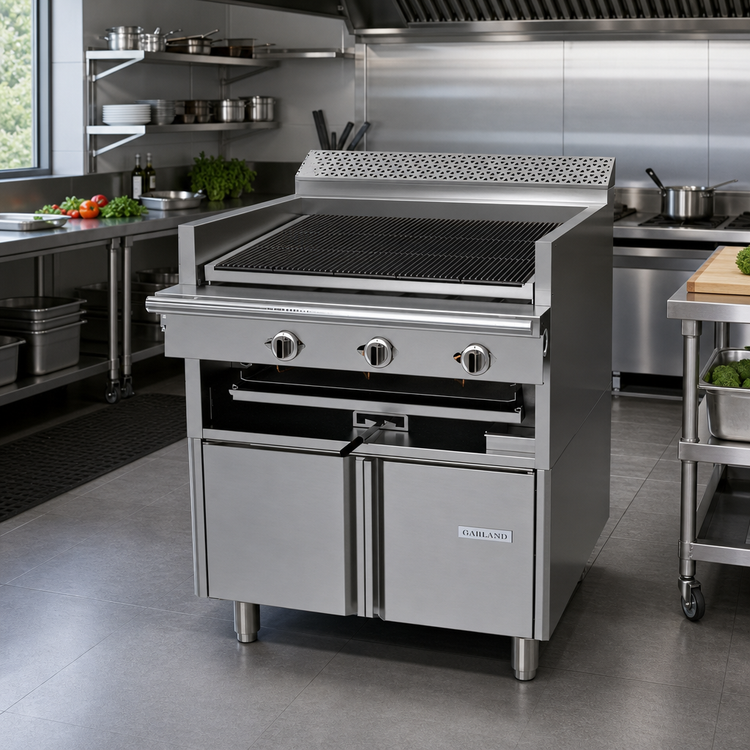

Garland Cuisine Series 36" Heavy-Duty Charbroiler Range
Model C36-ABS | 135,000 BTU Gas | Open Cabinet BasePut steak-house power on your cook line without giving up precious storage. The Garland C36-ABS couples a searing 36-inch briquette charbroiler with a full-width, stainless-steel cabinet base—perfect for keeping sheet pans, small-wares or mise en place right at hand. Built on Garland’s renowned heavy-duty chassis, it is the ideal workhorse for independent restaurants, hotel kitchens and high-volume chains alike.
Why chefs choose the C36-ABS

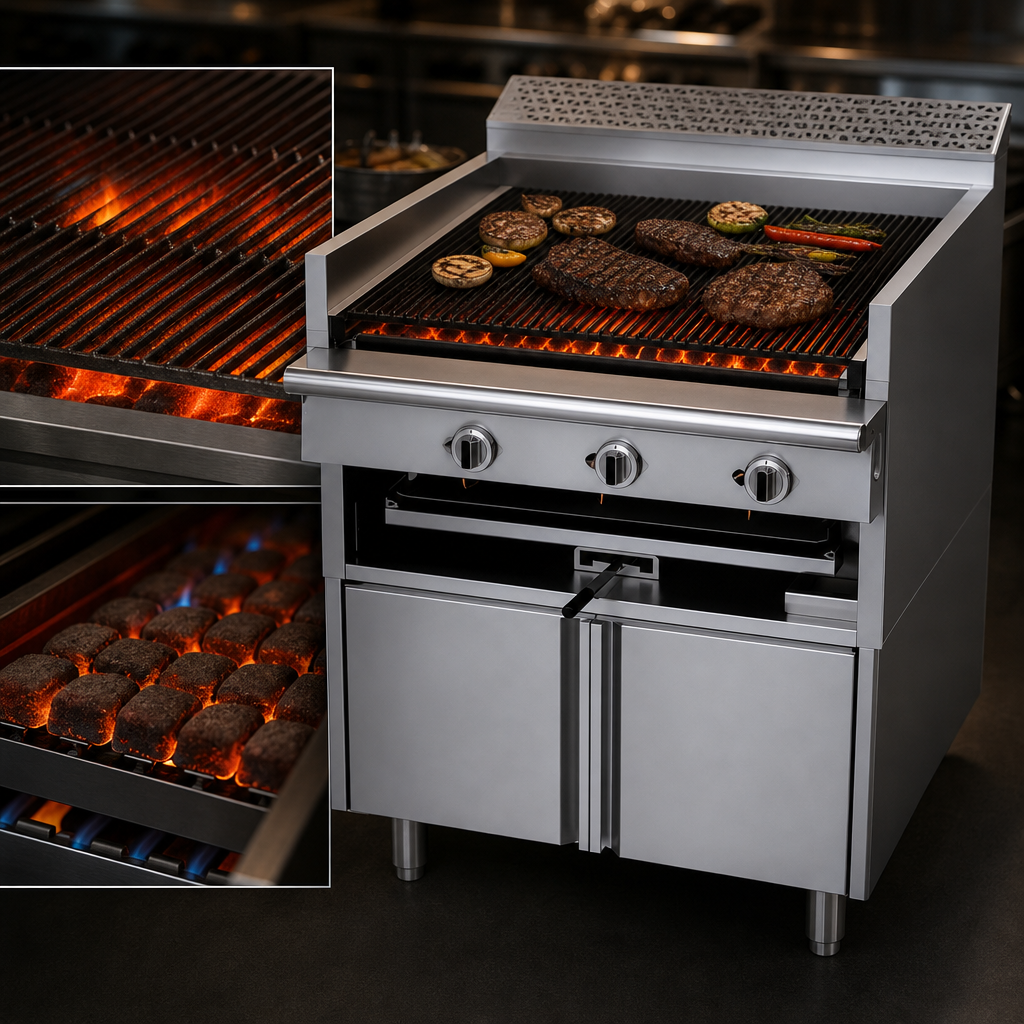

- Three 45,000 BTU under-fired briquette burners (total 135,000 BTU) deliver intense, even heat and authentic char-grill flavour.

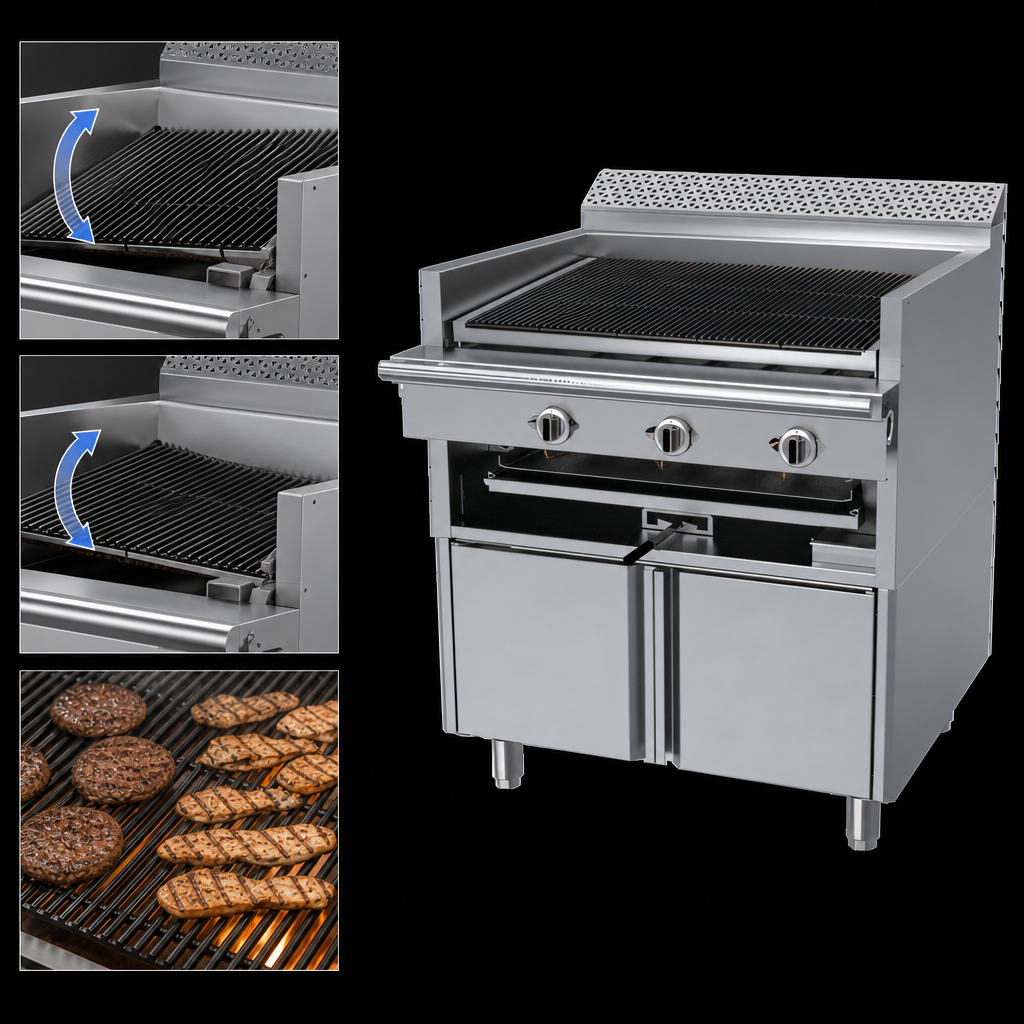

- Tilting, height-adjustable cast-iron grates create instant heat zones and keep delicate product from over-cooking.
- All-stainless-steel exterior—front, sides, stub-back, rail and burner box—for maximum durability and quick wipe-downs.
- Extra-large, slide-out grease container traps drippings and removes without tools for fast cleaning.
- Individual burner valves let you shut down sections during slow periods to save energy.
- 6" (152 mm) adjustable stainless legs simplify leveling and meet sanitation codes.
- Roomy open cabinet base with stainless intermediate shelf keeps essentials close, improving line efficiency.
- Front 1¼" NPT gas manifold with optional rear ¾" NPT connection and quick-disconnect kit for flexible installations.
Technical specifications
| Model | C36-ABS |
|---|---|
| Cooking surface | 36" (914 mm) wide charbroiler, briquette type, adjustable grates |
| Total input | 135,000 BTU/h | Natural or Propane |
| Burners | 3 × 45,000 BTU briquette burners |
| Gas connection (std.) | Front 1¼" NPT manifold – minimum supply 7" WC (NAT) / 11" WC (PRO) |
| Manifold pressure | 6" WC (NAT) | 10" WC (PRO) |
| Overall size (W × D × H) | 36" × 32 ¾" × 35 ⅛" (914 × 830 × 893 mm) to work surface |
| Combustible clearance | 10" (254 mm) sides | 6" (152 mm) back |
| Shipping weight | ≈ 480 lb (218 kg) |
| Certifications | CSA Flame, CSA Star | NSF |
Factory-installed options & accessories
- Set of (4) 5" non-marking swivel casters with front brakes
- Flanged feet for curb or dais mounting
- ¾" or 1" gas shut-off valve & quick-disconnect hose kit
- Rear gas connection (¾" NPT)
- 1/9-pan rail extension
Looking for a convection-oven or radiant broiler base instead? Garland’s Cuisine Series offers multiple configurations—contact us for additional models and lead times.
