Garland C36-ABR Garland Cuisine Gas Ranges
Description

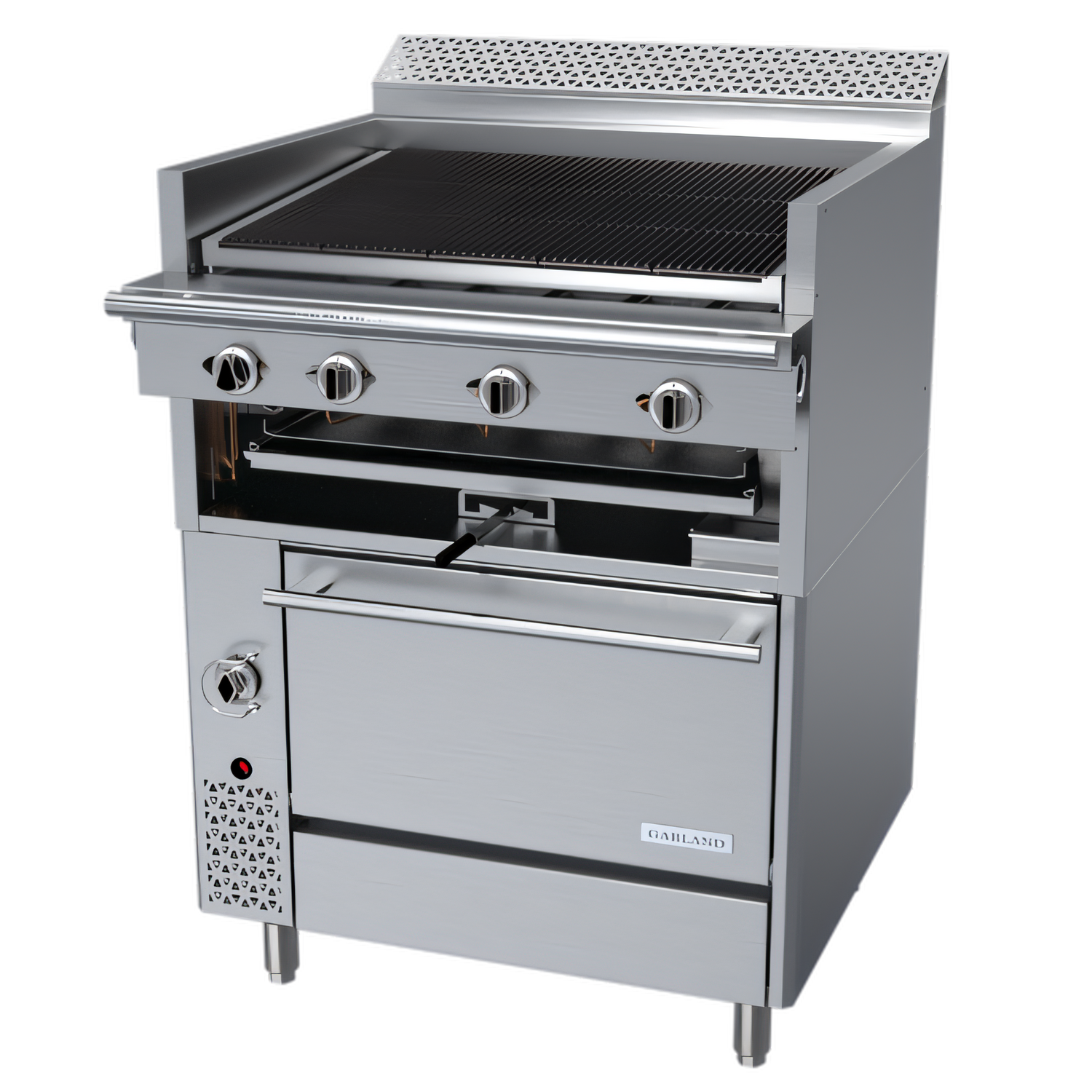

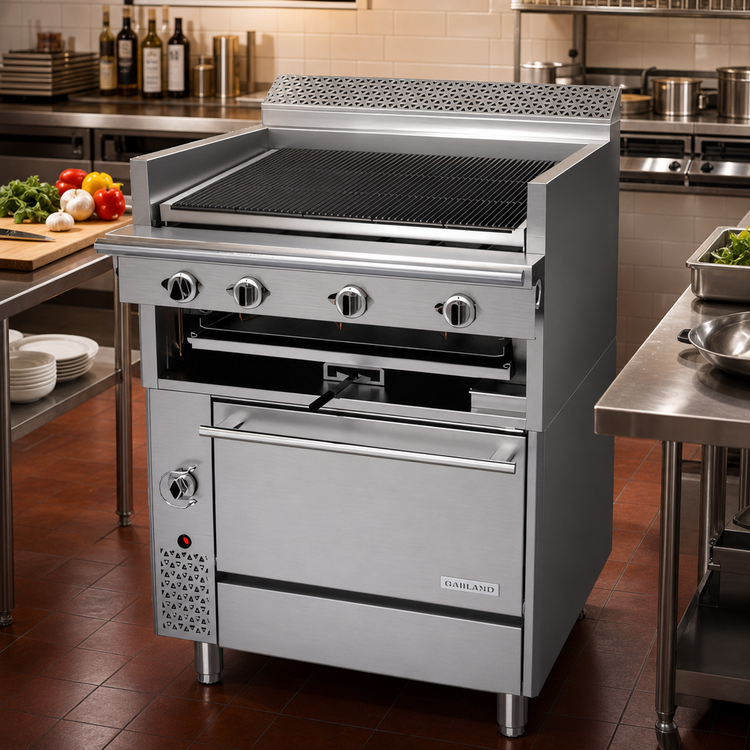

Garland Cuisine Series 36" Heavy-Duty Gas Charbroiler Range w/ Standard Oven
Model C36-ABR | 175,000 BTU (Natural Gas)Built for the most demanding kitchens, the Garland C36-ABR combines a powerful briquette charbroiler and a full-size oven in one rock-solid 36 inch platform. From steakhouse-level searing to perfectly even baking, this single piece of equipment delivers the versatility, durability and performance professionals expect from Garland’s heavy-duty Cuisine Series.
Key Features

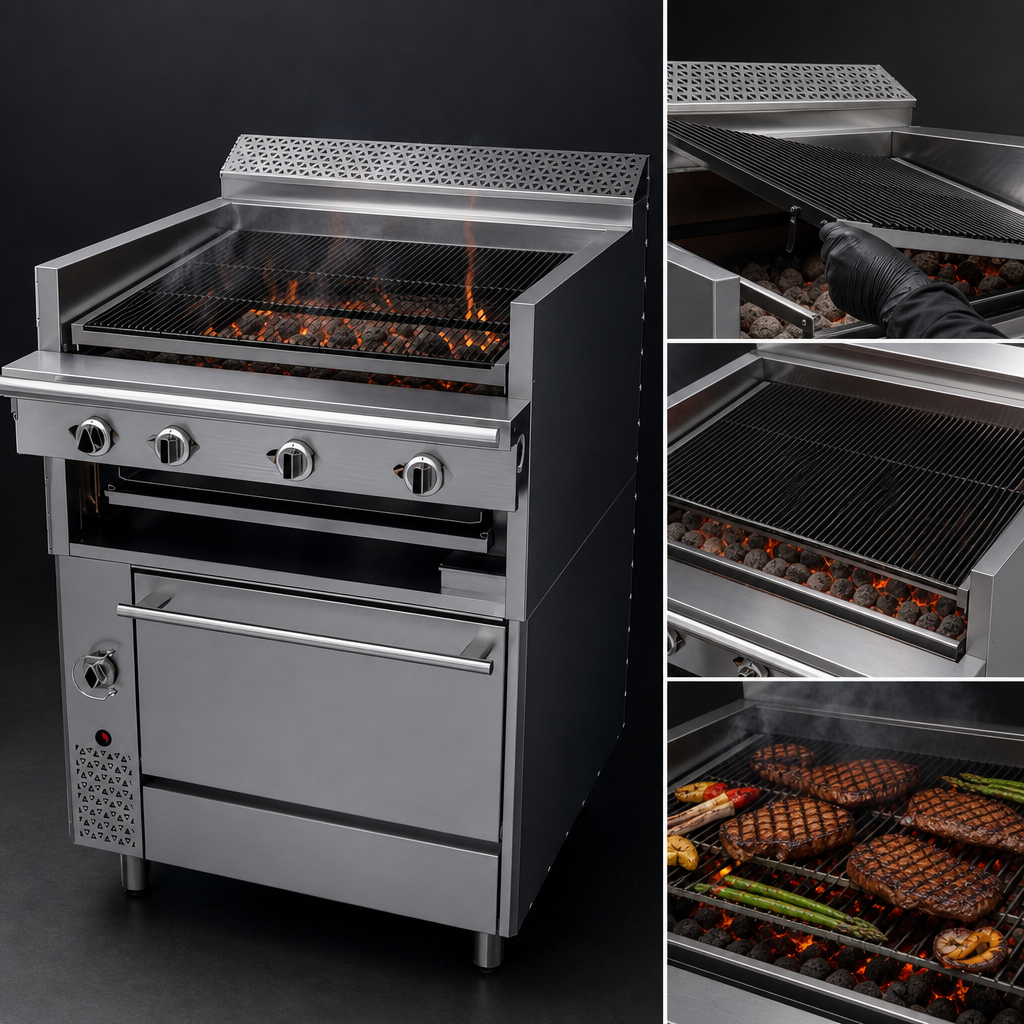

- 45,000 BTU briquette burner system delivers intense, even heat for authentic char-grilled flavor.
- Tilting, adjustable cast-iron grates let you fine-tune cooking position or channel grease away from the flame.
- Extra-large removable grease container keeps the worktop clean and simplifies daily maintenance.

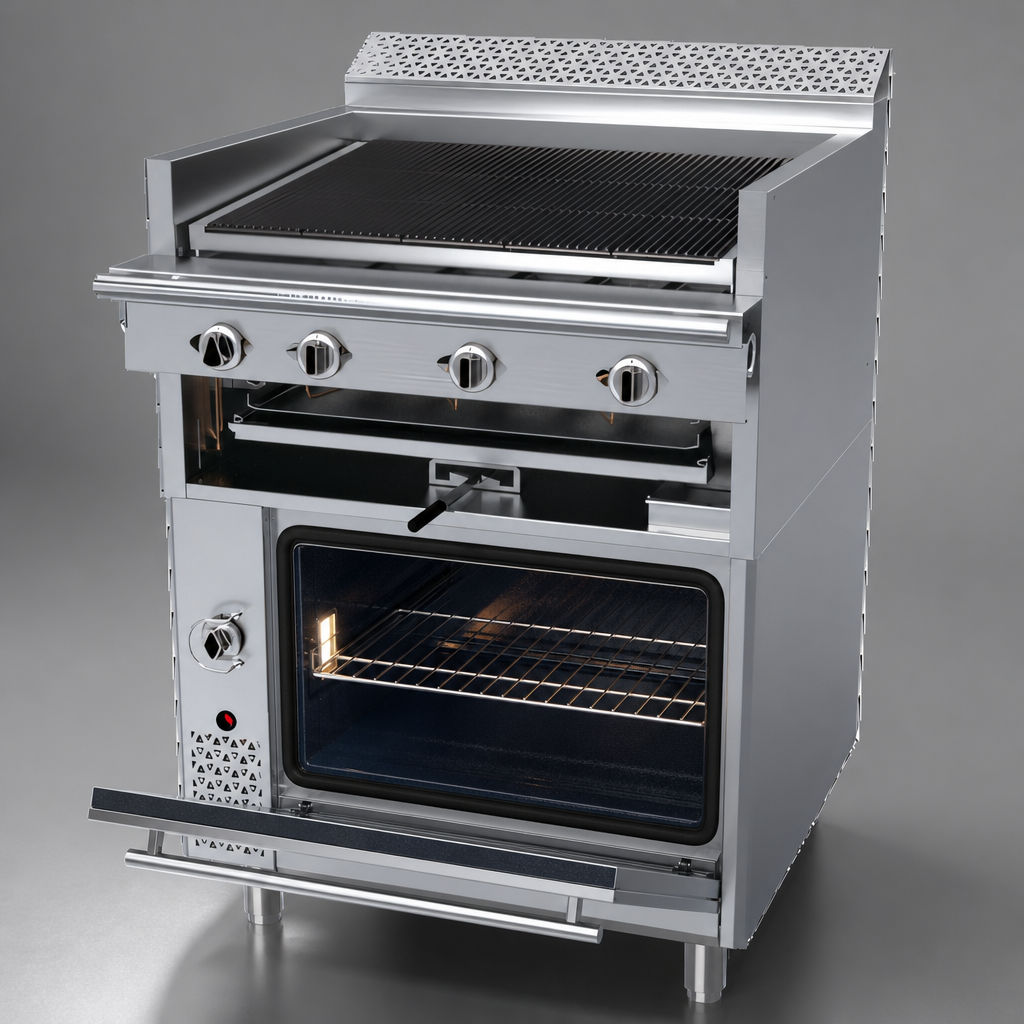

- Standard oven (40,000 BTU) with thermostat control from 150 °F – 500 °F (66 °C – 260 °C) for reliable roasting, baking and finishing.
- Includes one chrome-plated oven rack; additional racks available.
- Fully welded stainless-steel front, sides, stub back, front rail and burner box stand up to heavy use and high-heat cleaning.
- 6" (152 mm) stainless-steel legs with adjustable feet for quick level-up and easy floor sanitation.
- Front 1-1/4" NPT gas manifold with individual burner controls; optional ¾" rear gas connection kit.
- CSA Flame, CSA Star and NSF certified for gas safety and sanitation.
Performance at a Glance
| Total input (Natural Gas) | 175,000 BTU/h |
|---|---|
| Charbroiler section | 45,000 BTU briquette burner Tilting adjustable grates |
| Oven section | 40,000 BTU standard oven Temperature range 150 °F – 500 °F |
| Cooking surface width | 36" (914 mm) |
| Overall depth | 32-3/4" (830 mm) |
| Working height | 35-1/8" (893 mm) to cooking surface |
| Stub-back height | 7" (178 mm) |
| Oven interior (H × W × D) | 13-1/2" × 26-1/4" × 29" (343 × 667 × 737 mm) |
| Gas connection | Front 1-1/4" NPT (optional ¾" rear) |
| Shipping weight | Approx. 655 lb (297 kg) |
| Clearances (combustible) | Sides 10" (254 mm) | Back 6" (152 mm) |
| Certifications | CSA Flame, CSA Star, NSF |
Why Choose Garland Cuisine Series?
- Industry-leading one-piece cast-iron tops and robust chassis for years of worry-free service.
- “Keep-cool” oven door handle and pilot locations outside the spill zone enhance safety and uptime.
- No-clearance, self-cooling oven base allows back-to-back or flush-against-wall installation to maximize space.
- Wide family of matching Cuisine Series equipment lets you build a seamless cook-line as your menu grows.
Popular Accessories (sold separately)
- Extra chrome-plated oven racks
- Single or double-deck backguards & high shelves
- Rear ¾" gas connection kit with shut-off valve and quick disconnect hose
- 5" non-marking or 6" locking swivel casters
- Flanged feet for floor fastening
Need help configuring a battery or matching backguard? Reach out to our Garland equipment specialists and get a custom quote in minutes.
