Garland C36-9M Garland Cuisine Gas Ranges
Description

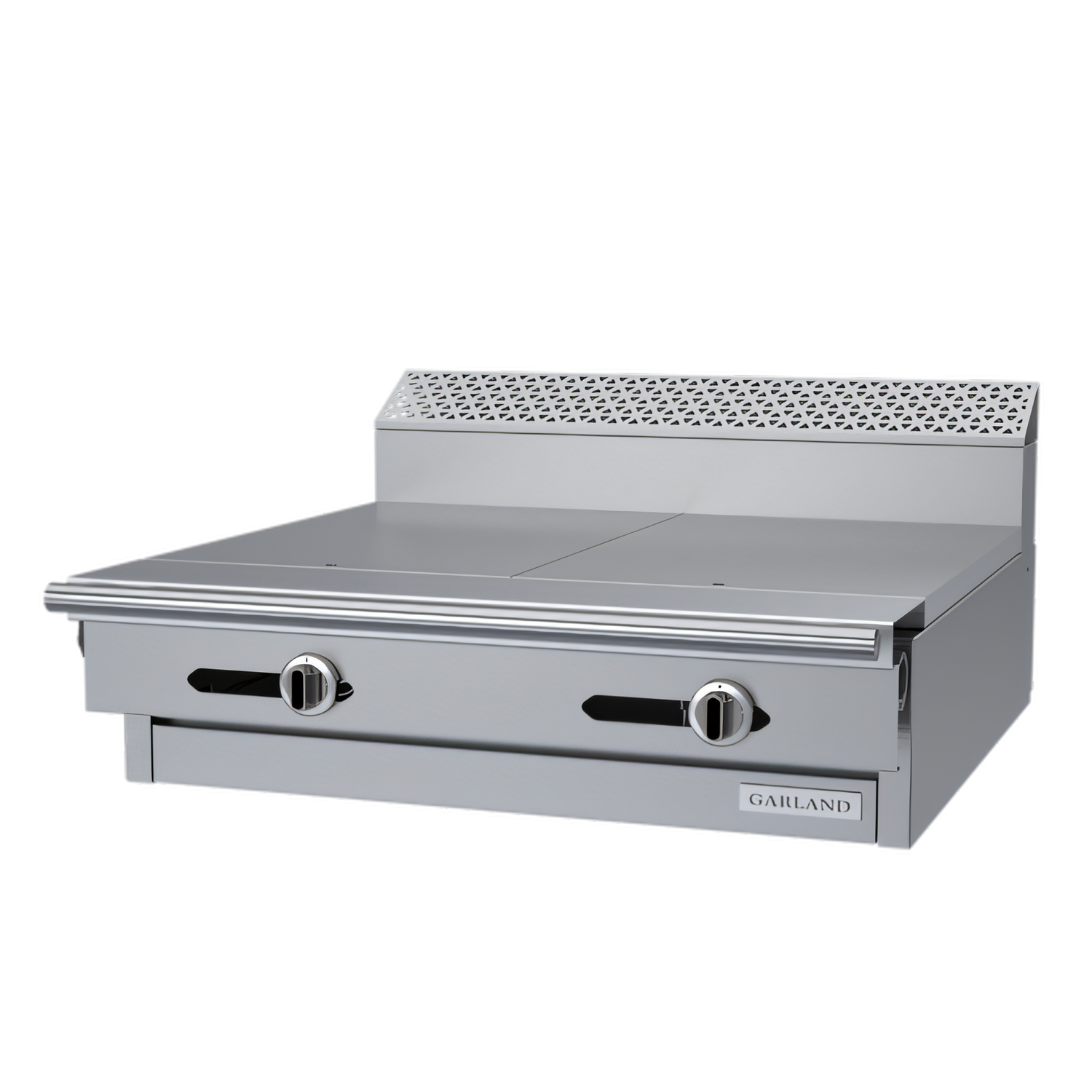

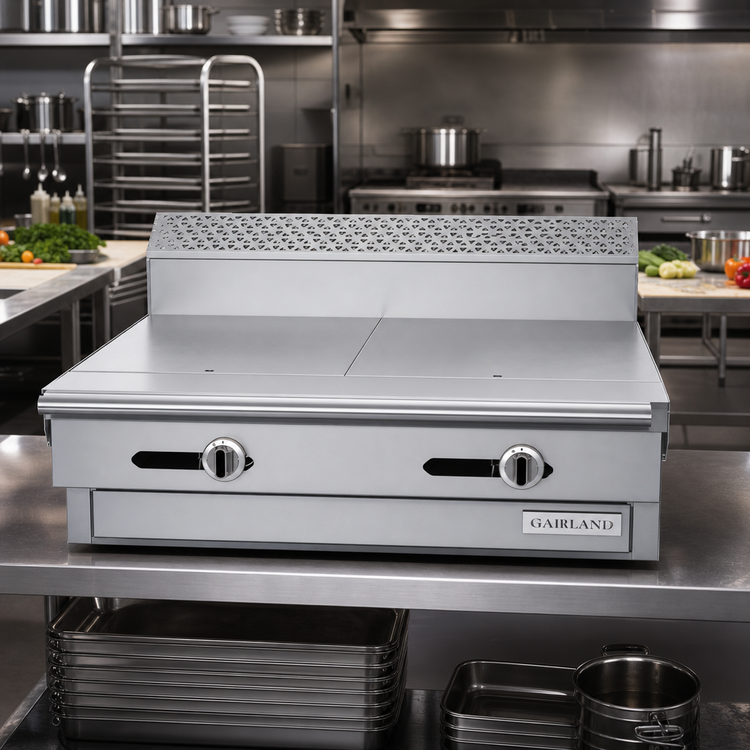

Garland Cuisine Series 36" Heavy-Duty Modular Even-Heat Hot Top Range
Model C36-9M | 65,000 BTU | Natural or Propane GasEngineered for demanding kitchens that need power, durability and layout flexibility, the Garland C36-9M drops two 18" Even-Heat hot tops onto a rugged 36" chassis— ready to be installed on a refrigerated base, equipment stand or as part of a battery line-up. With 65,000 BTU of total input and a full stainless steel build, this modular workhorse keeps sauté pans, stockpots and braises exactly where you want them: hot, even and under control.
Why You’ll Love It

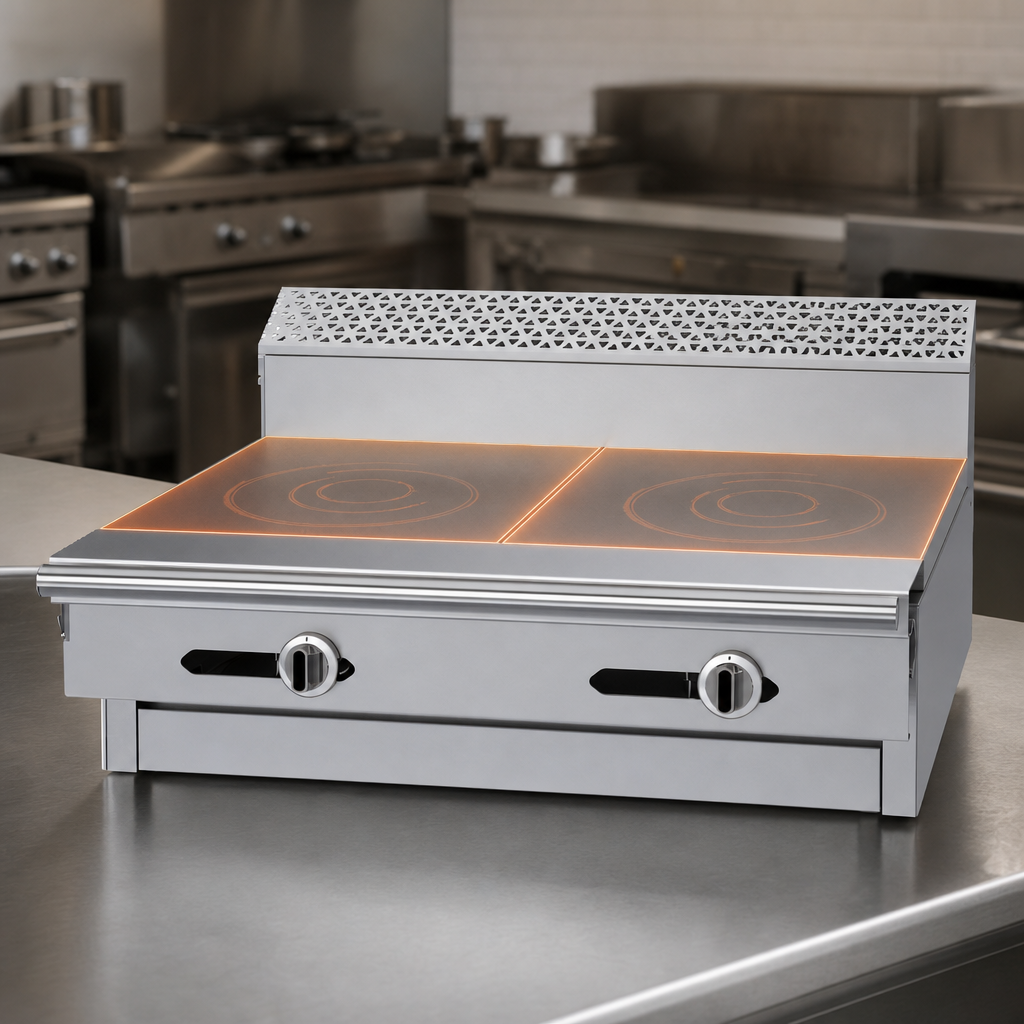

- Dual 18" Even-Heat plates deliver 32,500 BTU each for uniform surface temperatures across the entire casting.
- Modular top design mounts directly to Garland stands, Polar Cuisine refrigerated bases or existing counters.
- 7" (178 mm) stainless steel stub back guards walls from heat & splatter.

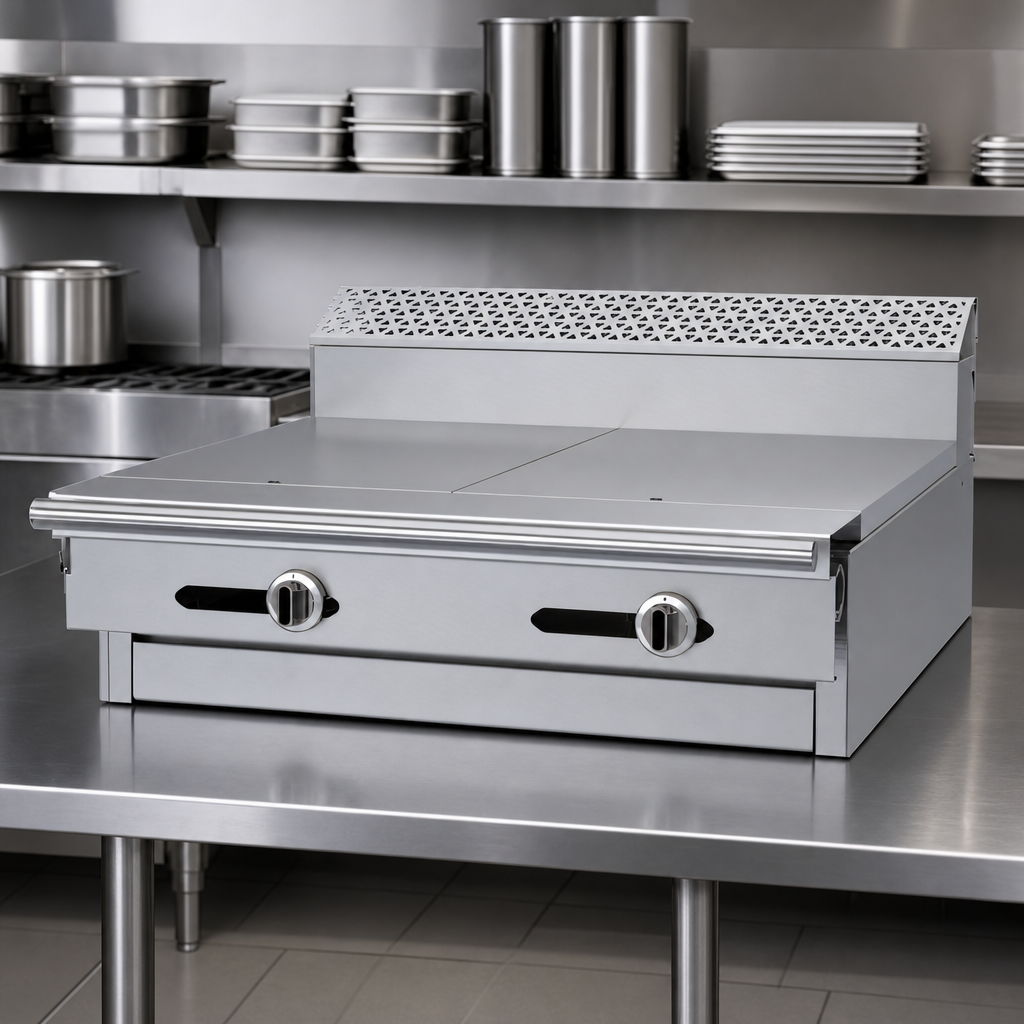

- All-stainless front, sides, burner box and continuous plate rail stand up to daily abuse and wipe clean fast.
- Front-mounted 1-1/4" NPT gas manifold simplifies line-up installations and service access.
- Field-convertible for Natural or Propane gas; factory installed regulator included.
- Certified safe & sanitary: CSA Flame, CSA Star and NSF listings.
Key Specifications
| Overall width | 36" / 914 mm |
|---|---|
| Overall depth | 32" / 813 mm |
| Overall height | 17-1/8" / 435 mm (to hot top surface, excluding stand) |
| Total input | 65,000 BTU/h |
| Burner rating (each) | 32,500 BTU/h |
| Gas connection | 1-1/4" NPT (front standard, optional rear) |
| Manifold pressure | 6" WC Natural / 10" WC Propane |
| Minimum supply pressure | 7" WC Natural / 11" WC Propane |
| Combustible clearance | 10" sides • 6" rear |
| Shipping weight | ≈342 lb / 155 kg |
Included With Your Range
- Factory-installed pressure regulator
- Stainless steel intermediate shelf (when purchased with Garland modular stand)
- Installation & operation manual
Popular Options & Accessories
- Full-height equipment stand with adjustable 6" stainless steel legs
- 5" or 6" locking swivel casters (non-marking polyurethane)
- Single or double-deck high shelves / risers for utensil storage
- Rear gas connection kit
- Gas flex hose with quick-disconnect (¾", 1", or 1-¼")
Garland reserves the right to modify specifications without notice. Need a different base, oven or burner layout? Explore the full Cuisine Series for limitless range configurations.
