Garland C36-9C Garland Cuisine Gas Ranges
$9,689.00
Unit price
/
Unavailable
Description

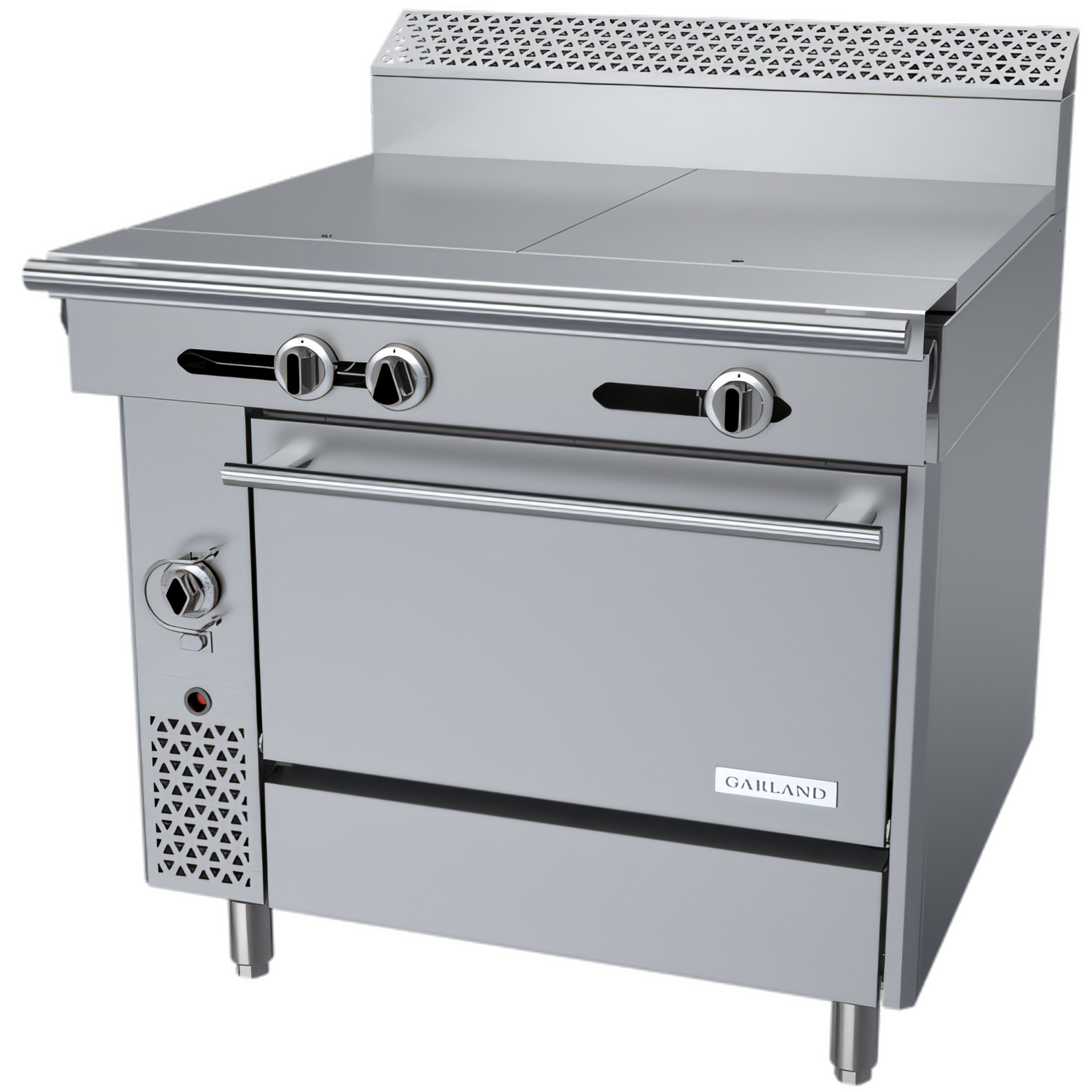

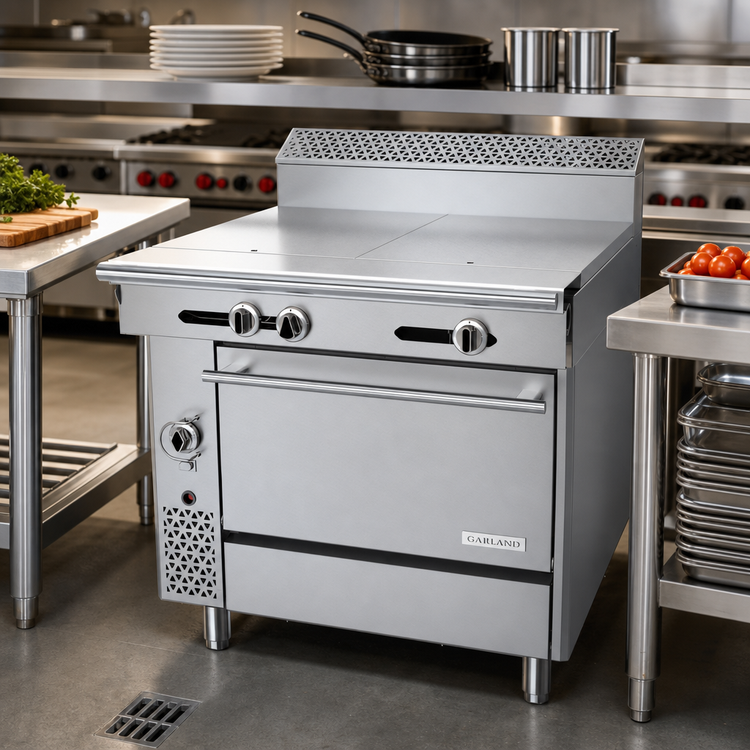

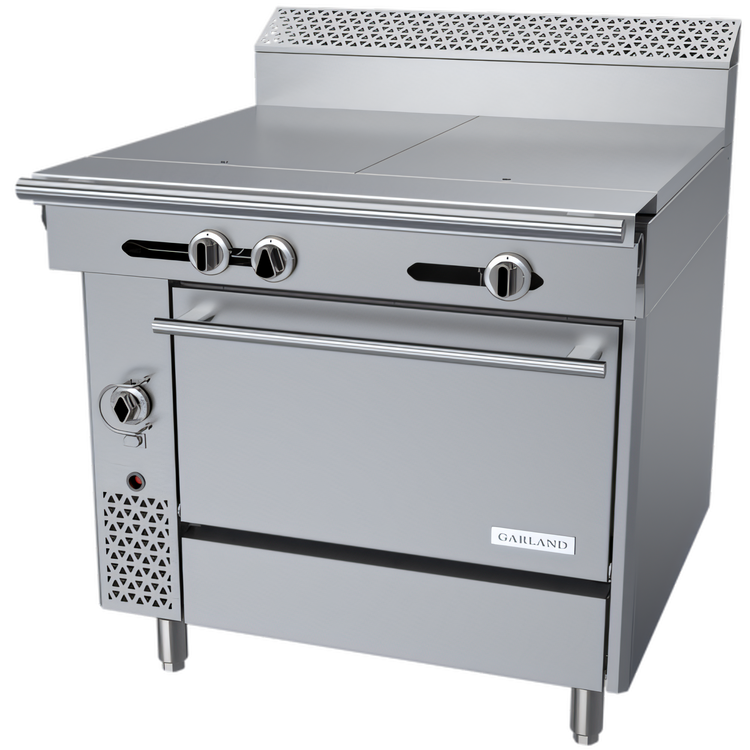

Garland Cuisine Series 36" Heavy-Duty Range with (2) 18" Even-Heat Hot Tops & Convection Oven
Model C36-9C | Natural Gas | 102,000 BTUBuilt for the busiest commercial kitchens, the Garland C36-9C puts two powerful Even-Heat hot tops and a high-performance convection oven into a rugged 36" frame—delivering the versatility of a full cookline in a single, space-saving unit.
Why You’ll Love It

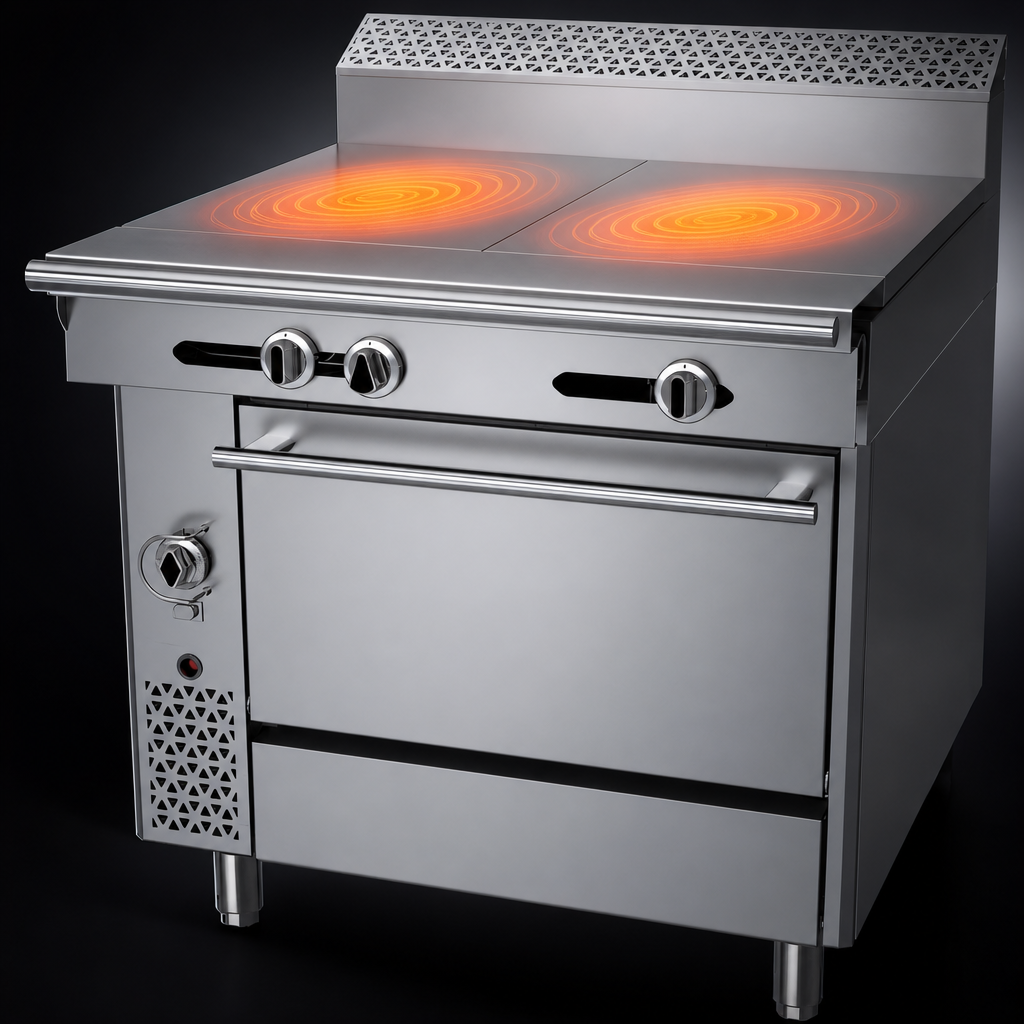

- Dual 18" Even-Heat hot tops rated at 32,500 BTU each for consistent heat distribution across the entire surface.

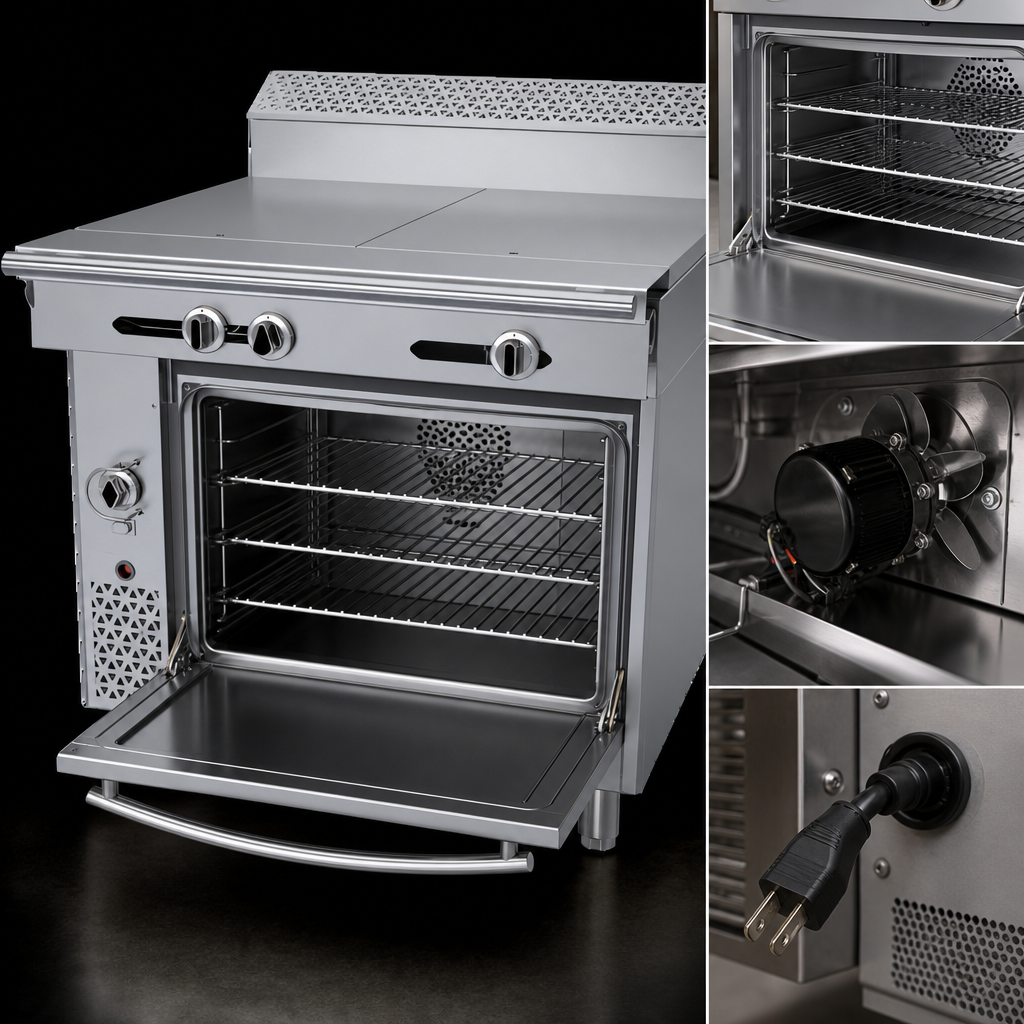

- Fan-assisted convection oven (37,000 BTU) cooks faster and more evenly—ideal for baked goods, roasts and finishing.
- Includes three chrome-plated racks and 3 rack positions to handle full-size sheet pans front-to-back.
- Wide 150 – 500 °F thermostat range with safety pilot for precise, dependable temperature control.
- Stainless-steel front, sides, plate rail and burner box resist corrosion and wipe down in seconds.
- 6" adjustable stainless legs simplify leveling and provide room for floor cleaning.
- Low-profile 7" stainless backguard protects walls while maintaining a clear sight-line on the line.
- Factory-wired 120 V, 0.6 A convection motor with NEMA 5-15P cord & plug—no hard-wiring required.
- Front 1-1/4" NPT manifold with regulator for quick line-up installs; optional rear gas connection kit available.
Specifications
| Overall width | 36" / 914 mm |
|---|---|
| Overall depth | 34-1/8" / 866 mm |
| Working height | 37-1/4" / 947 mm (54-1/4" / 1 378 mm with backguard) |
| Total input (NG) | 102,000 BTU/h |
| Hot tops | 32,500 BTU/h each (2 total) |
| Convection oven burner | 37,000 BTU/h |
| Oven interior (H × W × D) | 13-1/2" × 26-1/4" × 25" (343 × 667 × 635 mm) |
| Electrical | 120 V / 60 Hz / 1-ph, 0.6 A, NEMA 5-15P |
| Gas connection | 1-1/4" NPT (front); min. supply 7" WC |
| Combustible clearances | 10" sides, 6" rear |
| Certifications | CSA Flame, CSA Star, NSF |
| Shipping weight | ≈ 590 lb / 268 kg |
Optional Accessories
- Single or double-deck overshelf / high shelf
- Rear gas connection kit
- 5" or 6" locking swivel casters
- Extra chrome oven racks
- Gas flex hose with quick-disconnect
Installation Note: A qualified technician must connect the gas and electrical supply in accordance with local codes. Units on casters require a suitable restraining device (not included).
Specifications are subject to change without notice.
Features & Specs
Features & Specs
Manufacturer
Garland
Brand_name
Garland Cuisine
Certifications
NSF, CSA Star, CSA Flame
Height
42.0in
Width
36.0in
Depth
39.38in
Shipping Weight
590.0lbs
Top
(2) hot tops
Exterior Finish
stainless steel front & sides
Base
(1) convection oven
Specifications
Garland Cuisine Series Heavy Duty Range, gas, 36", (2) 18" even heat hot tops, convection oven, includes (3) racks, 7"H backguard, stainless steel front, sides, plate rail & burner box, 6" adjustable legs, 102,000 BTU (NG), 120V/60/1-ph, 0.6A, NEMA 5-15P cord & plug, CSA Flame, CSA Star, NSF (Garland)
