Garland C36-8R Garland Cuisine Gas Ranges
$7,589.00
Unit price
/
Unavailable
Description

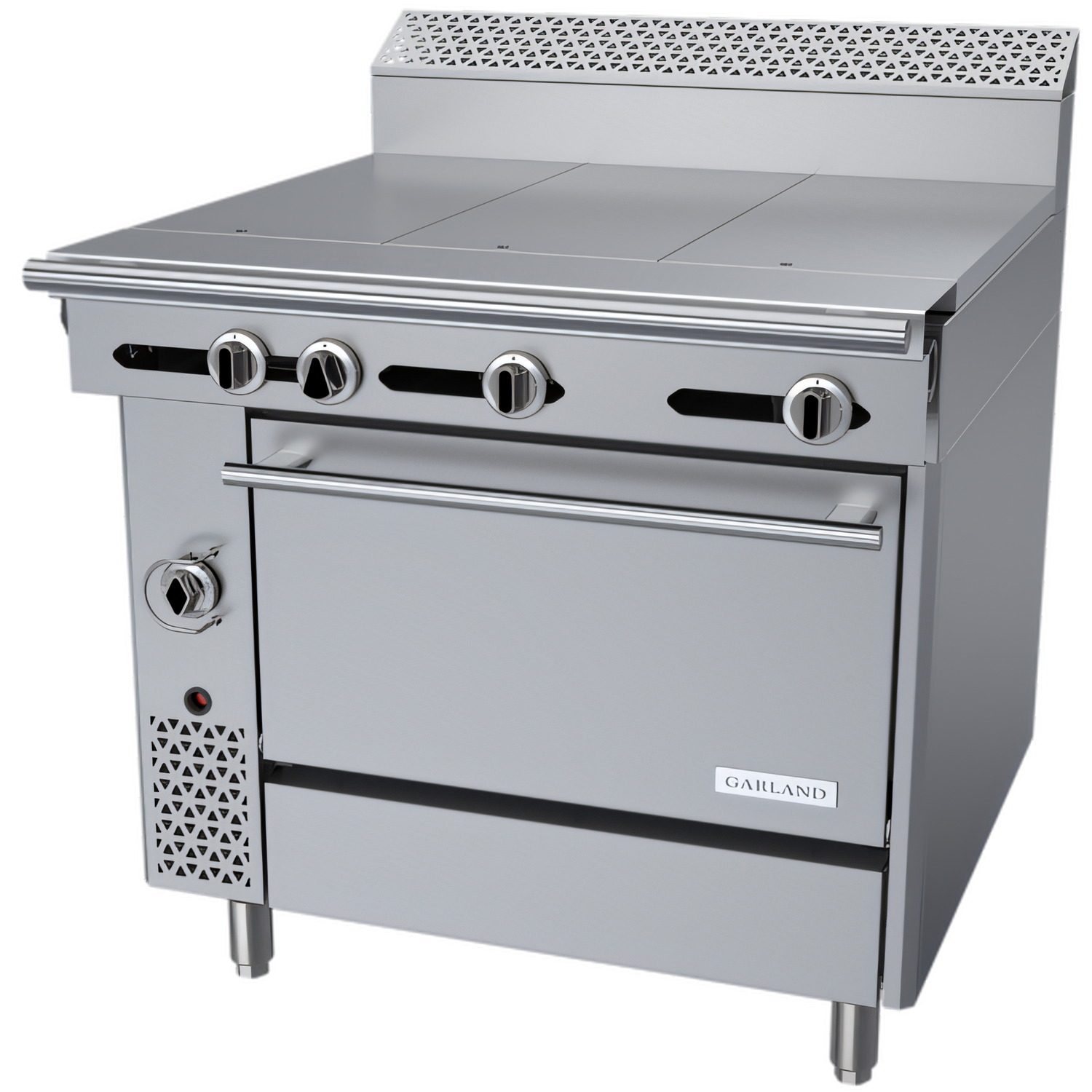

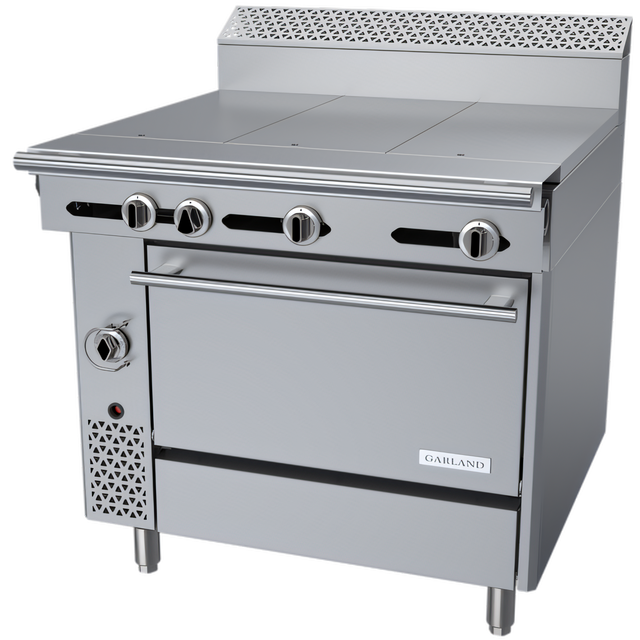

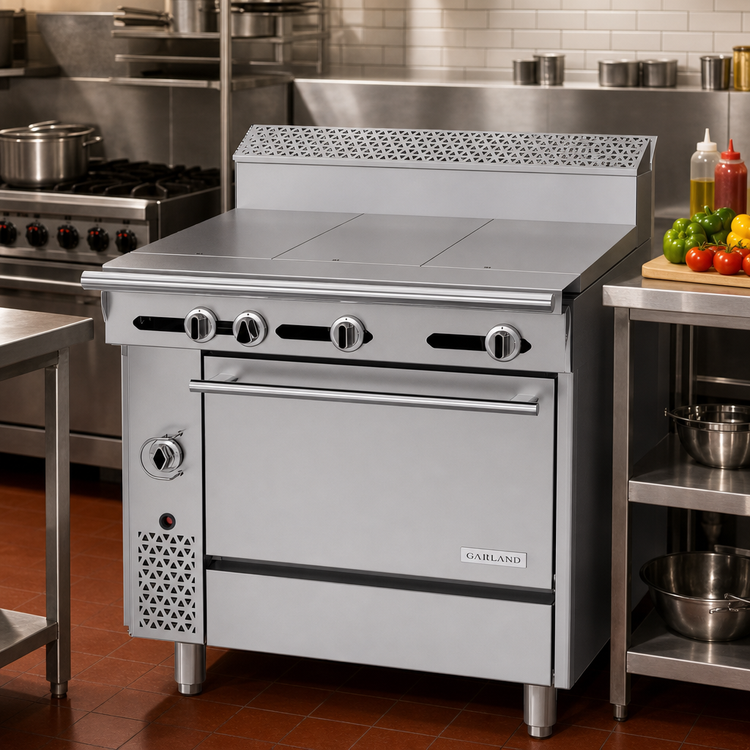

Garland Cuisine Series 36" Heavy-Duty Even-Heat Hot Top Range
Model C36-8R | 115,000 BTU (Natural Gas)Built for relentless commercial schedules, the Garland C36-8R combines three powerful 12" Even-Heat hot tops with a full-size standard oven in a compact 36" footprint— giving chefs the steady, uniform heat they need for high-volume production and delicate simmering alike.
Key advantages

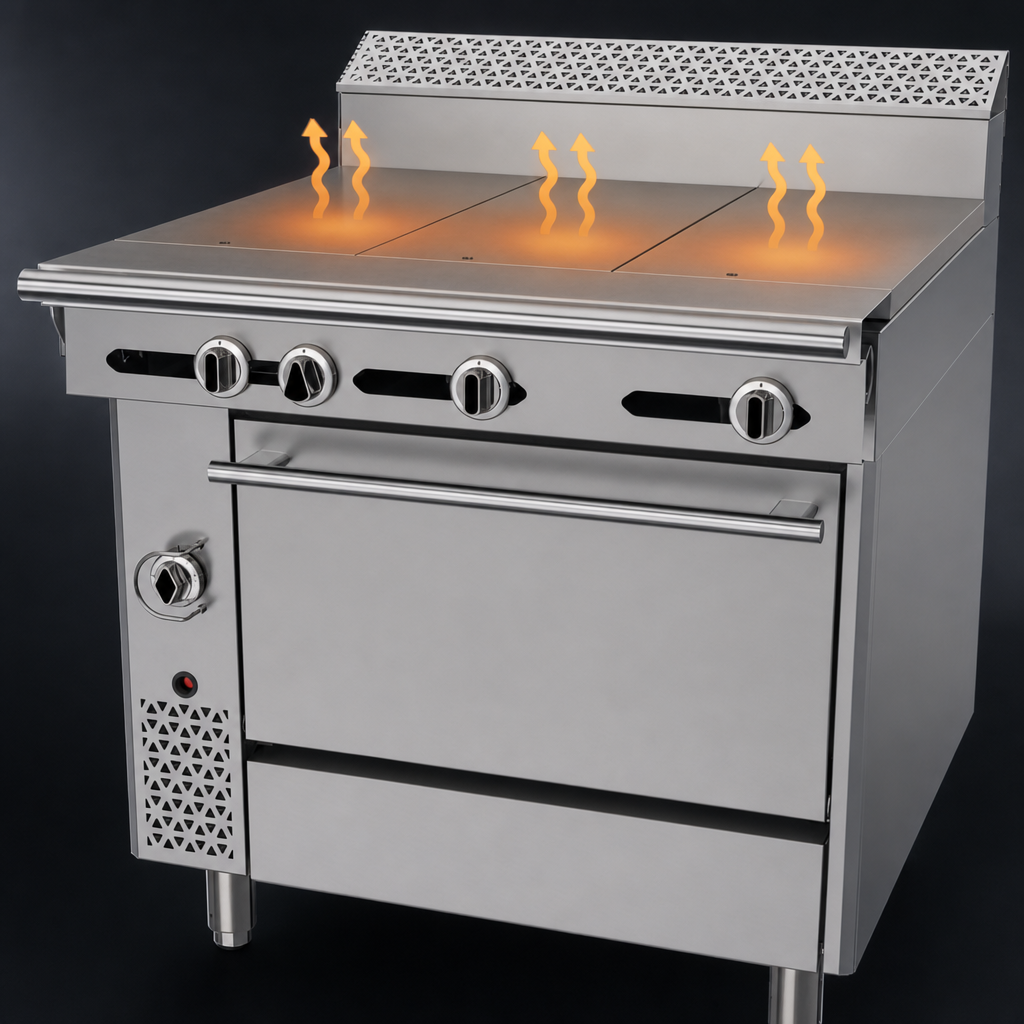

- 3 × 12" (305 mm) cast-iron hot tops, 25,000 BTU each—edge-to-edge heat, lightning-fast recovery.

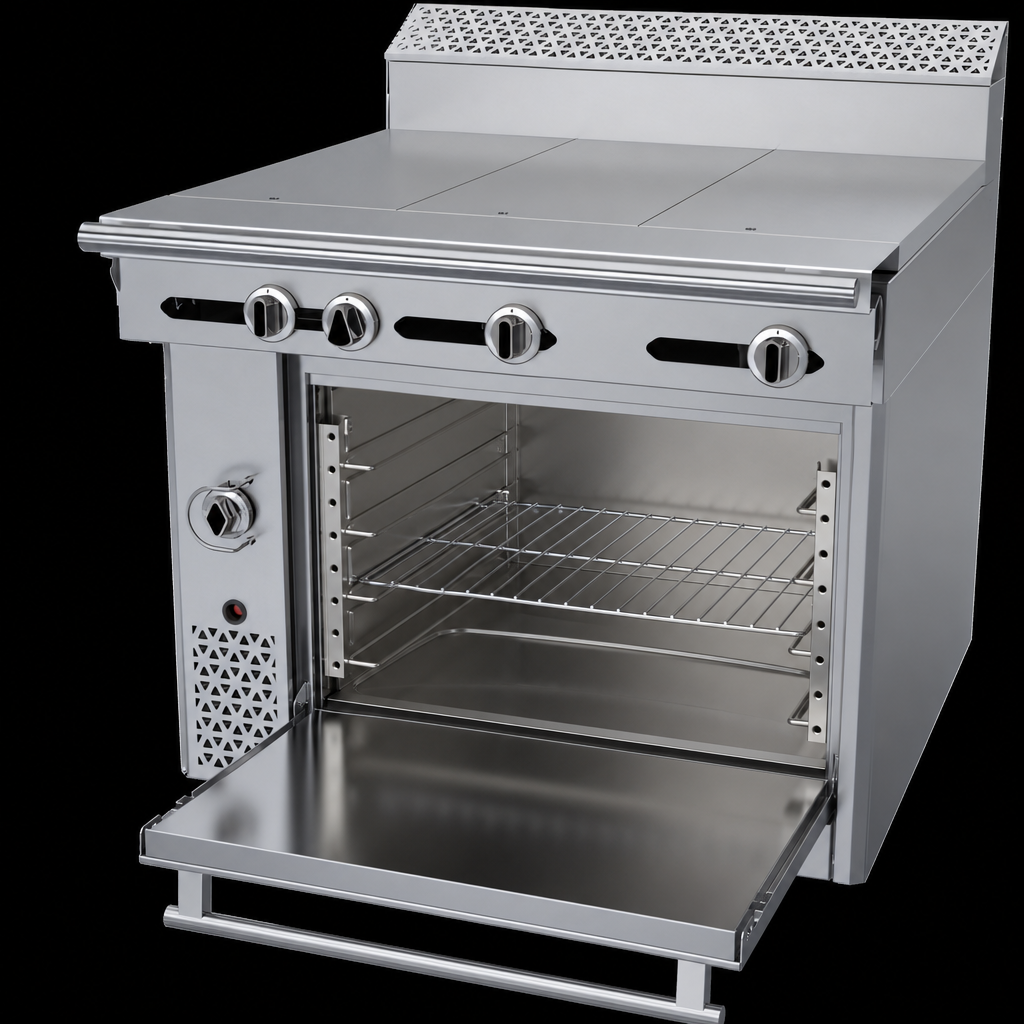

- 40,000 BTU standard oven calibrated from 150–500 °F (66–260 °C) with four rack positions; ships with one chrome rack.
- Fully insulated oven door with heavy-duty “keep-cool” handle and a reliable safety pilot.
- Rugged stainless steel front, sides, plate rail and burner box for effortless wipe-downs.
- 7" stainless stub back shields the wall and doubles as a practical landing shelf.
- 6" adjustable stainless legs ensure a level cook surface on any floor or curb base.
- Front-mounted 1-¼" NPT gas manifold—ideal for single installations or battery line-ups.
- Certified to CSA Flame, CSA Star and NSF standards for safety and sanitation.
Technical specifications
| Model | C36-8R |
|---|---|
| Gas type | Natural Gas (field convertible to LP) |
| Total input | 115,000 BTU/h |
| Hot tops | 3 × 12" plates – 25,000 BTU each |
| Oven burner | 40,000 BTU/h |
| Oven temp. range | 150–500 °F (66–260 °C) |
| Oven interior (H × W × D) | 13-1/2" × 26-1/4" × 29" (343 × 667 × 737 mm) |
| Exterior width | 36" (914 mm) |
| Exterior depth | ~34-1/4" (871 mm) to plate rail |
| Cook surface height | 37-1/4" (947 mm) on 6" legs |
| Gas connection | 1-¼" NPT (front manifold) |
| Min. supply pressure | 7" WC (Nat) / 11" WC (LP) |
| Clearances (combustible) | 10" sides, 6" rear |
| Shipping weight | ≈ 588 lb (267 kg) |
| Certifications | CSA Flame, CSA Star, NSF |
Perfect for
- High-volume restaurants, hotels and institutional kitchens
- Batch production of sauces, stocks and reductions
- Simultaneous low-simmer and high-heat applications on a single surface
Installation note:
This appliance must be installed and commissioned by a licensed gas professional.
Maintain the stated clearances to combustible surfaces and secure the unit with an
approved restraining device when mounted on casters.
Specifications are based on manufacturer data and may change without notice.
Features & Specs
Features & Specs
Manufacturer
Garland
Brand_name
Garland Cuisine
Height
42.0in
Width
36.0in
Depth
39.38in
Shipping Weight
588.0lbs
Exterior Finish
stainless steel front & sides
Top
(3) hot tops
Base
(1) standard oven
Specifications
Garland Cuisine Series Heavy Duty Range, gas, 36", (3) 12" even heat hot tops, standard oven, includes (1) rack, 7" backguard, stainless steel front, sides, plate rail & burner box, 6" adjustable legs, 115,000 BTU (NG), CSA Flame, CSA Star, NSF (Garland)
