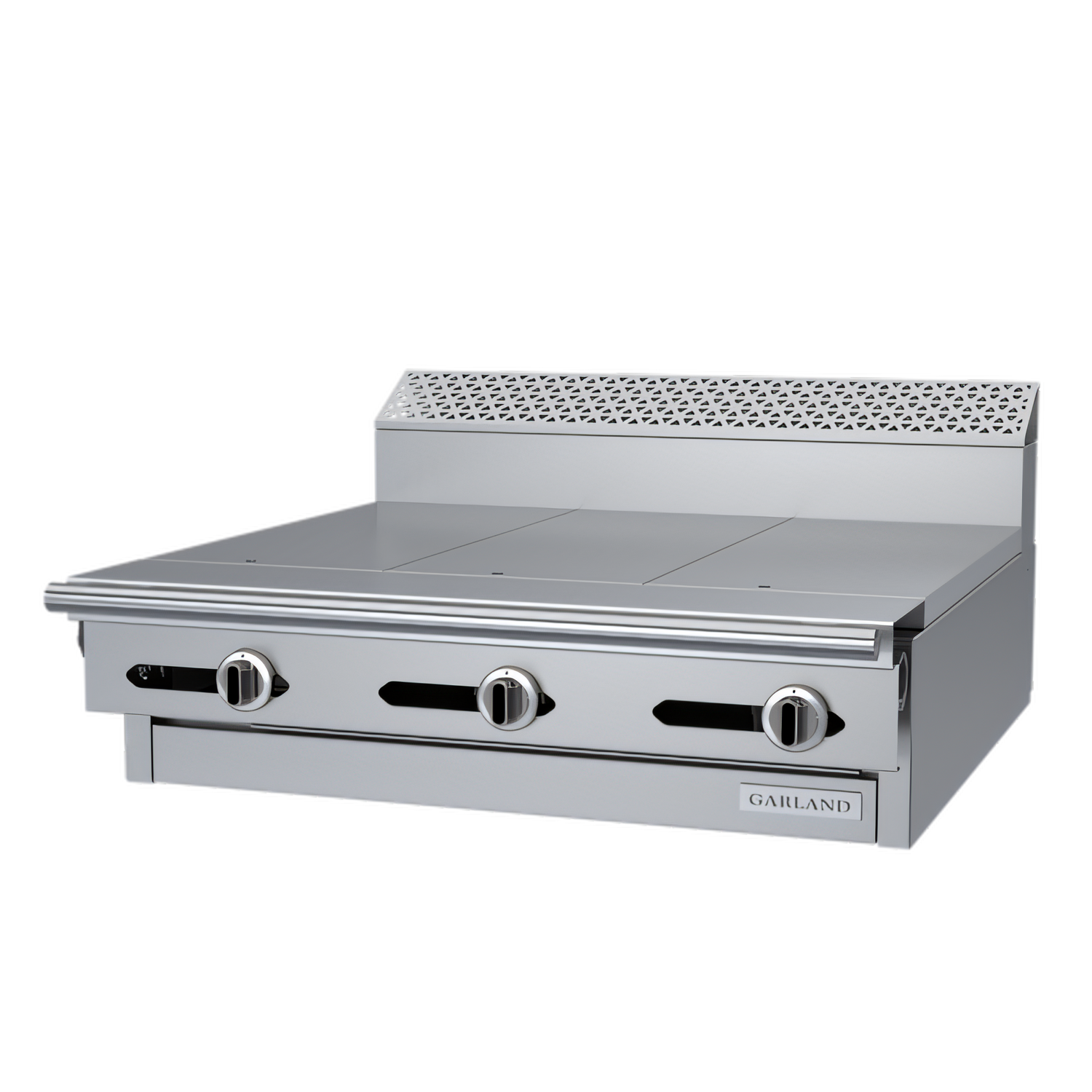

Garland Cuisine Series 36" Heavy-Duty Modular Even-Heat Hot Top Range
3 x 12" hot tops • 75,000 BTU • Model C36-8MBuilt for the rigours of high-volume commercial kitchens, the Garland Cuisine C36-8M delivers consistent, even heat across three 12" hot tops while giving you the flexibility of a low-profile modular design. From stocks and sauces to searing and holding, this heavy-duty range keeps pace with every rush.
Why You’ll Love It

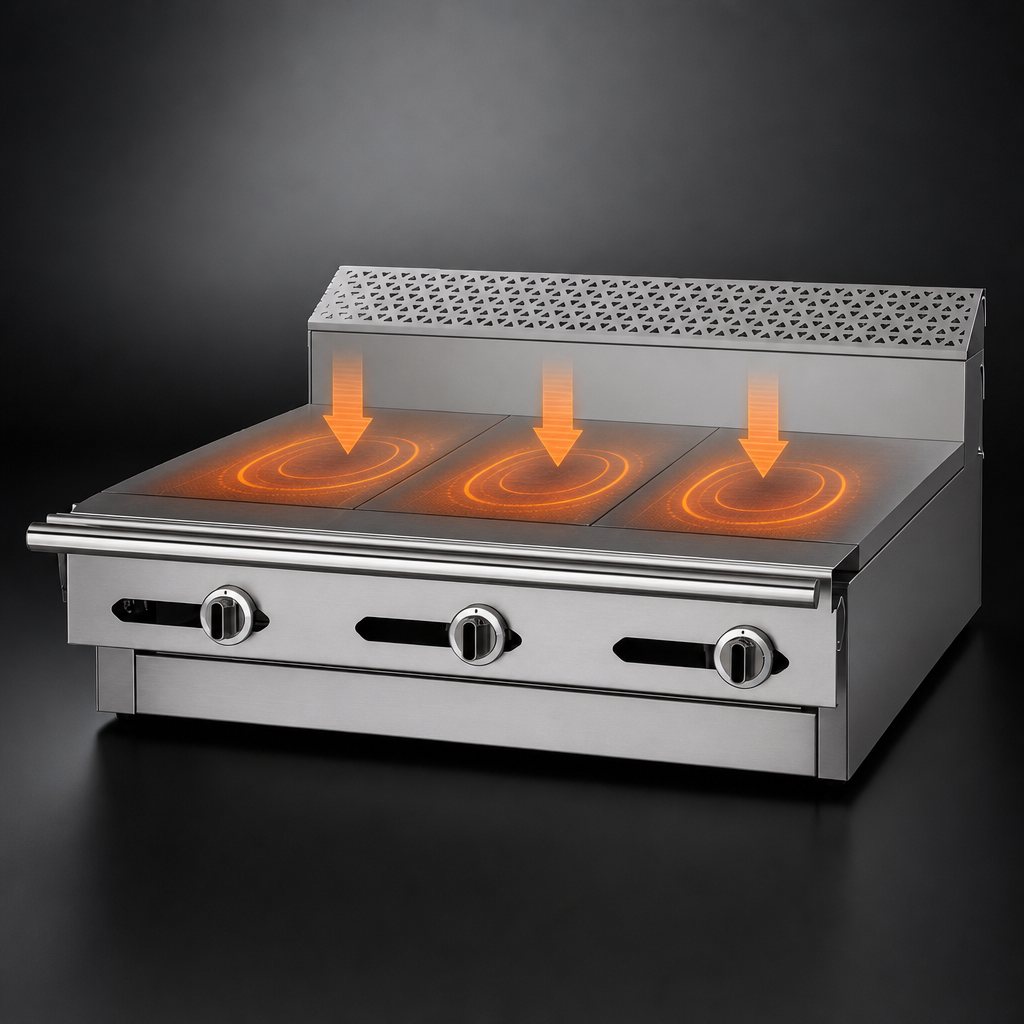

- Even-Heat Performance – Each 12" hot top is paired with a dedicated 25,000 BTU burner for uniform heat distribution and faster recovery.
- True Heavy-Duty Construction – Rugged stainless-steel front, sides, plate rail and burner box stand up to daily abuse and simplify wipe-down cleaning.
- Compact, Modular Freedom – 7" (178 mm) stainless stub-back lets you bank this unit with other Cuisine Series equipment or mount it on a refrigerated base, stand or countertop.
- Front 1 ¼" NPT Gas Manifold – Easier installations and battery hookups with natural or propane gas.
- Operator-Safe Controls – Individual hi/lo valves with quality Garland knobs give precise simmer-to-sear control on every plate.
- Certified for Peace of Mind – CSA Flame, CSA Star and NSF listings prove it meets the highest gas and sanitation standards.
Engineered to Outlast & Outperform
- Full-width plate rail acts as a landing zone for ladles, spoons and pans.
- Fully insulated burner box helps keep kitchen ambient temperatures down.
- All exposed edges are hemmed for safer handling and to resist dings.
- Field-convertible to LP or NG (specify at order).
At-a-Glance Specs
Model | C36-8M |
---|---|
Configuration | (3) 12" Even-Heat hot tops, modular (no oven) |

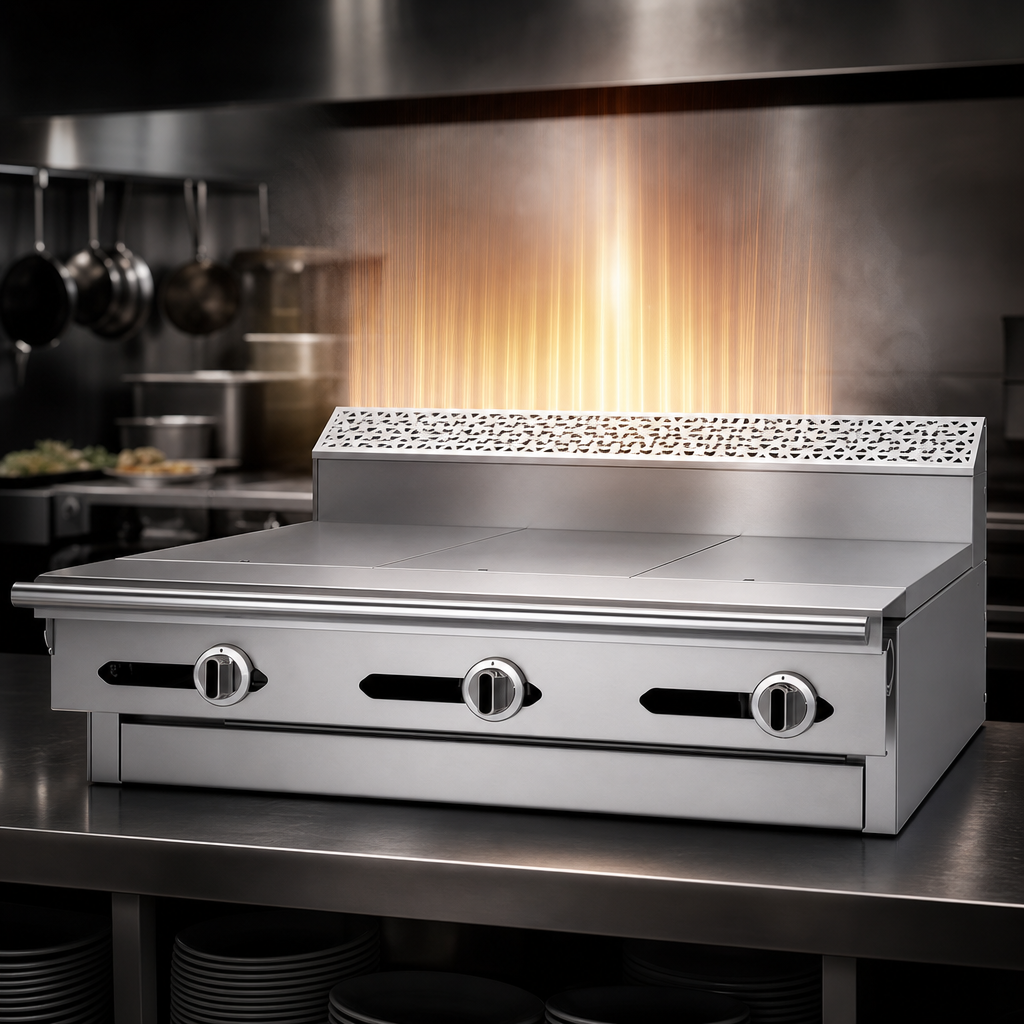

Total Input | 75,000 BTU/h (Nat. or LP) |
Individual Burner Rating | 25,000 BTU/h each |
Width | 36" (914 mm) |
Gas Connection | Front 1 ¼" NPT manifold |
Minimum Supply Pressure | 7" WC (Nat.) • 11" WC (LP) |
Manifold Operating Pressure | 6" WC (Nat.) • 10" WC (LP) |
Clearances to Combustibles | Sides 10" (254 mm) • Back 6" (152 mm) |
Certifications | CSA Flame • CSA Star • NSF |
Shipping Weight | ≈ 342 lb (155 kg) |
This unit is intended for commercial use only and must be installed in accordance with local codes by a qualified gas technician. Stand or refrigerated base sold separately.
