Garland C36-8C Garland Cuisine Gas Ranges
Garland C36-8C Garland Cuisine Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Garland C36-8C Garland Cuisine Gas Ranges
Description

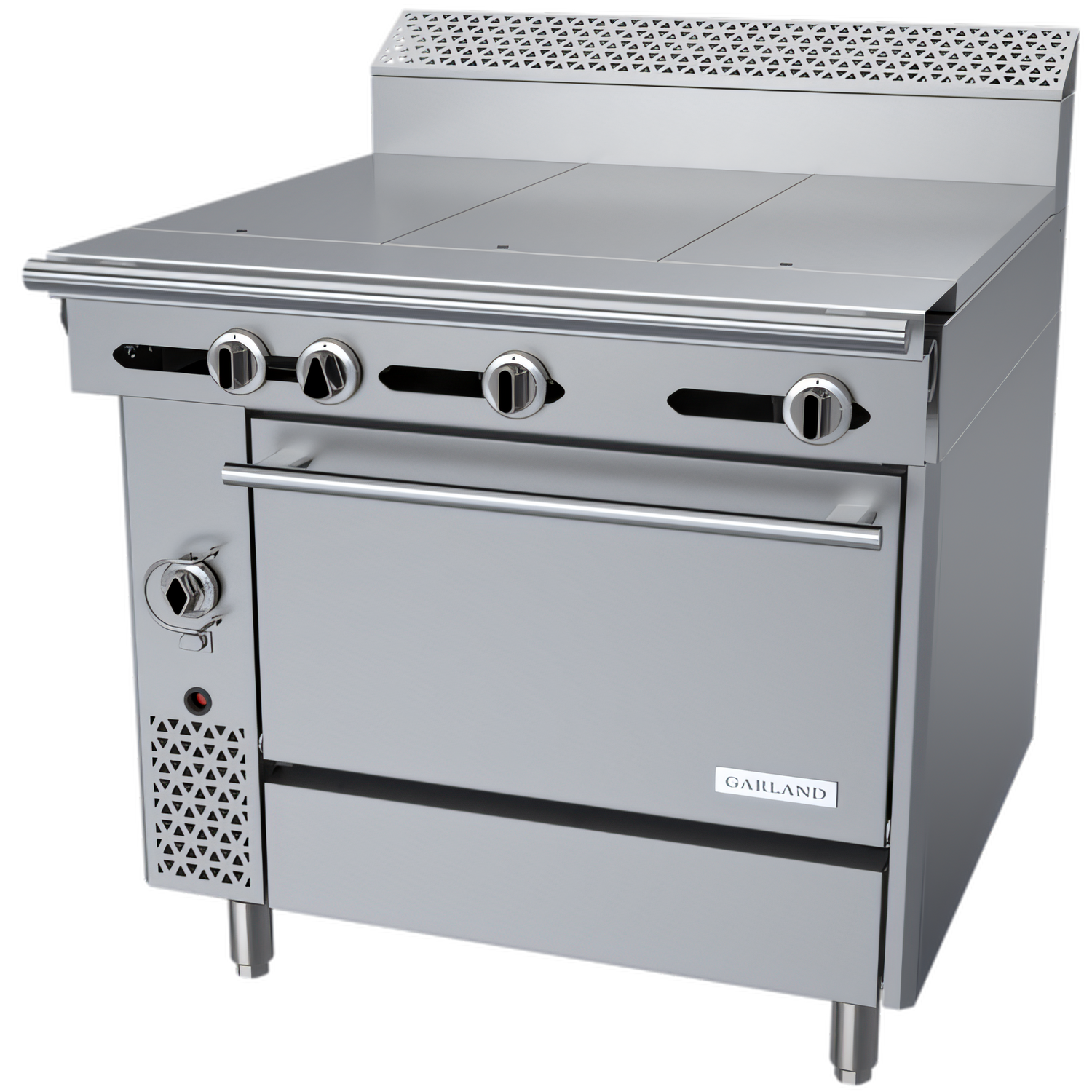

Garland Cuisine Series 36" Heavy-Duty Gas Range with 3 Even-Heat Hot Tops & Convection Oven
Model C36-8C | Natural Gas | 112,000 BTU | CSA Flame • CSA Star • NSFDesigned for the most demanding commercial kitchens, the Garland Cuisine Series C36-8C delivers rock-solid durability, precise heat control and a spacious convection oven—all in a 36" footprint. Three seamless 12" even-heat hot tops let you slide heavy stock pots anywhere on the surface, while the self-cooling convection base turns out perfectly baked, roasted or finished dishes shift after shift.
Performance Highlights

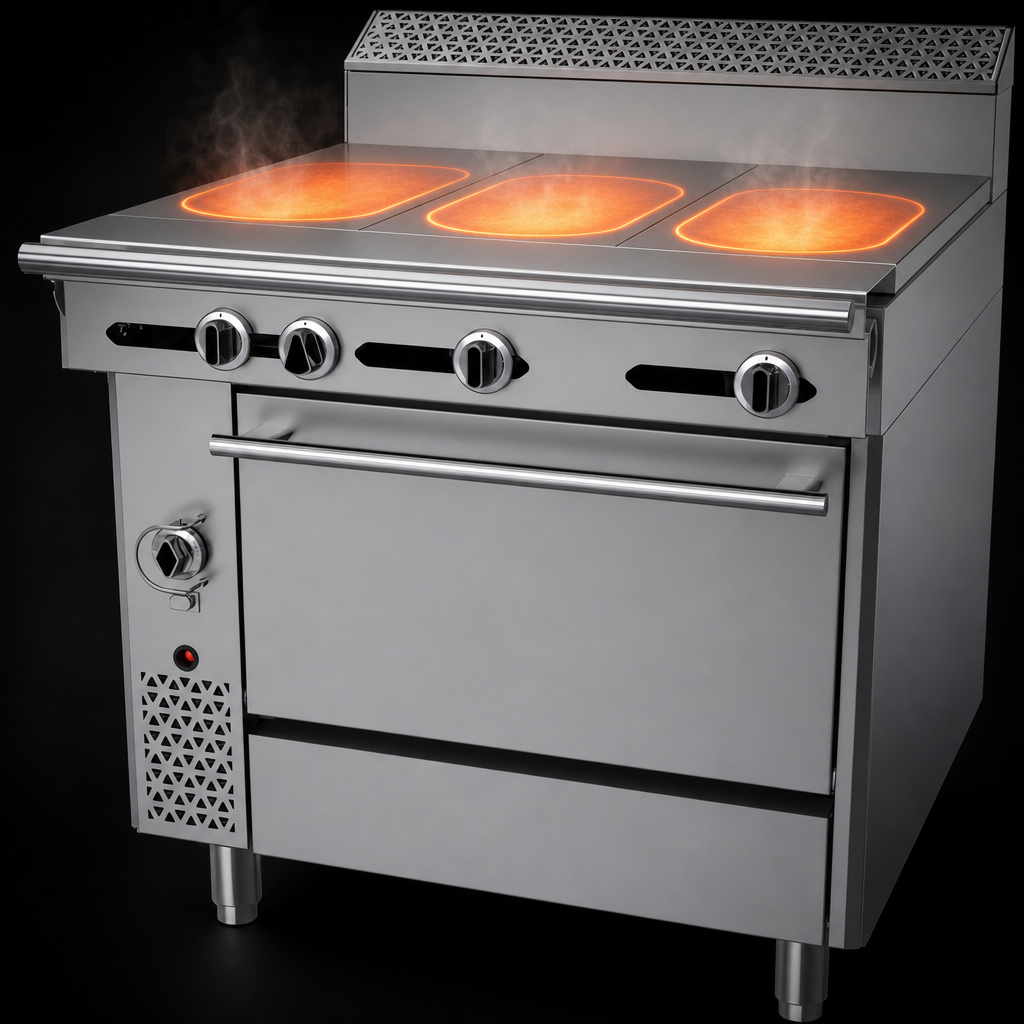

- Three 12" cast-iron even-heat plates—25,000 BTU/h each for uniform surface temperatures and effortless pot movement.
- Total input: 112,000 BTU/h (Natural Gas).

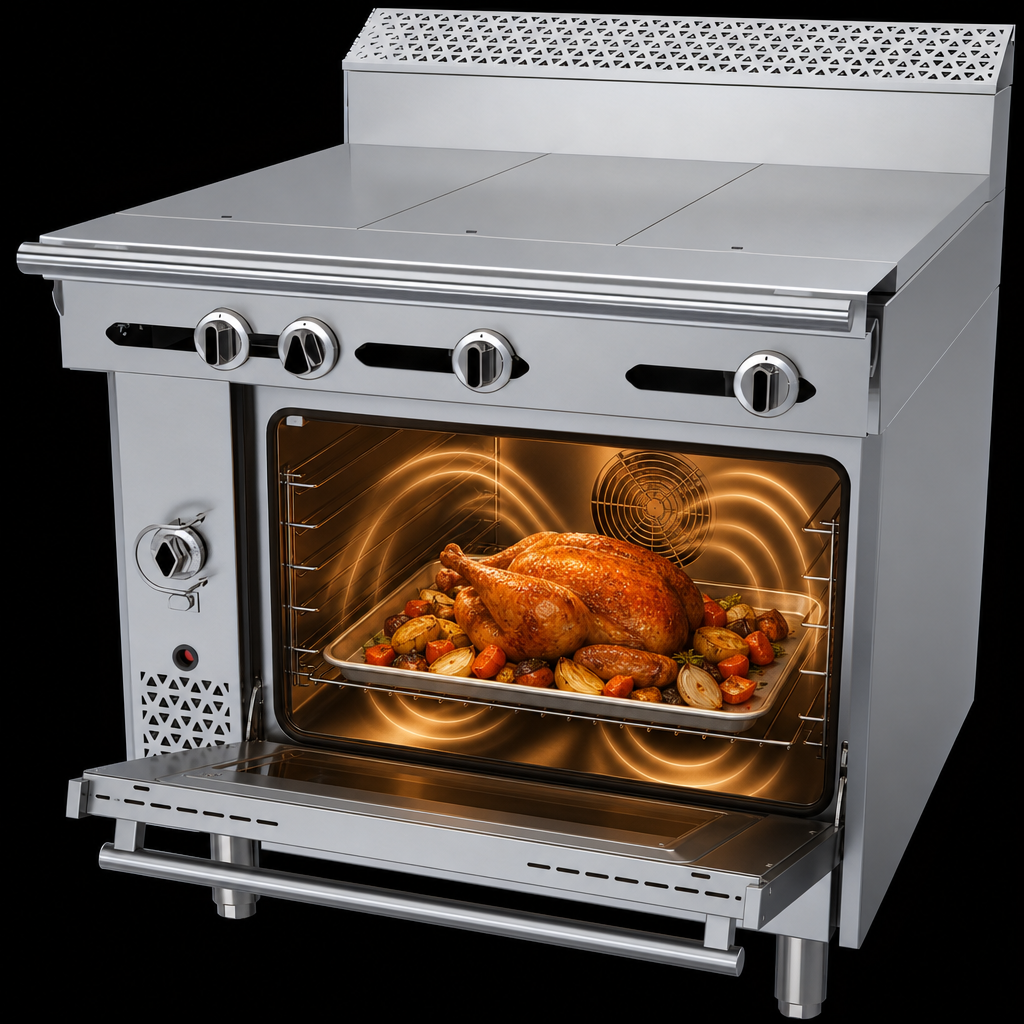

- Convection oven burner: 37,000 BTU/h with 1/3 HP fan motor (120 V, 0.6 A, NEMA 5-15P cord & plug).
- Oven thermostat range: 150 °F–500 °F (66 °C–260 °C) for reliable low-roasting to high-heat finishing.
- Includes 3 chrome-plated racks with 3 rack positions.
- Self-cooling oven fan requires zero rear clearance—ideal for back-to-back or against-the-wall installations.
- 7" stainless steel stub backguard protects walls without sacrificing sightlines.
- Heavy-gauge stainless steel front, sides, plate rail & burner box stand up to daily abuse and make cleanup fast.
- 6" adjustable stainless steel legs for easy leveling and under-range cleaning.
- Front-mounted 1-1/4" NPT gas manifold with factory regulator simplifies installation.
Why Even-Heat Hot Tops?
- Full-coverage cast-iron plates spread heat evenly—no hot spots, no scorching.
- Continuous surface lets you slide pans instead of lifting, reducing operator fatigue.
- Perfect for stockpots, braising pans, water baths and other large-volume applications.
Specifications
| Overall width | 36" / 914 mm |
|---|---|
| Overall depth (to plate rail) | 34-1/8" / 866 mm |
| Height to cooking surface | 37-1/4" / 947 mm |
| Backguard height | 7" / 178 mm stub |
| Total BTU (NG) | 112,000 BTU/h |
| Hot top sections | 3 × 25,000 BTU/h even-heat plates (cast iron) |
| Oven input | 37,000 BTU/h burner + 1/3 HP convection fan motor |
| Oven interior (H × W × D) | 13-1/2" × 26-1/4" × 25" (343 × 667 × 635 mm) |
| Electrical | 120 V / 60 Hz / 1-ph • 0.6 A • NEMA 5-15P plug |
| Gas connection | 1-1/4" NPT front manifold (regulator included) |
| Legs | 6" stainless, adjustable |
| Certifications | CSA Flame, CSA Star, NSF |
| Shipping weight | 588 lb / 267 kg |
Garland equipment is engineered for commercial use only. Installation must comply with local codes.
