Garland C36-7S Garland Cuisine Gas Ranges
Description

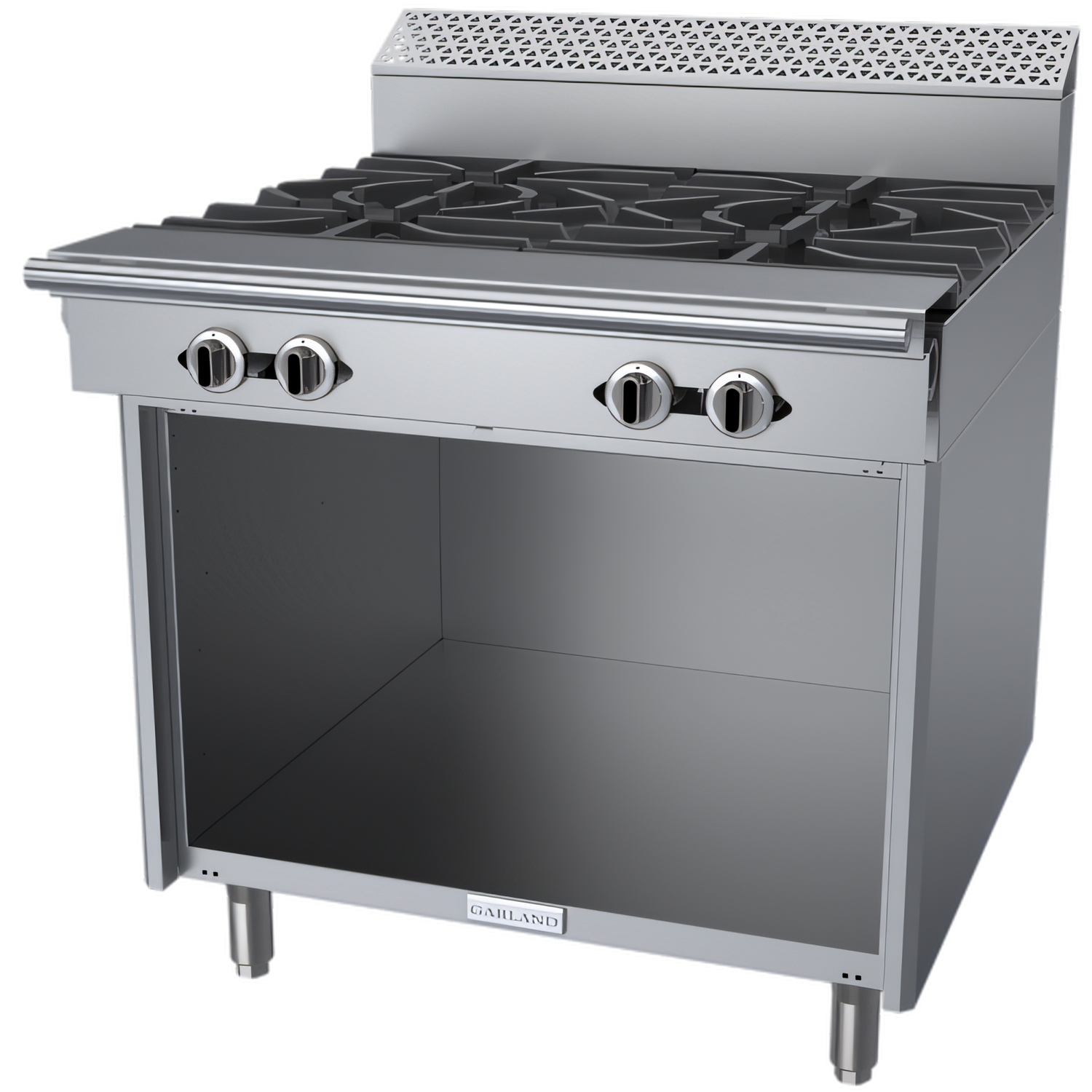

Garland Cuisine Series 36″ Heavy-Duty Gas Range – 4 Starfire Open Burners, Open Cabinet Base
Model C36-7S (Open Cabinet) · 160,000 BTU (NG)Give your line the firepower it deserves. Built on Garland’s rock-solid 36″ chassis, this Cuisine Series range couples four high-output Starfire burners with a spacious open cabinet base—perfect for storing sheet pans, stock pots or countertop appliances right where you need them.
Key Features

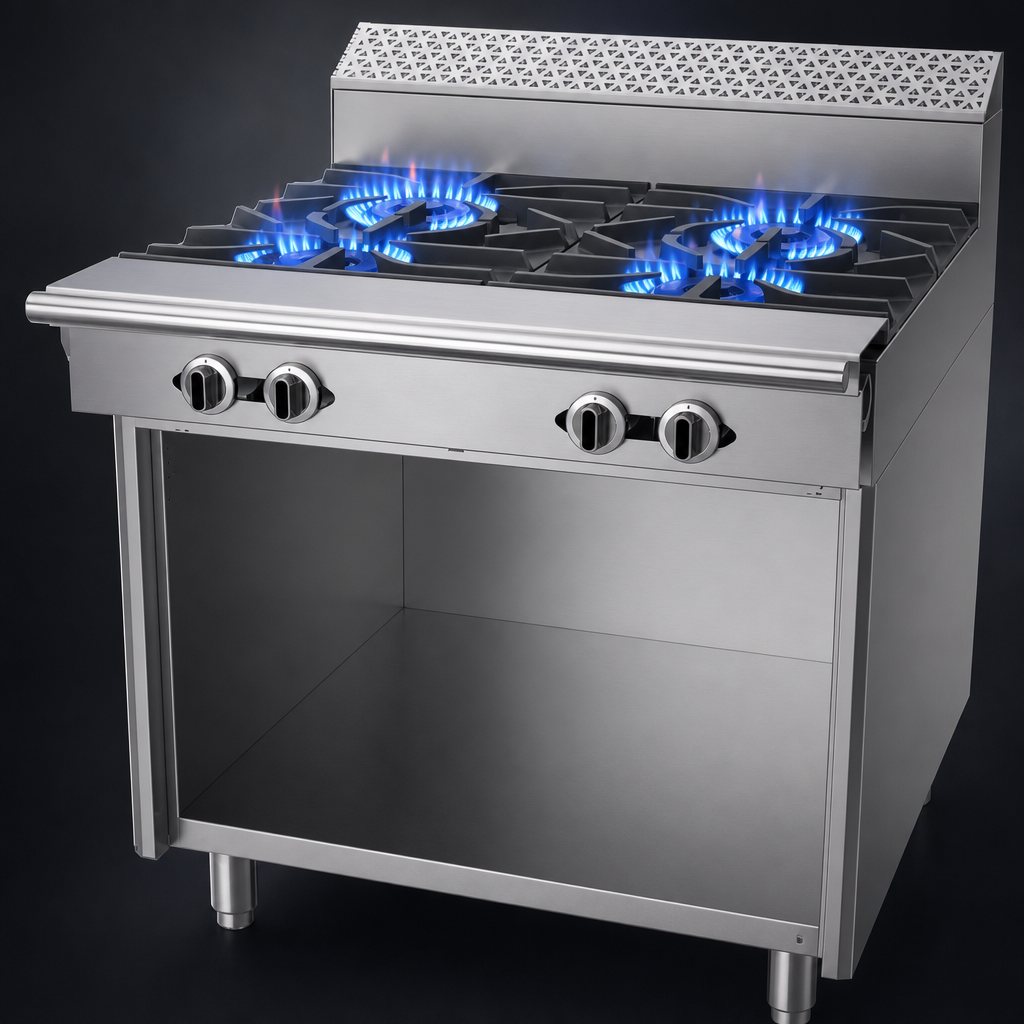

- 4 × 40,000 BTU Garland Starfire open burners for fast boils and hard sears.
- One-piece cast-iron grate & bowl per burner—maximum heat retention, no wobble.
- Pilots mounted outside the spill zone for reliable ignition and extended component life.

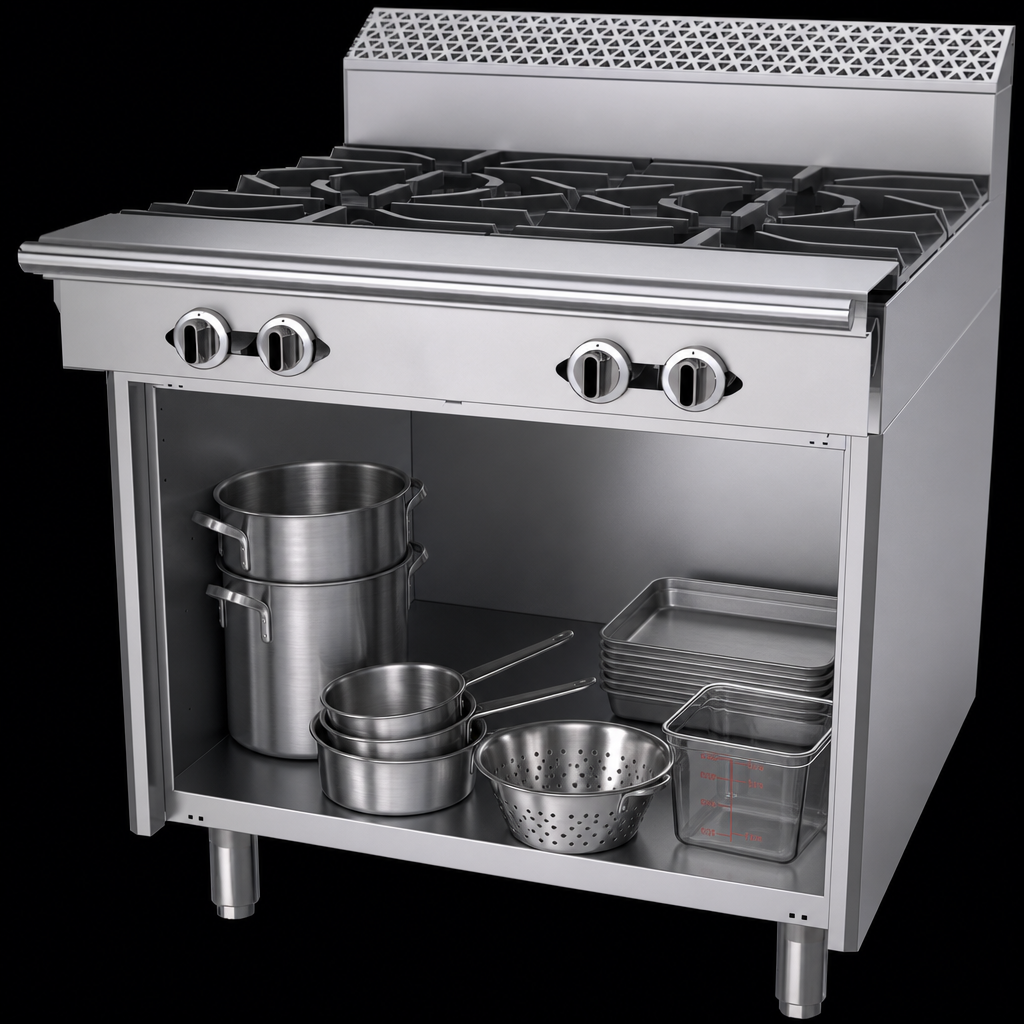

- Open cabinet base keeps equipment or pans within easy reach (no doors to slow you down).
- 7″ (178 mm) stainless stub backguard protects walls while maintaining a low profile on the cookline.
- Full stainless steel exterior—front, sides, plate rail & burner box—for superior durability and quick wipe-downs.
- 6″ (152 mm) adjustable stainless legs simplify leveling and make floor cleaning easy.
- Battery-ready 1¼″ NPT front gas manifold; rear connection available for back-to-back suites.
- Certified to CSA Flame, CSA Star and NSF standards for worry-free code compliance.
Technical Specifications
| Width | 36″ / 914 mm |
|---|---|
| Depth (overall) | 32″ / 813 mm |
| Height to Cooktop | 39 ⅜″ / 1001 mm (includes 7″ backguard) |
| Burners | 4 open top, 40,000 BTU each |
| Total Input | 160,000 BTU/h Natural · 152,000 BTU/h Propane |
| Gas Connection | 1¼″ NPT front manifold (rear optional) |
| Manifold Pressure | Natural 6″ WC · Propane 10″ WC |
| Base Type | Open cabinet (no doors) |
| Legs | 6″ stainless, adjustable |
| Certifications | CSA Flame · CSA Star · NSF |
Perfect For
- High-volume restaurants & production kitchens
- Hotels, resorts and banquet facilities
- Institutional or commissary cooking lines
- Battery installations with other Garland Cuisine Series equipment
Looking for matching refrigeration, convection bases or additional range sections? Explore the full Garland Cuisine Series or chat with our equipment specialists for a custom battery layout.
