Garland C36-7R Garland Cuisine Gas Ranges
Description

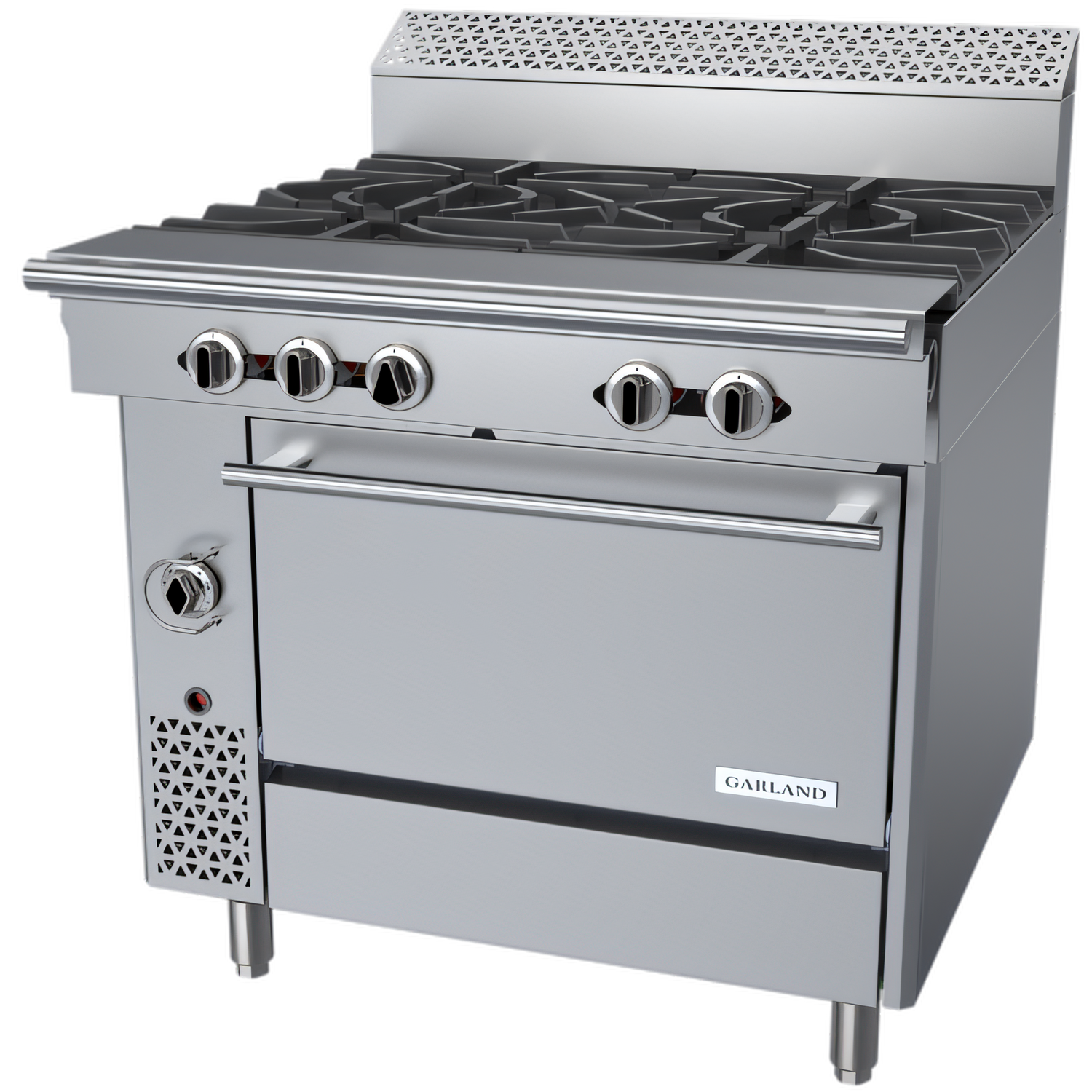

Garland Cuisine 36" Heavy-Duty Gas Range – 4 Open Burners & Standard Oven
Model C36-7R | 200,000 BTU (Natural Gas)Engineered for demanding commercial kitchens, the Garland Cuisine C36-7R couples four high-performance Starfire burners with a powerful standard oven, giving you 200,000 BTU of total cooking muscle in a space-saving 36-inch footprint.
Key Performance Advantages

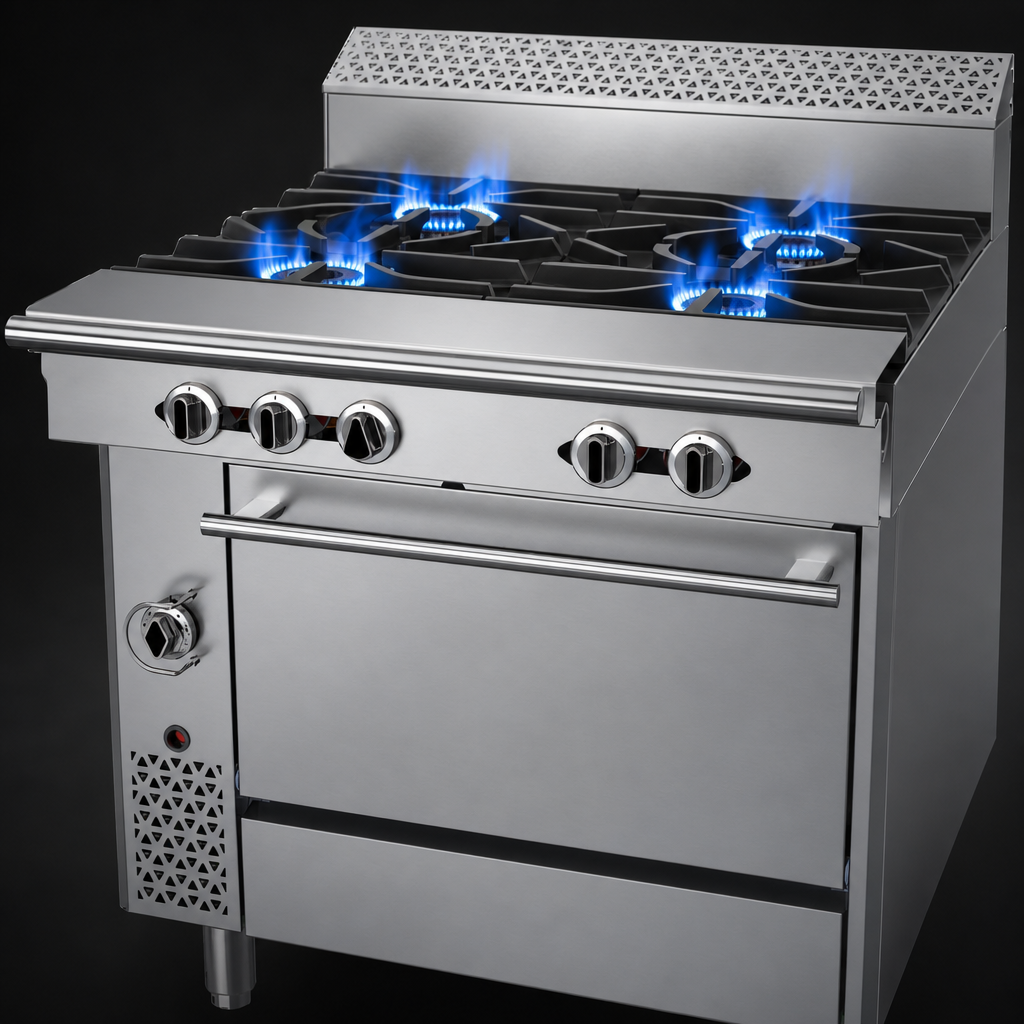

- 4 × 40,000 BTU Starfire open burners for rapid boil times and lightning-fast recovery.
- One-piece cast-iron grates & bowls lift off for effortless cleanup.
- 40,000 BTU fully insulated standard oven with thermostat control 150°–500 °F (66°–260 °C).
- Total input: 200,000 BTU/h (NG) / 187,000 BTU/h (LP option).
Built to Last
- All-stainless exterior—front, sides, plate rail & 7" (178 mm) backguard.

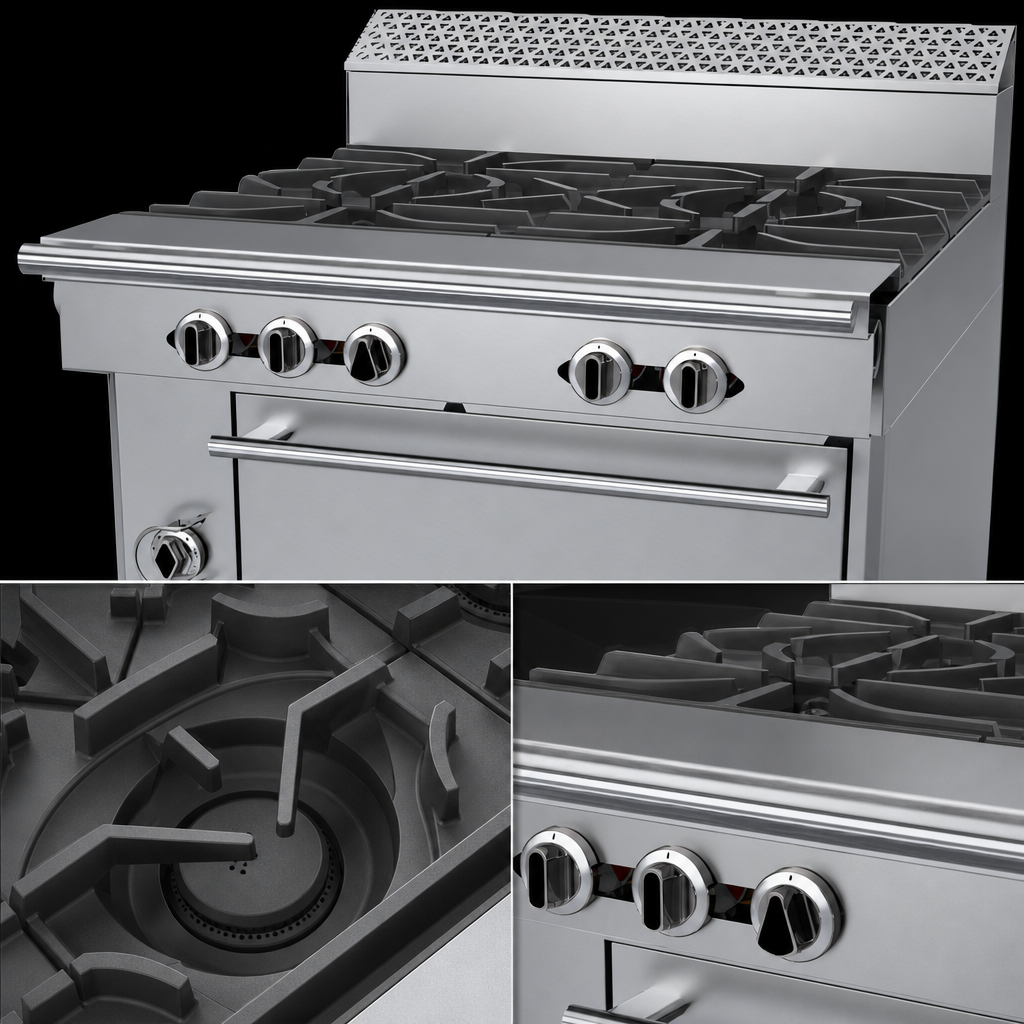

- Rugged stainless burner box keeps critical components shielded from heat & spills.
- 6" (152 mm) adjustable stainless legs level the unit on uneven floors.
- Front 1-1/4" NPT gas manifold allows stand-alone or battery installation.
- “Keep-cool” oven door handle and one chrome rack (4-position guide).
Certifications & Warranty
- CSA Flame & CSA Star gas safety certified.
- NSF listed for food-service sanitation.
- One-year limited parts & labor warranty (USA & Canada).
Perfect For
- High-volume restaurants & hotels
- Catering & banquet operations
- Institutional foodservice—schools, hospitals & correctional facilities
Specifications
| Gas type | Natural (propane configuration available) |
|---|---|
| Total input | 200,000 BTU/h (NG) | 187,000 BTU/h (LP) |
| Open burners | 4 × 40,000 BTU/h (NG) | 38,000 BTU/h (LP) |
| Oven burner | 40,000 BTU/h (NG) | 35,000 BTU/h (LP) |
| Oven temperature range | 150°–500 °F (66°–260 °C) |
| Oven interior (H × W × D) | 13-1/2" × 26-1/4" × 29" (343 × 667 × 737 mm) |
| Exterior dimensions (W × D × H) | 36" × 34-1/4" × 37-1/4" (914 × 871 × 947 mm) – includes 7" backguard |
| Gas connection | 1-1/4" NPT front manifold; min. supply 7" WC (NG) / 11" WC (LP); manifold 6" / 10" WC |
| Clearances (combustible) | Sides 10" (254 mm) | Back 6" (152 mm) |
| Shipping | 53 cu ft | 556 lb (252 kg) |
Nominal dimensions shown; refer to the official Garland spec sheet for detailed installation requirements.
Garland equipment is designed for commercial use only and is not approved for residential applications.
