Garland C36-7M Garland Cuisine Gas Ranges
Description

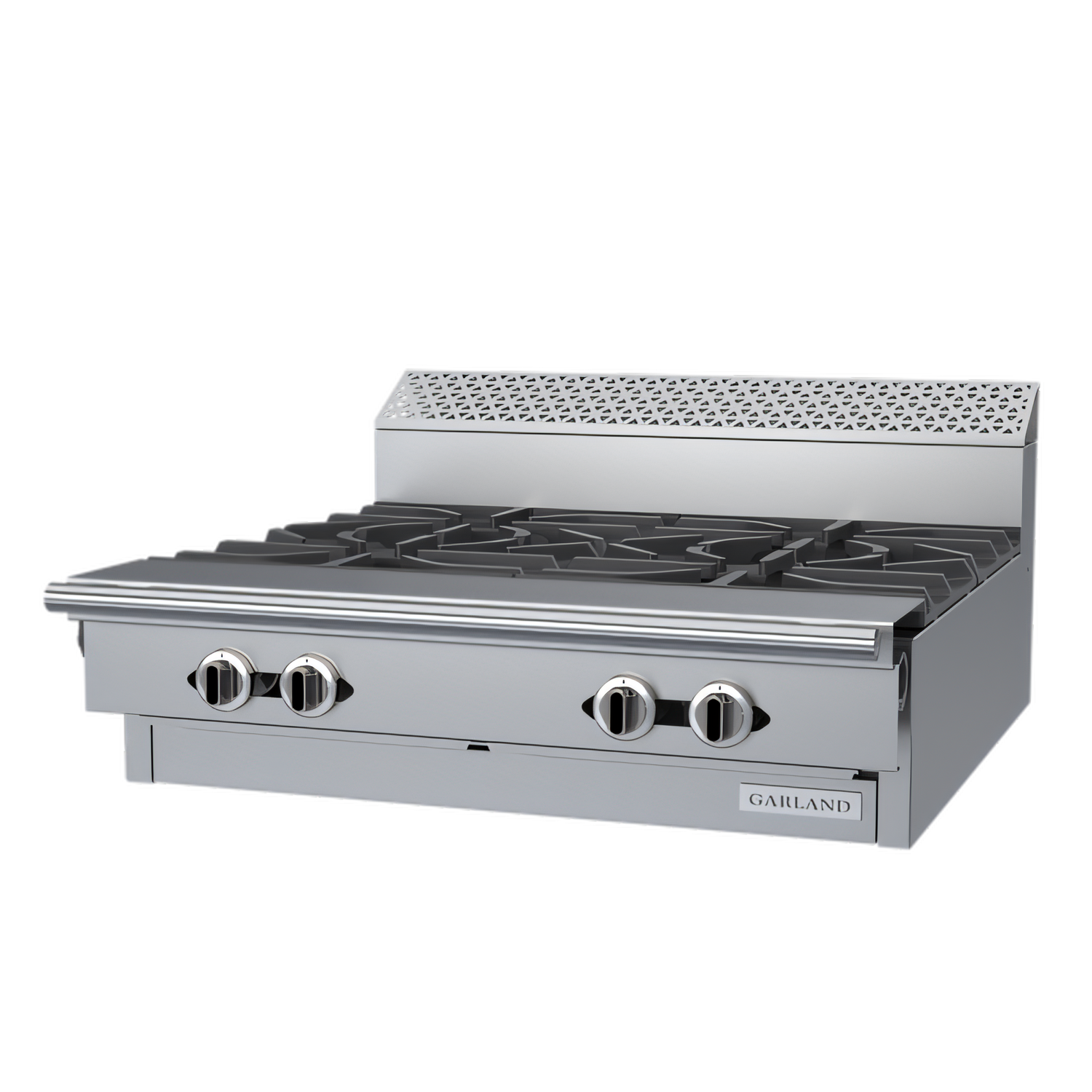

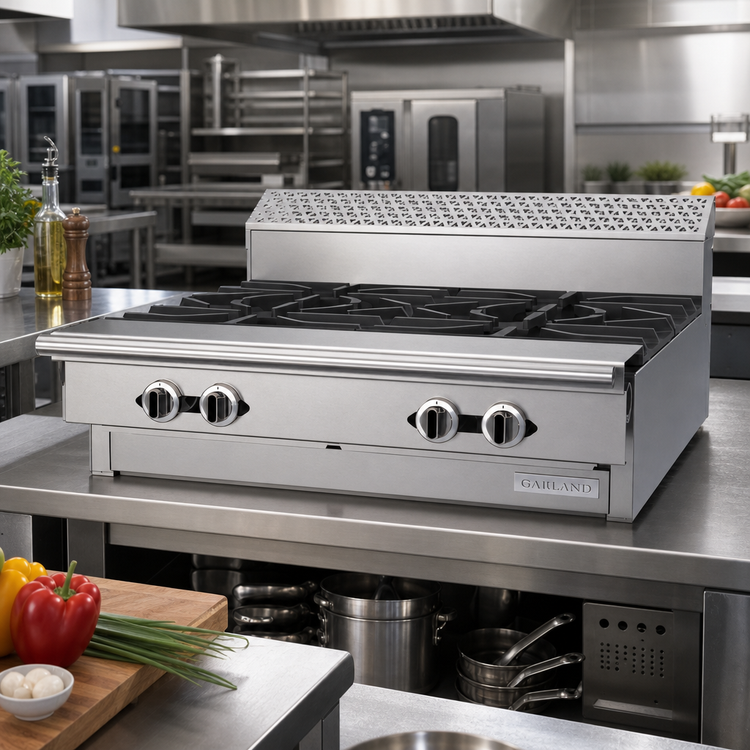

Garland Cuisine Series 36" Heavy-Duty Modular Gas Range
Model C36-7M • 4 Starfire® Open Burners • 160,000 BTU/h (NG)Unlock uncompromising power and layout flexibility with Garland’s Cuisine Series 36" modular range. Built for high-volume kitchens, this heavy-duty unit drops onto a stand, refrigerated base or cabinet, giving you four blistering 40,000 BTU burners in a space-saving footprint that’s ready to anchor any cookline.
Key Advantages

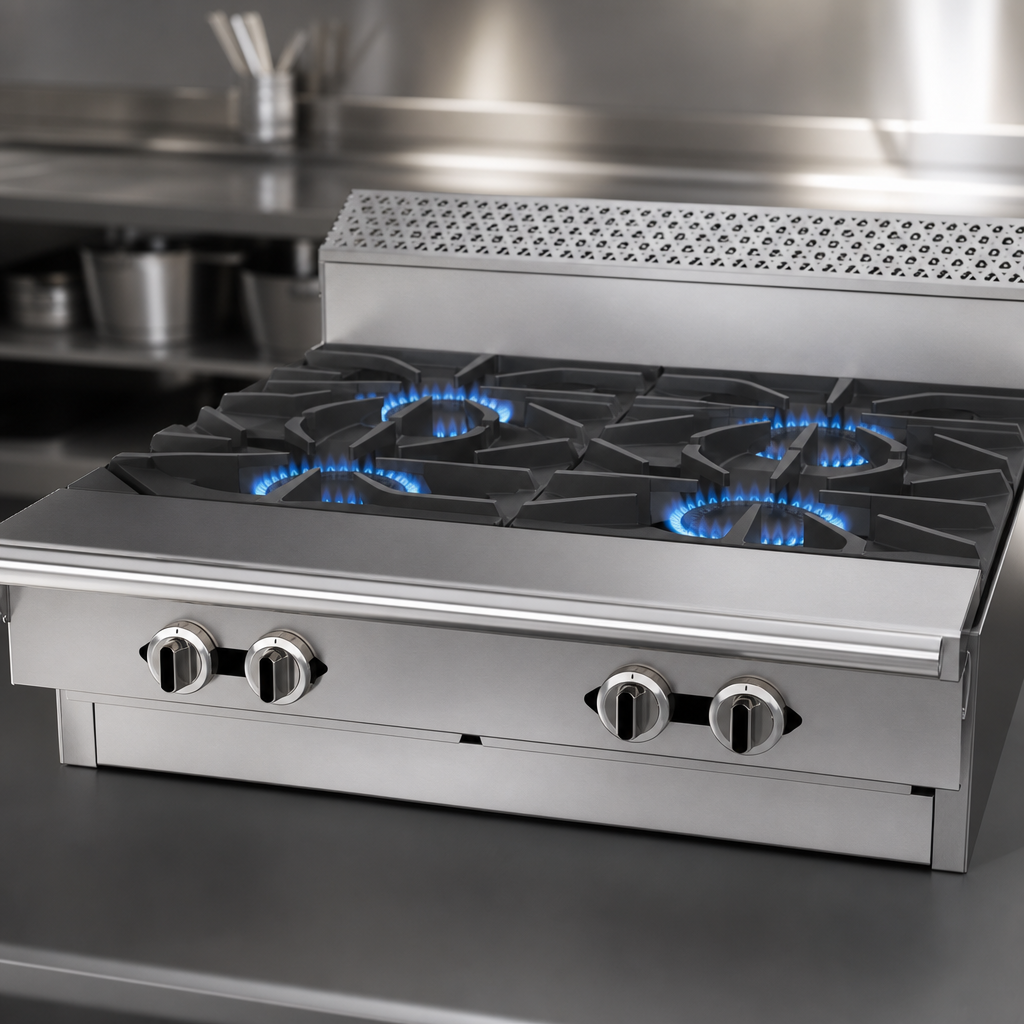

- 4 × 40,000 BTU/h Garland Starfire open burners for rapid boil, intense wok heat and ultra-stable low-simmer control.
- Modular top design fits Garland equipment stands, refrigerated bases or custom counters—no oven underneath means extra storage or cold prep space.
- One-piece cast-iron grates & bowls per burner deliver even heat transfer and stand up to years of abuse.

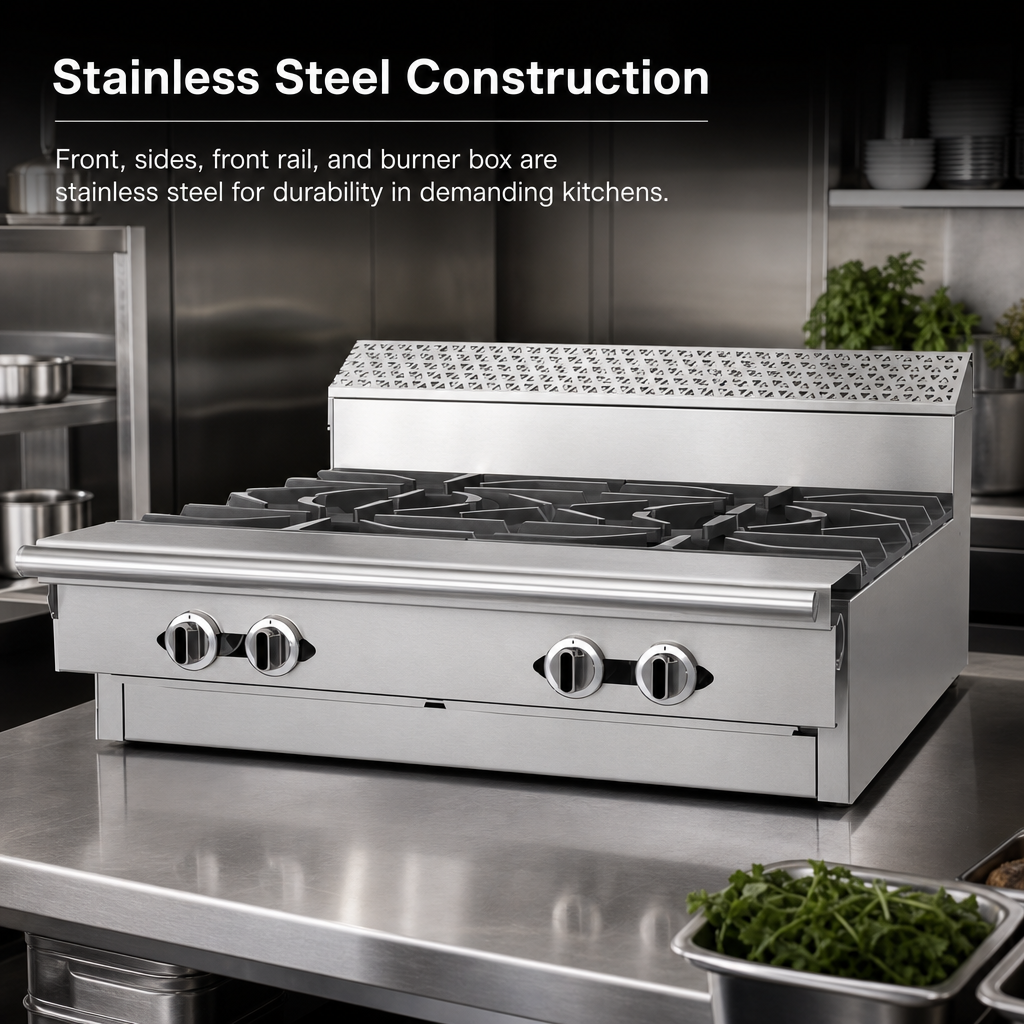

- All-stainless exterior (front, sides, plate rail and burner box) wipes clean fast and resists corrosion.
- 7" (178 mm) stainless stub backguard protects walls while fitting under low shelves and salamanders.
- Pilots positioned outside the spill zone for reliable ignition and easy service access.
- 1-1/4" NPT front gas manifold with factory regulator—ready to battery with other Cuisine Series equipment; optional rear connection available.
- 6" (152 mm) adjustable stainless legs supplied when ordered with a stand; curb/dais mounting capable.
- Field convertible to LP (152,000 BTU/h) with optional kit.
- Fully certified: CSA Flame, CSA Star and NSF.
Technical Specifications
| Model | C36-7M (Cuisine Series) |
|---|---|
| Configuration | Modular top, 4 open burners, no oven base |
| Total Input | 160,000 BTU/h Natural Gas | 152,000 BTU/h Propane |
| Burner Rating | 40,000 BTU/h each (NG) | 35,000 BTU/h each (LP) |
| Gas Connection | 1-1/4" NPT front manifold (pressure regulator included); rear connection optional |
| Manifold Pressure | 6" W.C. Natural | 10" W.C. Propane |
| Minimum Supply Pressure | 7" W.C. Natural | 11" W.C. Propane |
| Width | 36" (914 mm) |
| Depth | ≈32" (813 mm) to front rail |
| Cooking Surface Height | 37-1/4" (947 mm) on legs/stand |
| Backguard Height | 7" (178 mm) |
| Shipping Weight | Approx. 328 lb (149 kg) |
| Combustible Clearances | Sides 10" (254 mm) | Back 6" (152 mm) |
| Certifications | CSA Flame • CSA Star • NSF |
Perfect For
- Restaurant sauté, grill or stock stations needing extreme burner output
- Hotels & resorts building matched battery lines
- Catering commissaries where oven space is handled elsewhere
- Institutional or production kitchens wanting easy drop-in modular flexibility
Looking to complete your line? Matching Garland stands, refrigerated bases, high shelves and salamanders are engineered to align perfectly with the Cuisine Series range for a seamless, high-performance workspace.
