Garland C36-6SUM Garland Cuisine Gas Ranges
Description

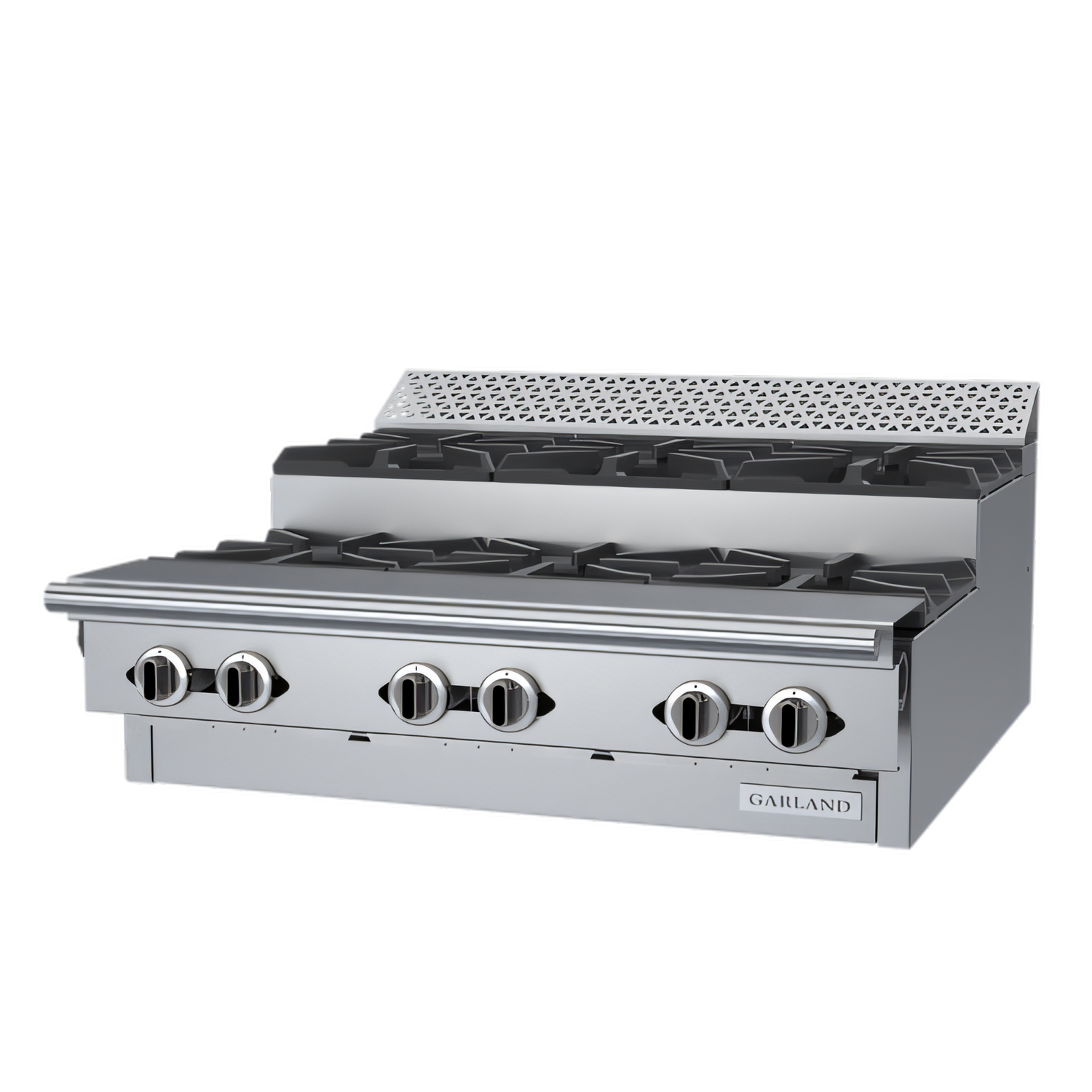

Garland Cuisine Series 36" Heavy-Duty Step-Up Gas Range – Modular Top
Model C36-6SUM | 210,000 BTU/h | Natural or Propane GasPurpose-built for the busiest commercial kitchens, the Garland Cuisine Series 36" Step-Up Range delivers six powerful 35,000 BTU/h Starfire open burners on a space-saving modular chassis that drops straight onto your refrigerated base, equipment stand or cabinet. A 4" step elevates the rear row of burners for improved pan visibility and easier plating while the 7" stainless stub backguard protects surrounding surfaces.
Key benefits at a glance
- Six Garland Starfire open burners (35,000 BTU/h each) – three in front, three step-up in back.
- Total input: 210,000 BTU/h (Natural) / 198,000 BTU/h (Propane).

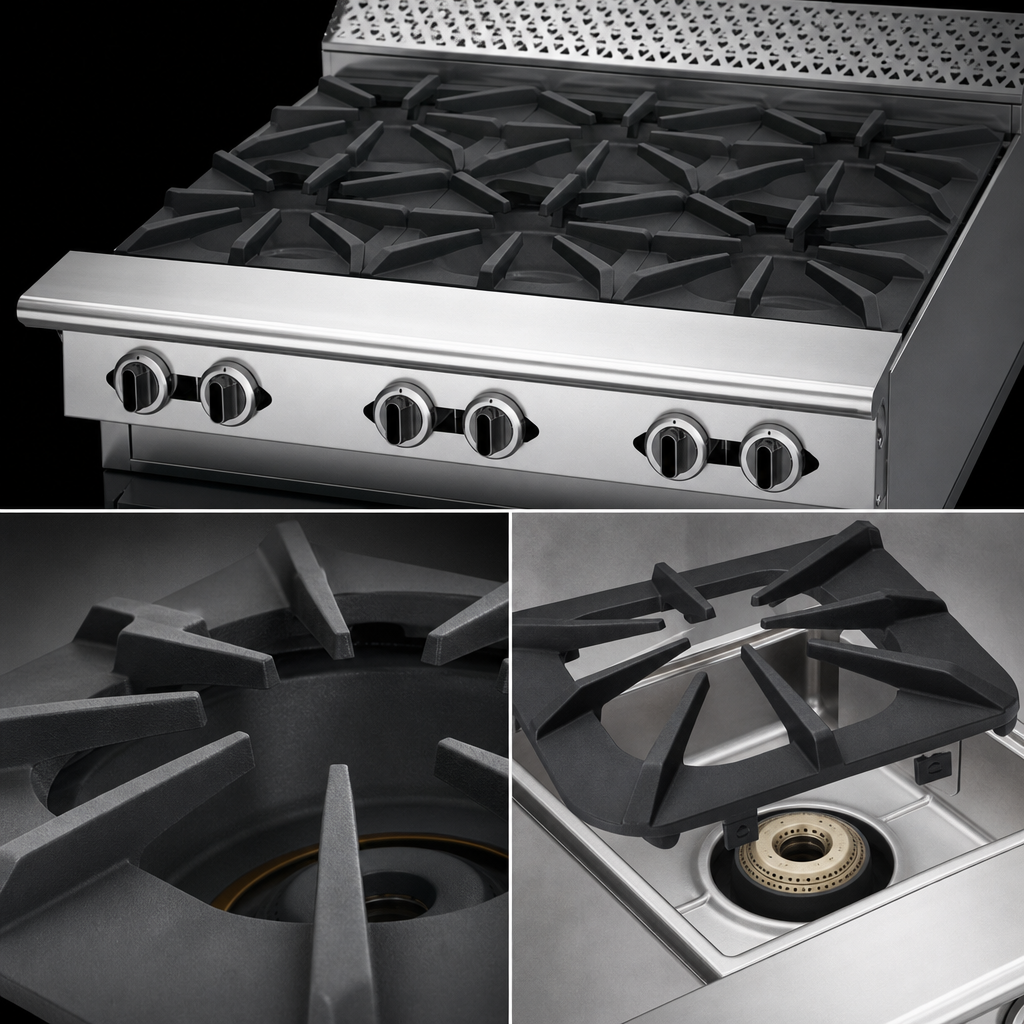

- One-piece cast-iron grates & bowls stand up to constant heavy pots.
- Stainless steel front, sides, plate rail and fully-welded burner box resist corrosion and simplify clean-up.
- 7" (178 mm) stainless stub backguard is standard; high-shelf or taller risers available.
- 1-1/4" NPT front gas manifold with factory-set pressure regulator; optional rear connection.

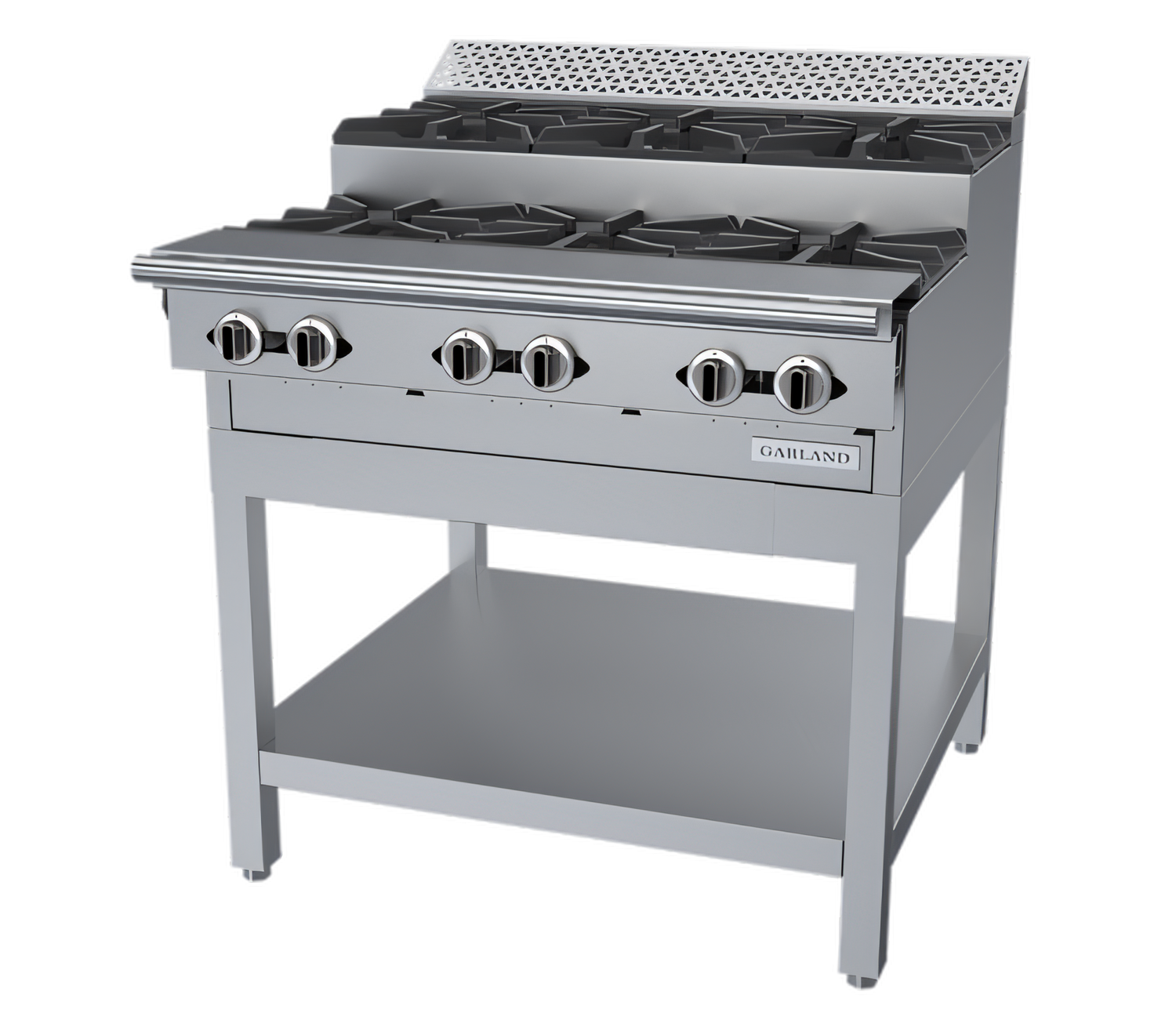

- Modular construction – mount on a Garland full-height stand, cabinet base, refrigerated base or curb.
- Field-battery ready: aligns perfectly with other 36" Cuisine Series components for a seamless cookline.
- Certified: CSA Flame, CSA Star & NSF for gas safety, sanitation and performance.
- One-year limited parts & labour warranty (USA & Canada).
Technical specifications
| Width | 36" / 914 mm |
|---|---|
| Overall depth (to plate rail) | 32-5/8" / 829 mm |
| Front cooking surface height | 30-1/4" / 767 mm |
| Rear (step-up) surface height | 34-1/4" / 871 mm |
| Backguard height | 7" / 178 mm |
| Total input | 210,000 BTU/h (Natural) 198,000 BTU/h (Propane) |
| Individual burner rating | 35,000 BTU/h (Natural) 33,000 BTU/h (Propane) |
| Gas connection | 1-1/4" NPT front manifold (rear optional) |
| Manifold pressure | 6" WC Natural | 10" WC Propane |
| Clearances – combustible | Sides 10" / 254 mm | Back 6" / 152 mm |
| Shipping weight | Approx. 320 lb / 145 kg |
Popular options & accessories
- Full-height stainless steel stand with adjustable legs or casters.
- Single or double-deck high shelf / back riser.
- Rear gas connection kit.
- Continuous plate rail for battery installations (48"-72").
- Gas shut-off valves & flex hoses (¾", 1" or 1-¼").
Need a matching oven, charbroiler or refrigerated base? The full Garland Cuisine line lets you build a seamless, high-performance cook suite. Contact us for configuration assistance.
