Garland C36-6SUC Garland Cuisine Gas Ranges
Garland C36-6SUC Garland Cuisine Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Garland C36-6SUC Garland Cuisine Gas Ranges
Description

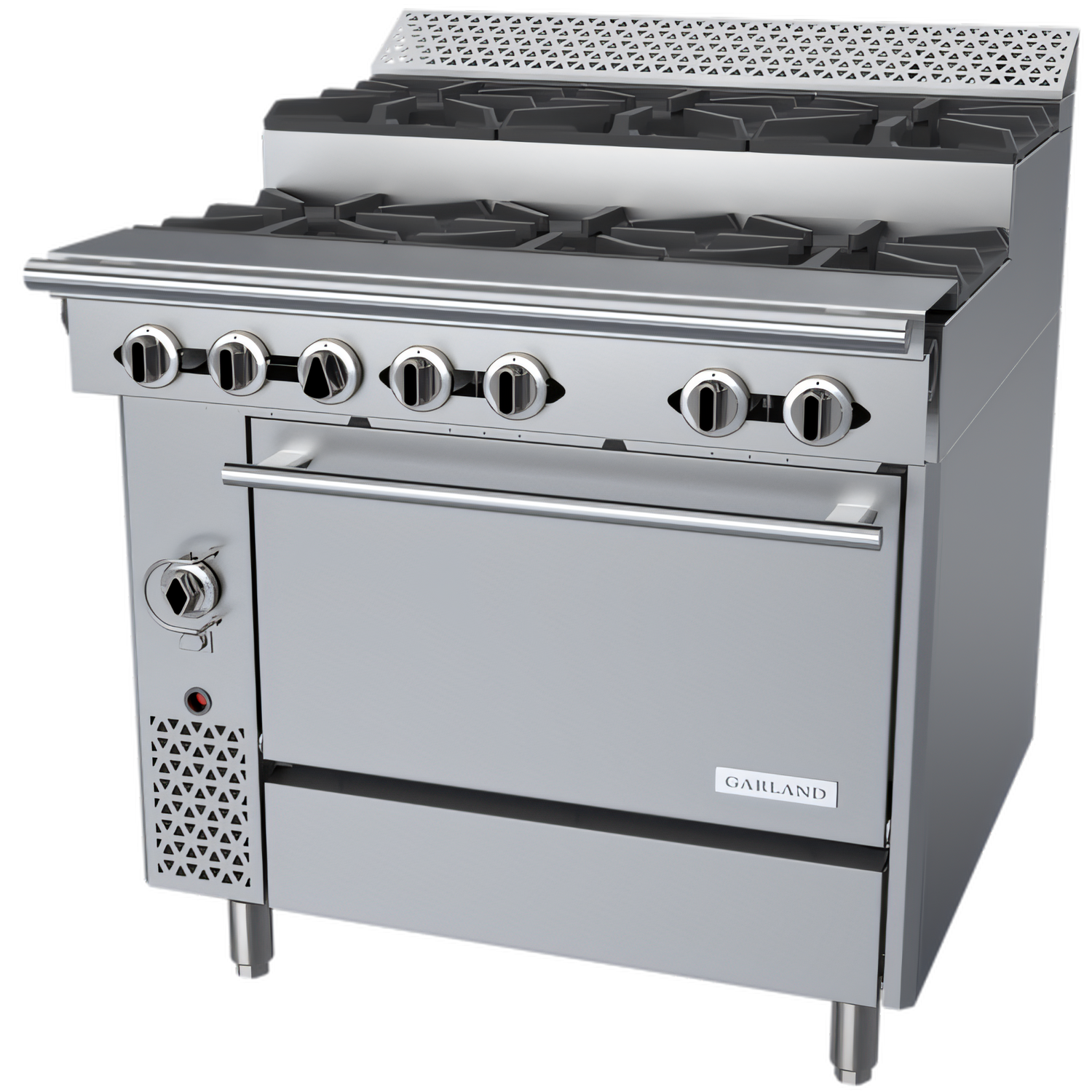

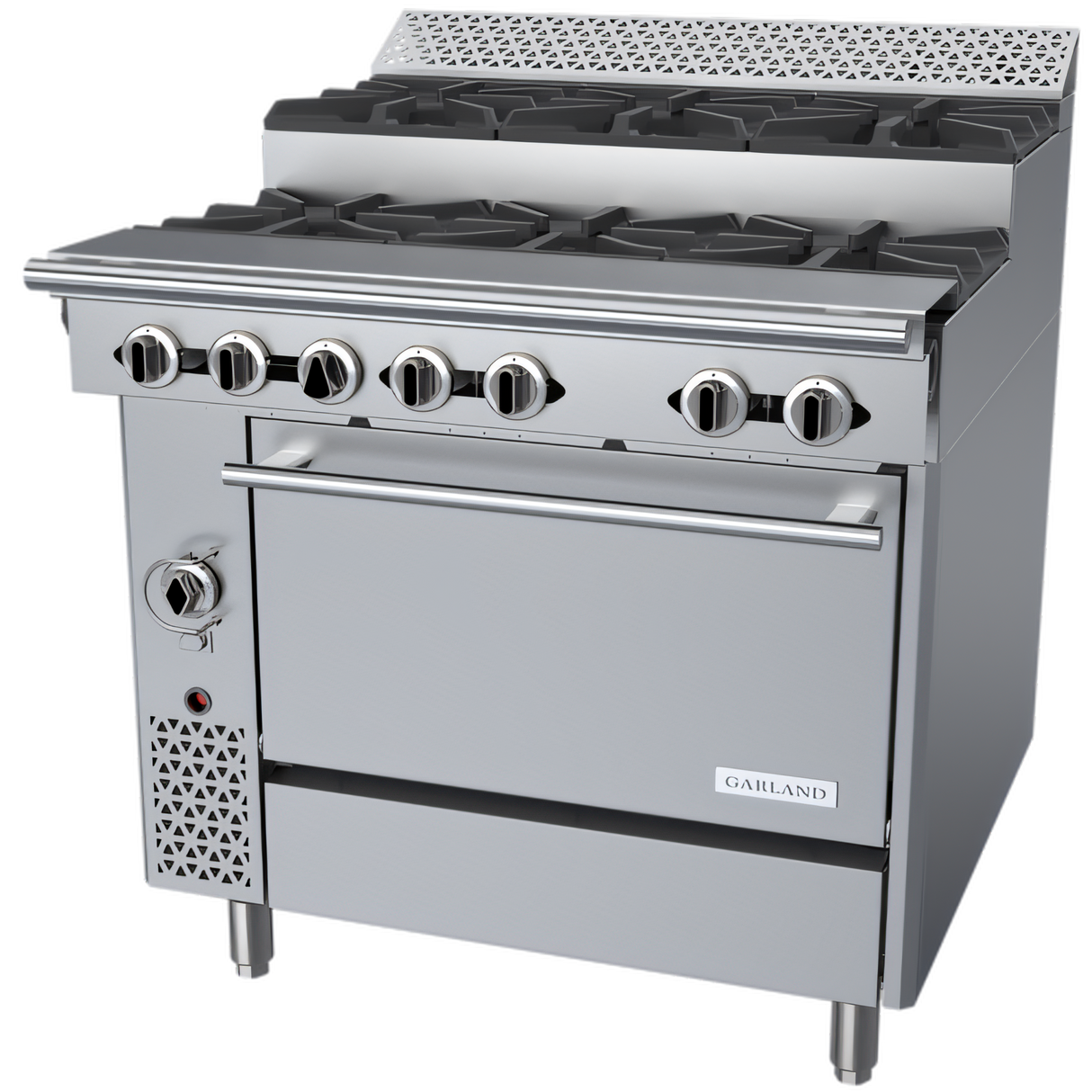

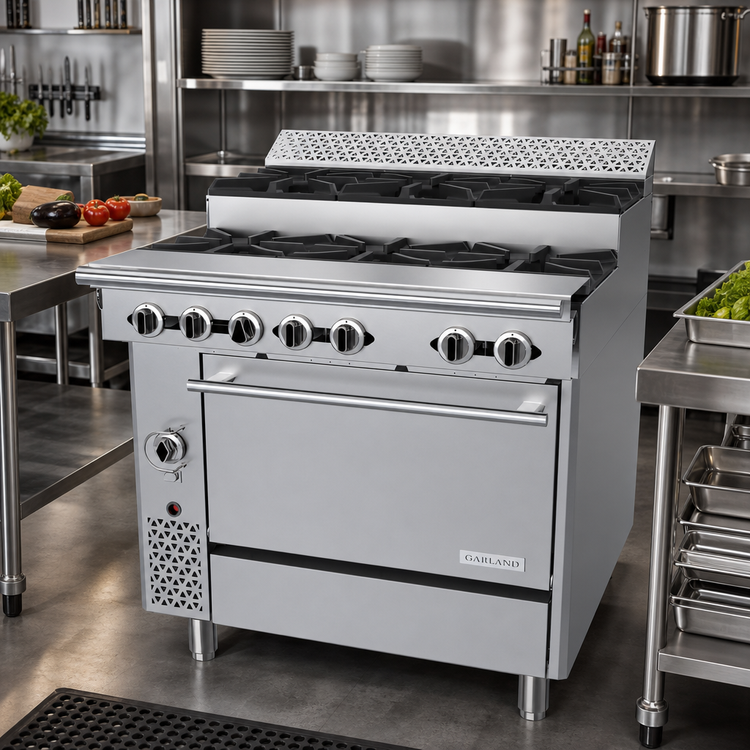

Cuisine Series 36" Heavy-Duty Step-Up Gas Range w/ Convection Oven
6 x 35,000 BTU Starfire™ Open Burners • 167,000 BTU Total Input • Model: Garland CuisineBuilt to power through the busiest rush, the Garland Cuisine Series Step-Up Range pairs six high-output burners with a full-featured convection oven—giving chefs two cooking heights, faster pan access and the rugged reliability Garland is famous for.
Why you’ll love it

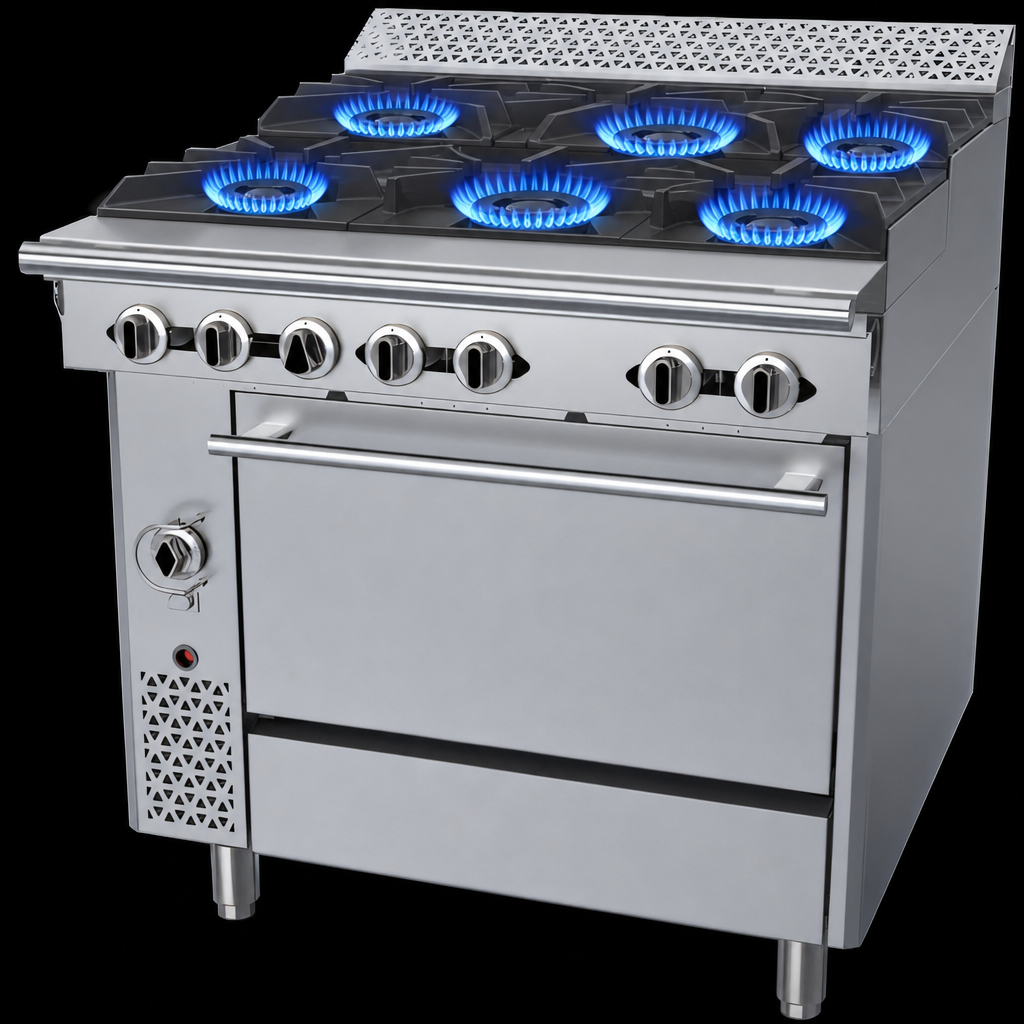

- Six 35,000 BTU Starfire™ burners (three standard, three step-up) deliver instant, even heat for high-volume sautéing, boiling and searing.

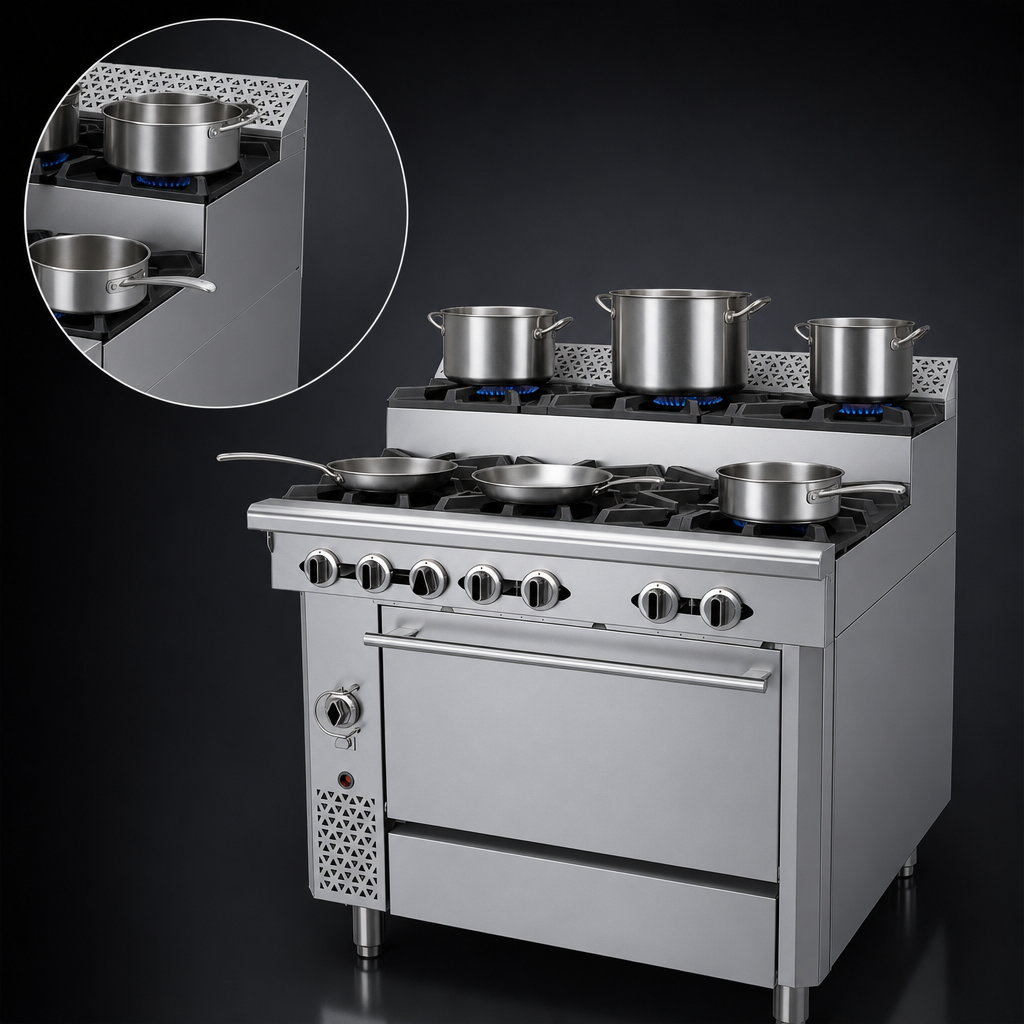

- Step-up design staggers the rear burners 4" higher, keeping every pot visible and within easy reach.
- True convection baking – 1/3 HP fan circulates heat uniformly for quicker recovery and perfectly even roasts, bakes and finishes.
- Stainless steel everywhere – front, sides, rail and burner box stand up to daily commercial abuse and wipe clean fast.
- 7" (178 mm) stainless stub back + plate rail protects walls while adding plating space.
- Three chrome oven racks included; rack slides are welded in for four-position flexibility.
- 6" (152 mm) adjustable legs simplify leveling and make floor cleaning a breeze.
- Field-convertible gas connection (1 ¼" NPT front manifold) plus factory-installed regulator.
- Simple plug-in operation – convection motor ships with 6' cord & NEMA 5-15P.
Technical specifications
| Overall width | 36" / 914 mm |
|---|---|
| Cooking surface | 3 front + 3 step-up open burners (12" x 12" cast-iron grates) |
| Burner rating | 35,000 BTU each (NG) |
| Oven type / rating | Convection, 37,000 BTU burner, forced-air 1/3 HP fan |
| Total input | 167,000 BTU/h |
| Oven temperature range | 150 °F – 500 °F (66 °C – 260 °C) |
| Electrical | 120 V / 60 Hz / 1-ph, 0.6 A, NEMA 5-15P |
| Gas connection | 1 ¼" NPT front manifold, regulator supplied |
| Backguard | 7" (178 mm) stainless steel stub |
| Certifications | CSA Flame, CSA Star, NSF |
| Included accessories | (3) chrome oven racks, oven rack guides, factory regulator |
Engineered for the long haul
- One-piece cast-iron grate & bowl assemblies keep heat focused on cookware and resist warping.
- Pilots mounted outside the spill zone for fast lighting and longer component life.
- Fully insulated oven cavity retains heat, cuts energy costs and keeps the kitchen cooler.
- Safety oven pilot with reliable thermocouple protection.
Natural gas preset. Propane conversion kit available from Garland.
Garland Commercial Ranges is an ISO-9001 manufacturer; product backed by a 1-year parts & labor warranty.
