Garland C36-5S Garland Cuisine Gas Ranges
Description

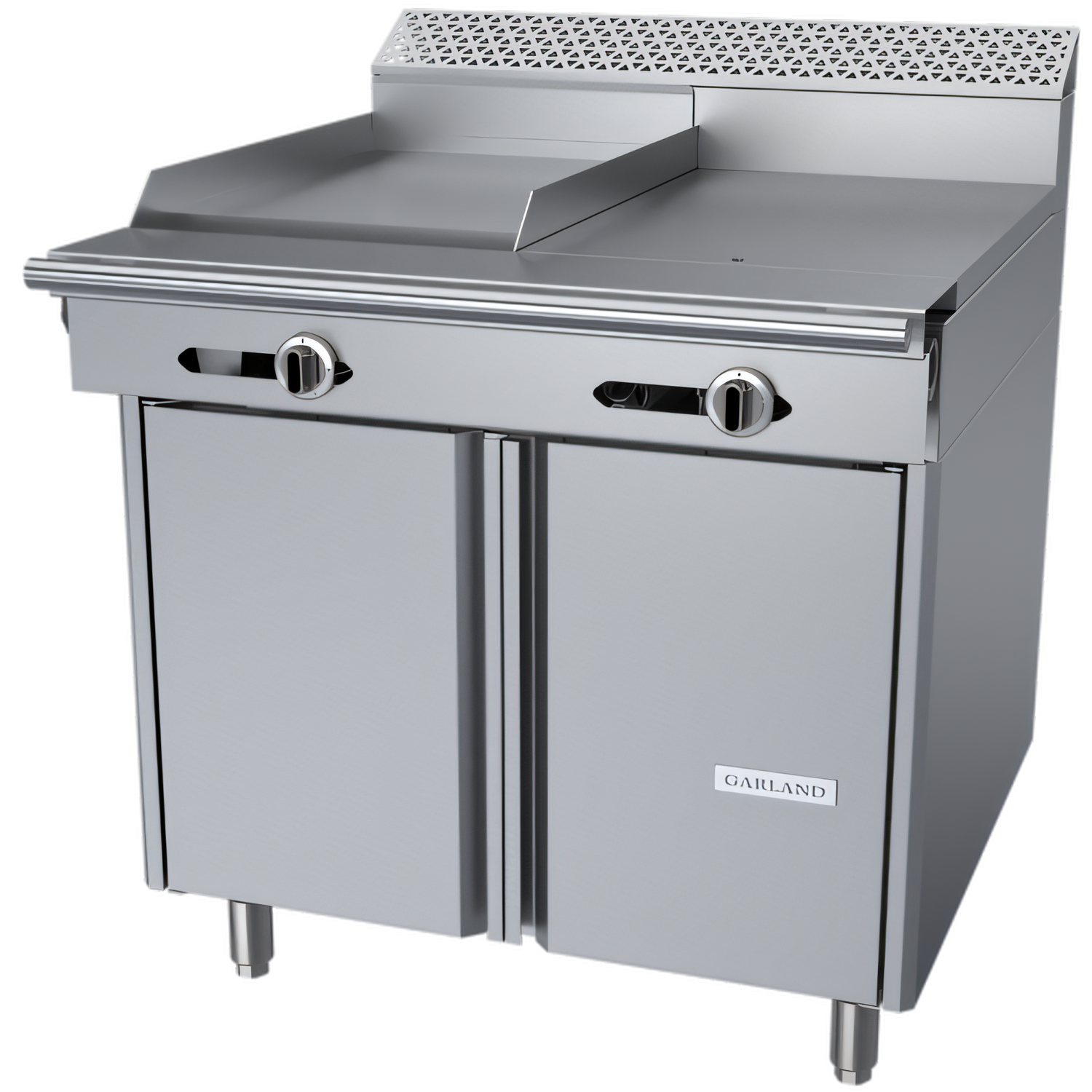

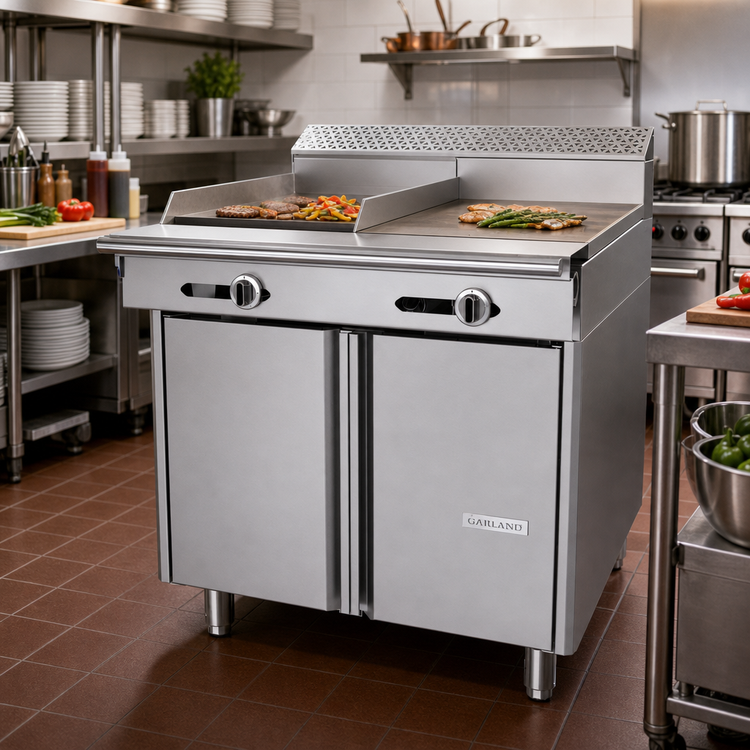

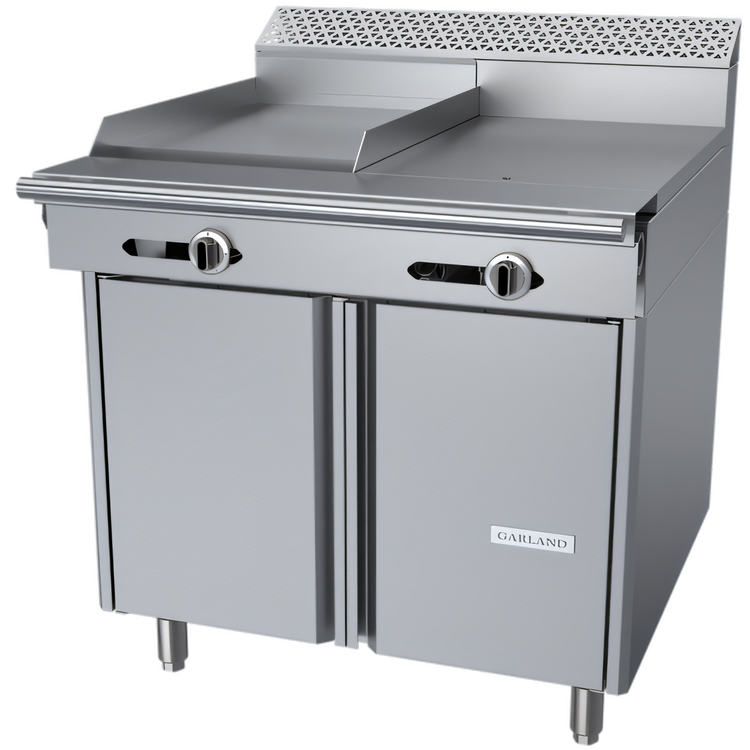

Garland Cuisine Series 36" Heavy-Duty Gas Range
18" Left-Side Griddle | 18" Right-Side Hot Top | Open Cabinet BaseBuilt for demanding commercial kitchens, the Garland Cuisine 36" combination range unites a high-output griddle with an even-heat hot top in a compact footprint. Its rugged stainless-steel construction, easy-clean open base and powerful 62,500 BTU burner system keep your line moving through the busiest rushes.
Key Features
- Dual 18" cooking zones let you sear, sauté and hold simultaneously.

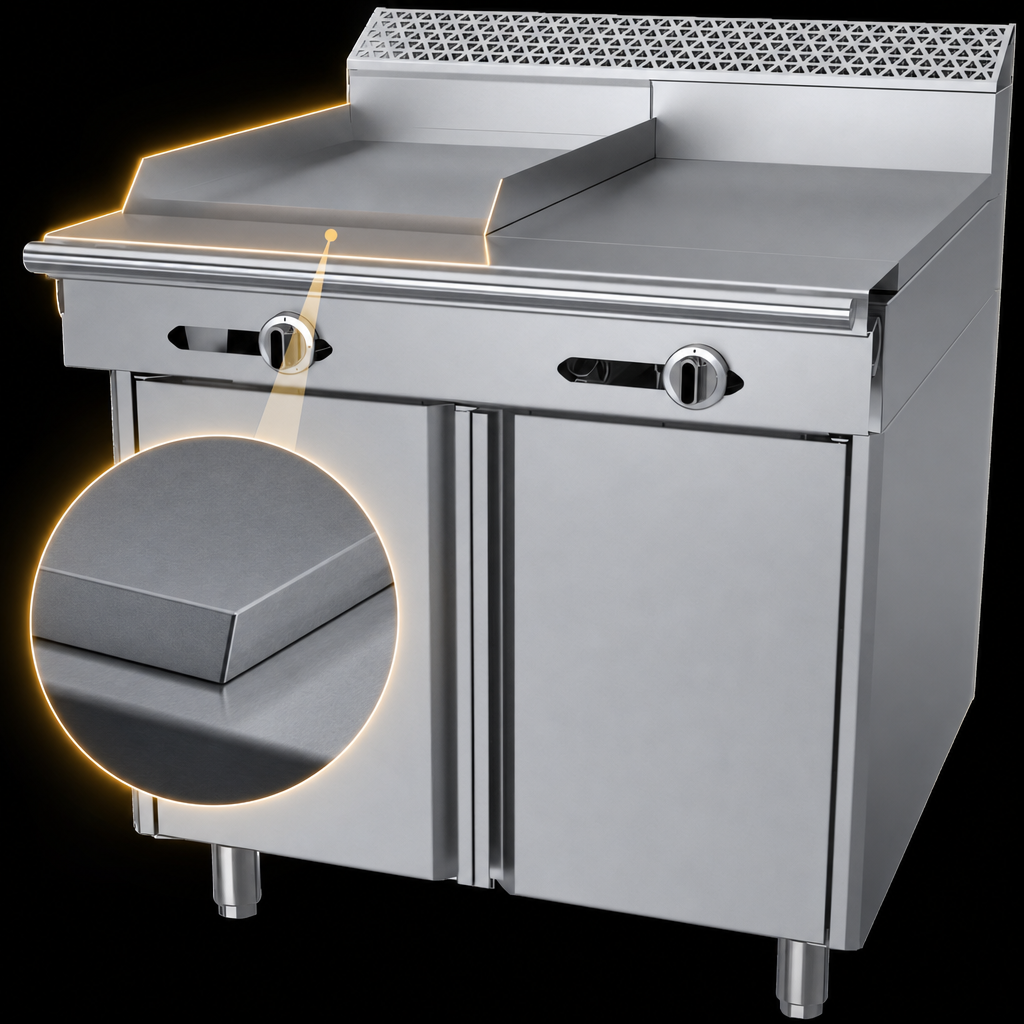

- 1" (25 mm) polished steel griddle plate delivers rapid heat recovery and uniform browning.
- Hi-Lo manual valve controls for precise, instant flame adjustment.

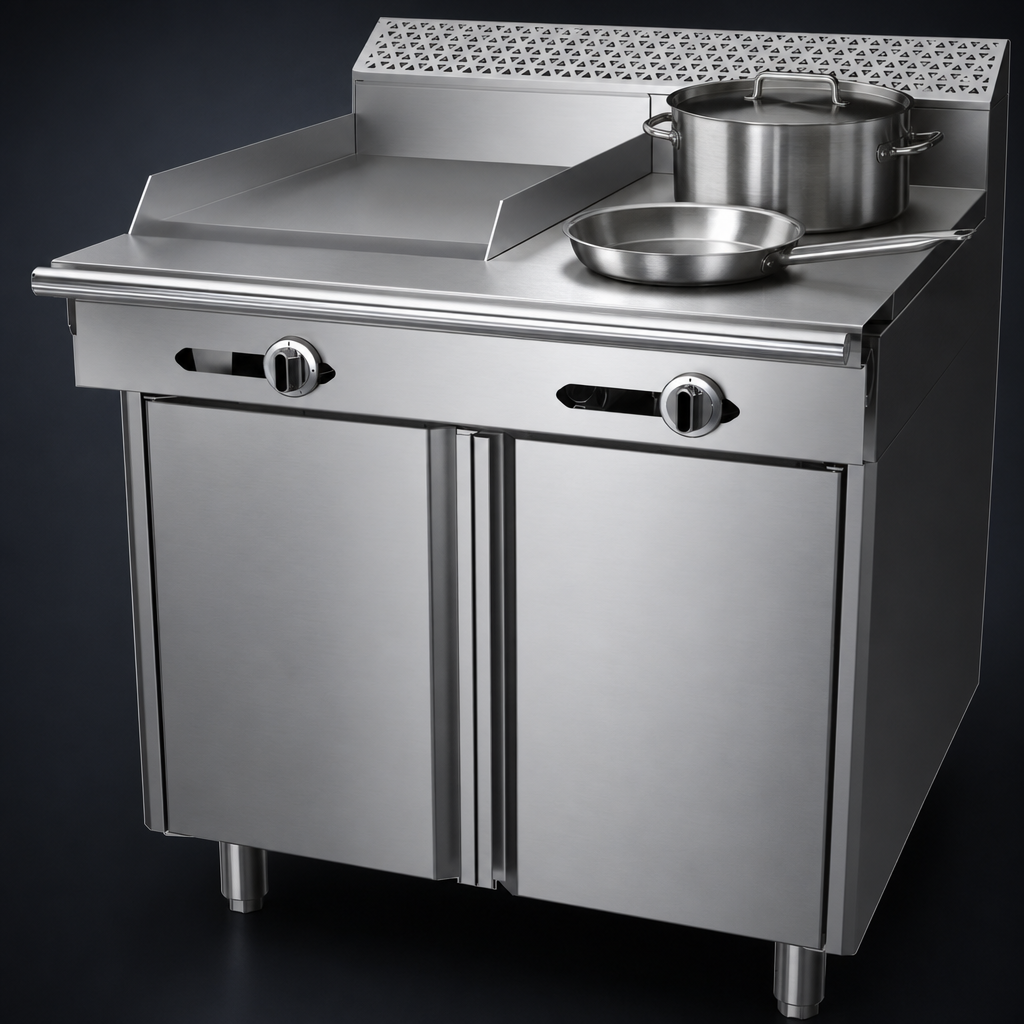

- Even-heat cast-iron hot top packs 32,500 BTU/h to keep pans hot from edge to edge.
- 3" (76 mm) wide grease trough streamlines cleanup and reduces flare-ups.
- 7" (178 mm) stainless stub backguard protects surrounding surfaces without limiting visibility.
- Open cabinet base provides quick-grab storage for sheet pans, utensils or countertop equipment.
- Durable stainless-steel front, sides, plate rail & burner box withstand daily abuse and wipe clean fast.
- 6" (152 mm) adjustable legs give a level stance and allow easy floor access.
- CSA Flame, CSA Star and NSF listed for assured safety and sanitation.
Performance Specifications
| Model | C36-5S (Manual Valve) |
|---|---|
| Total Input | 62,500 BTU/h ( 18.3 kW ) |
| Griddle Burner | 30,000 BTU/h |
| Hot Top Burner | 32,500 BTU/h |
| Griddle Plate | 1" thick polished steel, 18" W (left) |
| Cooking Surface Width | 36" (914 mm) |
| Overall Dimensions | 36" W × 34-3/8" D × 37-1/4" H (914 × 873 × 947 mm) |
| Base Type | Open cabinet (doors optional) |
| Gas Connection | 1-1/4" NPT front manifold (rear connection optional) |
| Operating Pressure | Natural 6" W.C. | Propane 10" W.C. |
| Clearances (Combustible) | Sides 10" (254 mm) | Rear 6" (152 mm) |
| Certifications | CSA Flame, CSA Star, NSF |
Ranges supplied with casters must be installed with an approved restraining device (sold separately).
Perfect For
- Diners & short-order grill stations
- Hotel breakfast or banquet prep lines
- Ghost kitchens and food halls with limited space
- Any operation that needs fast, flexible production in a 36" footprint
