Garland

Garland Cuisine Series 36-Inch Heavy Duty Gas Combination Top Range, Modular Top with Left 18-Inch Griddle and Right 18-Inch Hot Top

SKU: C36-5M
$5,619.15
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Garland Gas Ranges New Arrivals Ranges Restaurant Equipment

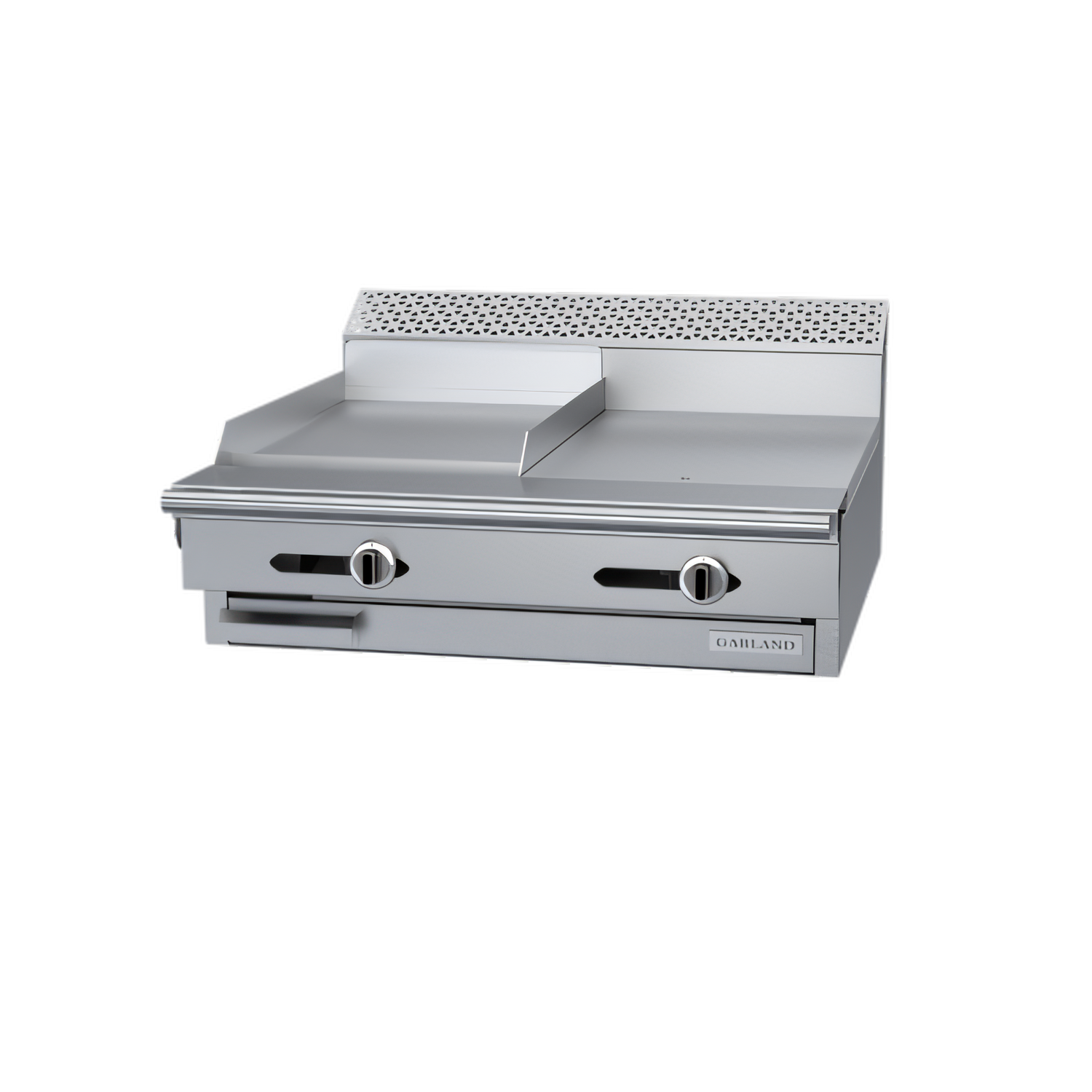

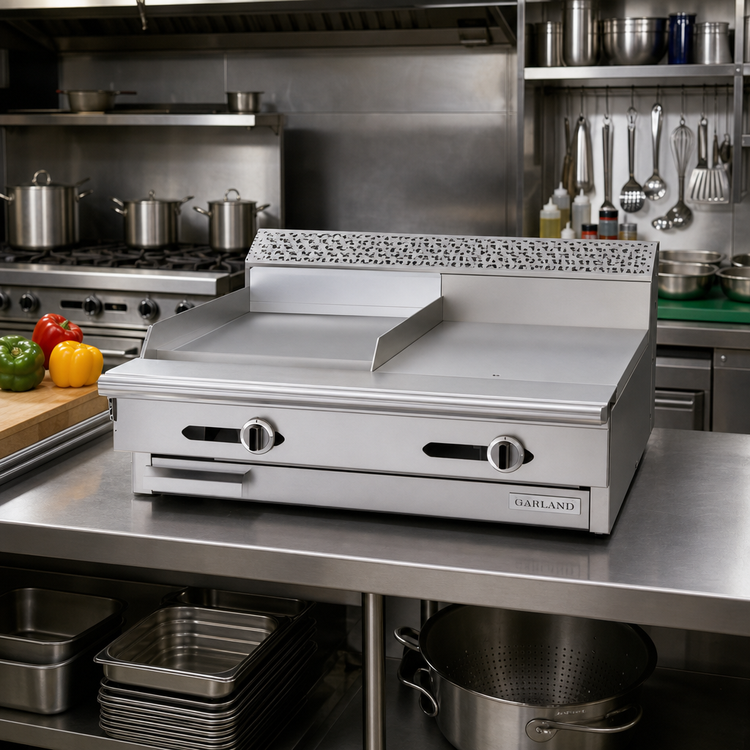

Garland Cuisine Series 36-Inch Heavy Duty Gas Combination Top Range, Modular Top with Left 18-Inch Griddle and Right 18-Inch Hot Top

Manual valve control, 62,500 BTU, stainless steel front and sides

A durable 36-inch modular gas range top that combines a griddle and hot top to handle multiple cooking tasks in one compact station.

  • 36-inch modular top with an 18-inch griddle on the left and an 18-inch even-heat hot top on the right.
  • 1-inch thick steel griddle plate with Hi-Lo manual valve controls for responsive heat adjustment.
  • 62,500 BTU total output for fast heat-up and recovery.
  • Stainless steel front, sides, plate rail, and burner box for durability and easier cleaning.
  • 7-inch stainless steel backguard plus front gas manifold for flexible installation.
  • Can be installed individually or in a battery, and the modular top can be mounted on a Polar Cuisine refrigerated base.

Overall Dimensions:

36.0"W x 39.38"D x 10.0"H

Product Weight:

377.0 lb

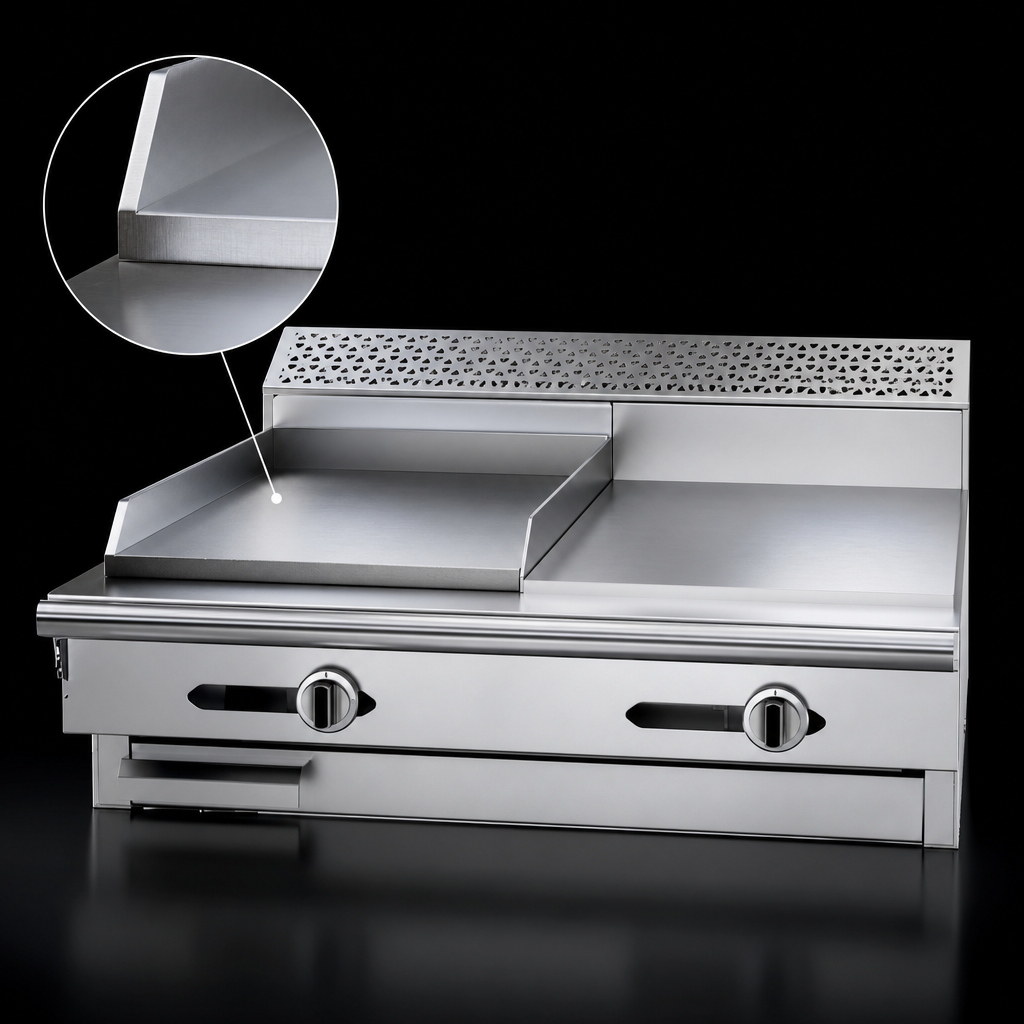

Left 18-Inch Griddle

The left cooking section is an 18-inch griddle with a 1-inch thick steel plate.

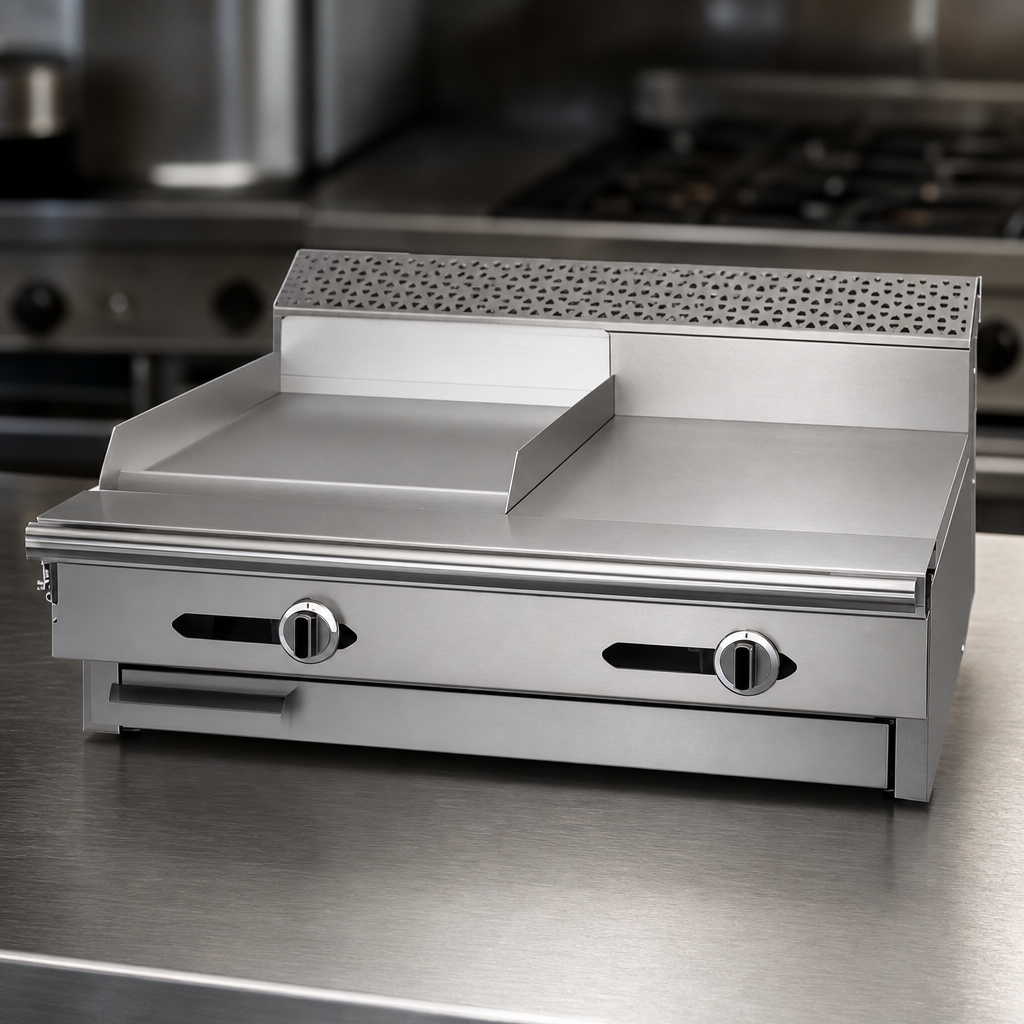

Right 18-Inch Hot Top

The right cooking section is an 18-inch even-heat hot top for versatile cooking and holding.

Hi-Lo Manual Valve Controls

Manual valve control provides adjustable heat output for the griddle section.

Stainless Steel Construction

Front, sides, plate rail, and burner box are stainless steel for durability and easier cleanup.

High-Output Gas Performance

The range top is rated at 62,500 BTU/h for demanding commercial service.

7-Inch Backguard

A stainless steel stub backguard helps protect the wall behind the unit.

Flexible Installation

Can be installed individually or in a battery, and the modular unit can be mounted on a Polar Cuisine refrigerated base.

Front Gas Manifold

Includes a 1-1/4-inch NPT front gas manifold for utility access.

Type Heavy Duty Range
Style Combination Top
Installation Type Countertop
Controls Hi-Lo Manual Valve
Material Stainless Steel
BTU 62,500 BTU/h
Gas Connection Size 1-1/4 Inches NPT
Plate Thickness 1 Inch
Backguard Height 7 Inches
Shipping Width 36 Inches
Shipping Depth 40 Inches
Shipping Height 10 Inches
Shipping Weight 377 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Brochure PDF Download PDF Garland cuisine models guide PDF Download PDF Check list PDF Download PDF Owner's manual PDF Download

Frequently Asked Questions

It has an 18-inch griddle on the left and an 18-inch even-heat hot top on the right.
The griddle uses Hi-Lo manual valve controls.
The C36-5M is rated at 62,500 BTU/h.
It uses a 1-1/4-inch NPT front gas manifold.
Yes. It can be installed individually or in a battery, and the modular unit can be mounted on a Polar Cuisine refrigerated base.
Minimum supply pressure is 7 inches W.C. for natural gas and 11 inches W.C. for propane; manifold operating pressure is 6 inches W.C. for natural gas and 10 inches W.C. for propane.
