Garland C36-5C Garland Cuisine Gas Ranges
Description

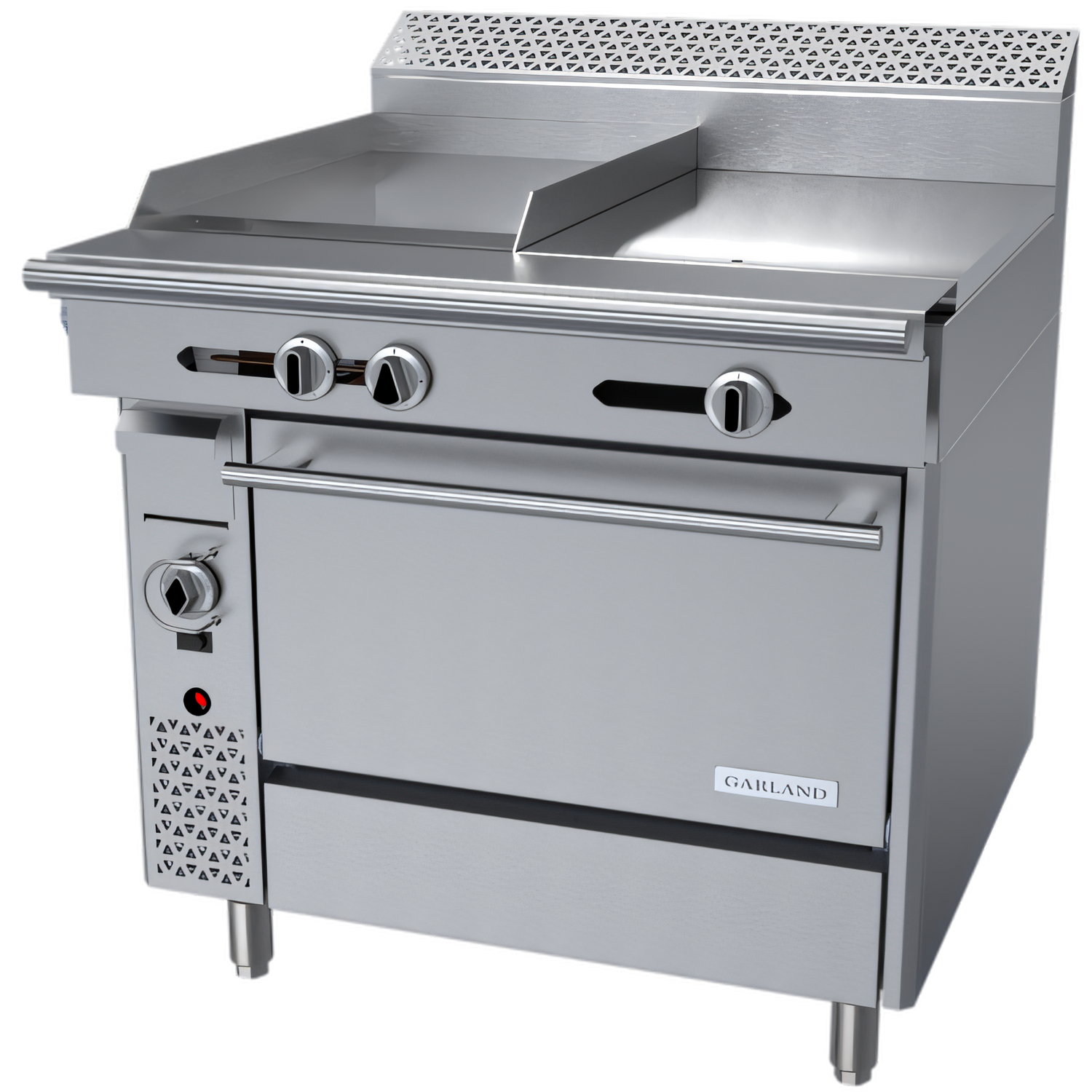

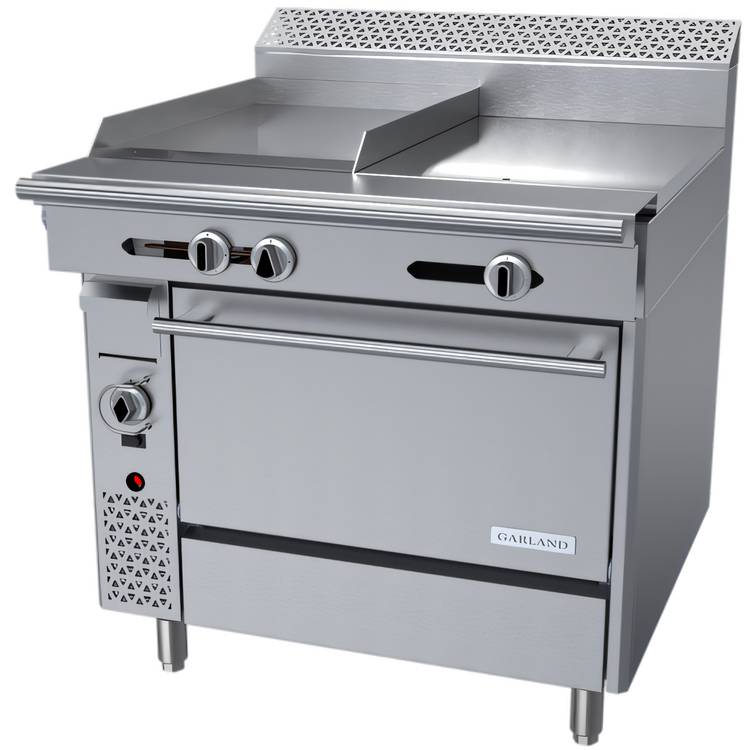

Garland Cuisine 36" Heavy-Duty Combination Range
18" Manual Griddle • 18" Hot Top • Convection Oven – 99,500 BTUBring high-output versatility to your cookline with a single, rugged appliance. The Garland Cuisine 36" range pairs a precision griddle, an even-heat hot top and a powerful convection oven—everything you need to sear, simmer, roast and bake during the busiest rush.
Why chefs love it

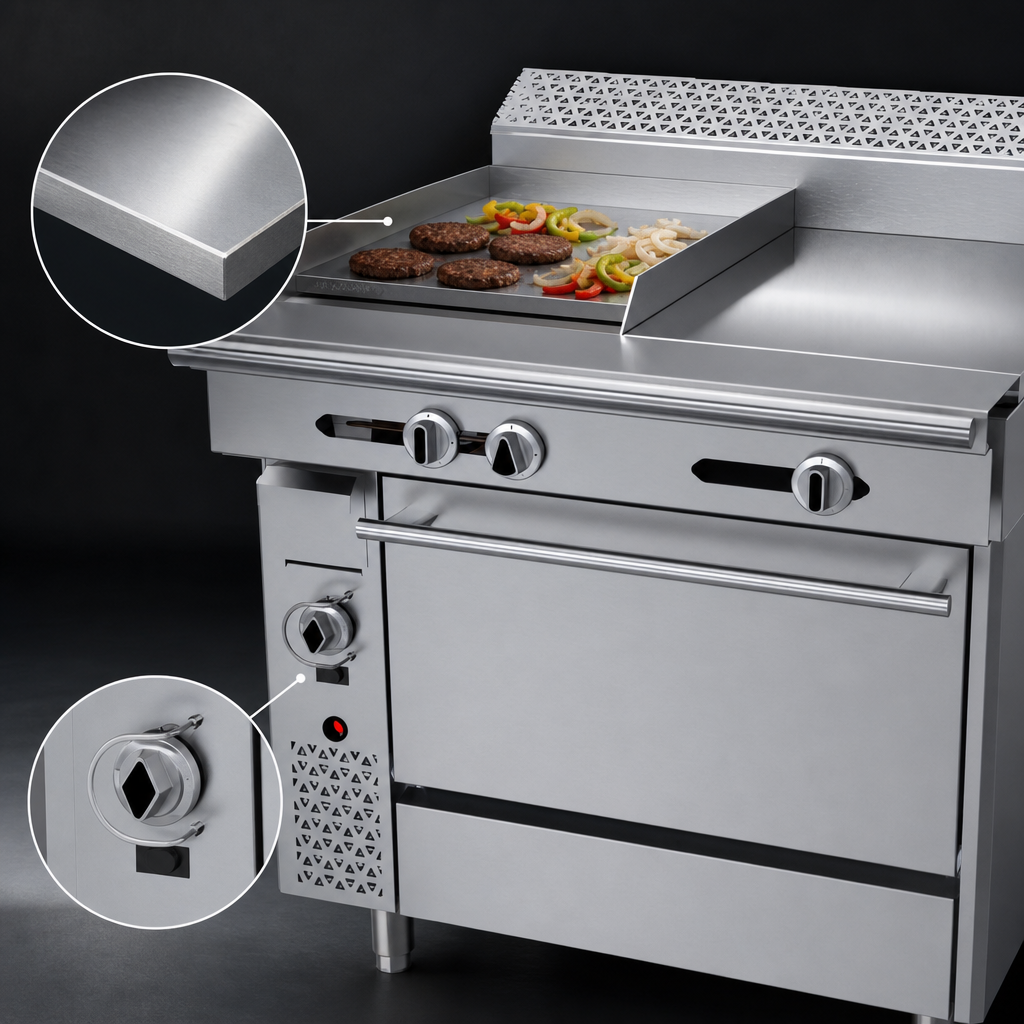

- 1" (25 mm) polished steel griddle plate delivers rock-solid temperature stability and lightning-fast recovery.
- Manual hi-lo valve lets you dial in instant flame changes for à-la-minute cooking.
- 32,500 BTU hot top provides gentle, even heat—perfect for holding sauces or finishing braises.
- 37,000 BTU gas convection oven with a 1/3 HP fan ensures faster, more even baking and roasting.
- Three chrome racks adjust on three positions and accept full-size sheet pans front-to-back.
- All-stainless exterior, plate rail and burner box stand up to heavy, daily abuse and wipe clean with ease.
- Grease management made easy: 3" trough, large drawer and removable guides keep the line spotless.
- 6" (152 mm) adjustable legs level the unit and provide clearance for floor sanitation.
- Factory-installed 7" backguard protects surrounding surfaces and simplifies installation.
- Certified NSF, CSA Flame & CSA Star for code-compliant peace of mind.
Technical specifications
| Model | Garland C36-5C |
|---|---|
| Overall width | 36" / 914 mm |
| Top configuration |
Left – 18" griddle, manual valve, 30,000 BTU Right – 18" even-heat hot top, 32,500 BTU |
| Oven | Gas convection, 37,000 BTU 13.5" H × 26.25" W × 25" D cavity (fits full-size pans) |
| Total input (NG) | 99,500 BTU/h |
| Gas connection | 1-1/4" NPT front manifold, 7" W.C. minimum supply (Natural) |
| Electrical | 120 V / 60 Hz / 1-ph, 0.6 A, NEMA 5-15P (convection fan) |
| Construction | Stainless steel front, sides, plate rail & burner box; 1" steel griddle plate |
| Included | (3) chrome oven racks, grease drawer, 7" backguard, 6" adjustable legs |
| Certifications | NSF, CSA Flame, CSA Star |
| Shipping weight | Approx. 635 lb / 288 kg |
Looking to build a full battery? Garland Cuisine ranges are fully modular—contact us for custom line-ups, refrigerated base mounts and matching plate rails.
