Garland C36-5-1R Garland Cuisine Gas Ranges
$7,829.00
Unit price
/
Unavailable
Description

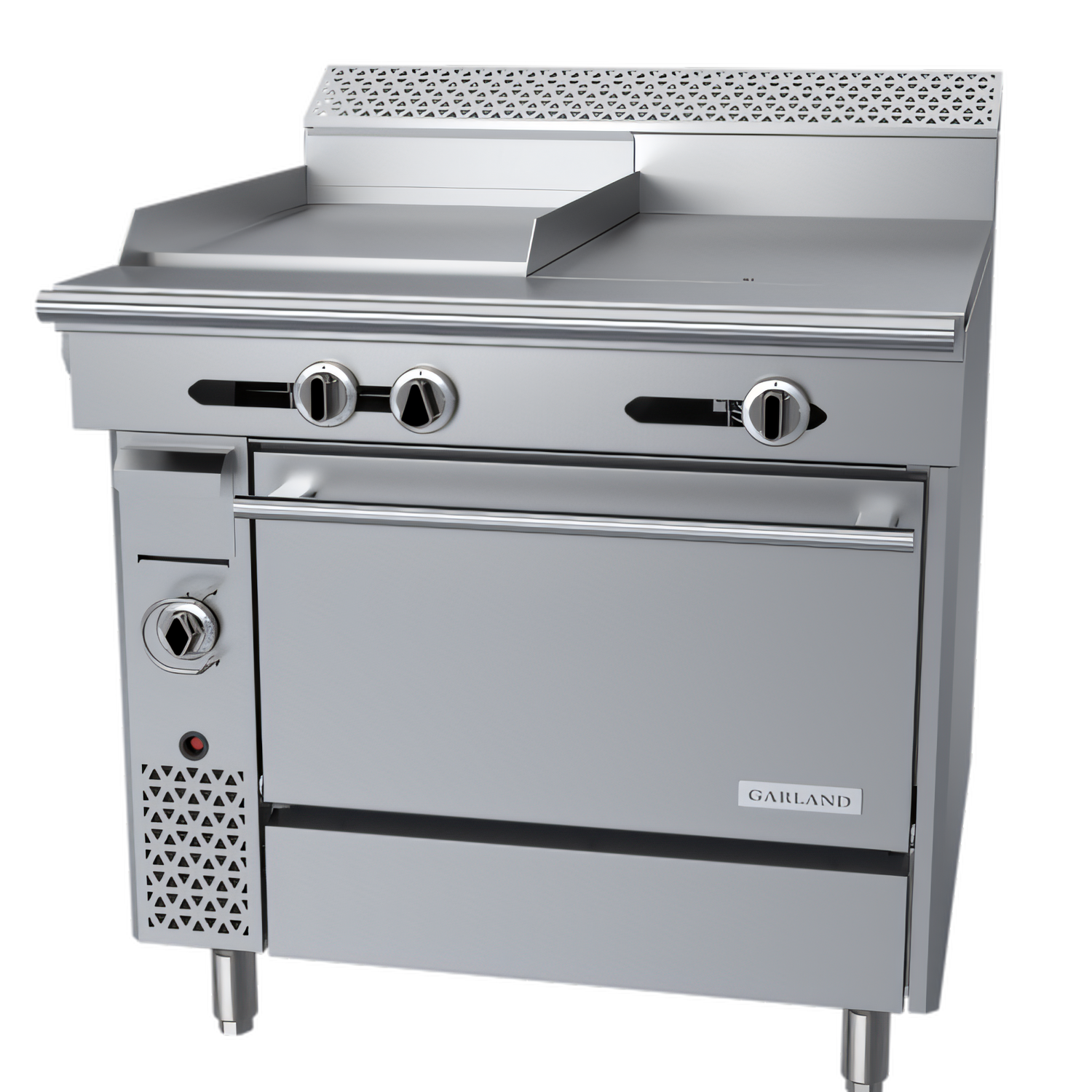

Garland Cuisine Series 36" Heavy-Duty Gas Range
18" Thermostatic Griddle (left) • 18" Even-Heat Hot Top (right) • Standard OvenBuilt for the toughest commercial kitchens, the Garland C36-5-1R packs three workhorses into a single 36-inch footprint: a precision-controlled griddle, an even-heat hot top and a high-capacity oven. 102,500 BTU of total cooking power, rock-solid 1" thick steel and all-stainless construction deliver the durability and performance chefs demand service after service.
Key performance & construction features

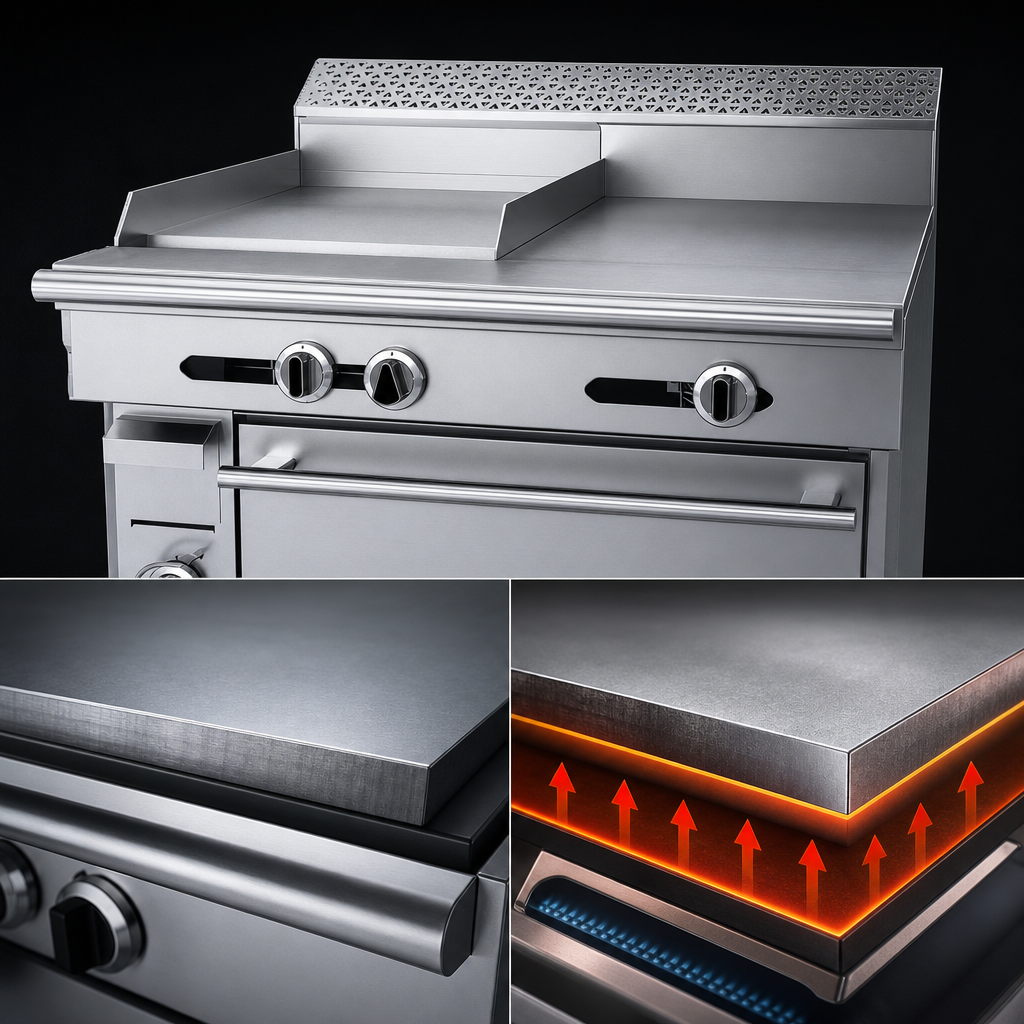

- 18" griddle on the left with 1" (25 mm) polished steel plate

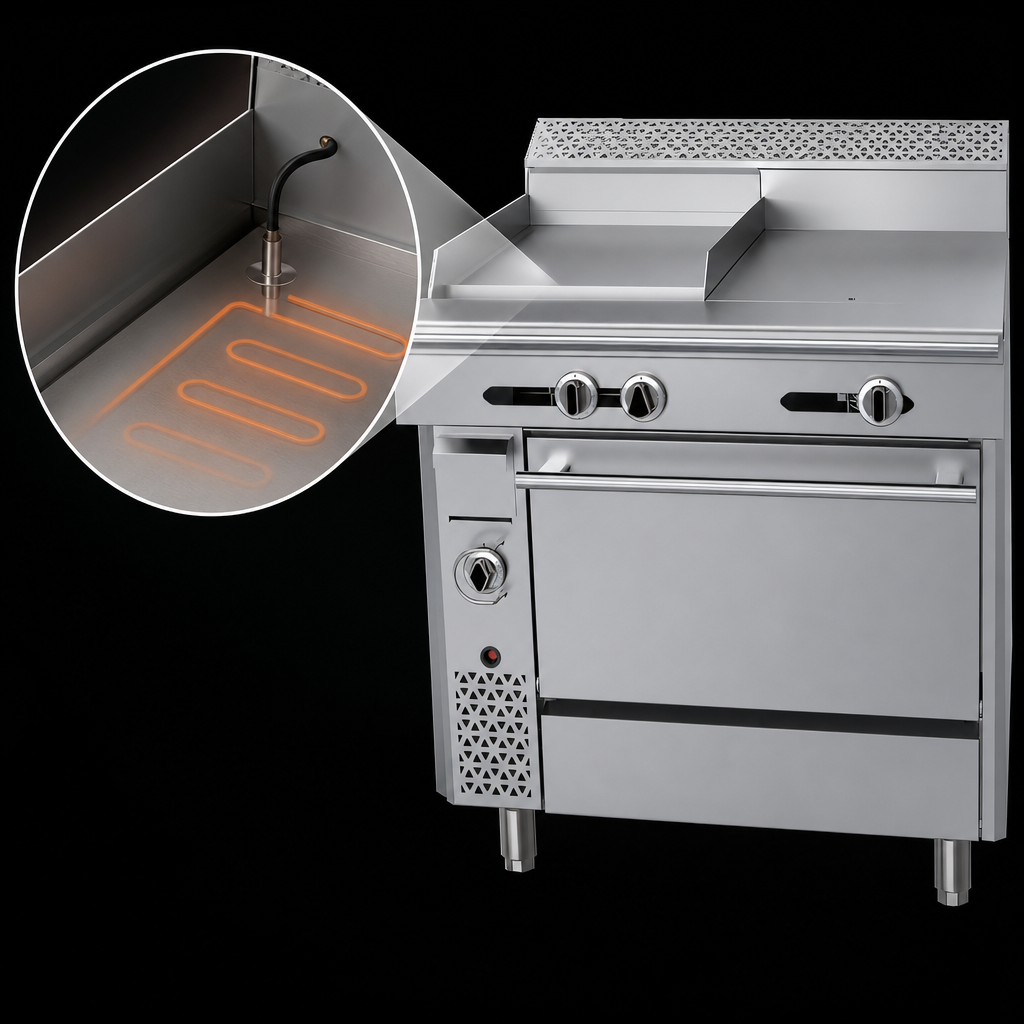

- Embedded bulb thermostatic control, 150-450 °F (65-232 °C) for precise griddle heat
- 18" even-heat hot top on the right, 32,500 BTU/h with easy hi-lo valve
- 40,000 BTU standard oven, thermostat 150-500 °F (66-260 °C)
- Porcelain-lined oven interior with 4 rack positions – includes 1 chrome rack
- 7" (178 mm) stainless steel backguard protects walls and simplifies cleanup
- All-stainless front, sides, plate rail and burner box resist corrosion
- 6" (152 mm) adjustable stainless steel legs for level installation
- Front 1-1/4" NPT gas manifold for easy battery or stand-alone hook-up
- CSA Flame, CSA Star & NSF listed for gas safety and sanitation compliance
At-a-glance specifications
| Model | C36-5-1R |
|---|---|
| Total Input | 102,500 BTU/h (Natural Gas) |
| Components |
Griddle – 30,000 BTU/h Hot Top – 32,500 BTU/h Standard Oven – 40,000 BTU/h |
| Cooking surface | 36" W × 24 7⁄8" D (914 mm × 631 mm) |
| Overall dimensions | 36" W × 34 3⁄8" D × 37 1⁄4" H to cook surface Backguard height 7" |
| Oven cavity | 13 1⁄2" H × 26 1⁄4" W × 29" D (343 × 667 × 737 mm) |
| Gas inlet | 1-1/4" NPT front connection | Manifold pressure 6" W.C. Minimum supply 7" W.C. (NG) |
| Shipping weight | 635 lb (288 kg) |
| Certifications | CSA Flame, CSA Star, NSF |
Installation & clearance
- Combustible wall clearance: 10" sides, 6" rear
- Unit ships on 6" adjustable legs; if field-installing casters, an approved restraining device is required
- Natural gas only – specify LP conversion at time of order
- Must be installed by qualified personnel in accordance with local codes
Need a matching battery line? Garland Cuisine Series components share a continuous plate rail
for seamless side-by-side installation.
Features & Specs
Features & Specs
Manufacturer
Garland
Brand_name
Garland Cuisine
Certifications
NSF, CSA Star, CSA Flame
Height
42.0in
Width
36.0in
Depth
39.38in
Shipping Weight
635.0lbs
Top
(1) 18" griddle with thermostat, (1) 18" hot top
Exterior Finish
stainless steel front & sides
Plate Thickness
1.000" = 1"
Base
(1) standard oven
Specifications
Garland Cuisine Series Heavy Duty Range, gas, 36" (1) 18" griddle on left only, 1" thick steel plate, thermostatic controls, (1) 18" even heat hot top - right, standard oven, includes (1) rack, 7"H backguard, stainless steel front, sides, plate rail & burner box, 6" adjustable legs, 102,500 BTU (NG), CSA Flame, CSA Star, NSF (Garland)
