Garland  |  Garland Cuisine  |  SKU: C36-5-1M

Garland C36-5-1M Garland Cuisine Gas Ranges

$5,712.00
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Cutsheet Cutsheet Garland cuisine models guide Owner's manual Brochure Check list
Related Searches
Commercial Gas Ranges Commercial Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

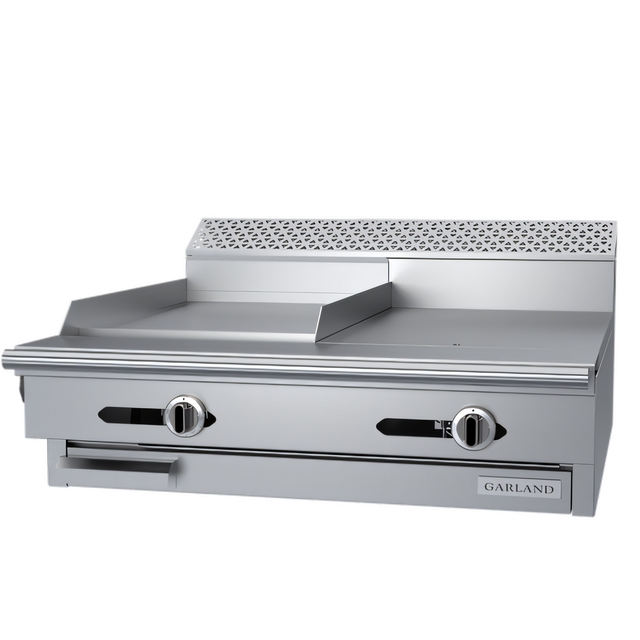

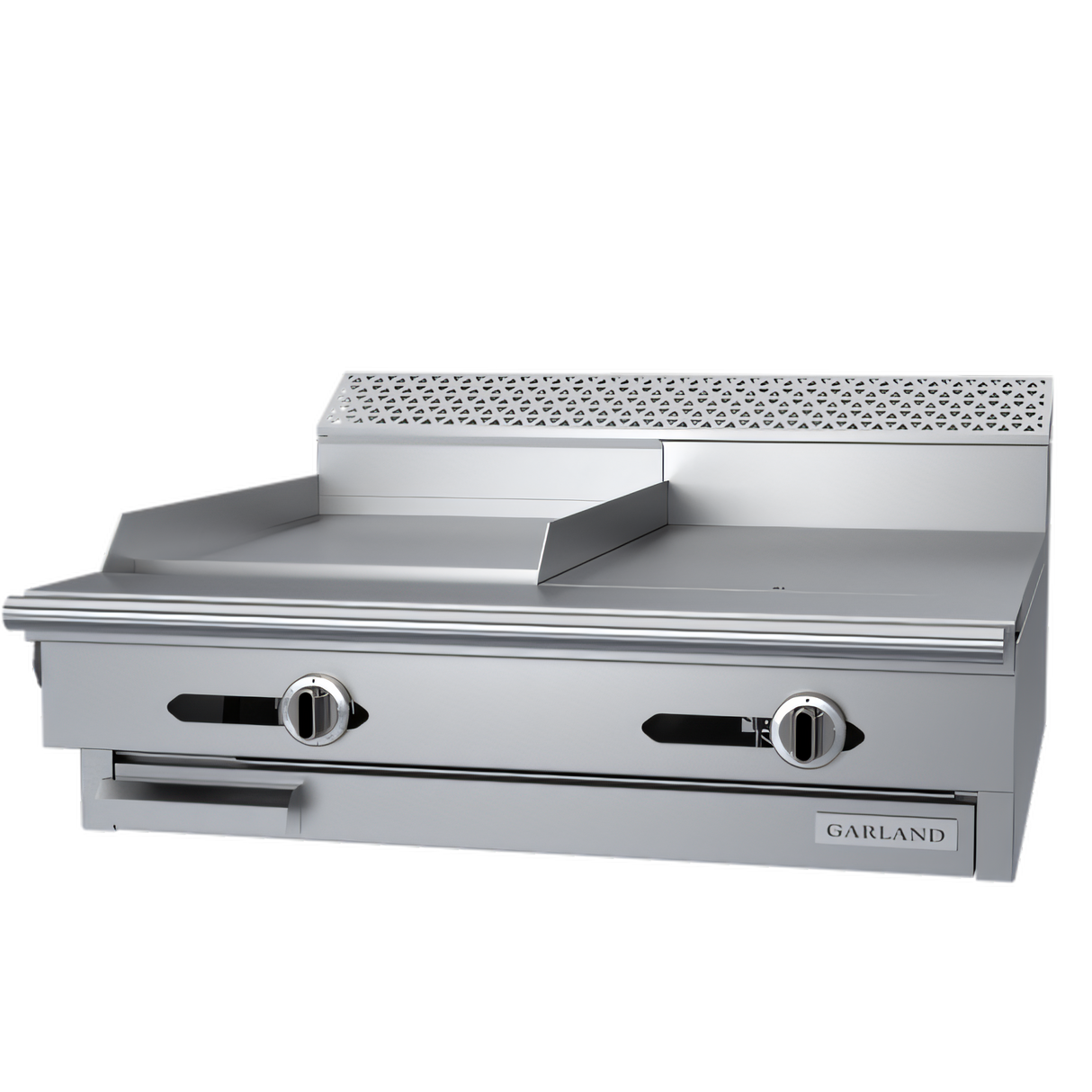

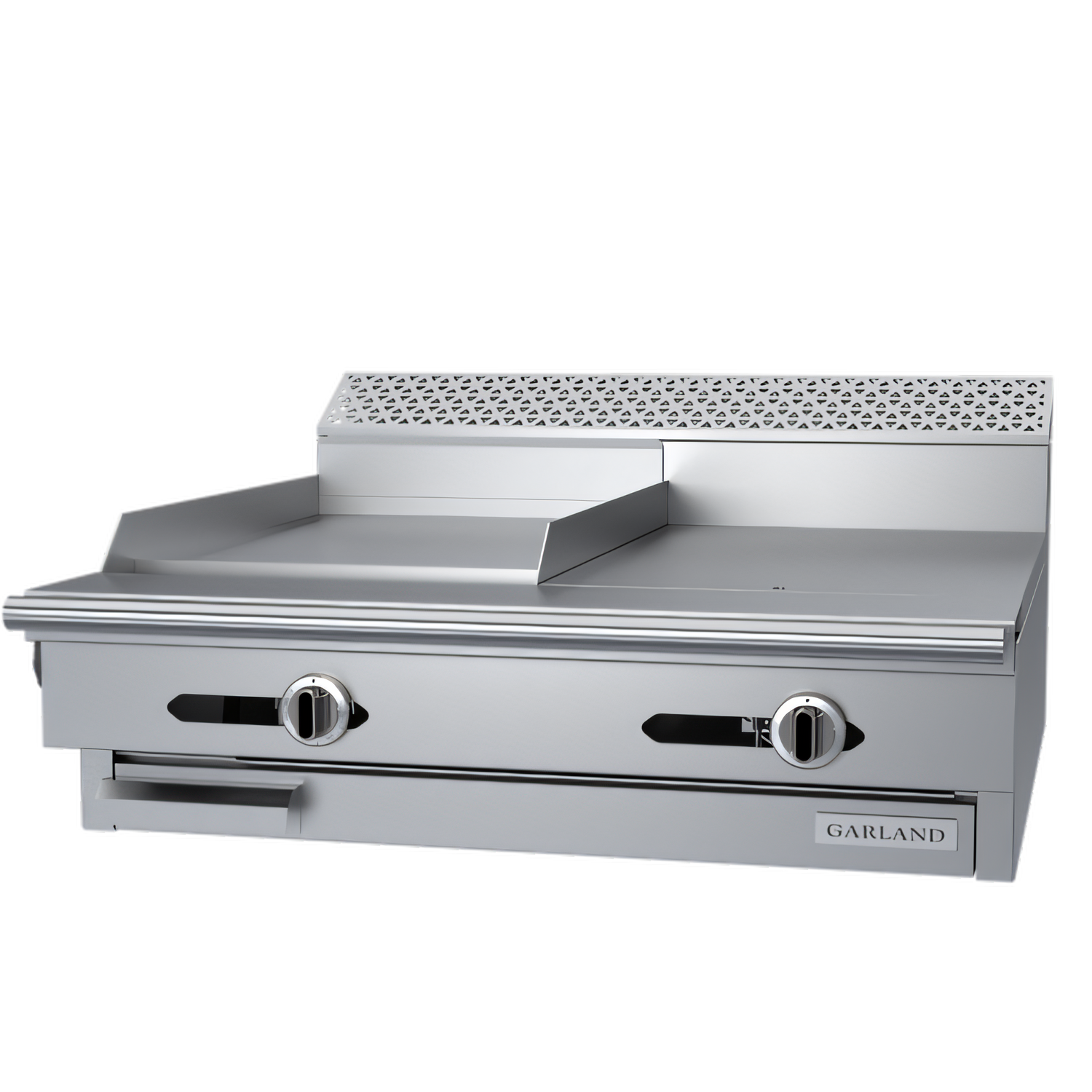

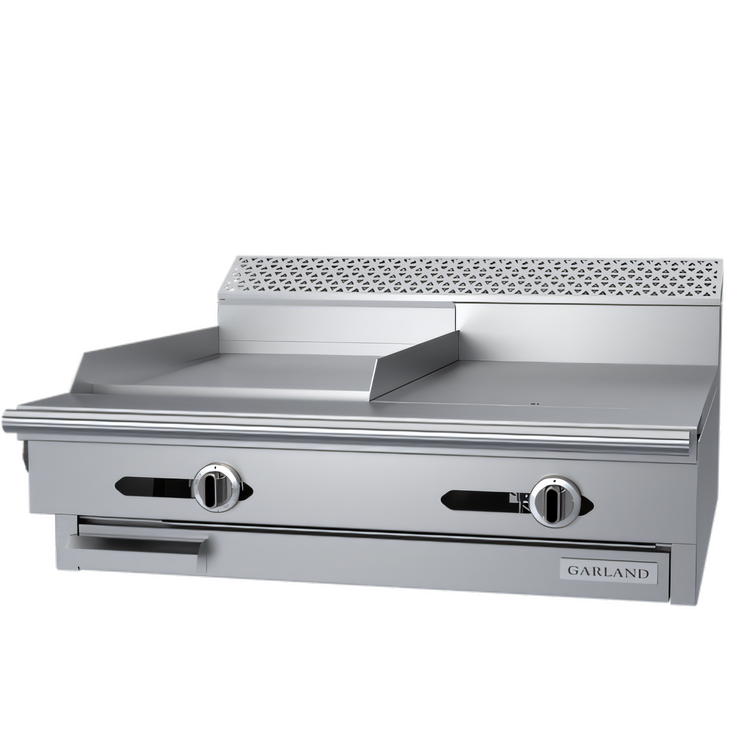

Garland Cuisine Series 36" Heavy-Duty Modular Range

18" Thermostatic Griddle (Left) • 18" Even-Heat Hot Top (Right) • 62,500 BTU • Model C36-5-1M

Engineered for relentless commercial use, the Garland C36-5-1M pairs a precision-controlled griddle with a powerful hot top—all in a compact 36-inch footprint that drops onto a stand, refrigerated chef base or curb mount. 62,500 BTU/h of combined output gives chefs the flexibility to sear, sauté, hold and finish without missing a beat.

Key Performance Features

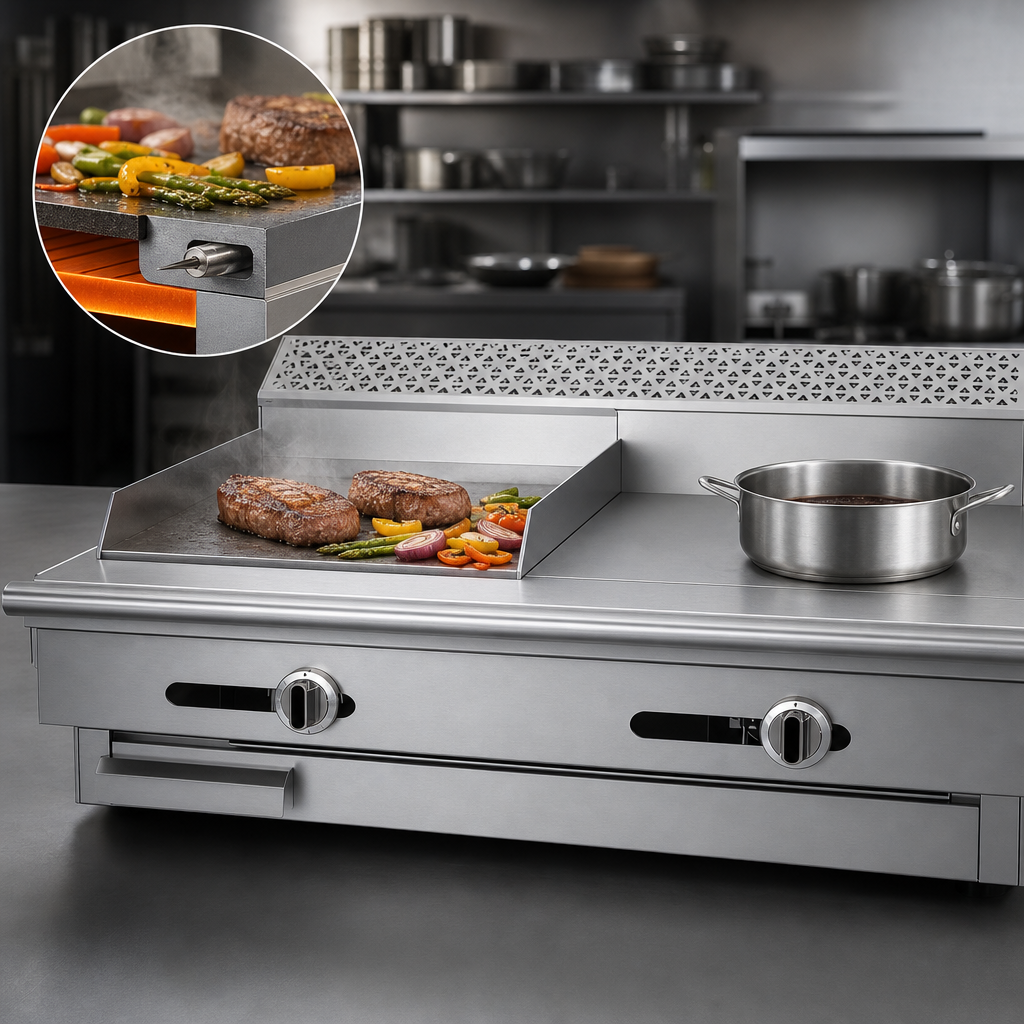

  • 1" (25 mm) thick steel griddle plate with embedded thermostat bulb for fast recovery and uniform heat from 150-450°F (66-232°C).

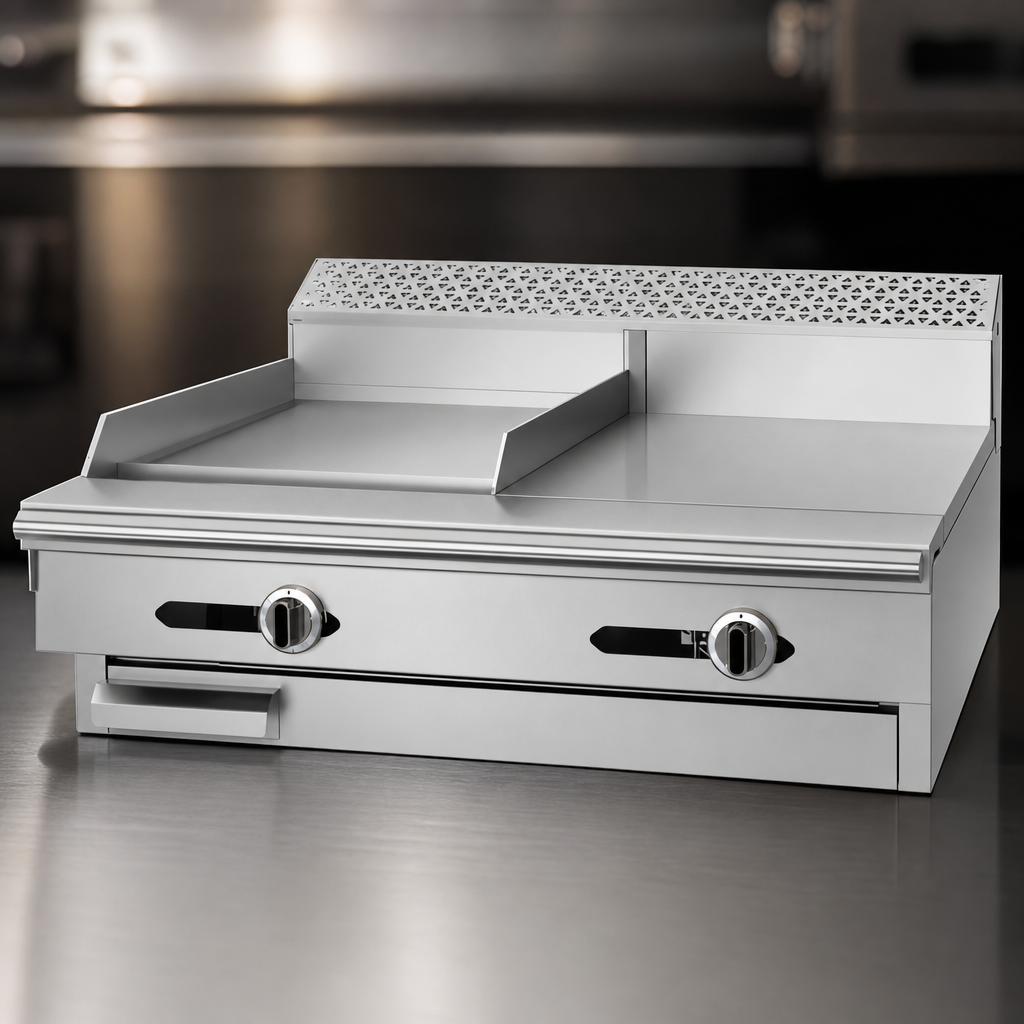

  • 18" even-heat hot top delivers 32,500 BTU/h—perfect for stock pots, pans or holding.
  • All-stainless front, sides, plate rail and burner box resist corrosion and wipe clean easily.
  • 7" (178 mm) stainless stub back shields walls while fitting under low hoods.
  • 1-1/4" NPT front gas manifold with manual shut-off simplifies single or battery installation; optional rear connection kit available.
  • Adjustable 6" (152 mm) stainless steel legs supplied for freestanding use; modular top also mounts on Polar Cuisine refrigerated bases or equipment stands (sold separately).
  • Fully insulated body keeps surrounding work areas cooler and reduces energy loss.
  • CSA Flame & Star and NSF listed for gas safety and sanitation compliance.
Technical Specifications
Model / SKU C36-5-1M — Garland Cuisine Series
Overall width 36" / 914 mm
Overall depth 32" / 813 mm (modular top)
Work-surface height 16" / 407 mm + 7" stub back
Cooking surfaces 18" thermostatic griddle (left), 18" hot top (right)
Total input 62,500 BTU/h (Natural or Propane)
Individual burner ratings Griddle 30,000 BTU/h • Hot Top 32,500 BTU/h
Gas connection 1-1/4" NPT front manifold; rear kit optional
Supply pressure (min.) Natural 7" WC • Propane 11" WC
Manifold pressure Natural 6" WC • Propane 10" WC
Clearance to combustibles Sides 10" (254 mm) • Back 6" (152 mm)
Shipping weight 377 lb / 171 kg  |  30 cu. ft.
Certifications CSA Flame, CSA Star, NSF
Perfect For
  • Full-service and quick-service restaurants
  • Hotel & resort banquet kitchens
  • Catering and central commissaries
  • Institutional foodservice — schools, hospitals, correctional facilities
Commercial use only: Garland Cuisine Series equipment is not approved for residential installation.

Looking to build a full battery? Contact us for stands, refrigerated bases, plate rails and matching Garland accessories.

Features & Specs

Manufacturer

Garland

Brand_name

Garland Cuisine

Certifications

NSF, CSA Star, CSA Flame

Height

10.0in

Width

36.0in

Depth

39.38in

Shipping Weight

377.0lbs

Top

(1) 18" griddle with thermostat, (1) 18" hot top

Base

modular

Plate Thickness

1.000" = 1"

Exterior Finish

stainless steel front & sides

Specifications

Garland Cuisine Series Heavy Duty Range, gas, 36", modular top, (1) 18" griddle on left only, 1" thick steel plate, thermostatic controls, (1) 18" even heat hot top - right, 7"H backguard, stainless steel front, sides, plate rail & burner box, 62,500 BTU, CSA Flame, CSA Star, NSF (Garland)
