Garland C36-5-1C Garland Cuisine Gas Ranges
Description

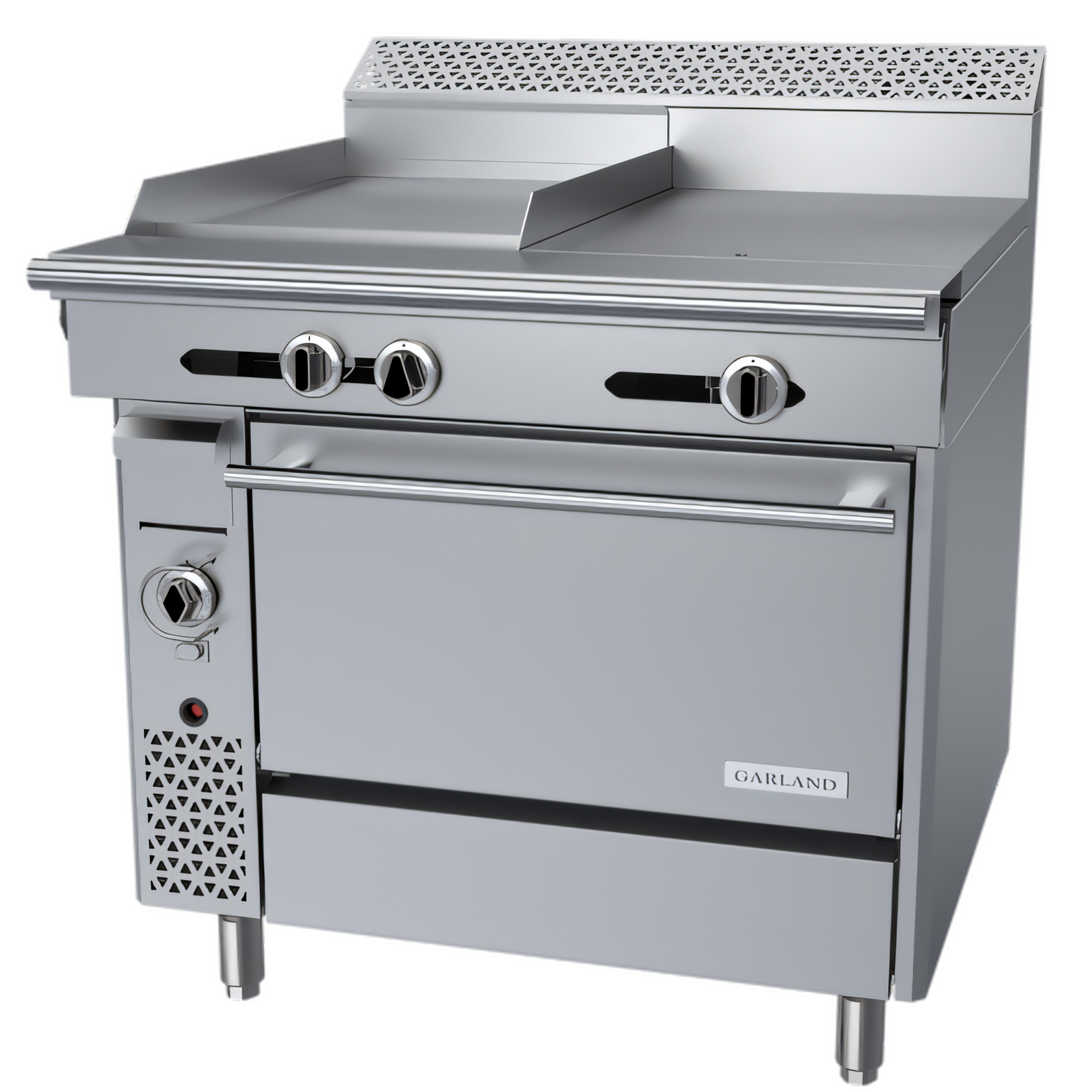

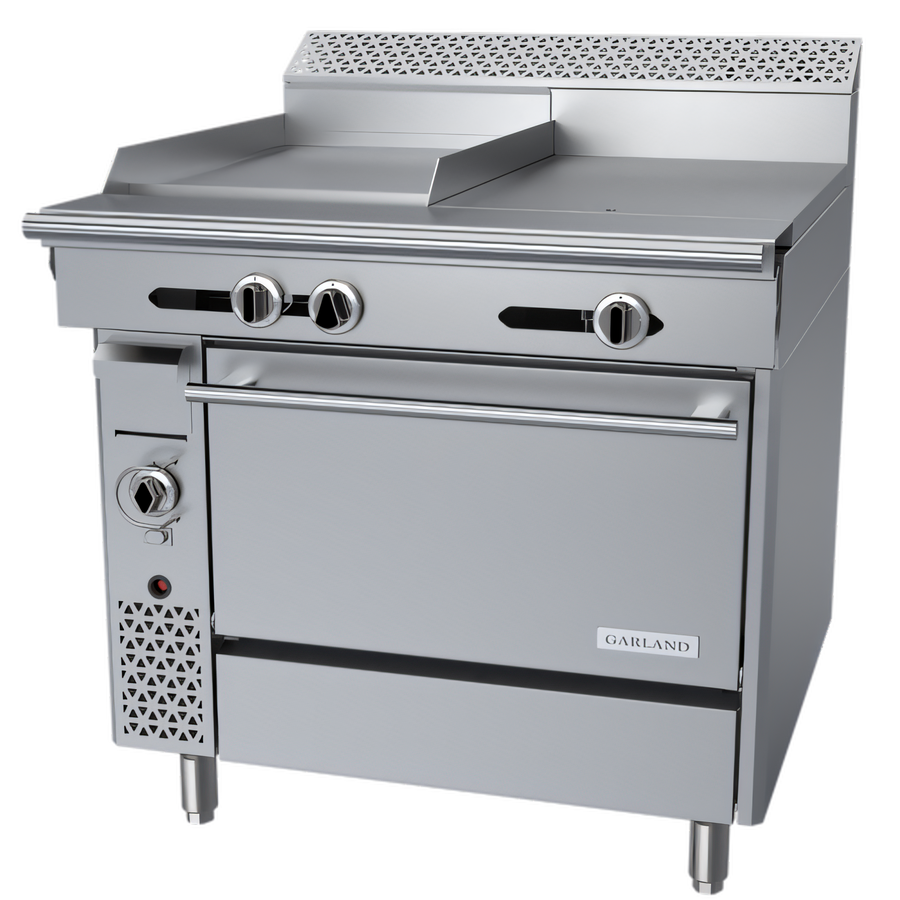

Garland Cuisine Series 36" Heavy-Duty Gas Range
Model C36-5-1C – 18" Griddle & 18" Hot Top with Convection OvenBuilt for chefs who refuse to compromise, the Garland Cuisine Series 36" combination range delivers 99,500 BTU/h of consistent, controllable power in a rock-solid, stainless-steel chassis. A 1" thick thermostatic griddle, an even-heat hot top and a high-performance convection oven give you the freedom to sear, sauté, simmer — and bake — all on one compact footprint.
Performance & Convenience Highlights

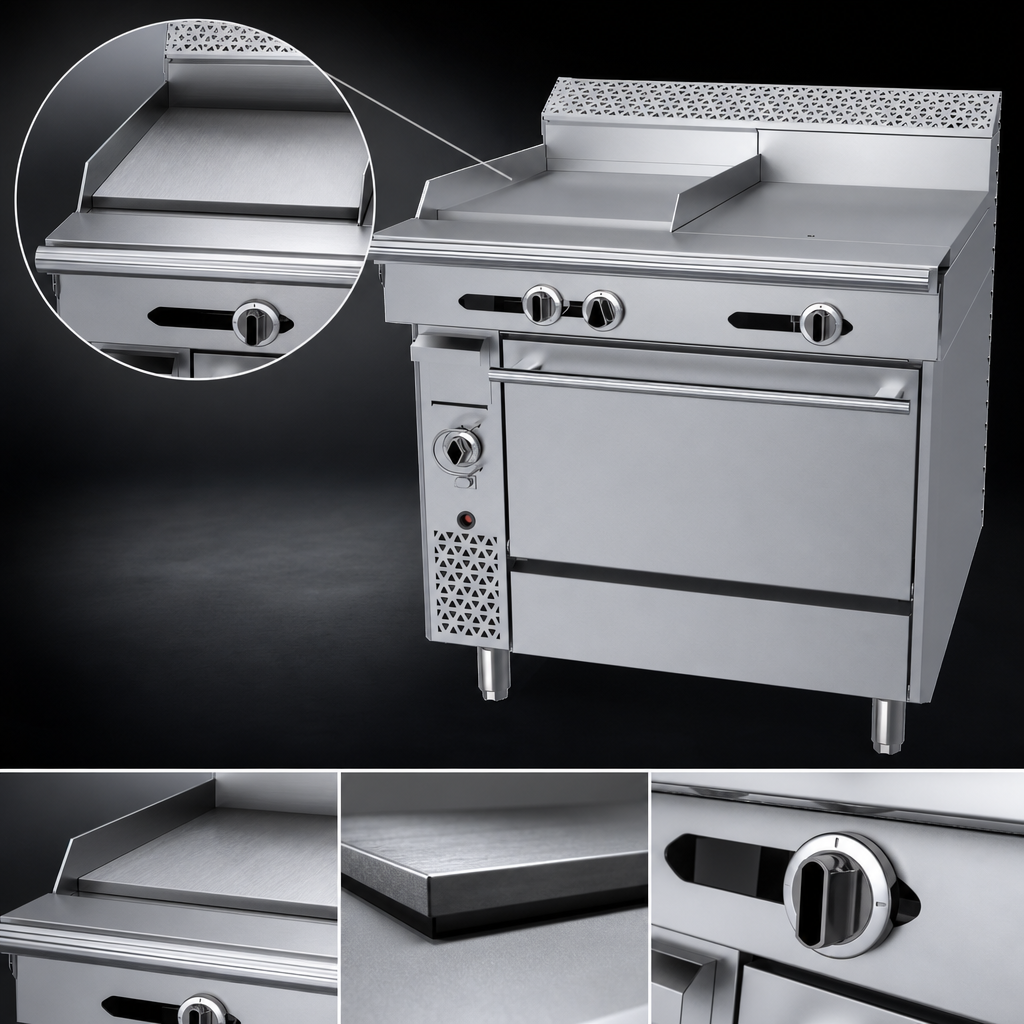

- Left-side 18" griddle – 1" (25 mm) thick steel plate, 30,000 BTU/h burner, thermostatic control from LOW to 450 °F (232 °C) for repeatable results.

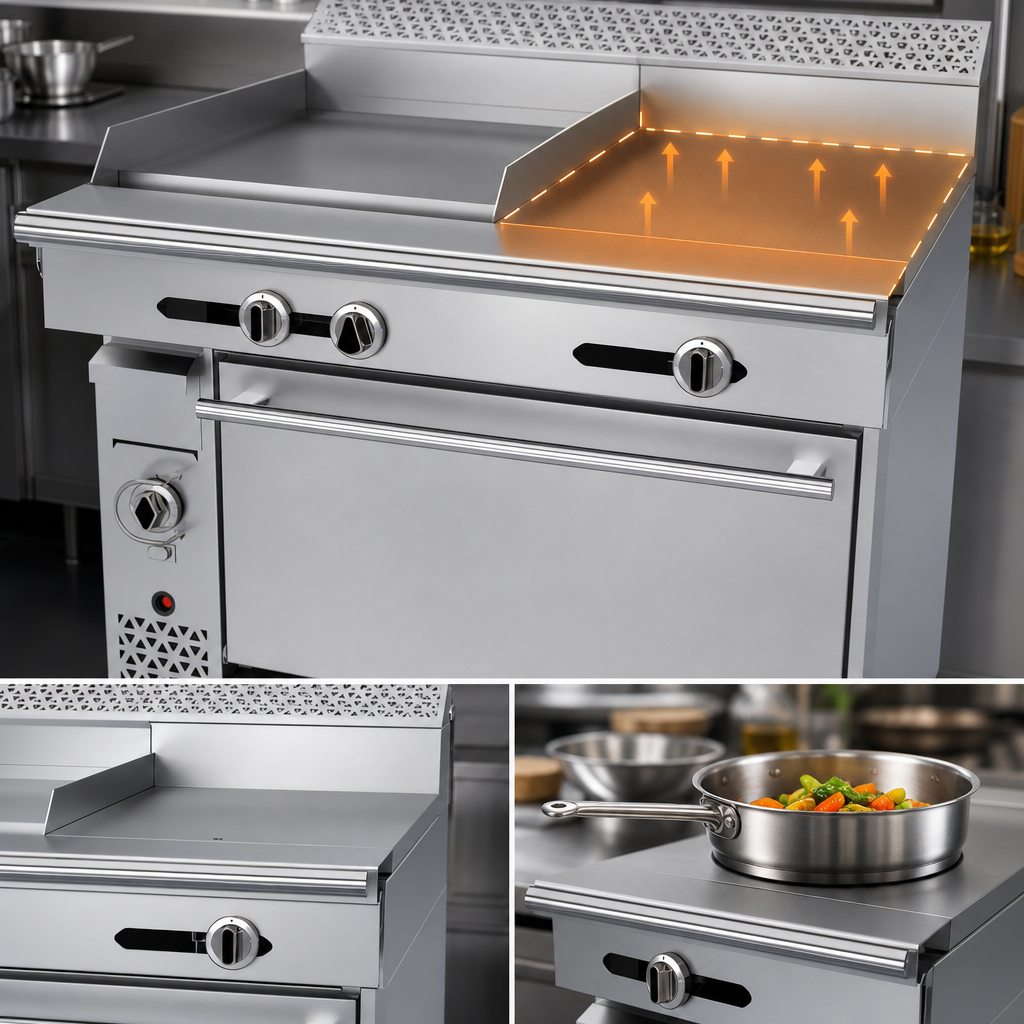

- Right-side 18" hot top – 32,500 BTU/h even-heat plate handles high-volume sautéing or low-slow braising.
- Convection oven base – 37,000 BTU/h burner, 1/3 HP fan motor (120 V, 0.6 A) and three chrome racks for fast, uniform baking & roasting.
- Total output — 99,500 BTU/h (Natural Gas) backed by a 1 ¼" NPT front gas manifold for simple line-up installation.
- Stainless steel front, sides, plate rail, burner box & 7" (178 mm) stub back for unmatched durability and easy cleaning.
- Fully insulated oven door with “keep-cool” handle and positive-closing latch.
- Continuous front rail offers extra plating space and a handy utensil resting bar.
Perfect for
- High-volume restaurants & bistros
- Hotel & resort kitchens
- Catering commissaries
- Institutional foodservice operations looking for space-saving flexibility
Technical Specifications
| Overall Width | 36" / 914 mm |
|---|---|
| Overall Depth | 34 3⁄8" / 873 mm |
| Working Height | 37 1⁄4" / 947 mm (to cook surface) + 7" stub backguard |
| Griddle | 18" (457 mm) left, 1" plate, 30,000 BTU/h |
| Hot Top | 18" (457 mm) right, 32,500 BTU/h |
| Oven Type | Gas convection, 37,000 BTU/h, 3 chrome racks |
| Oven Interior (H × W × D) | 13 ½" × 26 ¼" × 25" (343 × 667 × 635 mm) |
| Total Gas Input | 99,500 BTU/h (Natural Gas) |
| Gas Connection | 1 ¼" NPT (front); min. supply 7" WC |
| Electrical | 120 V / 60 Hz / 1-ph, 0.6 A, 1/3 HP motor, NEMA 5-15P cord & plug (oven fan) |
| Clearances (Combustible) | 10" (254 mm) sides, 6" (152 mm) back |
| Certifications | CSA Flame, CSA Star, NSF |
Ranges supplied on casters must be secured with an approved restraining device. Garland equipment is designed for commercial use only.
