Garland  |  Garland Cuisine  |  SKU: C36-4M

Garland C36-4M Garland Cuisine Gas Ranges

$5,220.00
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Cutsheet Cutsheet Brochure Garland cuisine models guide Owner's manual Check list
Related Searches
Commercial Gas Ranges Commercial Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

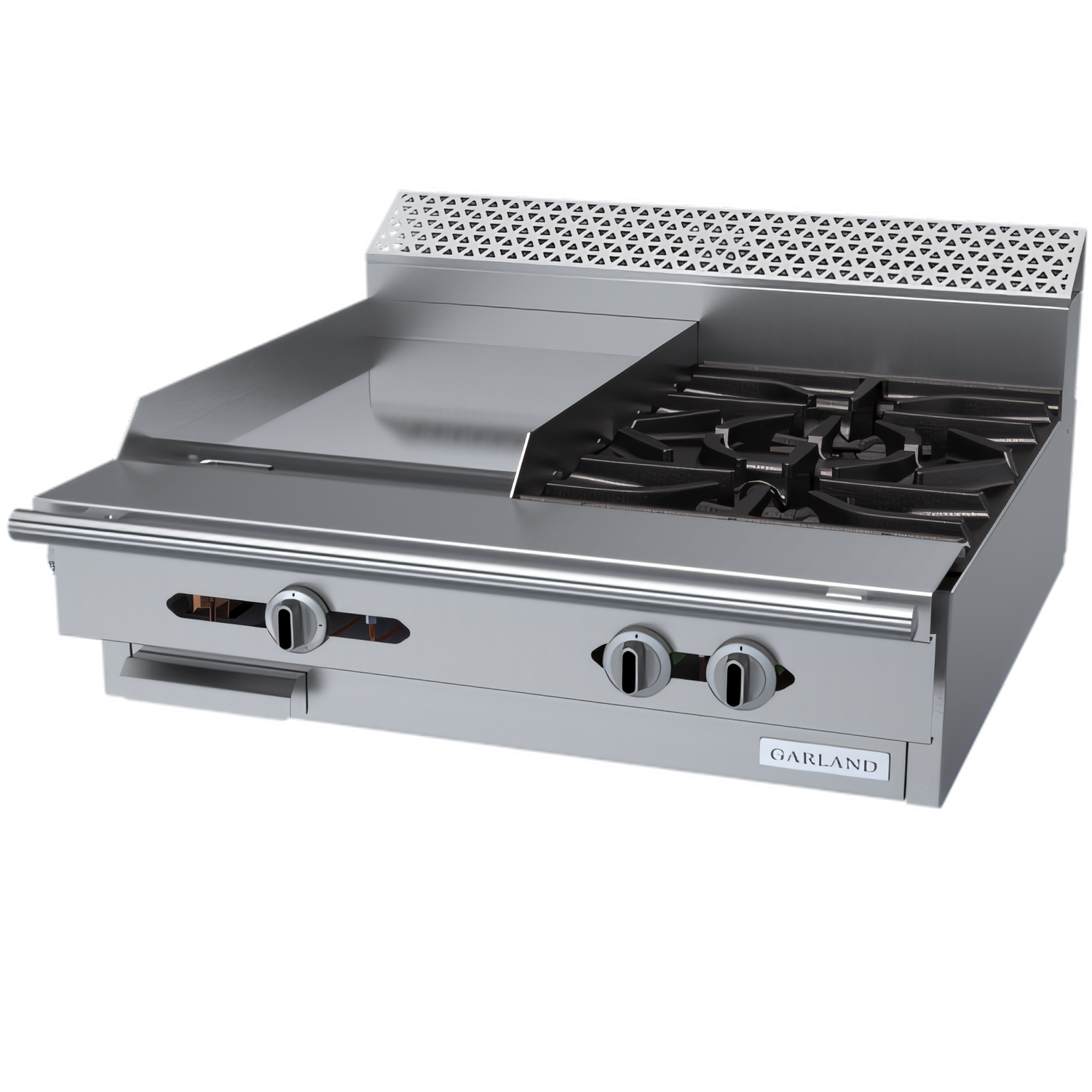

Garland Cuisine C36-4M Heavy-Duty Combination Top Range (Modular)

36" gas range - 18" griddle (LH) + 2 open burners (RH) • 110,000 BTU/h NG

Built for high-volume, all-day service, the Garland Cuisine C36-4M puts two 40 k BTU Starfire™ open burners and an 18" manual-control griddle on the same 36" footprint. The low-profile “M” modular top drops straight onto an equipment stand, refrigerated chef base or counter line, giving you maximum flexibility without sacrificing the legendary Garland build quality.

Key benefits

  • Blistering heat output – 110,000 BTU/h total (NG)
  • Two 40,000 BTU Starfire™ open burners for rapid pan work
  • 18" griddle (left) with 1" (25 mm) thick polished steel plate for even heat, fast recovery and easy clean-up
  • Hi-Lo manual valves give precise flame control on both the burners and the griddle
  • All-stainless front, sides, plate rail and burner box stand up to daily abuse and wipe down quickly
  • 7" (178 mm) stainless backguard protects surrounding equipment & walls
  • 1-1/4" NPT front gas manifold makes battery connections quick and tidy; optional rear connection kit

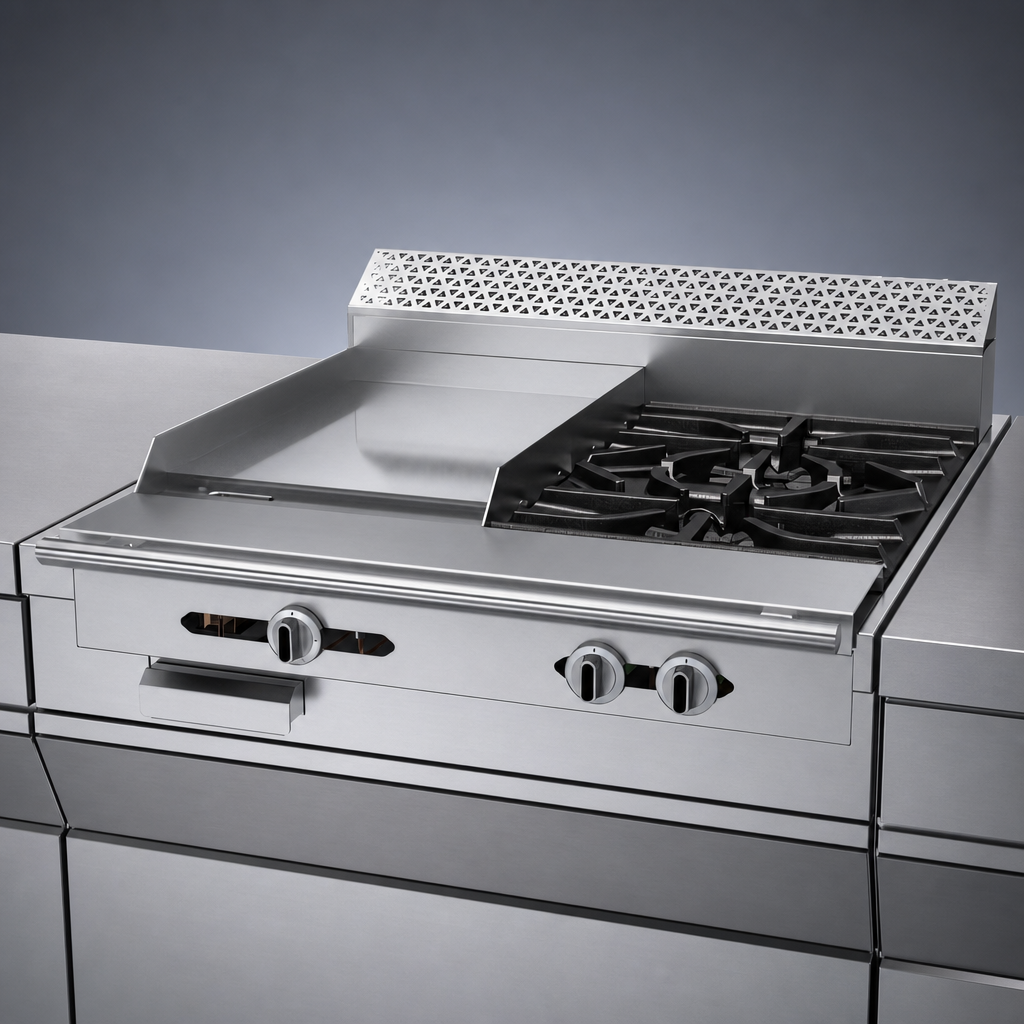

  • Modular design drops onto Garland stands, chef bases or counters—no legs included
  • Certified to CSA Flame, CSA Star & NSF for safety and sanitation

Performance at a glance

Model C36-4M (manual valve, modular top)
Total BTU (Natural Gas) 110,000 BTU/h
Open burners 2 × 40,000 BTU Starfire™ (right-hand)
Griddle section 18" wide (left-hand), 30,000 BTU
Griddle plate 1" (25 mm) steel, polished
Working width 36" / 914 mm
Overall depth 32-5/8" / 829 mm
Modular top height Approx. 10" / 254 mm (to cooking surface)
Backguard height 7" / 178 mm
Gas connection 1-1/4" NPT (front standard; rear optional)
Shipping weight 392 lb / 178 kg
Certifications CSA Flame, CSA Star, NSF

Perfect pairing: dedicated equipment stand

For safe, ergonomic installation Garland recommends the stainless steel 35-3/8" equipment stand (model A4528351 with casters or A4528795 with legs). The stand includes an intermediate shelf and is rated for heavy-duty countertop cooking equipment.

Professional installation required. This appliance is engineered for commercial kitchens and must be installed by a qualified gas technician in accordance with local codes. Ranges supplied on casters or stands must be secured with an approved restraining device.

Need propane? A factory LP-gas conversion kit is available. Contact us before ordering to ensure the correct setup for your kitchen.

Features & Specs

Manufacturer

Garland

Brand_name

Garland Cuisine

Certifications

NSF, CSA Star, CSA Flame

Height

10.0in

Width

36.0in

Depth

39.38in

Shipping Weight

392.0lbs

Base

modular

Plate Thickness

1.000" = 1"

Top

(2) open burners, (1) 18" griddle

Exterior Finish

stainless steel front & sides

Specifications

Garland Cuisine Series Heavy Duty Range, gas, 36", modular top, (2) 40,000 BTU open burners 18" - right, (1) 18" griddle on left only, 1" thick steel plate, Hi-Lo manual valve controls, 7"H backguard, stainless steel front, sides, plate rail & burner box, 110,000 BTU (NG), CSA Flame, CSA Star, NSF (Garland)
