Garland C36-4C Garland Cuisine Gas Ranges
Garland C36-4C Garland Cuisine Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Description

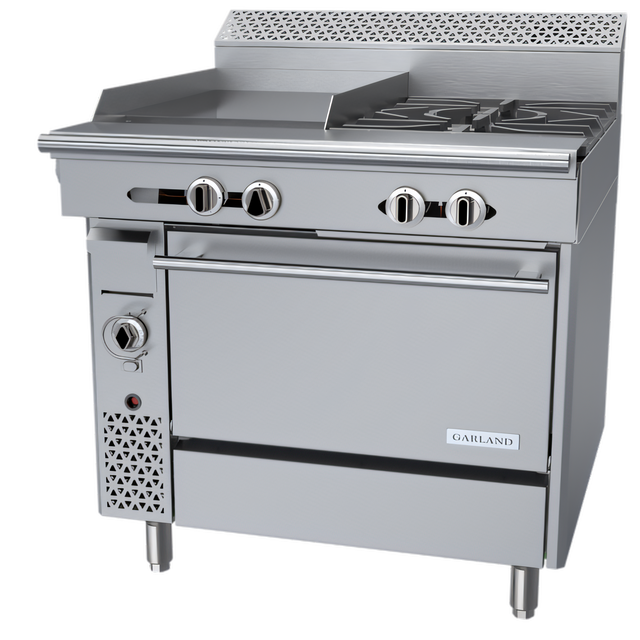

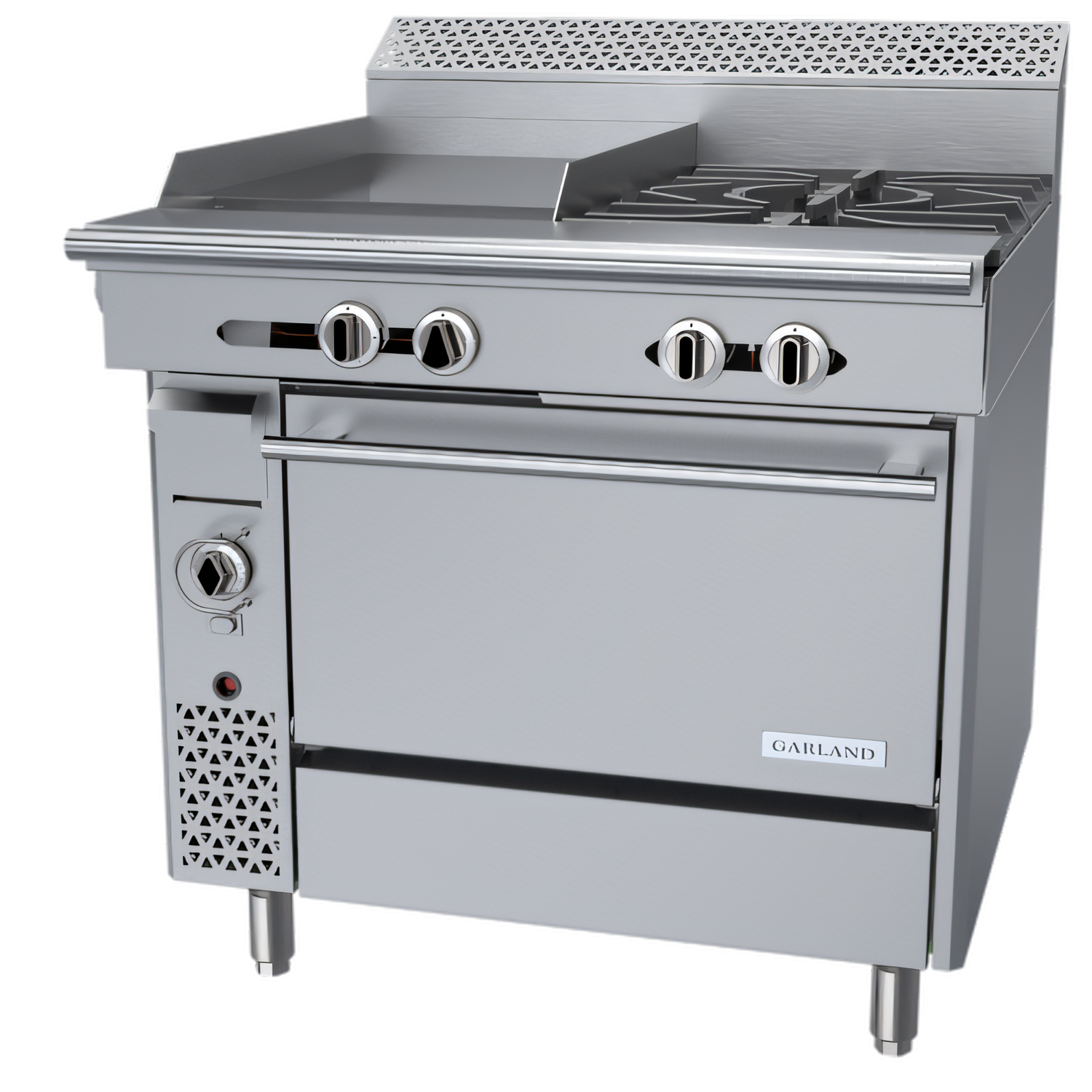

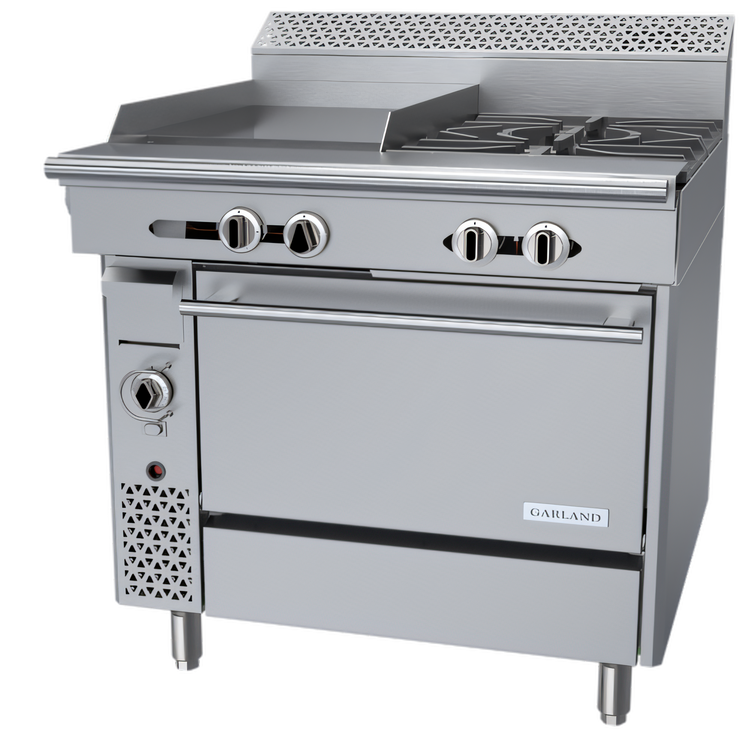

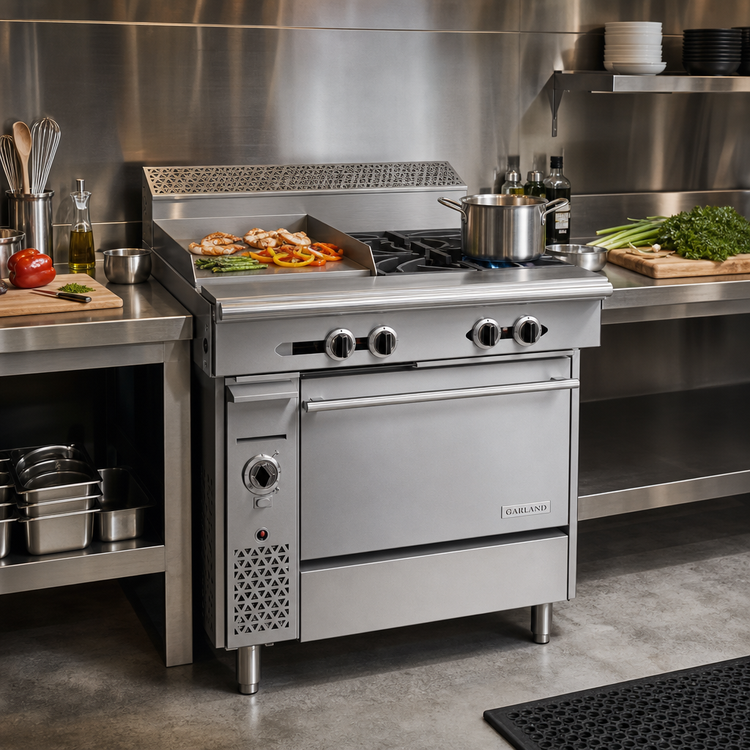

Garland Cuisine Series C36-4C Heavy-Duty Combination Range – 36"
18" Manual-Control Griddle • (2) 40,000 BTU Starfire Open Burners • Convection Oven BaseEngineered for demanding commercial kitchens, the Garland C36-4C delivers powerful, multi-function cooking in a compact 36-inch footprint—perfect for lines where every inch counts.
Why You’ll Love It

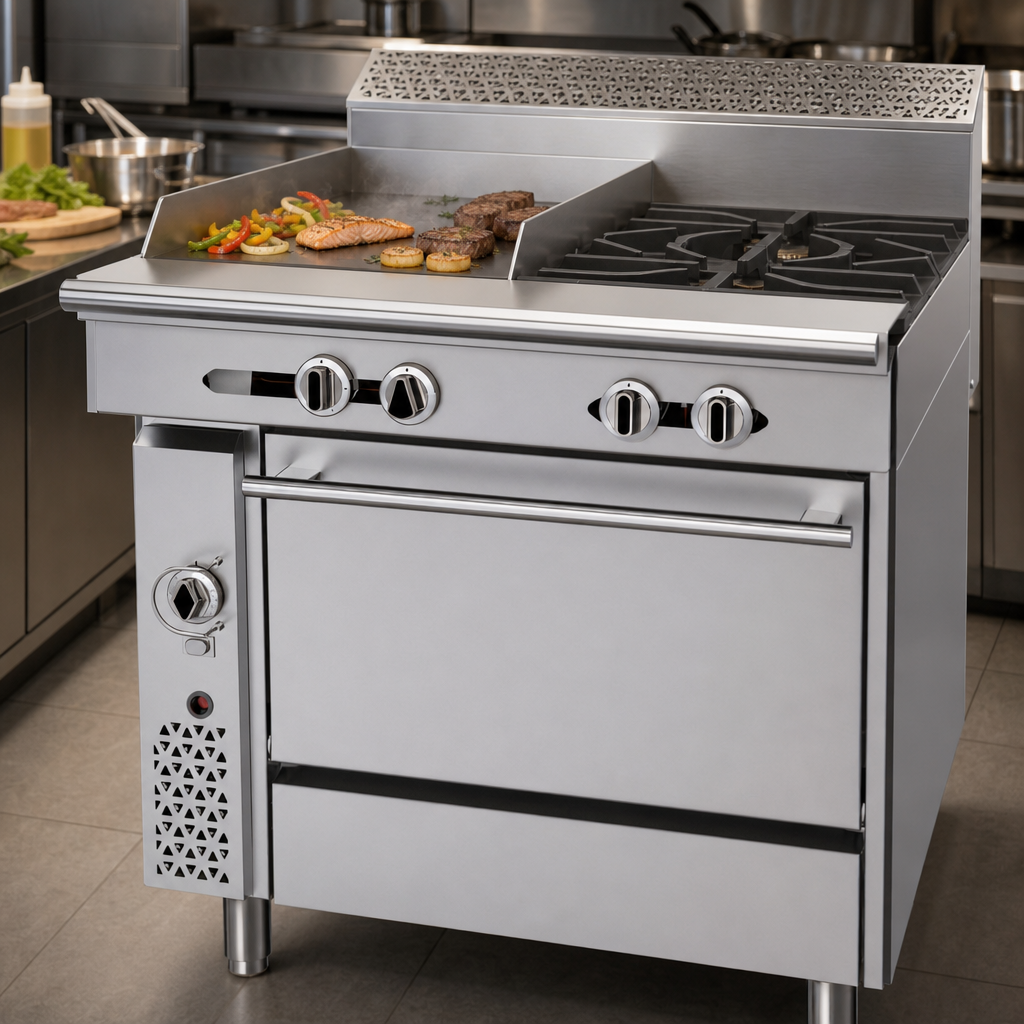

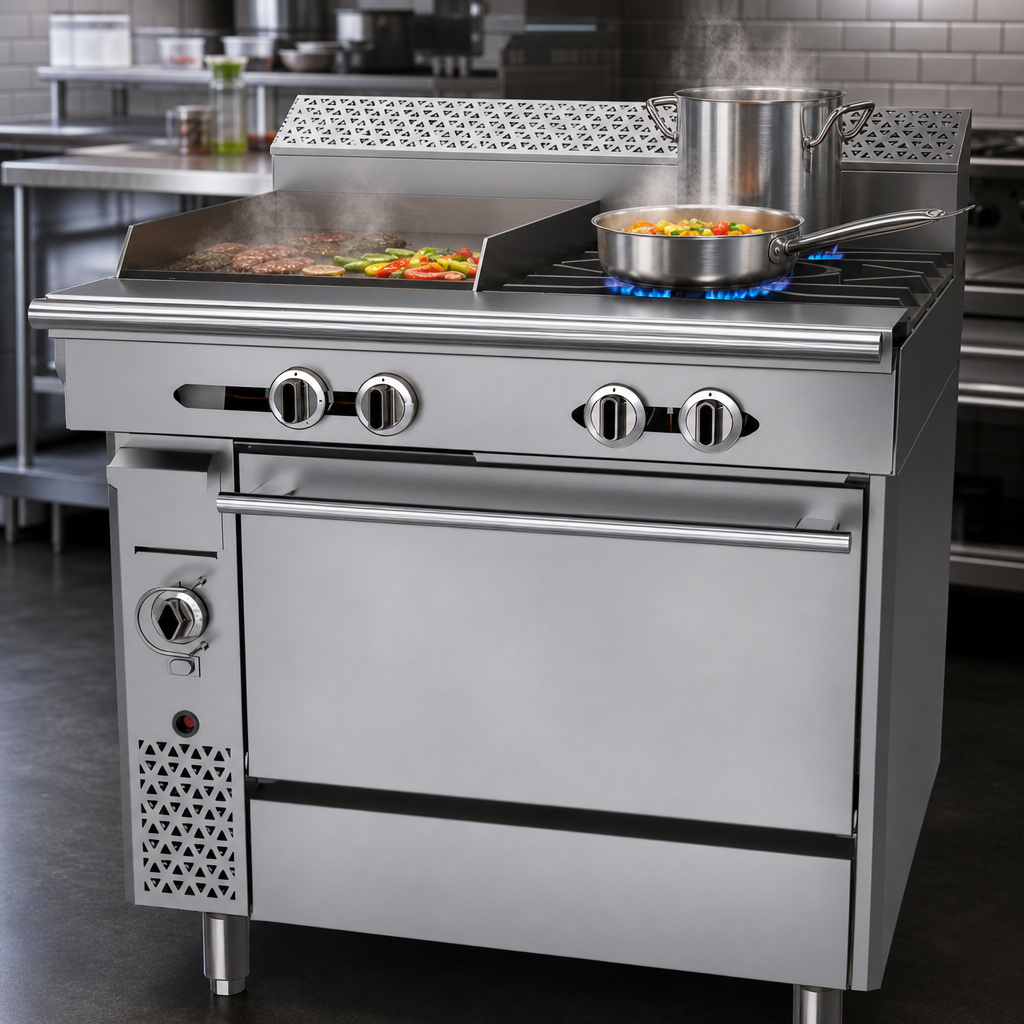

- All-purpose platform: sauté, boil and sear on two 40 K BTU open burners while turning out pancakes, burgers or eggs on the 18" griddle.
- 1" (25 mm) thick steel griddle plate retains heat and resists warping under continuous use.
- Hi-Lo manual valve controls give chefs fast, intuitive flame adjustment without electronic components.
- High-performance convection oven (37 K BTU) with 1/3 HP fan motor bakes evenly and recovers quickly.
- Total 147,000 BTU/h natural-gas input for rapid turnarounds and increased ticket output.
- Durable stainless steel front, sides, plate rail and burner box stand up to daily cleaning and heavy abuse.
- 7" stainless stub backguard protects walls; deep plate rail keeps pans and plating space within reach.
- 6" adjustable stainless steel legs make leveling and under-range cleaning a breeze.
- Certified to NSF, CSA Flame and CSA Star standards for safe, code-compliant installation.
Performance & Utility Specs
Manufacturer / Model | Garland Cuisine C36-4C |
---|---|
Cooktop Layout | Left: 18" griddle • Right: (2) 18" Starfire open burners |
Open Burner Output | 40,000 BTU each (80,000 BTU total) |
Griddle Output | 30,000 BTU |
Convection Oven Output | 37,000 BTU | 150 – 500 °F (66 – 260 °C) |
Total Gas Input | 147,000 BTU/h (Natural Gas) |
Electrical | 120 V / 60 Hz / 1-ph, 0.6 A, NEMA 5-15P (1/3 HP fan) |
Gas Connection | 1-1/4" NPT front manifold (rear connection optional) |
Oven Rack Positions / Racks | 3 positions / (3) chrome-plated racks included |
Overall Dimensions | 36" W × 34-1/8" D × 54-1/4" H (with backguard) |
Combustible Clearances | Sides – 10" | Rear – 6" |
Certifications | NSF, CSA Flame, CSA Star |
What’s in the Box
- (2) cast-iron grate assemblies
- 18" x 24" griddle section with 3" grease trough & removable drawer
- (3) chrome oven racks
- 7" stainless stub backguard
- (4) 6" adjustable stainless legs
- Installation & operation manual
Perfect For
- Independent restaurants and cafés needing maximum versatility in minimal space
- Institutional foodservice operations—schools, hospitals, universities
- Catering kitchens and commissaries seeking dependable, round-the-clock performance
Ships ready for natural gas. LP conversion kit and casters sold separately—casters must be paired with an approved restraining device.
