Garland C36-4-1R Garland Cuisine Gas Ranges
Description

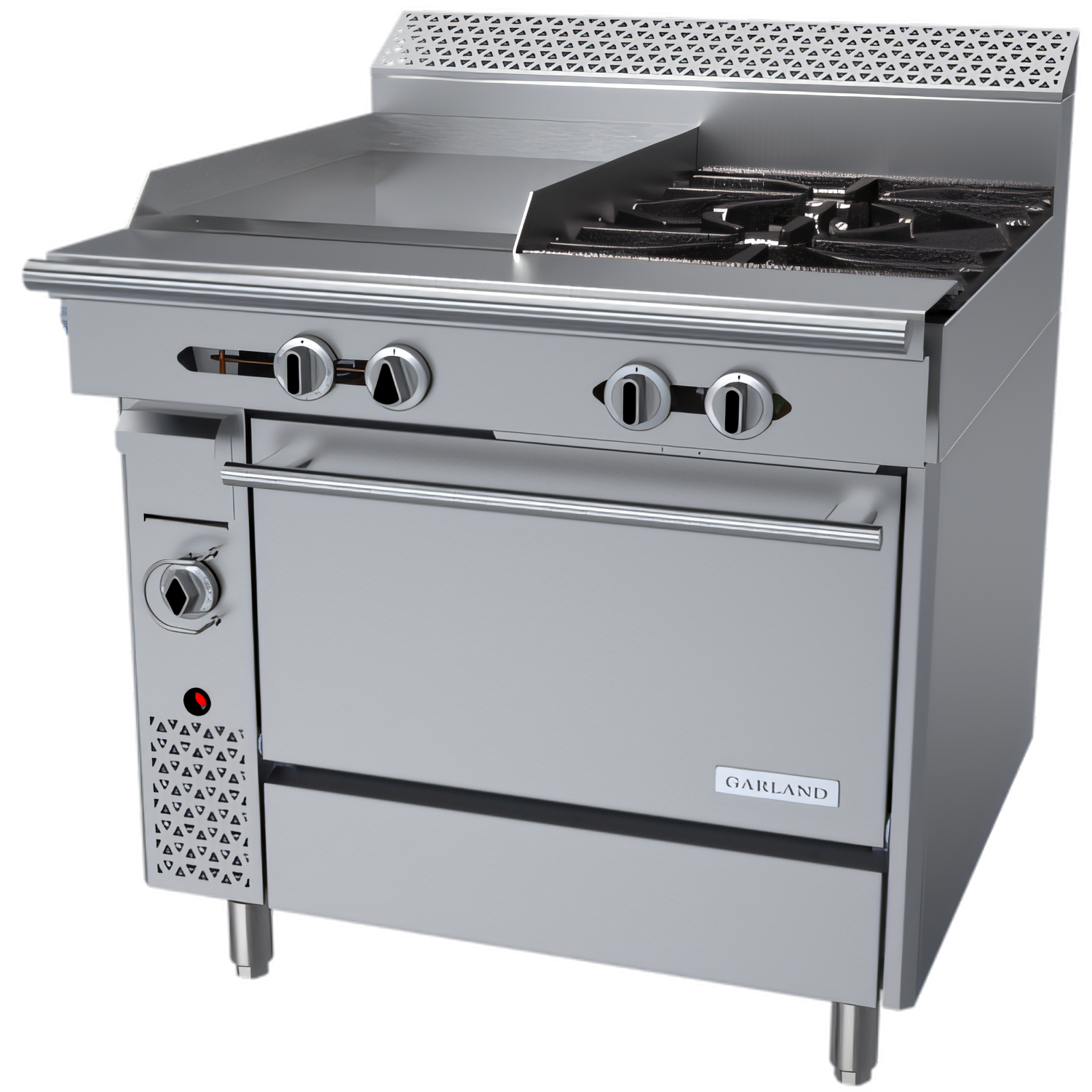

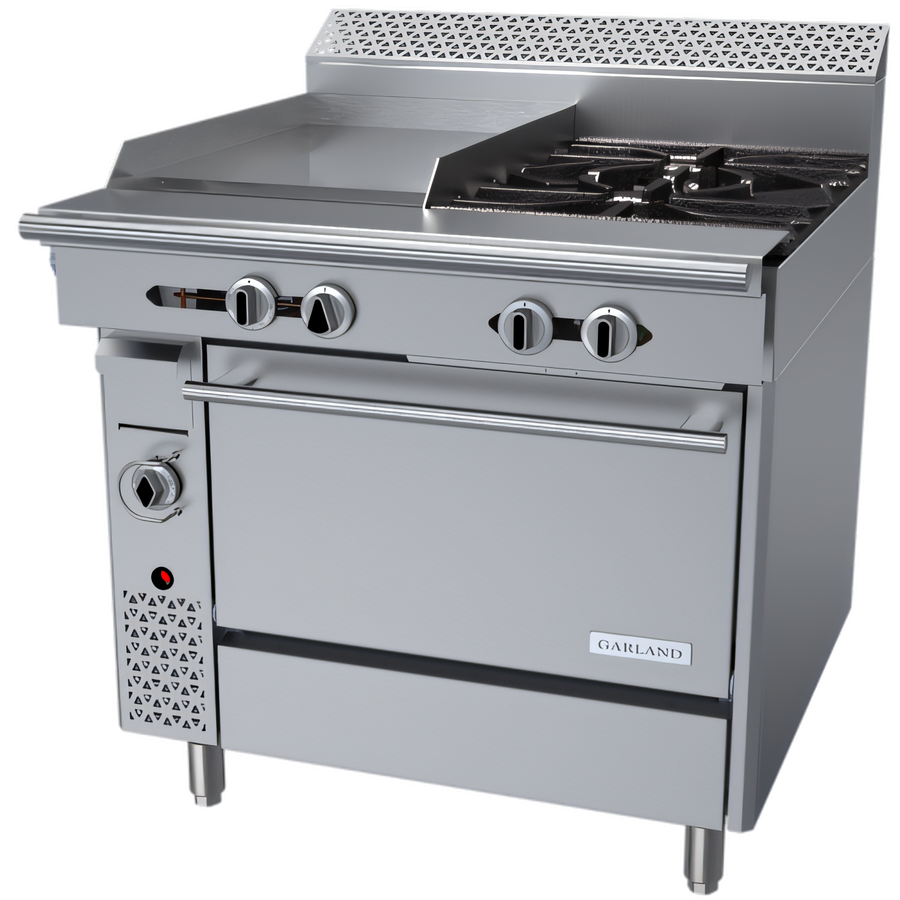

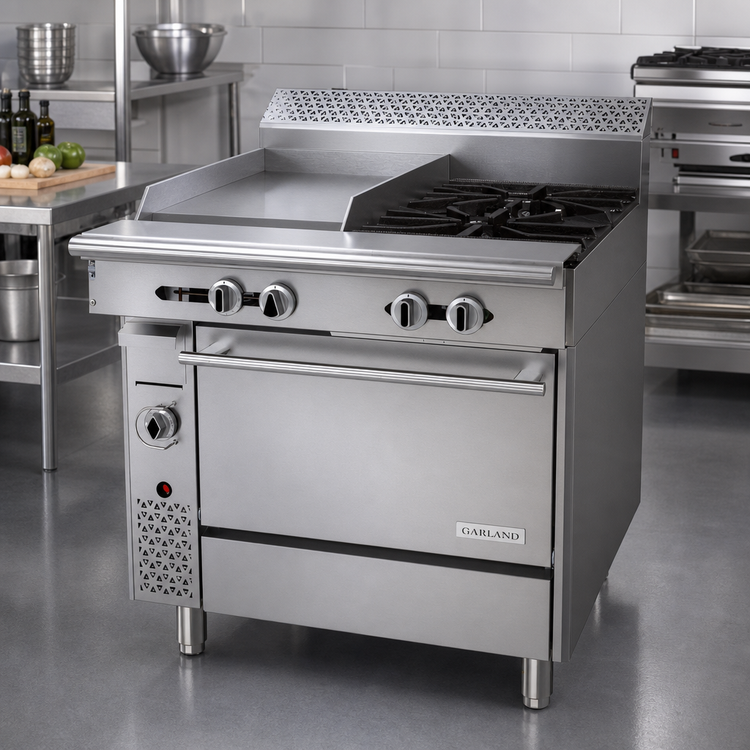

Garland Cuisine Series 36" Heavy-Duty Gas Range
Model C36-4-1R | 18" Thermostatic Griddle + (2) Starfire™ 40 kBTU Open Burners | Standard OvenBuilt for demanding, high-volume kitchens, the Garland Cuisine C36-4-1R marries blazing burner power with a precision-controlled griddle and a fully insulated oven—all in a compact 36-inch footprint. Heavy-gauge stainless construction, 1" thick steel griddle plate, and Garland’s legendary Starfire™ open burners give chefs the speed, consistency, and durability they expect from a true heavy-duty range.
Performance & Convenience

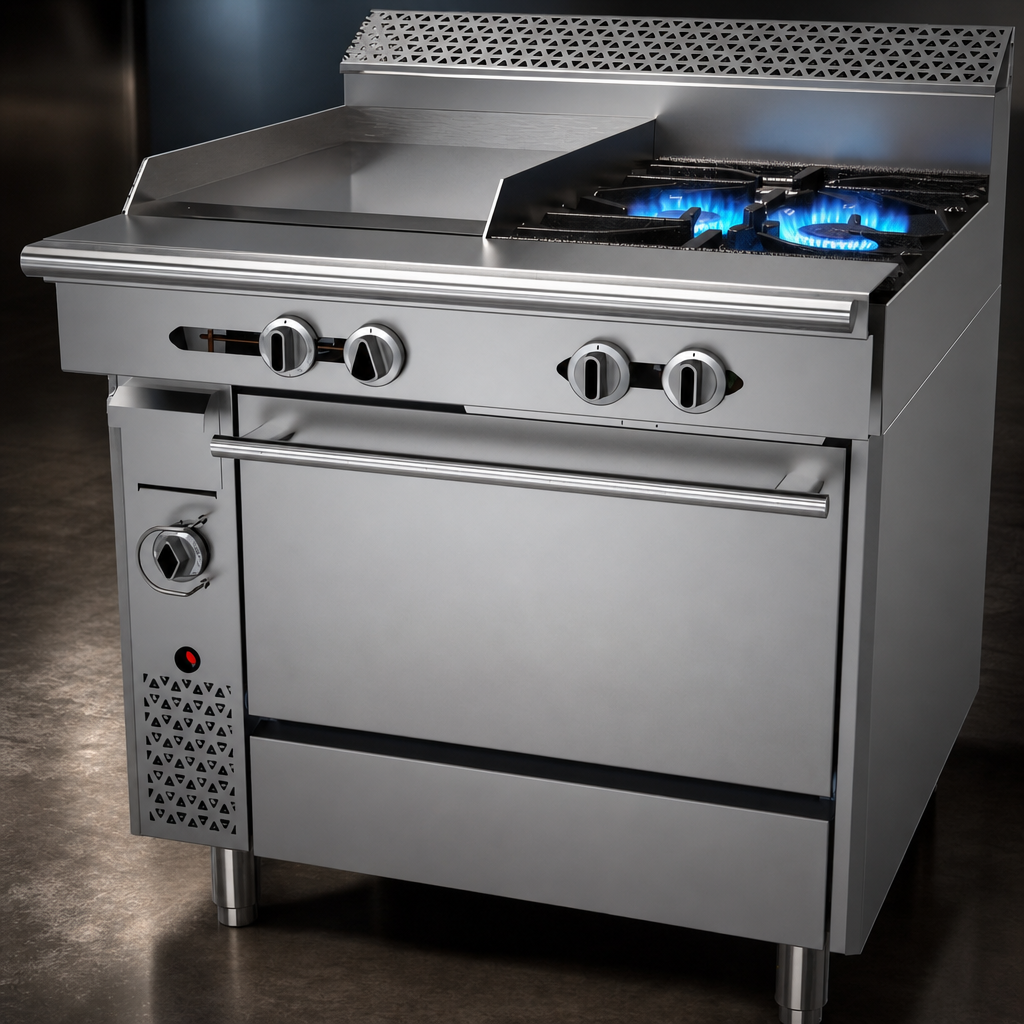

- (2) 40,000 BTU Starfire™ open burners (right-hand) with one-piece cast-iron bowls & grates.

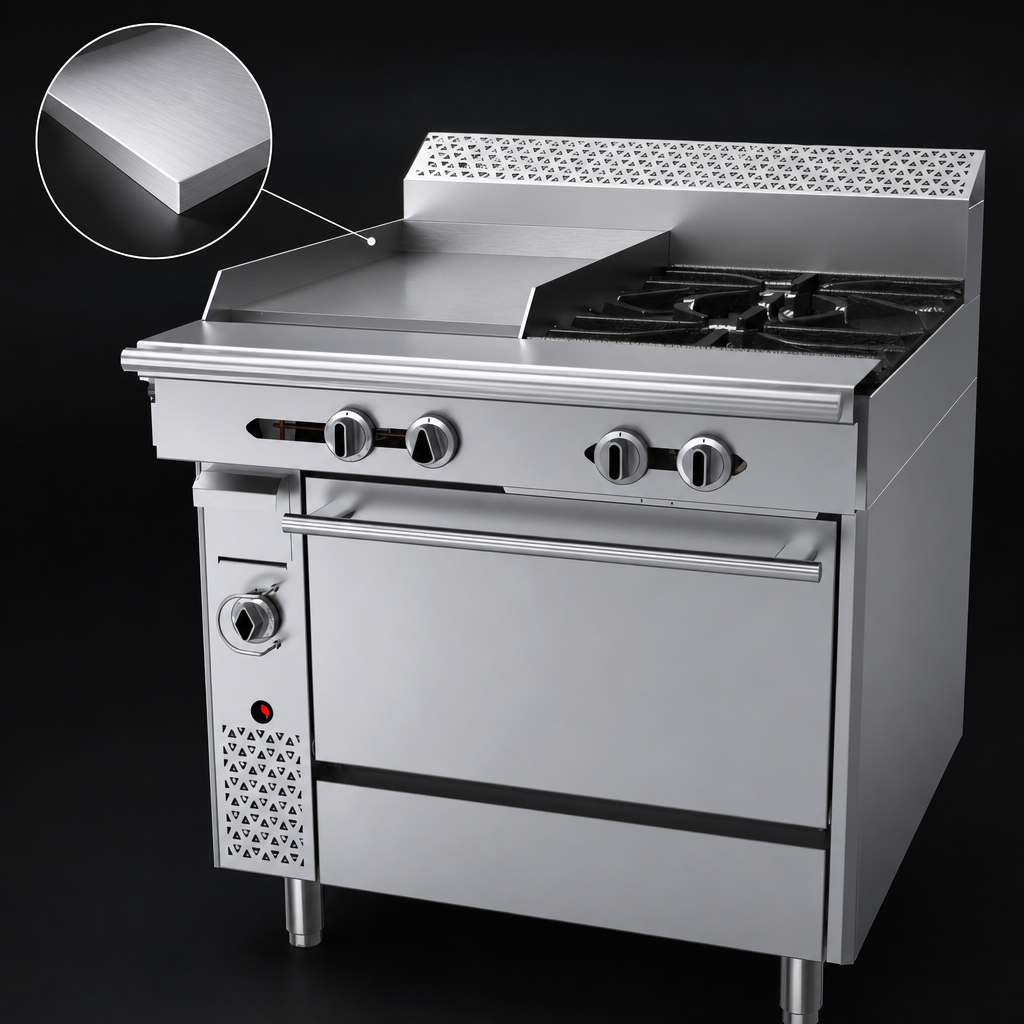

- 18" (457 mm) thermostatic griddle (left-hand) with 1" (25 mm) thick steel plate; temperature range : Low to 450 °F (232 °C).
- 40,000 BTU standard oven with 4 rack positions • includes 1 chrome-plated rack.
- Door is spring-balanced with a heavy-duty “keep-cool” handle for safe operation.
- 7" (178 mm) stainless backguard contains splatter without blocking sightlines.
- Stainless steel front, sides, plate rail, & burner box resist corrosion and wipe clean fast.
- 6" (152 mm) adjustable stainless legs level the unit on uneven floors.
- Front 1-1/4" NPT gas manifold allows simple battery line-ups.
- Total input: 150,000 BTU/h (natural gas).
- Certified to CSA Flame, CSA Star, and NSF standards for commercial kitchens.
What’s in the Box
- Garland C36-4-1R range (factory-configured for Natural Gas).
- (1) Chrome-plated oven rack.
- 6" adjustable legs (pre-installed).
- Factory-installed pressure regulator.
- Owner’s manual & operation/installation instructions.
Technical Specifications
| Overall width | 36" / 914 mm |
|---|---|
| Overall depth | 39 ⅜" / 1,001 mm (to front of plate rail) |
| Height to cook surface | 37 ¼" / 947 mm (with 6" legs) |
| Backguard height | 7" / 178 mm |
| Oven interior (H×W×D) | 13 ½" × 26 ¼" × 29" (343 × 667 × 737 mm) |
| Open burners | (2) × 40,000 BTU/h |
| Griddle burner | 30,000 BTU/h |
| Oven burner | 40,000 BTU/h |
| Total input | 150,000 BTU/h (Natural Gas) |
| Gas connection | 1-1/4" NPT (front); ¾" min supply line recommended |
| Gas pressure | Min. 7" WC NG • 11" WC LP | Manifold 6" WC NG, 10" WC LP |
| Shipping weight | ≈ 620 lb / 281 kg |
| Certifications | CSA Flame, CSA Star, NSF |
Installation Notes
- Combustible clearances: 10" (254 mm) sides • 6" (152 mm) rear.
- Ranges shipped for Natural Gas; field-convertible LP kit available (sold separately).
- If casters are added, an approved restraining device must be used (per ANSI-Z21.69).
- Unit is intended for commercial use only and is not approved for residential installations.
Need help configuring a battery line-up or adding casters, hi-shelf, or extra oven racks? Our product specialists are ready to assist.
