Garland C36-4-1C Garland Cuisine Gas Ranges
$9,961.00
Unit price
/
Unavailable
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Garland C36-4-1C Garland Cuisine Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Garland C36-4-1C Garland Cuisine Gas Ranges
$9,961.00
Unit price
/
Unavailable
Description

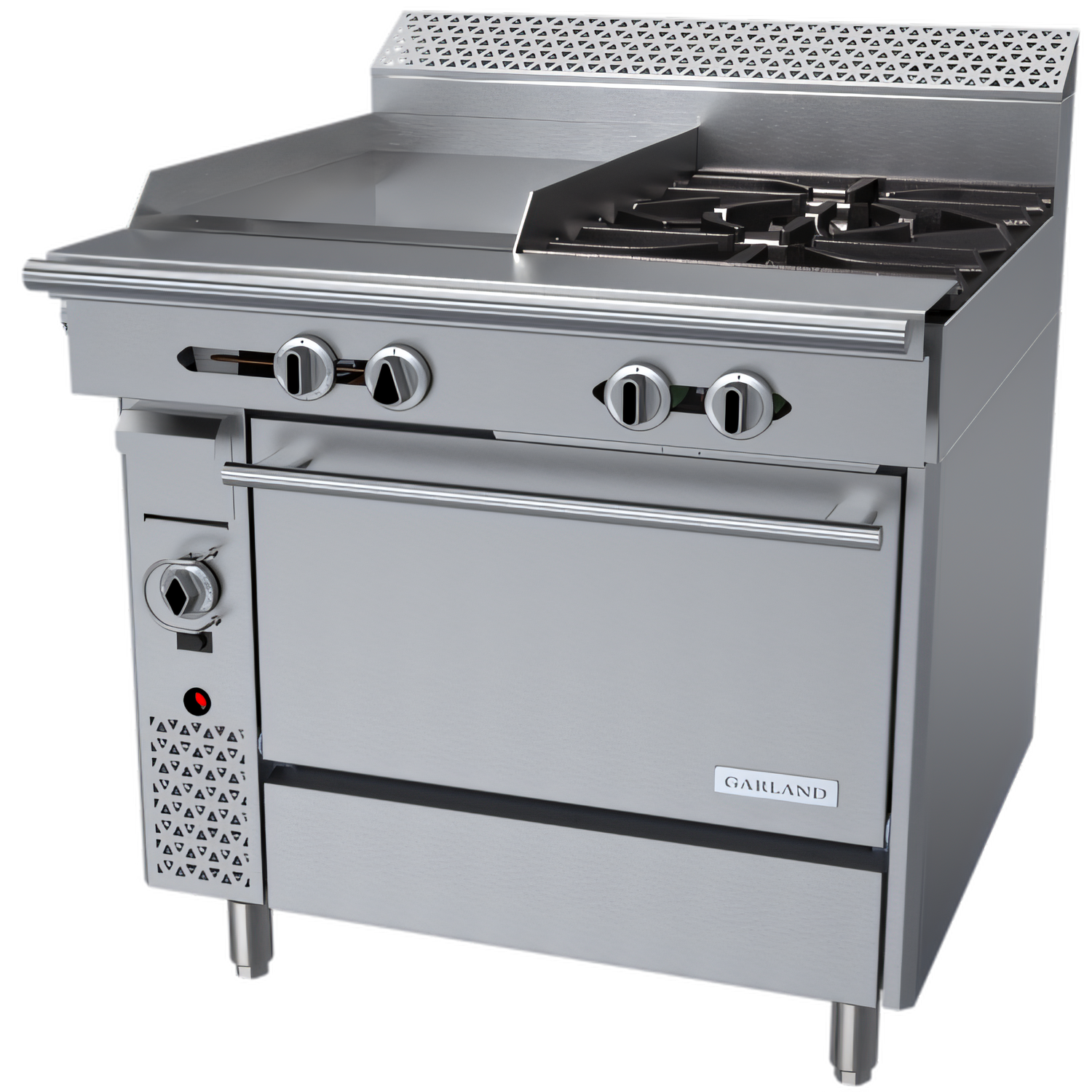

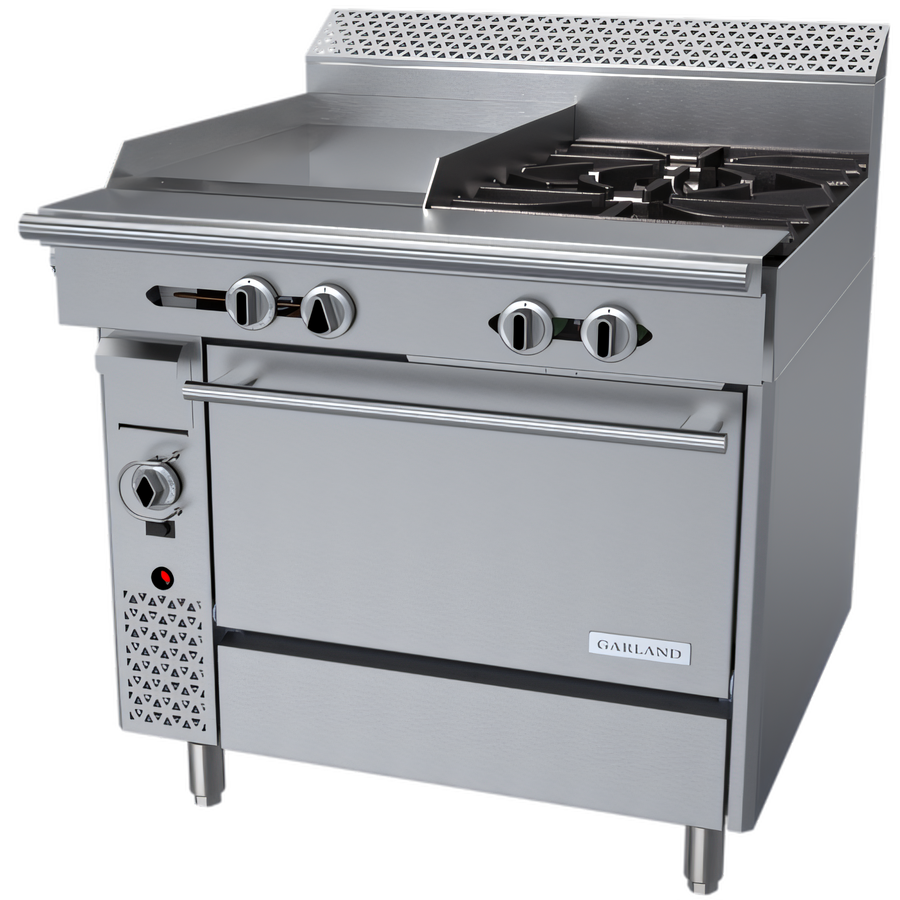

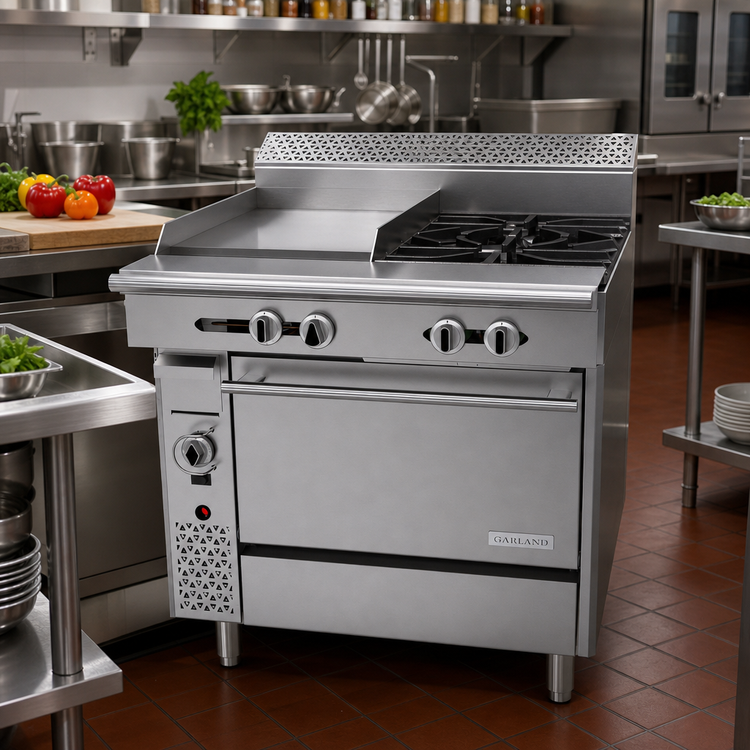

Garland Cuisine™ 36" Heavy-Duty Gas Range
Model C36-4-1C – 18" Thermostatic Griddle (LH) & 2 Starfire® 40 000 BTU Burners (RH) with Convection OvenThe Garland Cuisine Series brings big-kitchen versatility to a compact 36 inch footprint. With a precision-controlled 18" griddle, twin 40 000 BTU Starfire burners and a 1/3 HP convection oven, the C36-4-1C is built to sear, sauté, grill and bake faster—without compromising consistency or durability.
Highlights

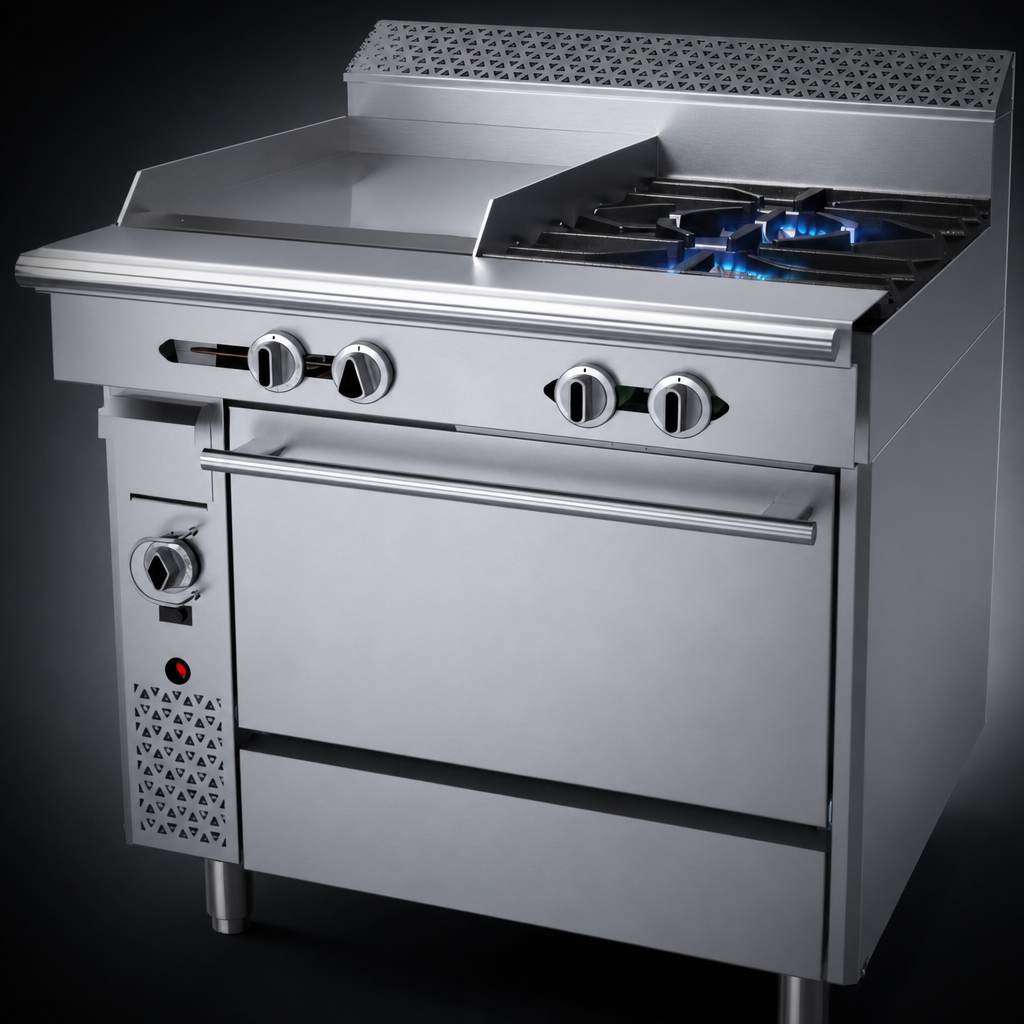

- Two 40 000 BTU/h Starfire open burners for instant, even heat.

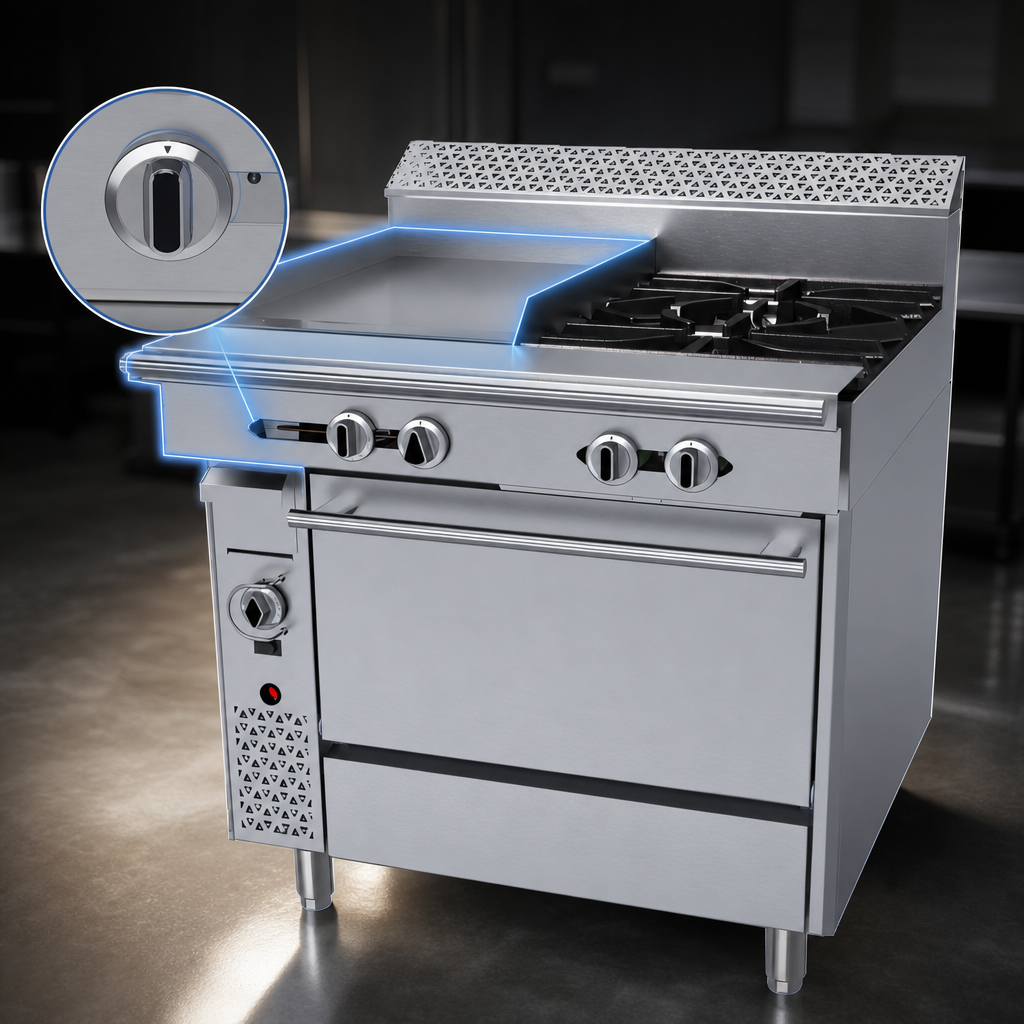

- 18" left-hand griddle, 1" thick steel plate with embedded thermostat sensor (low to 450 °F / 232 °C).
- 147 000 BTU/h total natural gas input—power that keeps up with peak-hour demand.
- Forced-air convection oven (37 000 BTU/h) with 1/3 HP blower for rapid, uniform baking & roasting.
- Three chrome-plated oven racks included; five rack positions maximize capacity.
- Rugged stainless steel front, sides, plate rail & burner box; 6" adjustable stainless legs.
- 7" stainless stub backguard protects walls and simplifies battery line-ups.
- Front 1-1/4" NPT gas manifold for easy line installation; rear 3/4" connection optional.
- 120 V cord-and-plug (NEMA 5-15P) – no hard-wiring for the convection fan.
- Certified NSF, CSA-Flame & CSA-Star for commercial kitchens.
At-a-Glance Specifications
| Model | C36-4-1C |
|---|---|
| Overall width | 36" (914 mm) |
| Overall depth | 34-3/8" (873 mm) |
| Cooktop configuration | 18" thermostatic griddle (LH) & two 18" Starfire burners (RH) |
| Total BTU/h (NG) | 147 000 |
| Individual burners | Open top – 40 000 BTU/h each (×2) Griddle – 30 000 BTU/h Convection oven – 37 000 BTU/h |
| Griddle plate | 1" (25 mm) polished steel, 3" grease trough |
| Oven interior (H×W×D) | 13-1/2" × 26-1/4" × 25" (343 × 667 × 635 mm) |
| Racks supplied | 3 chrome, removable |
| Electrical | 120 V / 60 Hz / 1-ph, 0.6 A, 1/3 HP blower, NEMA 5-15P |
| Gas connection | 1-1/4" NPT front manifold (rear 3/4" optional) |
| Clearances (combustible) | Sides 10" (254 mm) • Back 6" (152 mm) |
| Shipping weight | ≈ 620 lb / 281 kg |
| Certifications | CSA-Flame, CSA-Star, NSF |
Why Choose Garland Cuisine?
- Starfire® burners feature single-piece bowls & grates for easy cleanup and maximum flame contact.
- 1"-thick griddle retains heat for fast recovery after every order.
- Fully insulated oven cavity and “keep-cool” door handle improve operator comfort.
- Modular design integrates seamlessly into a battery line or stands alone.
Installation notice: Gas equipment must be set up by a licensed technician in accordance with
local codes. A restraining device is required when the range is mounted on casters.
Photos may show optional accessories. Product information is subject to change without notice.
Features & Specs
Features & Specs
Manufacturer
Garland
Brand_name
Garland Cuisine
Certifications
NSF, CSA Star, CSA Flame
Height
42.0in
Width
36.0in
Depth
39.38in
Shipping Weight
620.0lbs
Top
(2) open burners, (1) 18" griddle with thermostats
Exterior Finish
stainless steel front & sides
Plate Thickness
1.000" = 1"
Base
(1) convection oven
Specifications
Garland Cuisine Series Heavy Duty Range, gas, 36", (2) 40,000 BTU open burners 18" - right, (1) 18" griddle on left only, 1" thick steel plate, thermostatic controls, convection oven, includes (3) racks, 7"H backguard, stainless steel front, sides, plate rail & burner box, 6" adjustable legs, 147,000 BTU (NG), 120V/60/1-ph, 1/3HP, 0.6 amps, NEMA 5-15P, CSA Flame, CSA Star, NSF (Garland)
