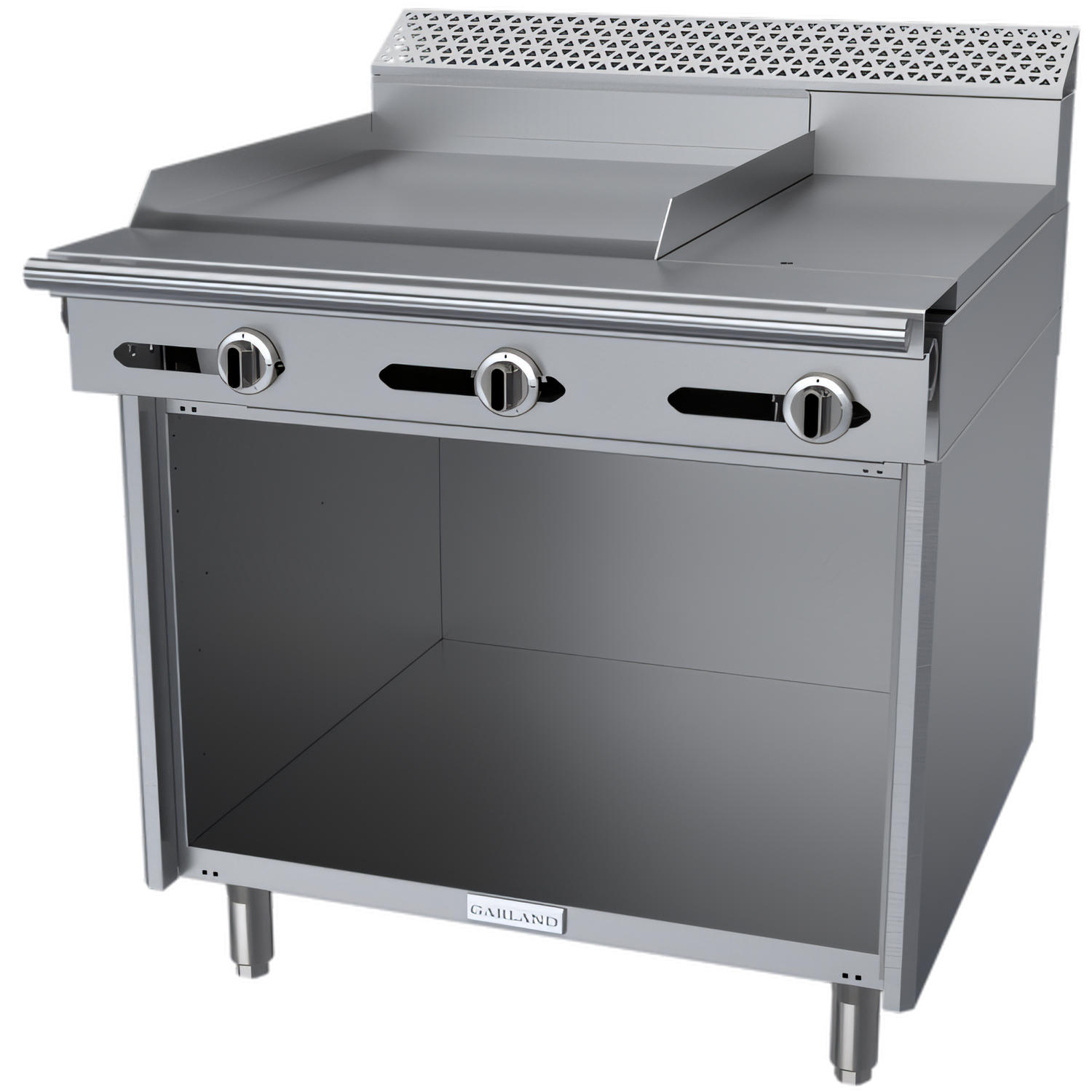

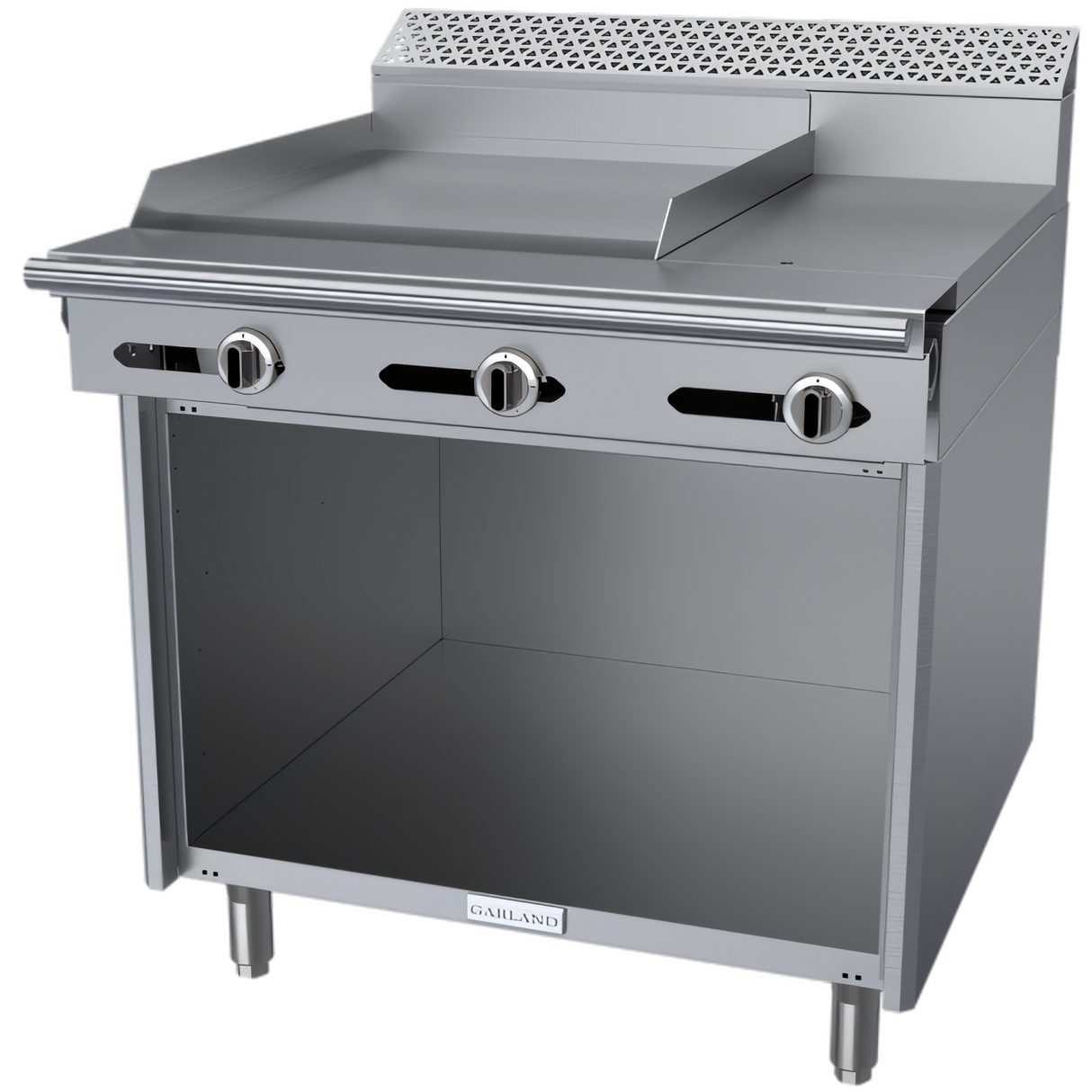

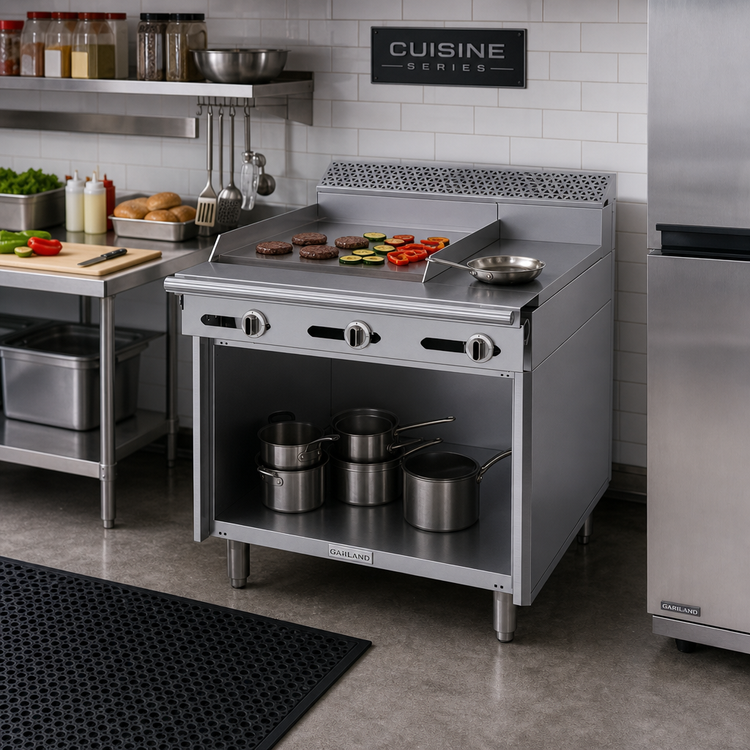

Garland Cuisine Series 36-Inch Heavy Duty Gas Combination Top Range with 24-Inch Left Griddle, 12-Inch Hot Top, and Open Storage Base

SKU: C36-3S
$6,637.05
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Garland Gas Ranges New Arrivals Ranges Restaurant Equipment

Garland Cuisine Series 36-Inch Heavy Duty Gas Combination Top Range with 24-Inch Left Griddle, 12-Inch Hot Top, and Open Storage Base

Manual Valve Control, Stainless Steel, 7-Inch Backguard

Built for high-volume kitchens, this 36-inch gas range combines a left-side griddle and right-side hot top above a practical open storage base.

  • 24-inch left griddle with a 1-inch thick steel plate and Hi-Lo manual valve control
  • 12-inch even-heat hot top on the right for holding, simmering, and finishing
  • Open storage cabinet base provides convenient under-range storage space
  • Stainless steel front, sides, plate rail, burner box, and 7-inch backguard
  • 85,000 BTU/h total output with a 1-1/4-inch NPT front gas manifold
  • 6-inch adjustable stainless steel legs and flexibility for individual or battery installation
  • NSF, CSA Flame, and CSA Star listed for commercial use

Overall Dimensions:

36.0"W x 39.38"D x 42.0"H

Product Weight:

477.0 lb

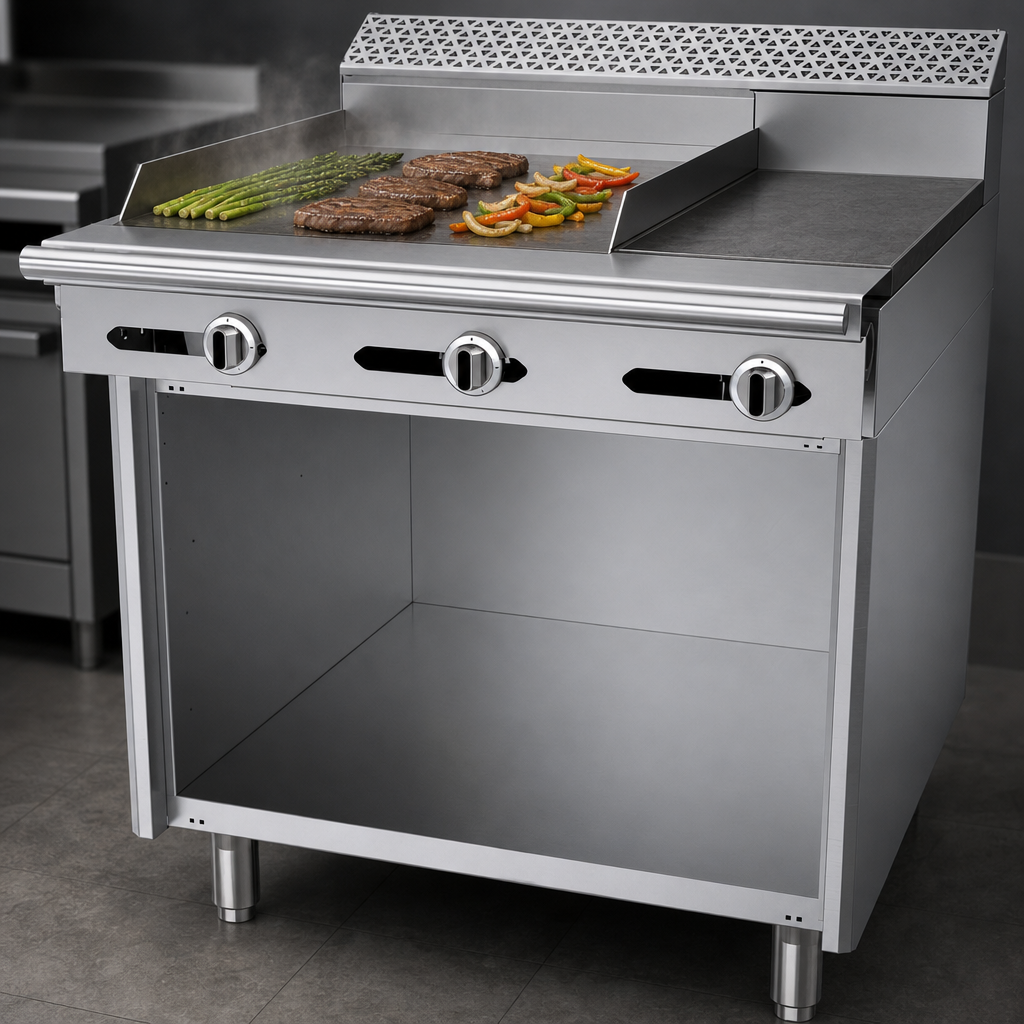

24-Inch Left Griddle

Left-side griddle uses a 1-inch thick steel plate and 30,000 BTU/h burners per 12-inch section.

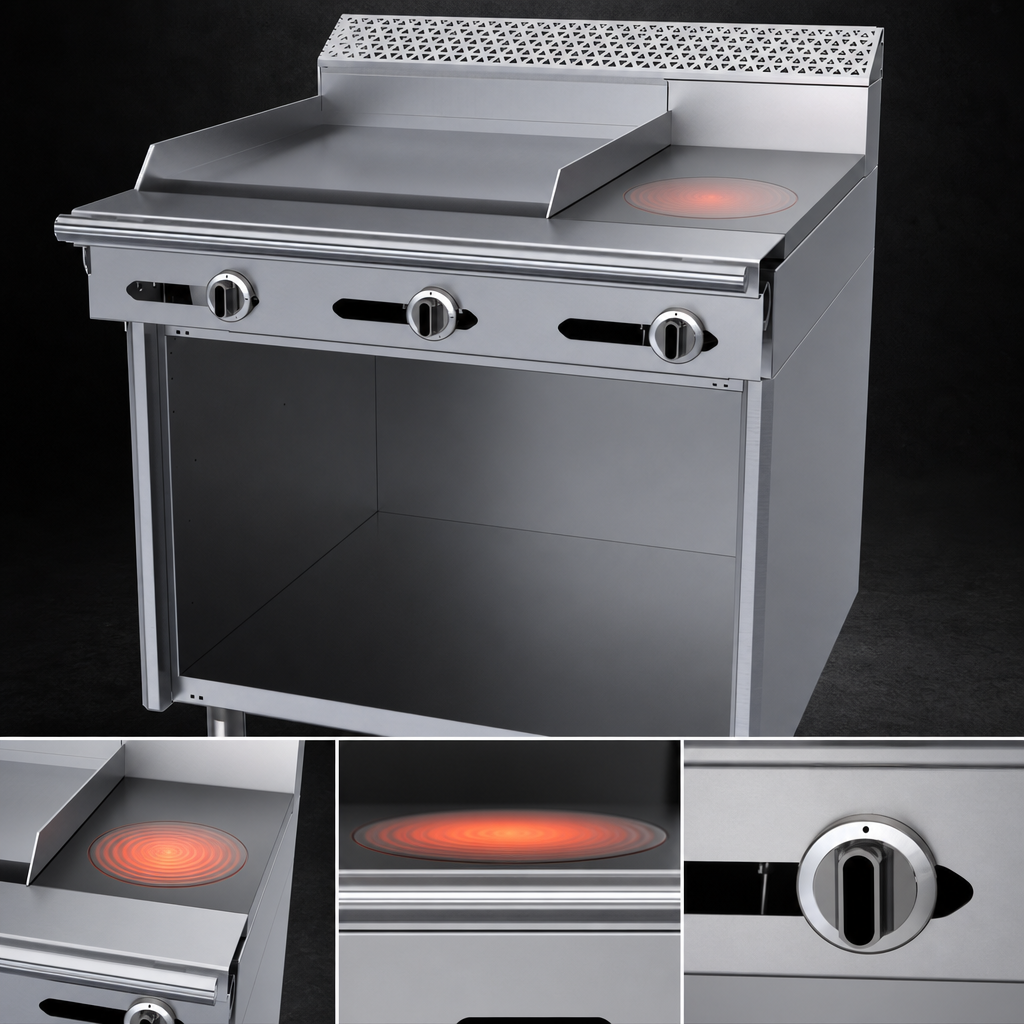

12-Inch Even Heat Hot Top

Right-side hot top section delivers 25,000 BTU/h per burner for consistent heat.

Hi-Lo Manual Valve Controls

Manual valve controls allow straightforward heat adjustment on the griddle section.

Open Storage Cabinet Base

Open cabinet base provides accessible storage beneath the cooking top.

Stainless Steel Construction

Stainless steel front and sides, plus a stainless steel plate rail, burner box, and 7-inch backguard.

6-Inch Adjustable Legs

Stainless steel adjustable legs help level the range on uneven floors.

Flexible Installation

Can be installed individually or in a battery; front gas manifold is 1-1/4-inch NPT.

Commercial Listings

Listed to NSF, CSA Flame, and CSA Star requirements.

Type Heavy Duty Range
Style Combination Top
Installation Type Floor Model
Controls Hi-Lo Manual Valve
BTU 85,000 BTU/h
Plate Thickness 1 Inch
Backguard Height 7 Inches
Gas Connection Size 1-1/4 Inch NPT
Material Stainless Steel
Finish Stainless Steel
Shipping Width 36 Inches
Shipping Depth 40 Inches
Shipping Height 42 Inches
Shipping Weight 477 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Brochure PDF Download PDF Garland cuisine models guide PDF Download PDF Owner's manual PDF Download PDF Check list PDF Download

Frequently Asked Questions

It includes a 24-inch griddle on the left and a 12-inch even-heat hot top on the right.
No. The C36-3S is the storage-base model and does not include an oven.
The range is rated at 85,000 BTU/h total.
It uses a 1-1/4-inch NPT front gas manifold.
Allow 10 inches at the sides and 6 inches at the back.
Yes. It can be installed individually or in a battery.
