Garland C36-3R Garland Cuisine Gas Ranges
Description

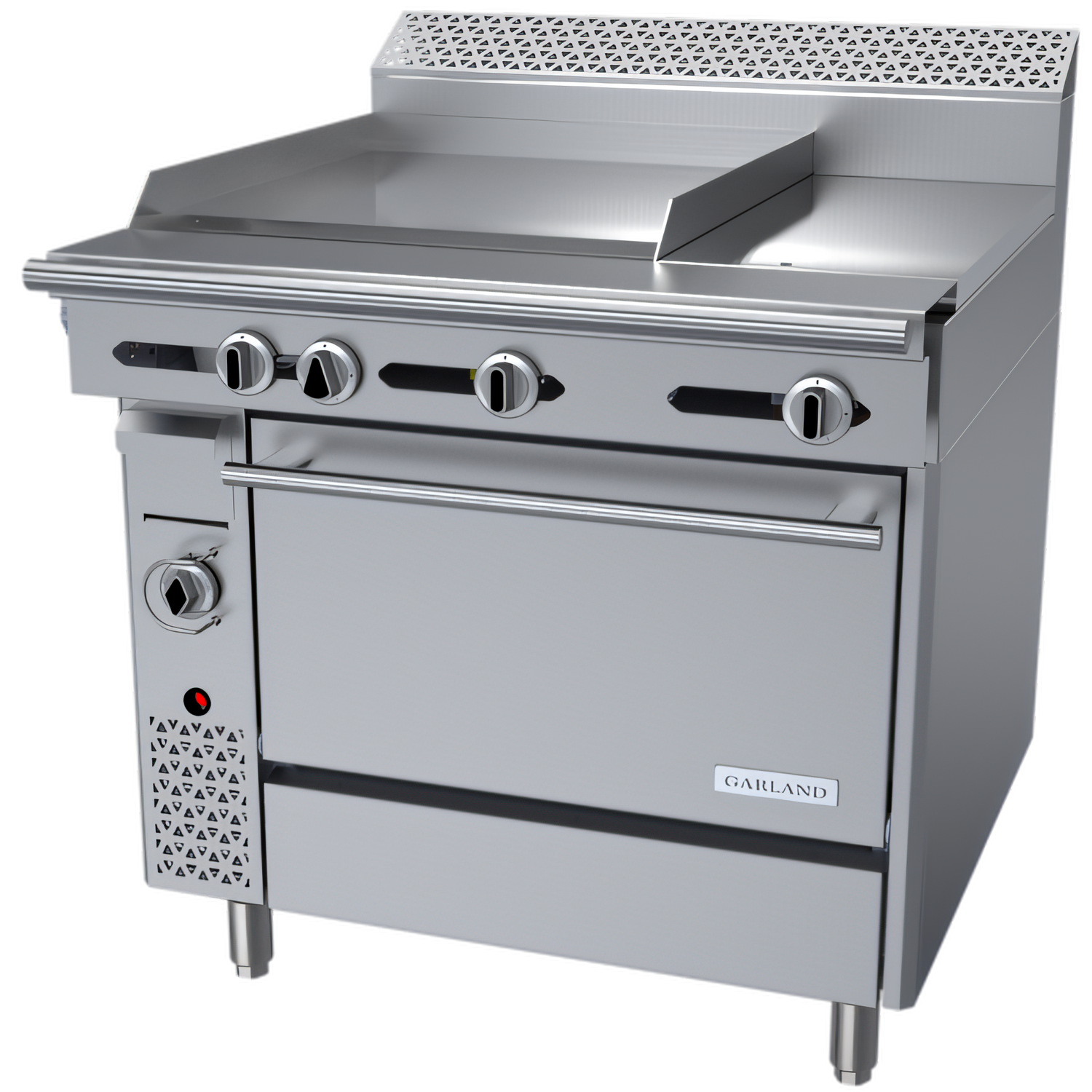

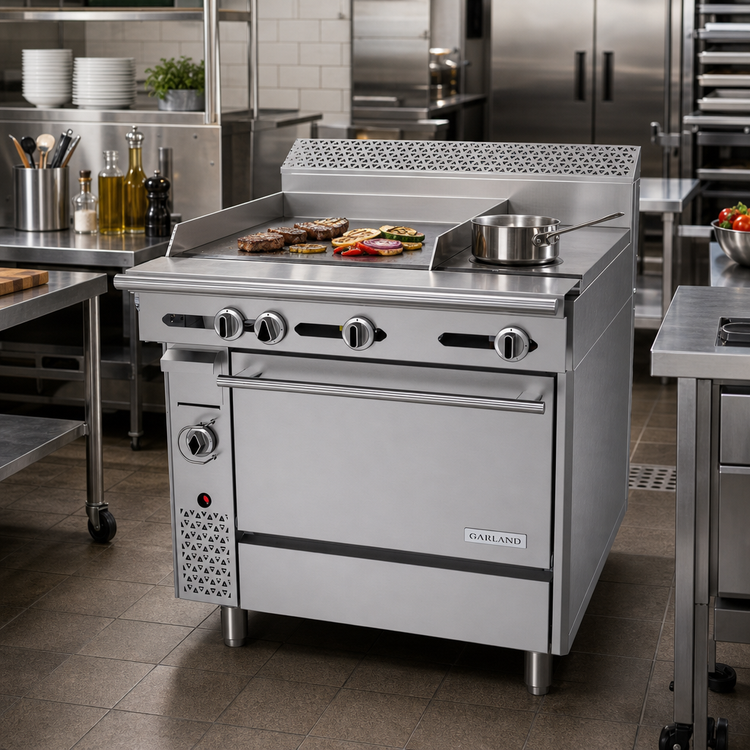

Garland Cuisine Series 36" Heavy-Duty Combination Range
24" Manual-Valve Griddle (LH) • 12" Even-Heat Hot Top (RH) • Standard Oven • Natural Gas • 125,000 BTUEngineered for the nonstop demands of full-service kitchens, the Garland Cuisine C36-3R puts a high-output 24" griddle, a precision 12" hot top and a powerful standard oven into one 36" footprint. From breakfast rush to closing time, you’ll enjoy rock-solid temperature control, effortless clean-up and the rugged construction that has made Garland the choice of chefs for over a century.
Top Reasons You’ll Love It

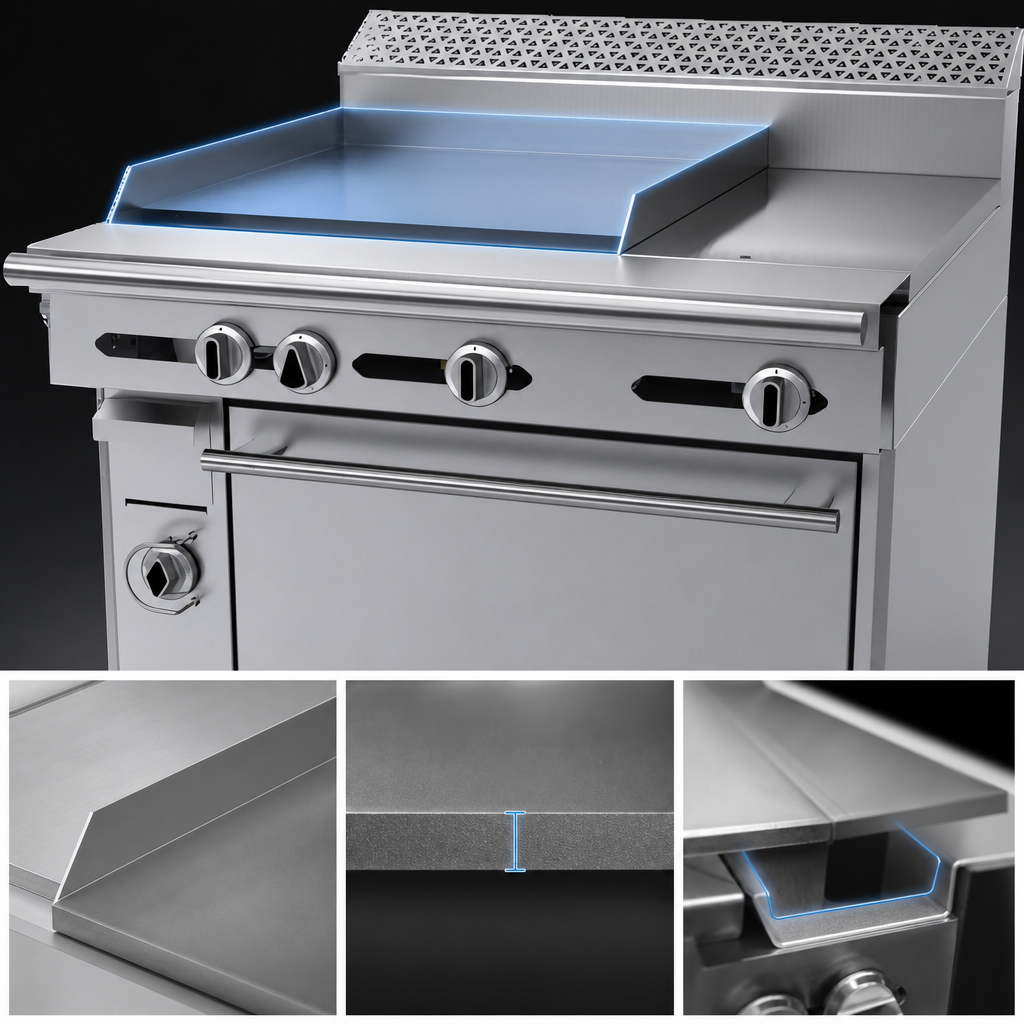

- 1" (25 mm) thick polished steel griddle plate delivers exceptional heat retention and fast recovery.
- Two 30,000 BTU burners (hi-lo manual valves) under the griddle give you instant response from “sear” to “simmer.”

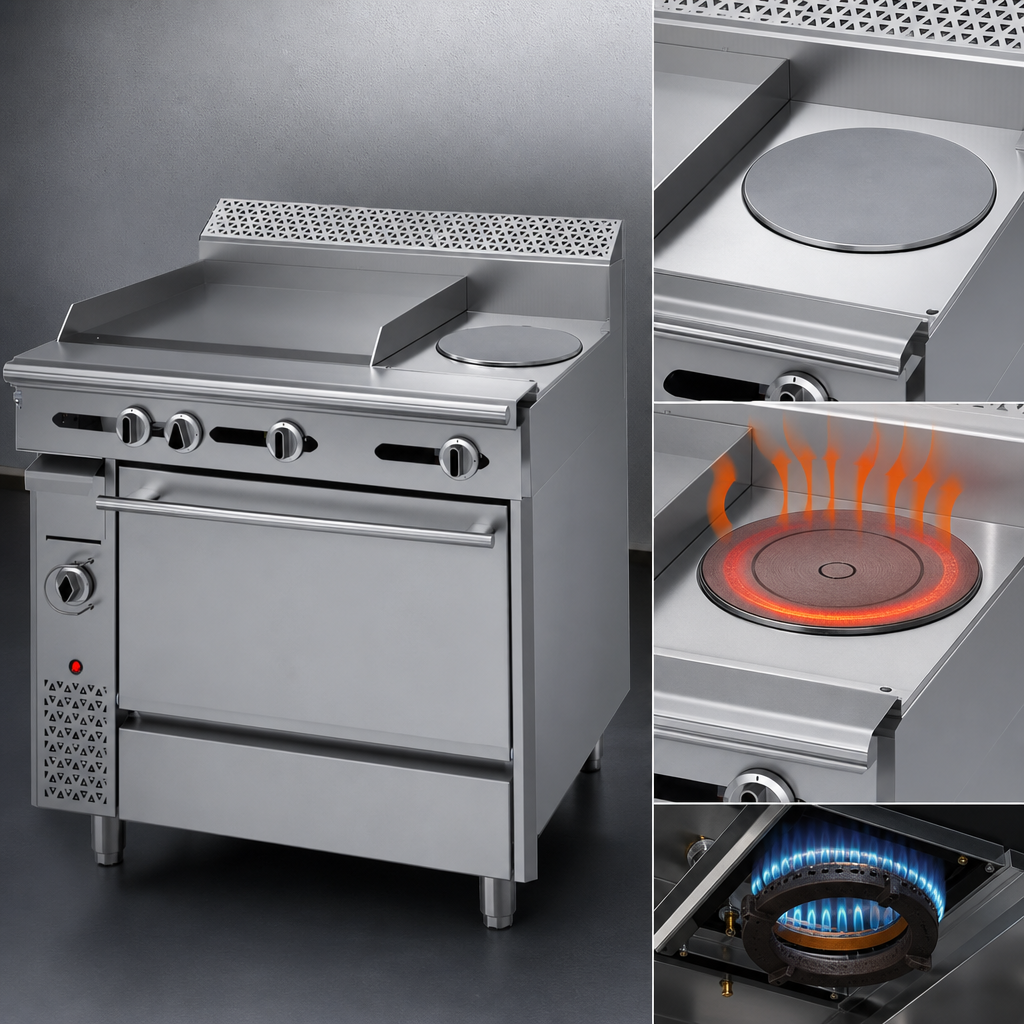

- 12" even-heat hot top (25,000 BTU) is perfect for stock pots, sauce pans and holding.
- 40,000 BTU standard oven with four rack positions—one chrome rack included.
- Fully welded stainless front, sides, plate rail and burner box stand up to daily abuse and wipe clean in seconds.
- 6" (152 mm) stainless steel legs adjust for a level cookline and easy floor maintenance.
- Compact 7" backguard protects walls while keeping the range battery-ready.
- Built to pass the industry’s toughest tests—CSA Flame, CSA Star and NSF listed.
Technical Specifications
| Model | C36-3R (Natural Gas) |
|---|---|
| Overall width | 36" / 914 mm |
| Overall depth | 34 1⁄8" / 866 mm* |
| Cook-surface height | 37 1⁄4" / 947 mm (plus 7" backguard) |
| Griddle (LH) | 24" wide, 1" steel plate, 2 × 30,000 BTU hi-lo burners |
| Hot top (RH) | 12" even-heat plate, 25,000 BTU |
| Oven type | Standard, porcelain interior, 150–500 °F thermostat, 1 rack (4 positions) |
| Oven burner | 40,000 BTU |
| Total input | 125,000 BTU/h (Natural Gas) |
| Gas connection | 1 1⁄4" NPT front manifold (regulator included) |
| Legs | 6" stainless, height-adjustable |
| Ship weight | 650 lb / 295 kg |
| Certifications | CSA Flame, CSA Star, NSF |
*Depth may vary slightly with oven door and valve arrangement. Refer to installation manual for exact clearance requirements.
Perfect For
- Diners & cafés serving all-day breakfast items
- Hotels and banquet production kitchens
- Catering operations that need maximum versatility in minimum space
- Chain restaurants standardizing on a 36" cook station
