Garland C36-3M Garland Cuisine Gas Ranges
Description

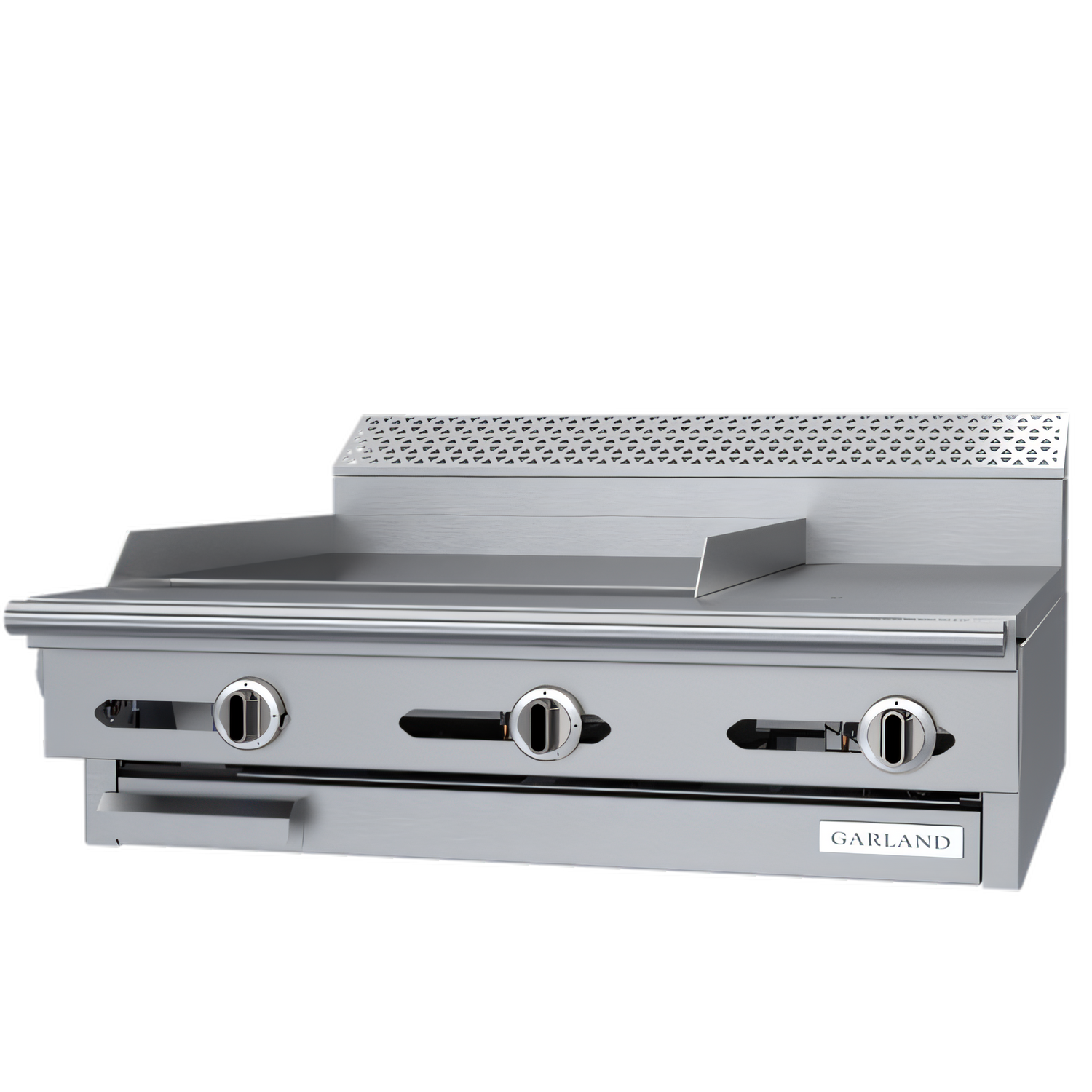

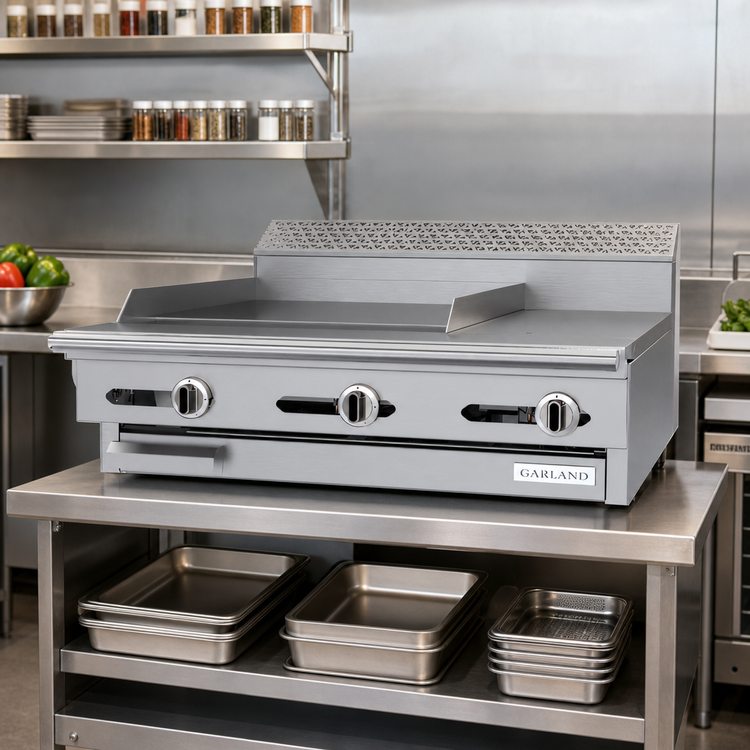

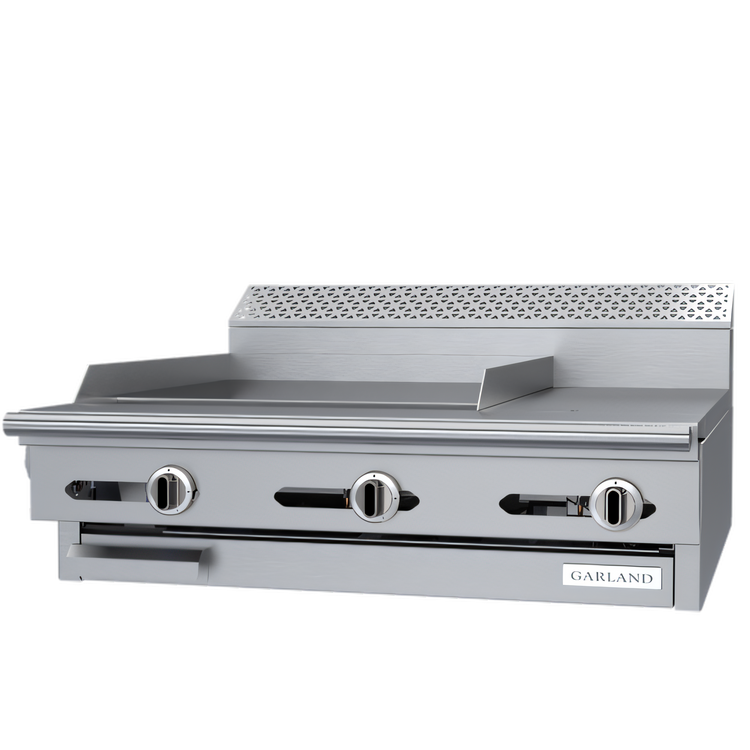

Garland Cuisine Series 36" Heavy-Duty Gas Range Top
Model C36-3M - 24" Griddle (Left) & 12" Hot Top (Right)Built for high-volume commercial kitchens, the Garland Cuisine C36-3M puts a full-size griddle and a powerful hot top on a single 36-inch modular platform. With rugged stainless construction, industry-leading BTU performance and NSF/CSA approvals, this range top drops into any cookline, chef base or refrigerated base and is ready to work all day, every day.
Key Advantages

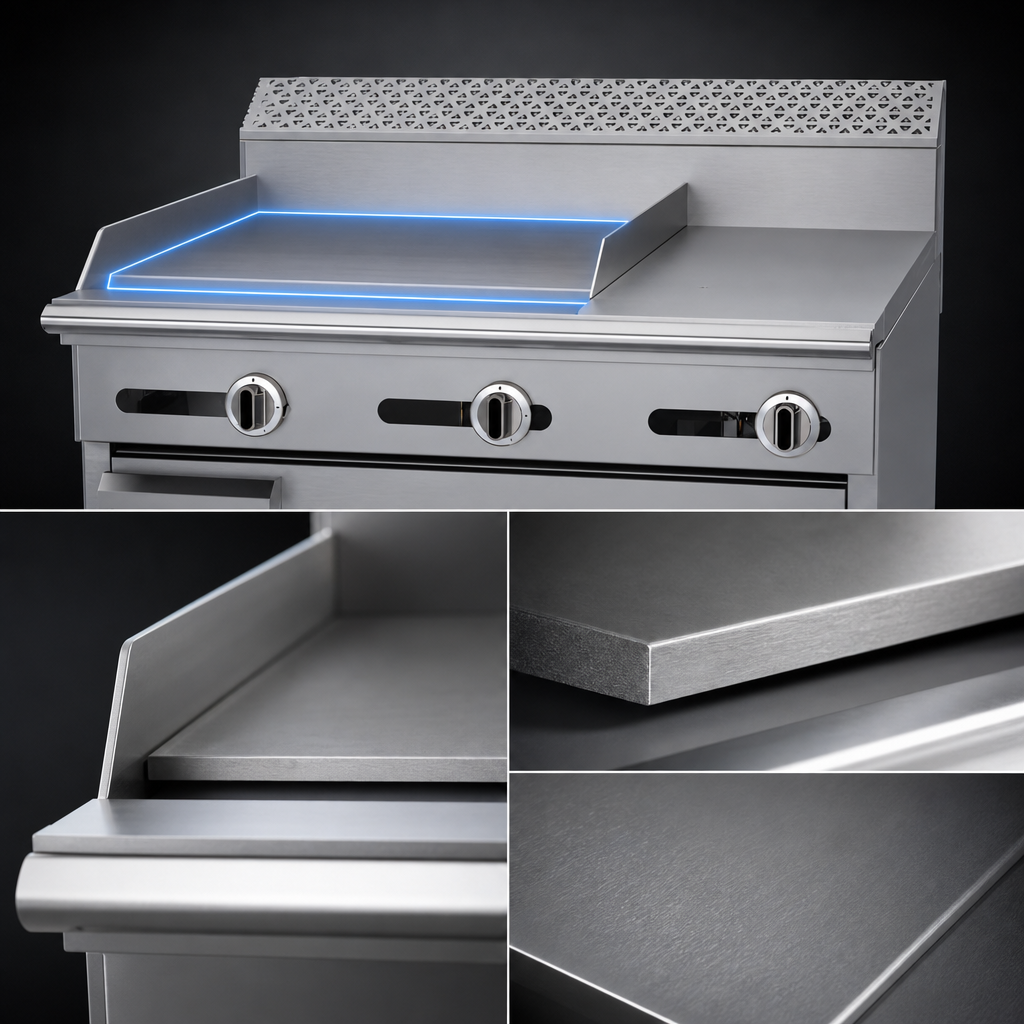

- 1" thick steel griddle, 24" wide – heats evenly, recovers fast and includes a 3" (76 mm) grease trough for quick cleanup.
- Manual Hi-Lo valve controls on every burner give the operator precise flame adjustment without the complexity of thermostats.

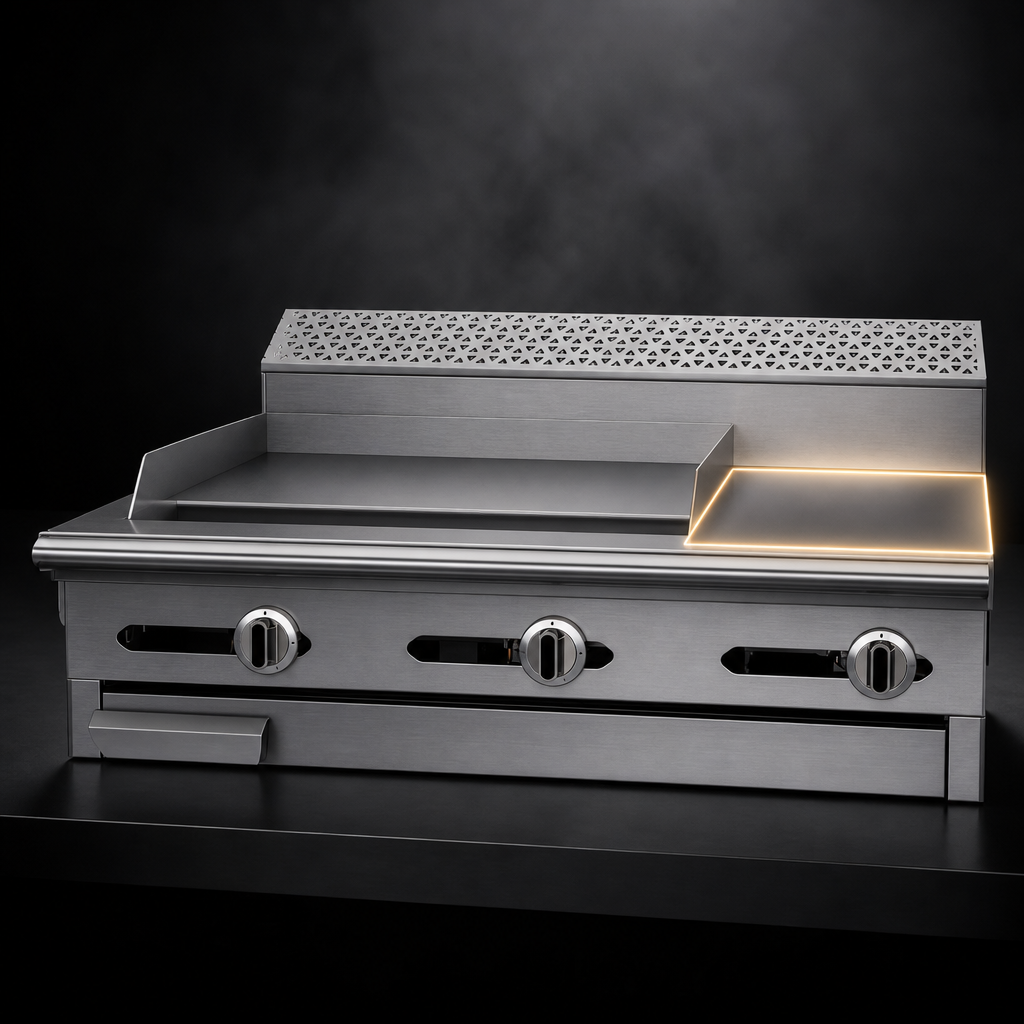

- 12" (305 mm) section hot top delivers 25,000 BTU/h – perfect for stockpots, saucepans or holding pans at service temperature.
- Massive 85,000 BTU/h input (60,000 BTU griddle + 25,000 BTU hot top) keeps up with peak-hour demand.
- All-stainless exterior – front, sides, plate rail and burner box resist corrosion and wipe down fast.
- 7" (178 mm) stub back/back-guard protects walls and tile while fitting under low hoods or shelving.
- 1-1/4" NPT front gas manifold simplifies battery installations and tie-ins to other Cuisine Series equipment.
- Modular design – mount on a stainless stand, refrigerated chef base or curb for a seamless cook suite.
- Certified to CSA Flame, CSA Star and NSF standards for gas safety and sanitation.
Performance Specifications
| Overall width | 36" / 914 mm |
|---|---|
| Depth (front to back) | 32" / 813 mm |
| Height to cooking surface | 10" / 254 mm (modular top only) |
| Backguard height | 7" / 178 mm |
| Griddle plate | 24" W × 1" thick steel |
| Hot top section | 12" W cast-iron, 25,000 BTU/h |
| Total input | 85,000 BTU/h (natural gas) |
| Gas connection | 1-1/4" NPT front manifold (rear connection kit optional) |
| Shipping weight | 392 lb / 178 kg |
| Shipping volume | 30 cu ft |
| Certifications | CSA Flame, CSA Star, NSF |
Perfect For
- Short-order diners, cafés and bars needing a compact yet versatile cook zone.
- High-volume hotels, resorts and banquet kitchens looking to expand griddle capacity.
- Chef-driven concepts mounting the unit on refrigerated bases for an integrated station.
- Any Garland Cuisine battery where a dedicated griddle & hot-top module streamlines workflow.
Need a matching stand, refrigerated base or hi-shelf? Ask our equipment specialists for the full line of Garland Cuisine accessories.
