Garland C36-3-1R Garland Cuisine Gas Ranges
Description

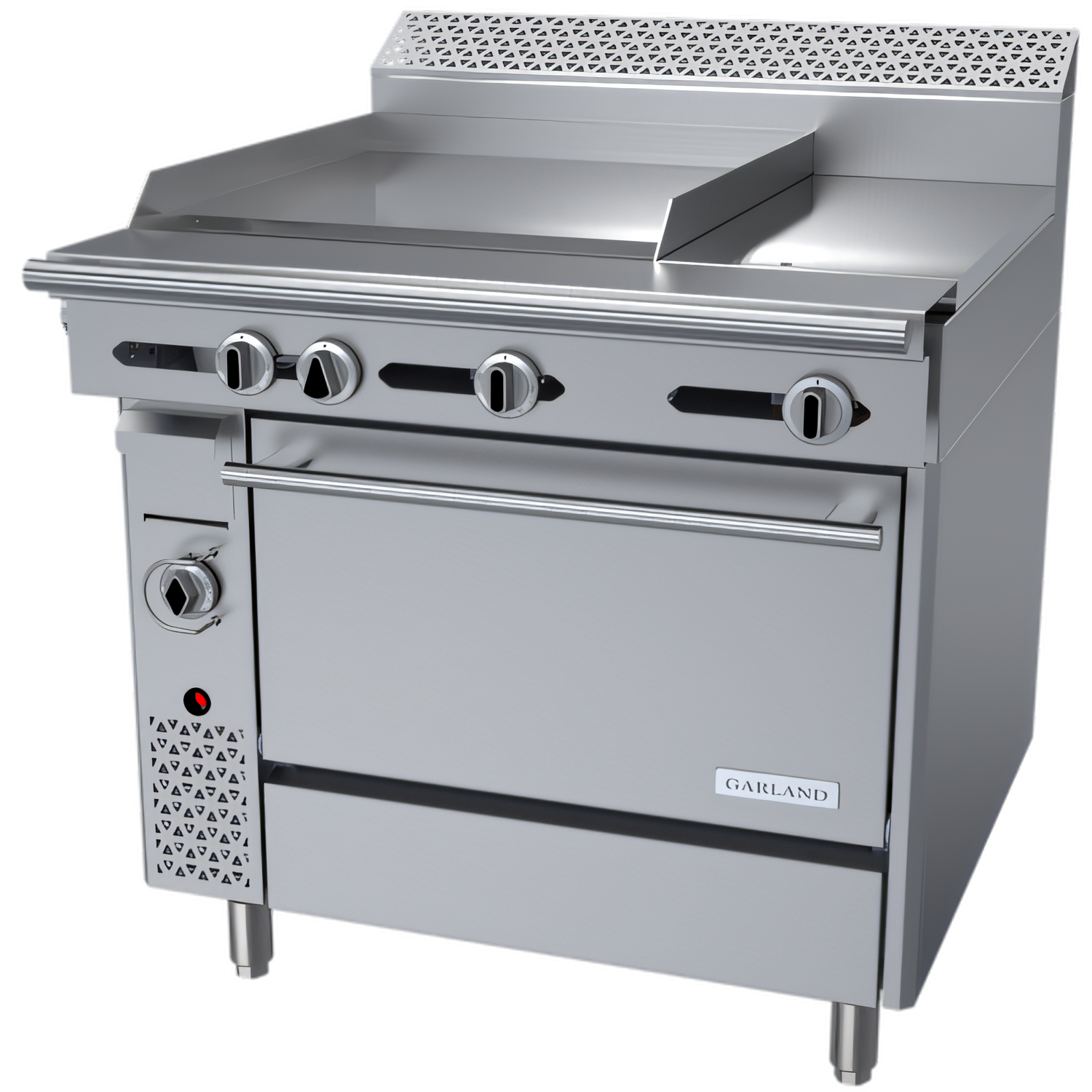

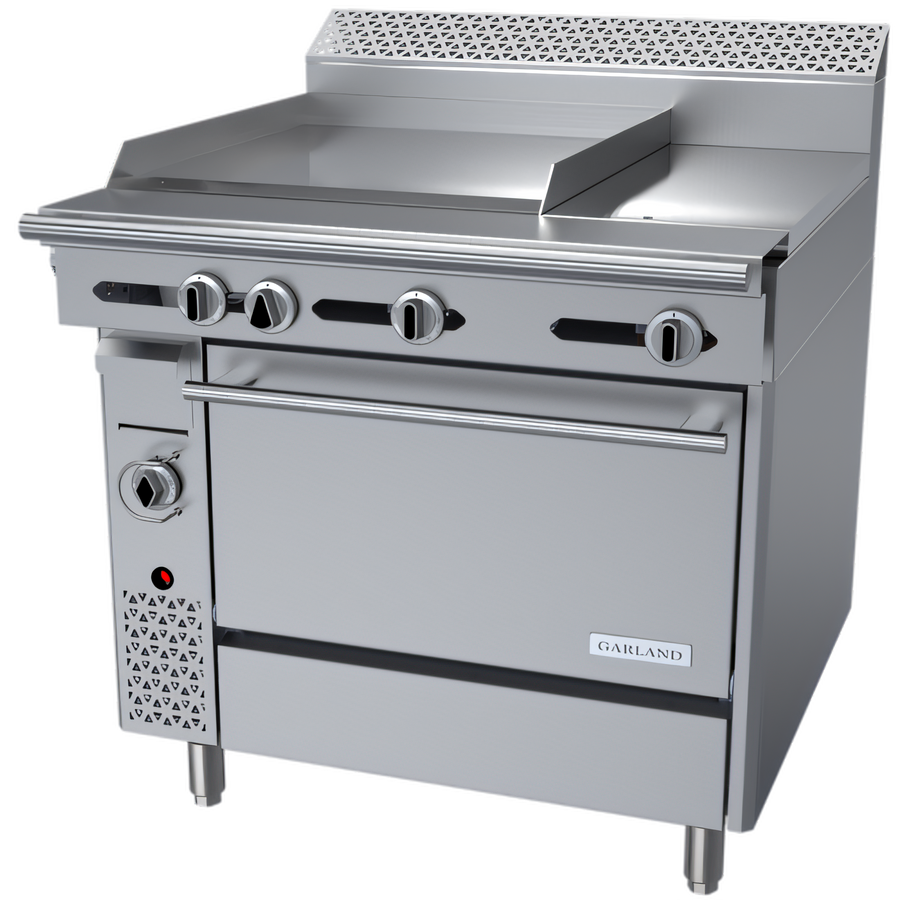

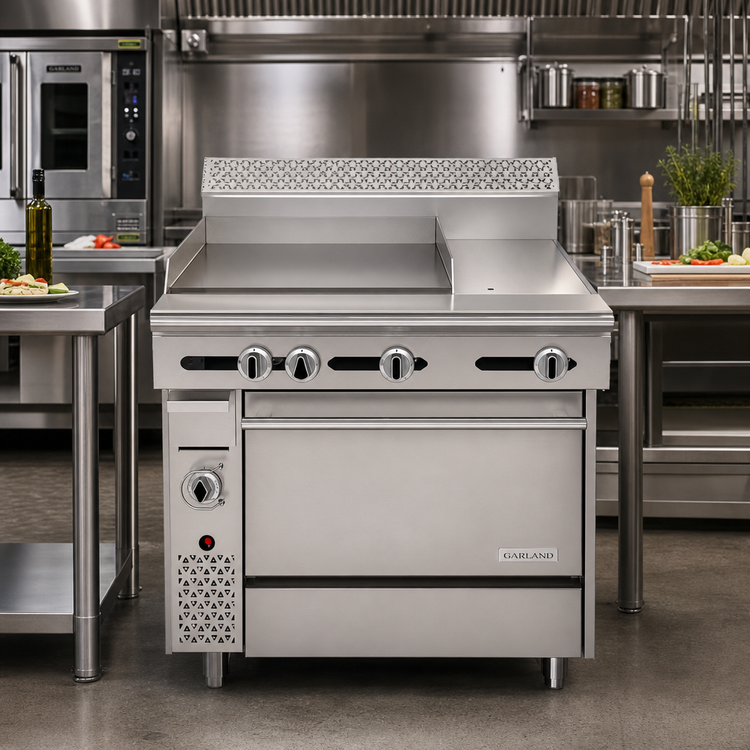

Garland Cuisine Series 36" Heavy-Duty Gas Range with 24" Thermostatic Griddle & 12" Hot Top
Model C36-3-1R | 125,000 BTU (Natural Gas)Built for the busiest commercial kitchens, the Garland Cuisine C36-3-1R unites a precision-controlled griddle, an even-heat hot top and a high-performance oven in one rugged 36" cabinet. Heavy-gauge stainless steel, quick-recover burners and industry-leading certification make this range a powerhouse you’ll rely on service after service.
Highlights

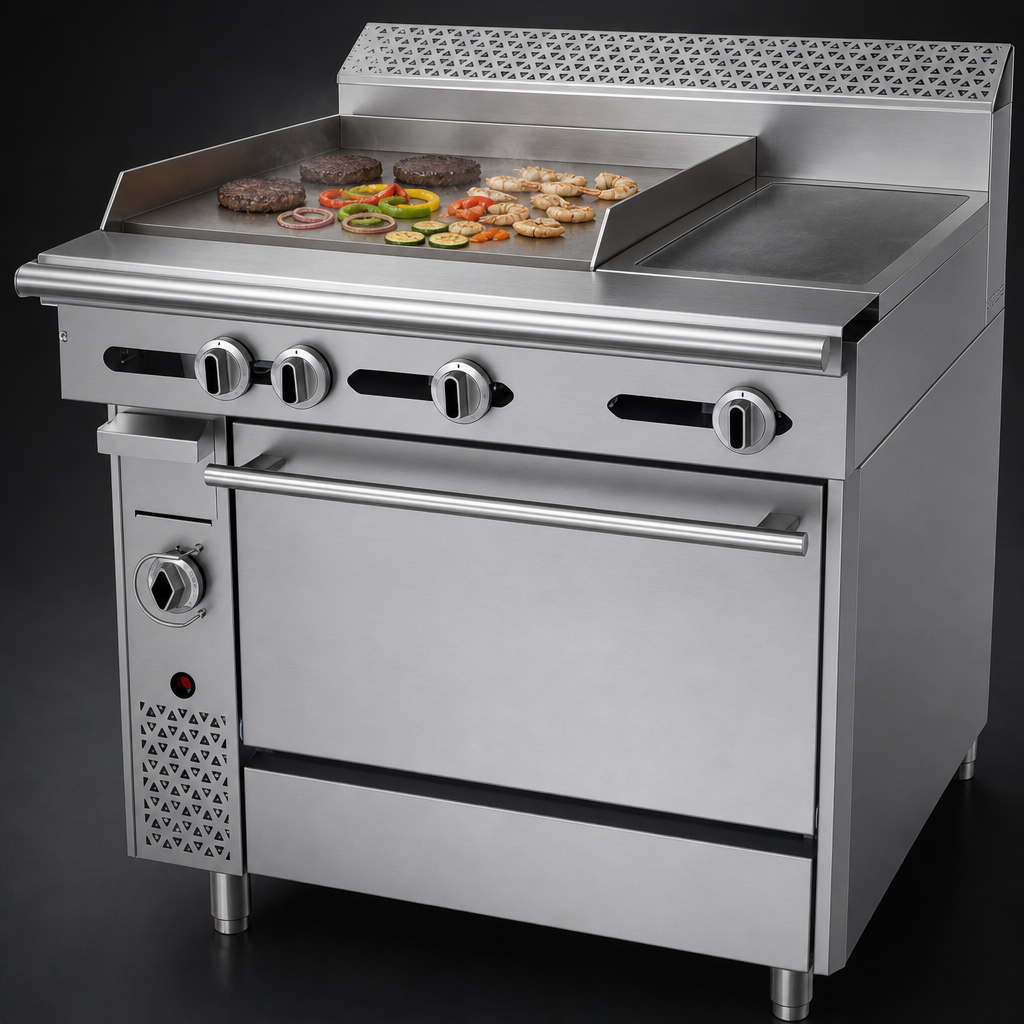

- 24" (610 mm) griddle on the left with a 1" (25 mm) thick steel plate for superior heat retention and fast recovery.
- Embedded thermostat sensor delivers precise surface control from LOW to 450 °F (232 °C).

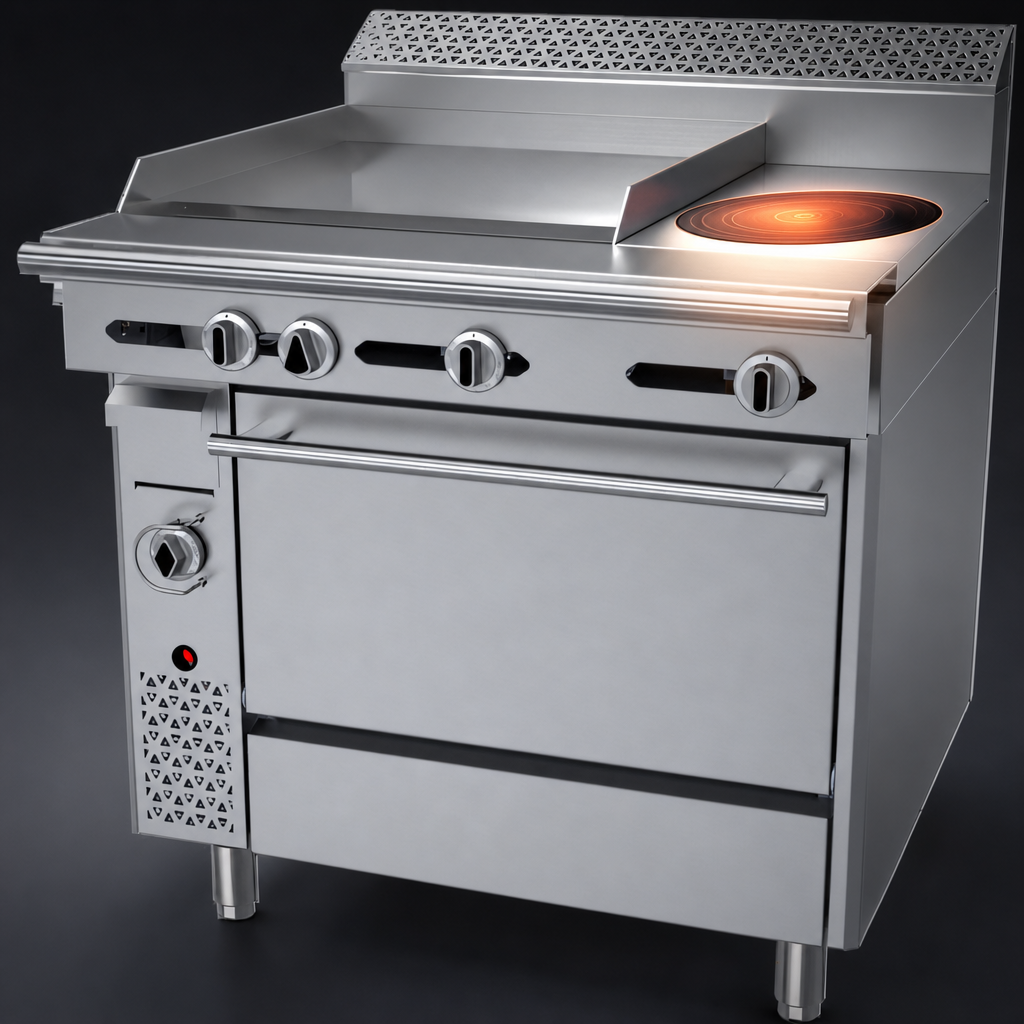

- 12" (305 mm) Even-Heat hot top on the right — 25,000 BTU/h — perfect for simmer, sauté or holding pans.
- 40,000 BTU/h standard oven with four rack positions; one chrome rack included.
- Oven thermostat range 150 – 500 °F (66 – 260 °C) with safety pilot and full insulation for energy savings.
- Stainless steel front, sides, 7" (178 mm) backguard, plate rail and burner box stand up to daily abuse.
- 6" (152 mm) adjustable stainless steel legs for easy leveling and under-range cleaning.
- Front 1-1/4" NPT gas manifold plus rear stub for flexible line-up or individual installation.
- Large 3" (76 mm) grease trough and removable drawer keep the work-top clean.
- Certified CSA Flame, CSA Star and NSF for gas safety and sanitation compliance.
Performance Ratings
| Total Input | 125,000 BTU/h (Natural Gas) | 120,000 BTU/h (Propane) |
|---|---|
| Griddle Burners | 30,000 BTU/h per 12" section (two burners) |
| Hot Top Burner | 25,000 BTU/h |
| Oven Burner | 40,000 BTU/h |
Dimensions & Connections
| Exterior Width | 36" (914 mm) |
|---|---|
| Depth (to plate rail) | 32-5/8" (829 mm) |
| Working Height | 37-1/4" (947 mm) on legs |
| Oven Cavity (H × W × D) | 13-1/2" × 26-1/4" × 29" (343 × 667 × 737 mm) |
| Gas Connection | 1-1/4" NPT front manifold; 3/4" rear stub |
| Min. Supply Pressure | 7" WC NG | 11" WC LP |
| Manifold Pressure | 6" WC NG | 10" WC LP |
| Shipping Weight | ≈ 650 lb (295 kg) |
Popular Options & Accessories
- Single- or double-deck high shelf / backsplash
- Non-marking swivel casters (front locking)
- Extra oven racks
- Stainless intermediate shelf for cabinet line-ups
- Rear gas connection kit for back-to-back batteries
Need a custom battery or different top configuration? Contact our team—we’ll help design the perfect Garland suite for your kitchen.
