Garland C36-3-1C Garland Cuisine Gas Ranges
Description

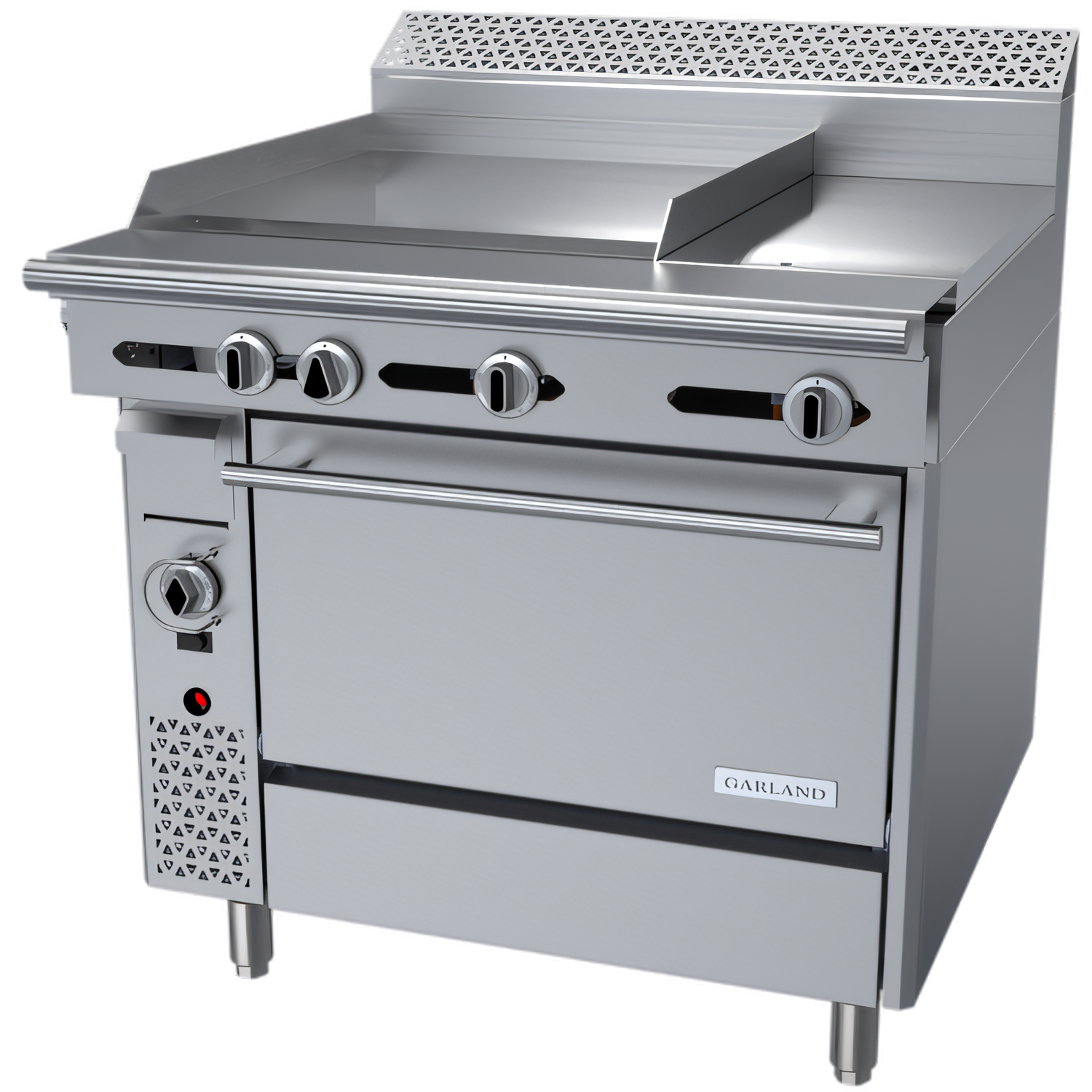

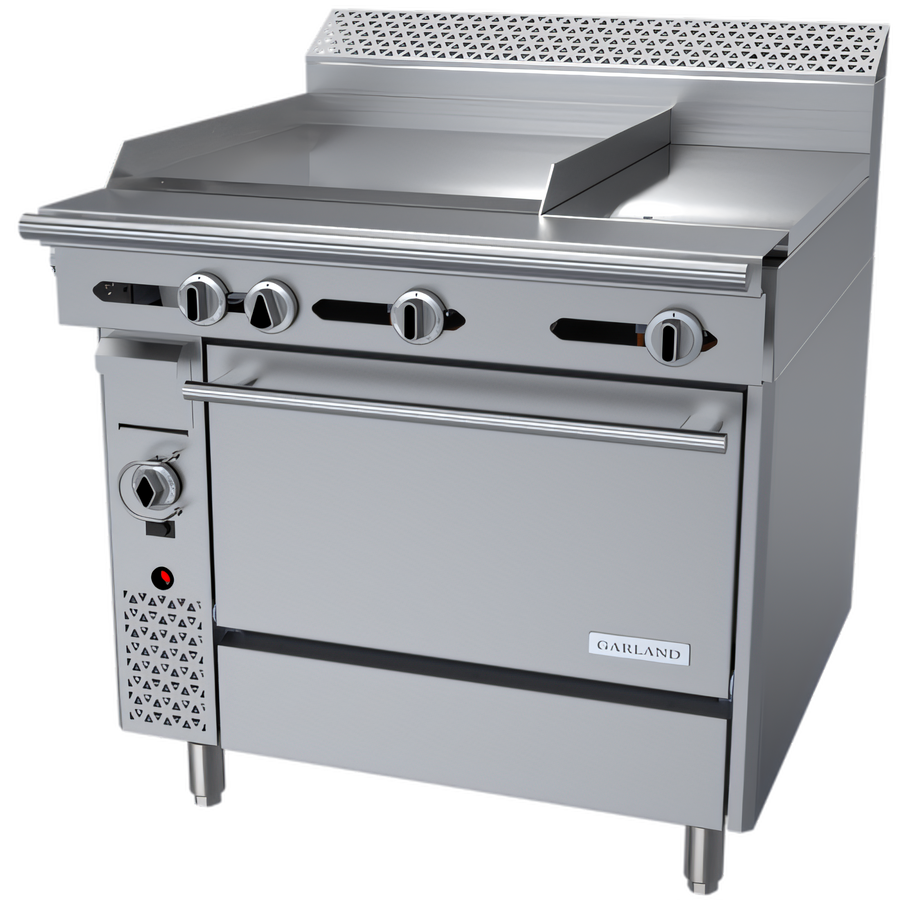

Garland Cuisine Series 36" Heavy-Duty Gas Range
24" Thermostatic Griddle – 12" Hot Top – Convection Oven BaseBuilt for the punishing pace of today’s high-performance kitchens, this 36" Garland Cuisine range gives you three pieces of equipment in one rugged, stainless-steel package—letting you grill, sauté and bake simultaneously without giving up a single inch of valuable line space.
Why chefs choose Garland Cuisine

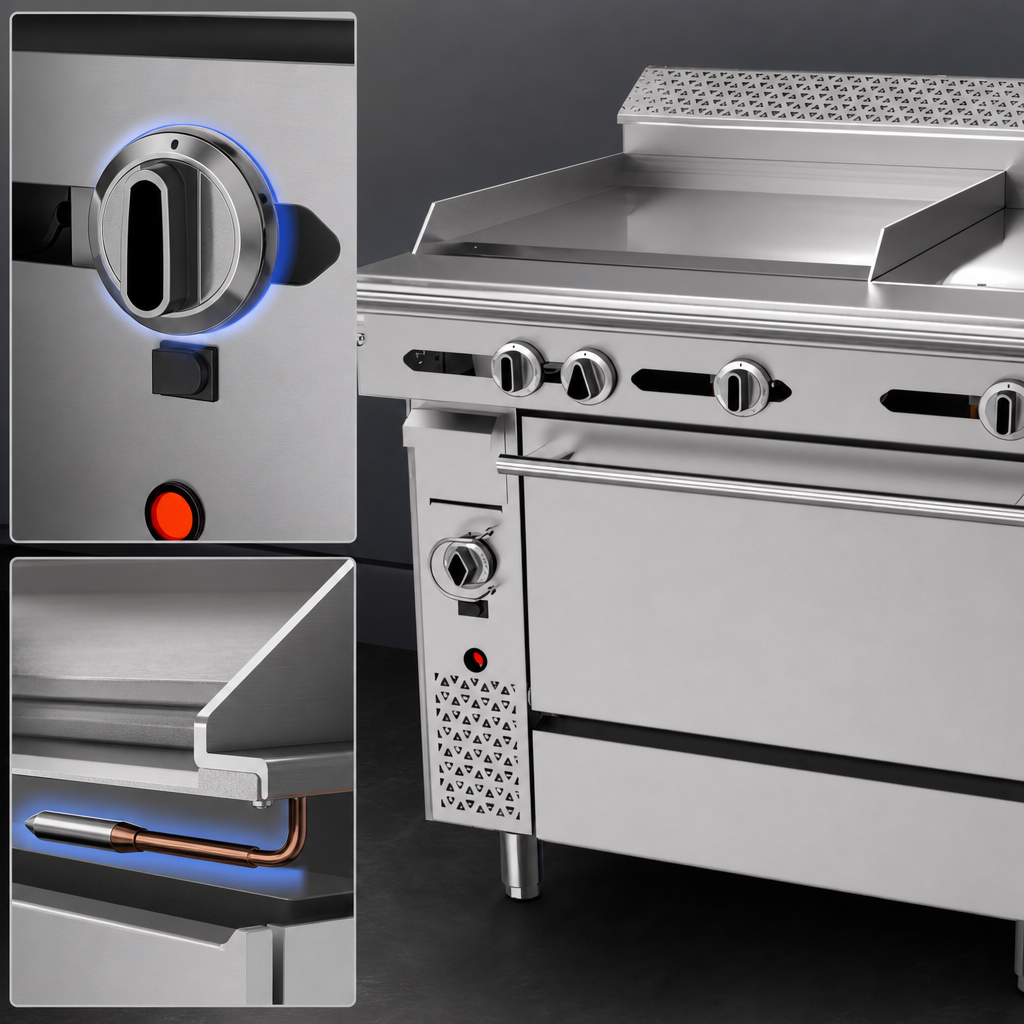

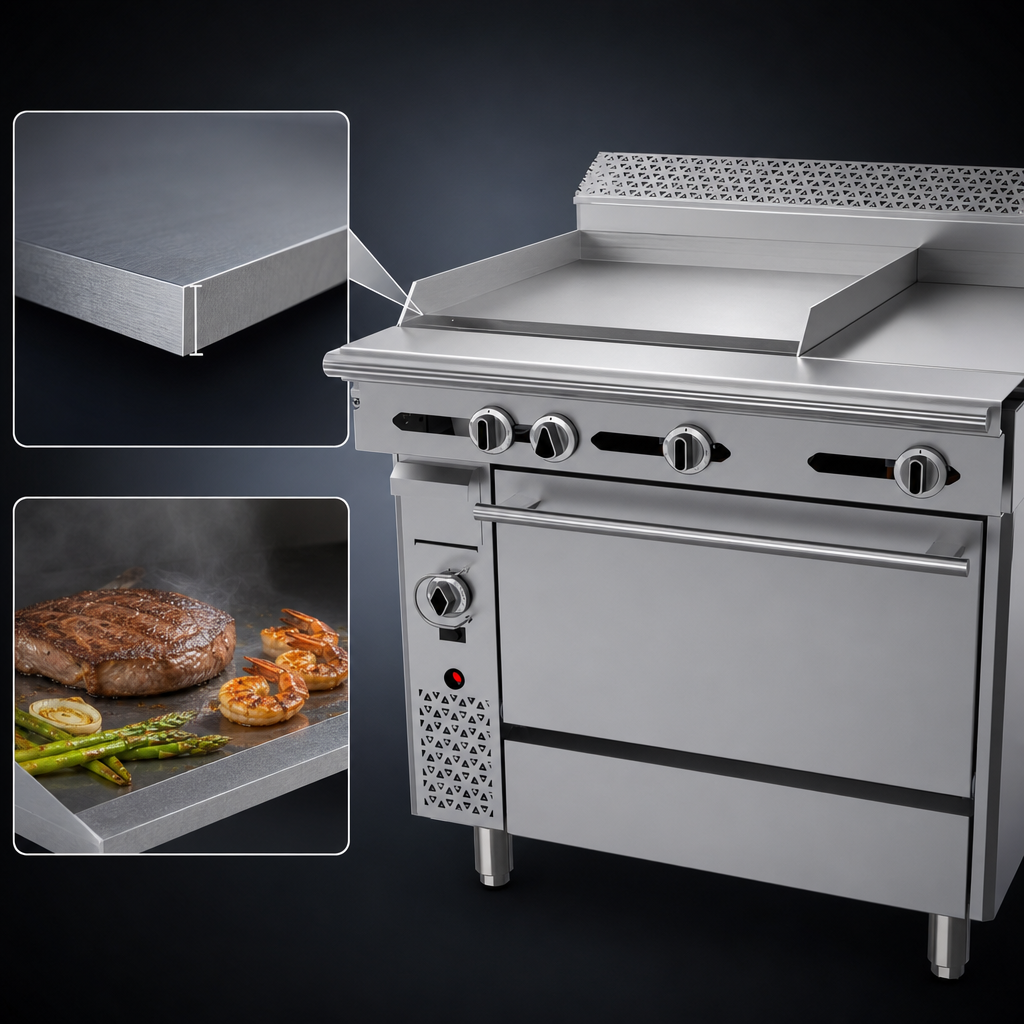

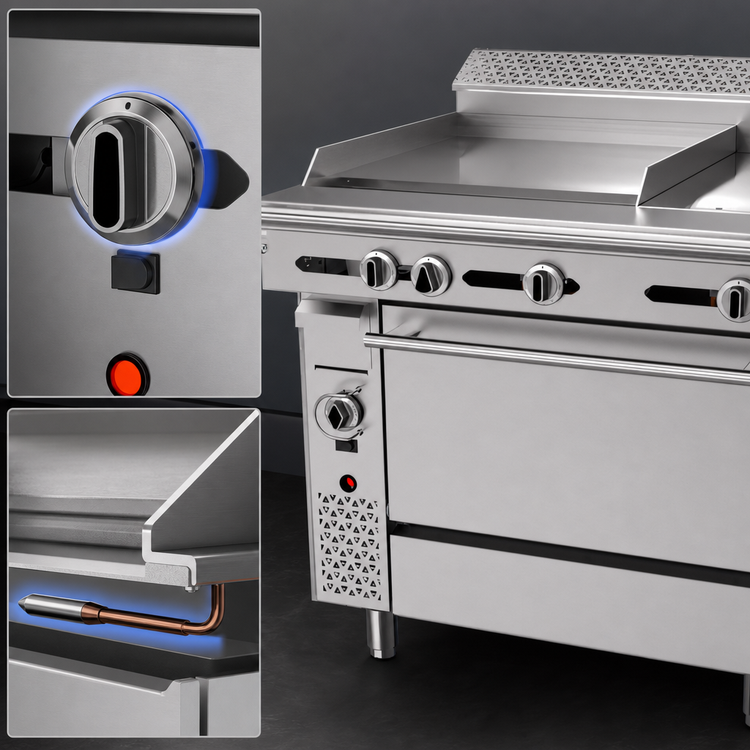

- 24" thermostatic griddle (left side) – 1" (25 mm) steel plate with precise 150-450 °F control for consistent caramelization and rapid recovery.
- 12" even-heat hot top (right side) – 25,000 BTU cast-iron plate handles stockpots, pans and sauce work with uniform surface temperatures.
- 122,000 BTU total output (Natural Gas) powered by heavy-duty cast burners engineered for maximum energy efficiency.
- Convection oven base – 37,000 BTU burner, 1/3 HP fan and 150-500 °F thermostat deliver fast, even baking or roasting; three chrome racks included.
- Self-cooling oven cavity allows zero-clearance “back-to-back” or against-wall installations and extends component life.
- Built to last – all-stainless front, sides, plate rail & burner box, plus a 7" stub backguard and 6" adjustable legs.
- Plug-and-play electrical – 120 V/60 Hz/1-ph, 0.6 A with NEMA 5-15P cord for the convection fan.
- Certified safe & sanitary: CSA Flame, CSA Star & NSF listings.
Technical specifications
| Model | Cuisine C36-3-1C (Natural Gas) |
|---|---|
| Total Input | 122,000 BTU/h |
| Griddle | 24" left-side, 1" plate, thermostatic, 60,000 BTU/h |
| Hot Top | 12" right-side even-heat plate, 25,000 BTU/h |
| Oven | Convection, 37,000 BTU/h, 150-500 °F thermostat |
| Oven Interior (H × W × D) | 13.5" × 26.25" × 25" • (3) chrome racks included |
| Exterior Dimensions (W × D × H) | 36" × 32-5/8" × 37-1/4" (add 7" for backguard) |
| Gas Connection | 1-1/4" NPT front manifold • 7" WC supply (NG) |
| Electrical | 120 V / 60 Hz / 1-ph • 0.6 A • NEMA 5-15P • 1/3 HP motor |
| Construction | Stainless steel front, sides, rail & burner box • 6" legs |
| Certifications | CSA Flame • CSA Star • NSF |
| Shipping Weight | Approx. 650 lb (295 kg) |
Also available for propane gas and in battery configurations. Contact us for custom backguard, caster or rear-gas connection options.
