Garland C36-2S Garland Cuisine Gas Ranges
Description

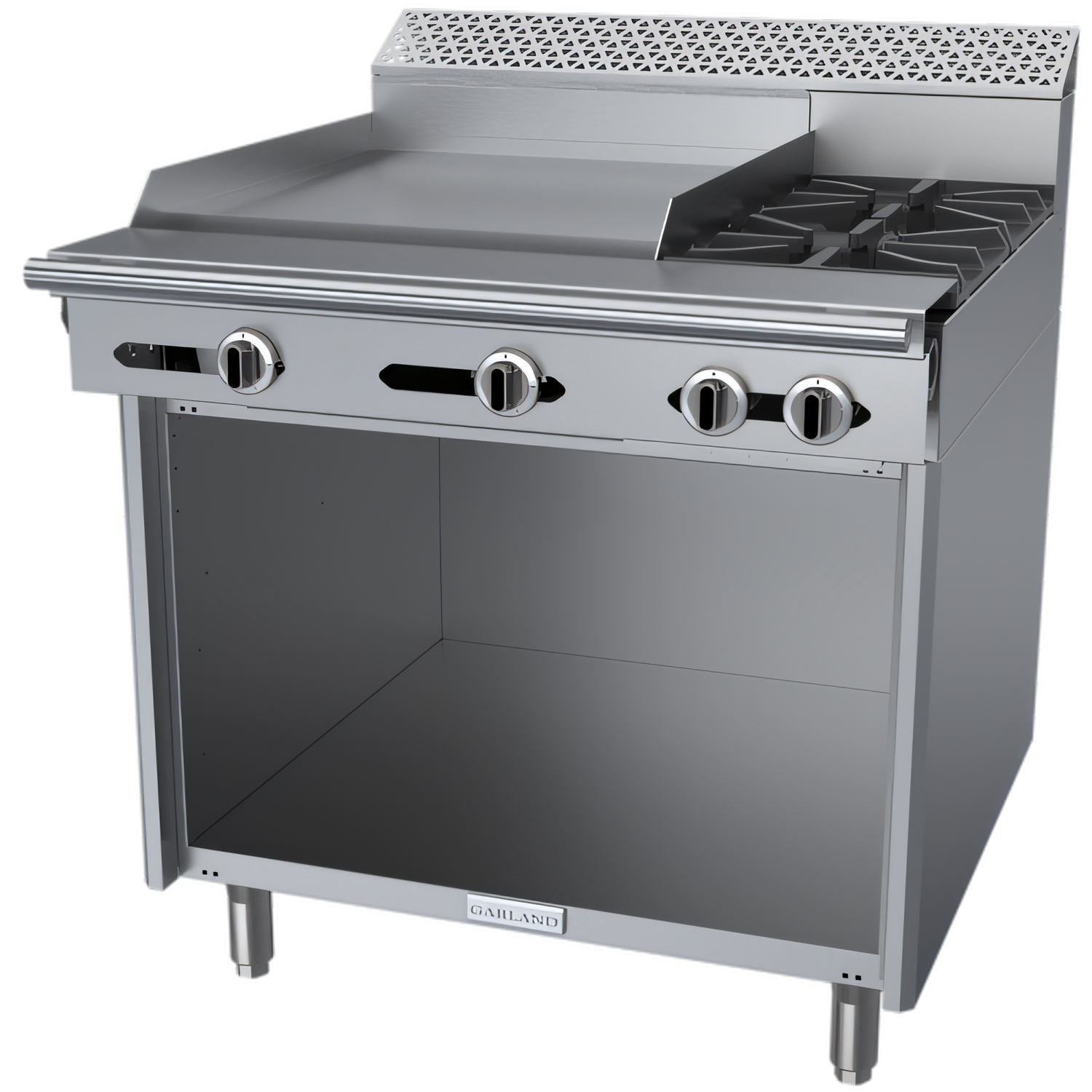

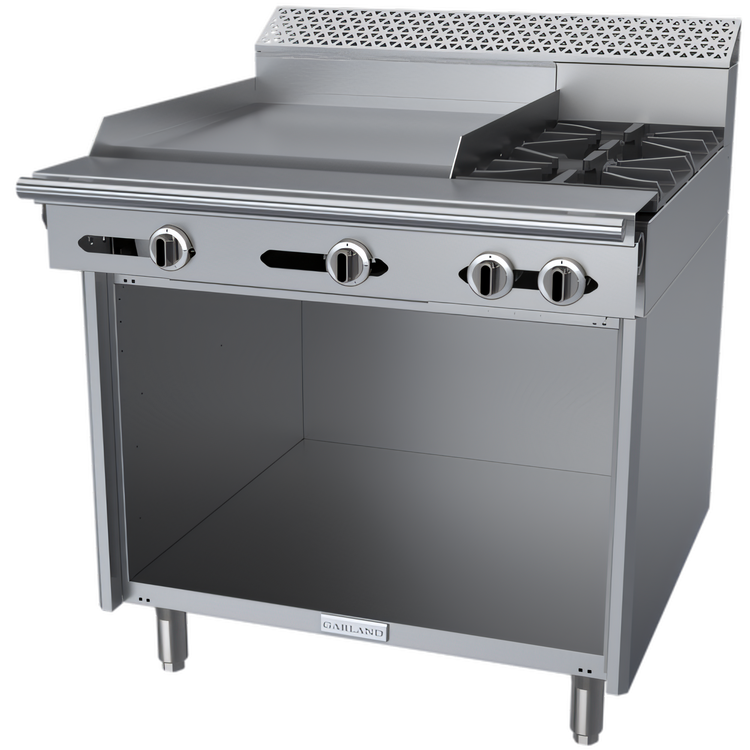

Garland Cuisine Series 36" Heavy-Duty Range – 2 Open Burners & 24" Griddle
Model: C36-2 (Hi-Lo Valve) • Natural Gas • 130,000 BTU/hBuilt for high-volume commercial kitchens, the Garland Cuisine 36" combination top range pairs two powerful Starfire burners with a full-size 24" griddle, all on a rugged open-cabinet base that keeps your most-used pots, pans and sheet trays close at hand.
Key Features

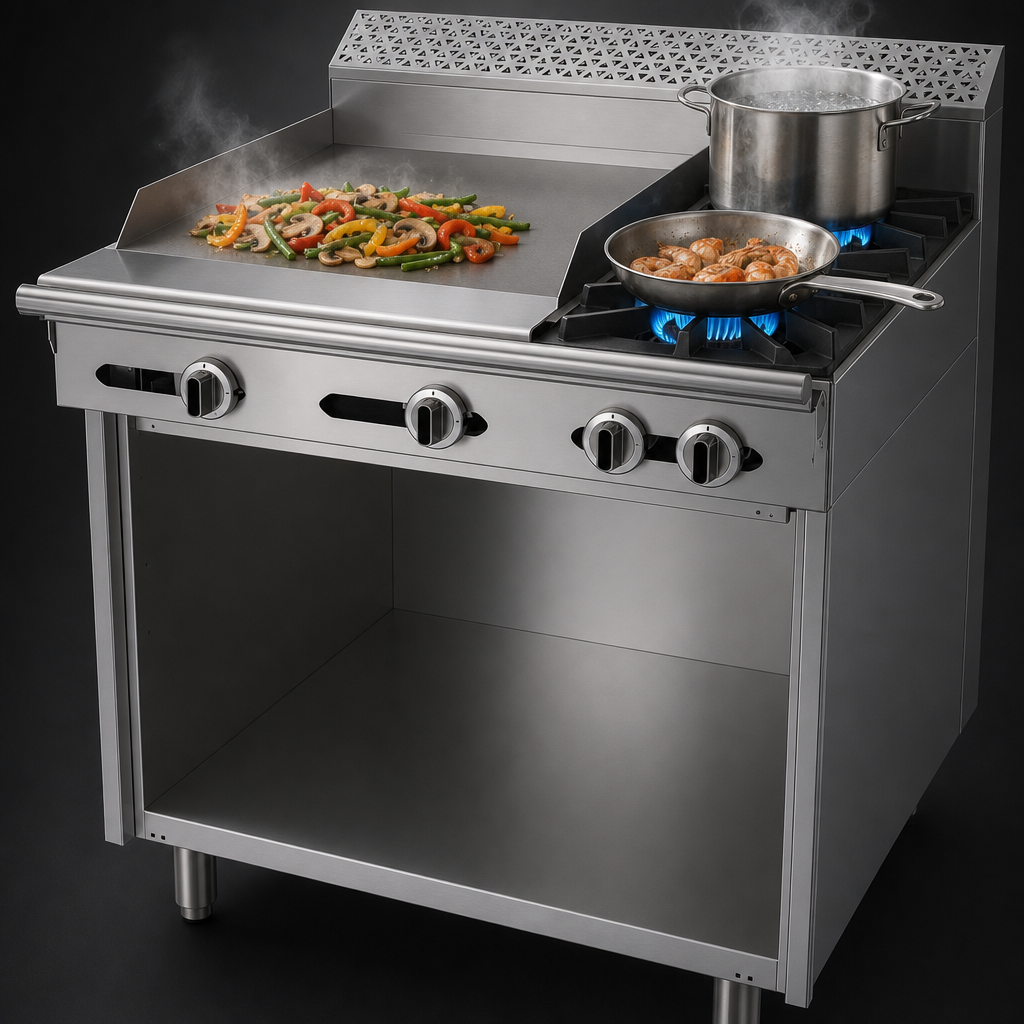

- (2) 35,000 BTU/h Garland Starfire 12" open burners (right-hand side) with cast-iron bowls & grates

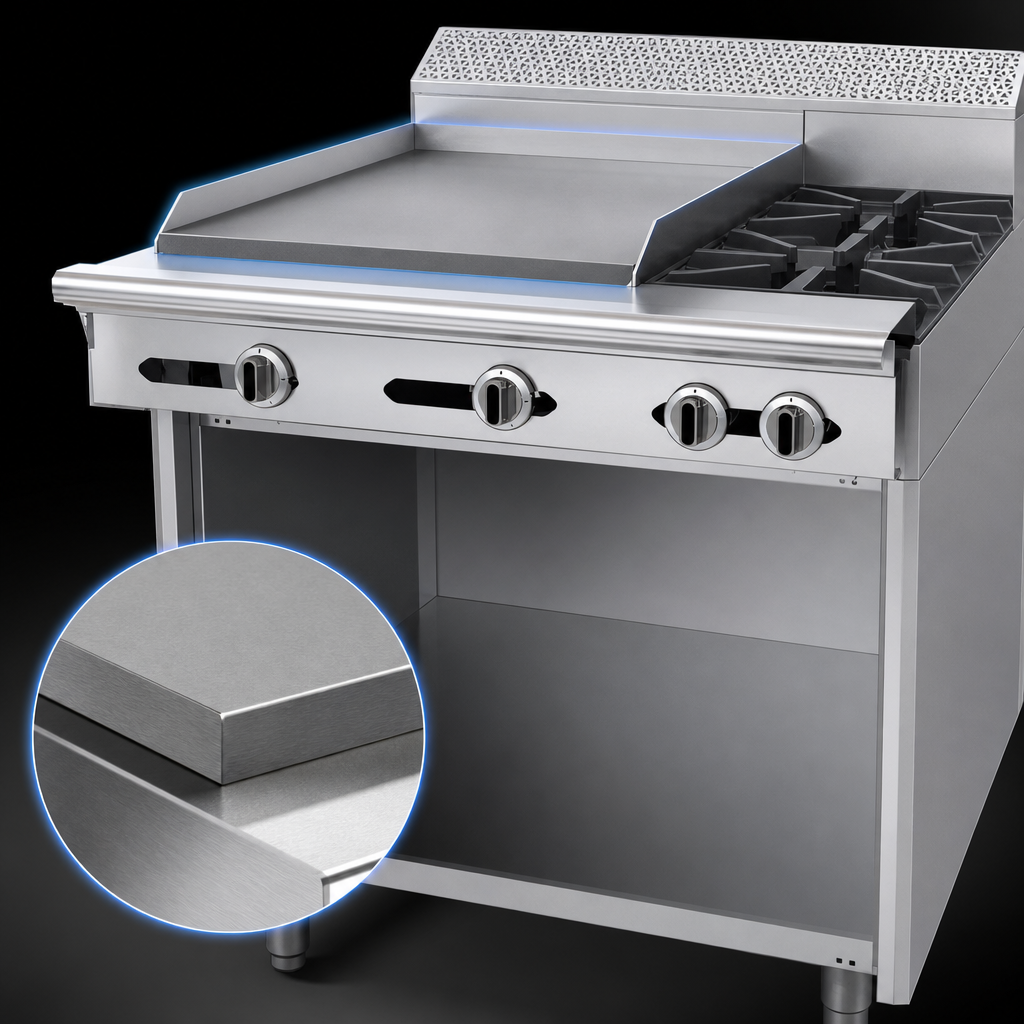

- 24" left-hand griddle, 1" (25 mm) thick steel plate with 3" grease trough
- Hi-Lo manual valve controls on burners and griddle for precise flame modulation
- Heavy-gauge stainless steel front, sides, plate rail and burner box for lasting durability
- Open cabinet base offers quick access storage and easy cleaning
- 7" (178 mm) stainless stub backguard shields walls from heat & splatter
- 6" (152 mm) stainless adjustable legs—level it on any surface
- Battery-ready 1-1/4" NPT front manifold simplifies multi-unit line-ups
- Certified to CSA Flame, CSA Star & NSF standards
Performance Specs
| Total Input (Natural Gas) | 130,000 BTU/h |
|---|---|
| Open Burners (2) | 35,000 BTU/h each |
| Griddle Burners (2) | 30,000 BTU/h each |
| Griddle Plate | 24" W × 21" D × 1" thick steel |
| Working Width | 36" (914 mm) |
| Overall Depth | 32" (814 mm) |
| Height (to cook surface) | 35 ¾"–37 ¼" adjustable |
| Gas Connection | 1-1/4" NPT front manifold; 7" WC NG supply (6" WC manifold) |
| Shipping Weight | ≈ 460 lb (209 kg) |
Why Choose Garland Cuisine?
- Starfire burners deliver maximum heat for faster boil times and rapid recovery.
- One-piece cast-iron grates & bowls lift off for tool-free cleaning.
- Split grease management—front trough plus deep drip drawer—keeps stations sanitary.
- Field-configurable manifold lets you grow your cooking line without costly re-piping.
Popular Accessories (sold separately)
- Stainless door kit for cabinet base
- Single or double high-shelf risers
- 5" or 6" locking caster sets
- Rear gas connection kit
Important: Garland ranges are engineered for commercial kitchens only and must be installed by a qualified technician in accordance with local gas codes.
