Garland C36-2R Garland Cuisine Gas Ranges
Description

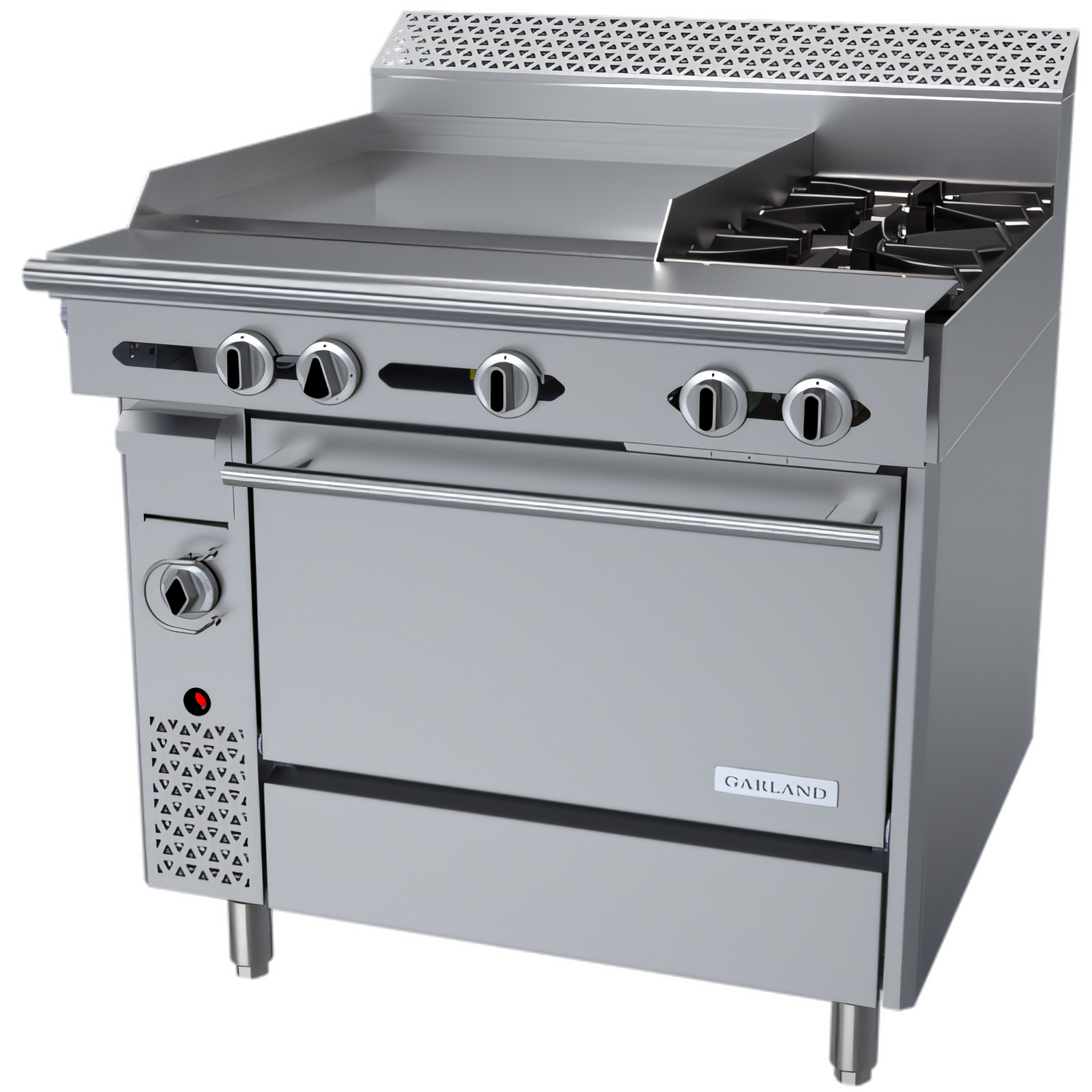

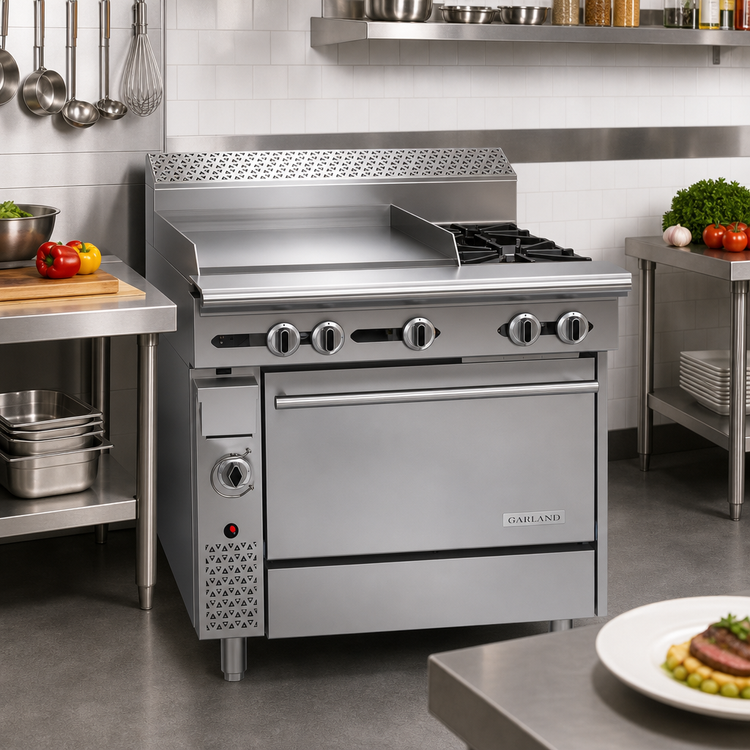

Garland Cuisine Series 36" Heavy-Duty Gas Range
24" Griddle (LH) · 2 Starfire Burners (RH) · Standard OvenEngineered for high-volume, all-day production, the Garland Cuisine Series combination range marries the searing power of a 24" griddle with two 35,000 BTU Starfire open burners and a full-size standard oven – all in a space-saving 36" footprint. Built from the ground up for demanding commercial kitchens, this single piece of equipment lets you grill, sauté, boil and bake without missing a beat.
Why You’ll Love It

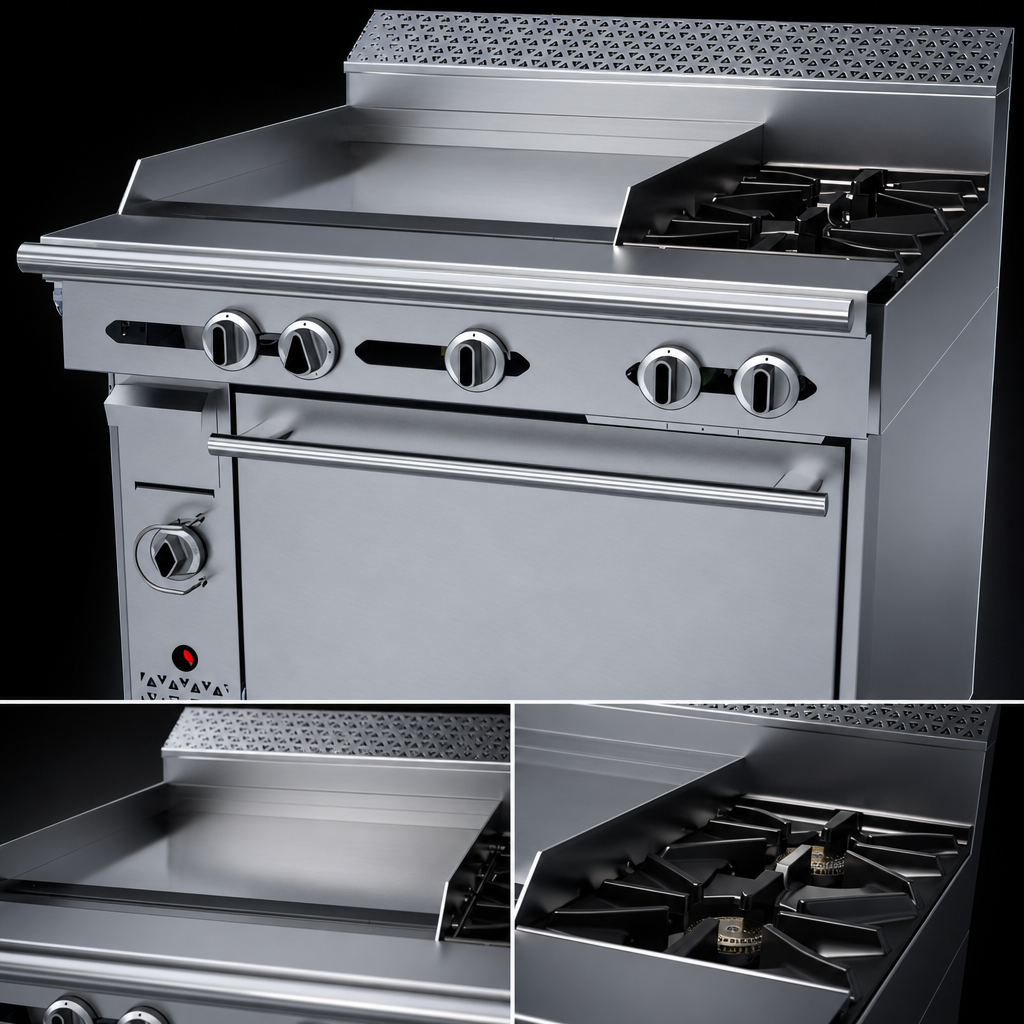

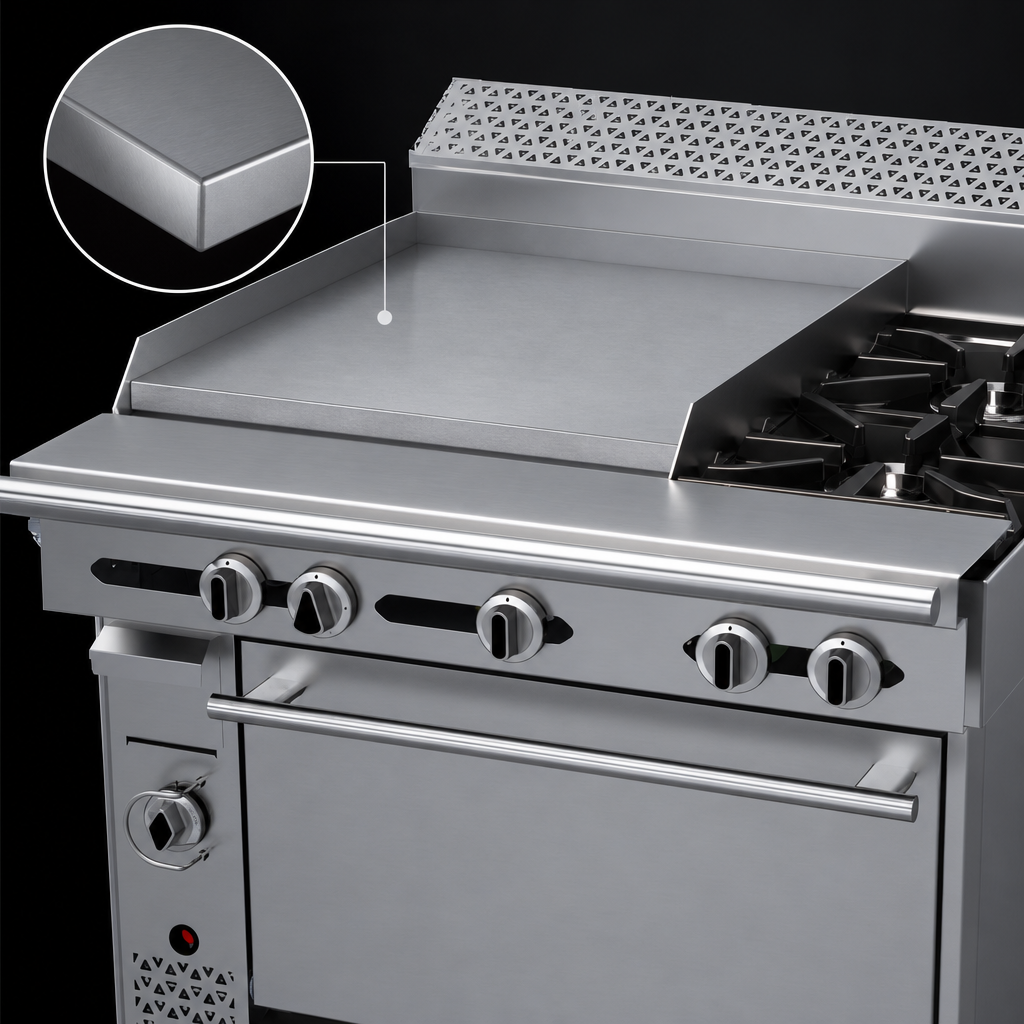

- Versatile cooktop: Left-side 24" x 27" (610 mm) griddle with 1" (25 mm) thick steel plate for instant heat recovery.
- Blazing burner output: Two 35,000 BTU/h Starfire 12" open burners with one-piece cast-iron bowls & grates.
- Hi-Lo manual valves on both burners and griddle sections for responsive flame control.
- Heavy-duty oven: 40,000 BTU/h standard oven (150 – 500 °F) with 4 rack positions & 1 chrome rack included.
- Built to last: Stainless steel front, sides, plate rail, burner box & 7" backguard resist dents and corrosion.
- Chef-friendly details: Continuous front rail, extra-deep crumb/grease trough and 6" adjustable stainless legs.
- Certified safe & sanitary: CSA Flame, CSA Star and NSF listings for commercial installations.
Technical Specifications
| Model | C36-2R (Natural Gas) |
|---|---|
| Total Input | 170,000 BTU/h |
| Cooktop Configuration | (2) 12" open burners (RH) | 24" griddle (LH) |
| Burner Rating | 35,000 BTU/h each (open burners) |
| Griddle Rating | 30,000 BTU/h per 12" section | 60,000 BTU/h total |
| Griddle Plate | 1" thick polished steel • 3" grease trough |
| Oven Rating / Range | 40,000 BTU/h • 150 – 500 °F (66 – 260 °C) |
| Oven Interior (H × W × D) | 13 ½" × 26 ¼" × 29" (343 × 667 × 737 mm) |
| Rack Positions / Supplied | 4 / 1 chrome rack |
| Gas Connection | 1 ¼" NPT front manifold (rear stub optional) |
| Manifold Pressure | 6" WC (NG) – requires 7" WC minimum supply |
| Overall Dimensions | 36" W × 39 ⅜" H* × 32" D (914 × 1001 × 813 mm) *to cooktop; 7" backguard standard |
| Legs | 6" (152 mm) stainless, adjustable |
| Certifications | CSA Flame • CSA Star • NSF |
Need propane? Factory-configured LP models are available on request.
What’s Included
- Garland Cuisine Series 36" range (as specified)
- (1) chrome oven rack
- 6" adjustable stainless steel legs (installed)
- Factory-installed 7" stainless backguard
- Operator’s manual & warranty documents
Warranty
Garland backs every Cuisine Series range with a 1-year parts & labor warranty (factory authorized service).
