Garland C36-2M Garland Cuisine Gas Ranges
Description

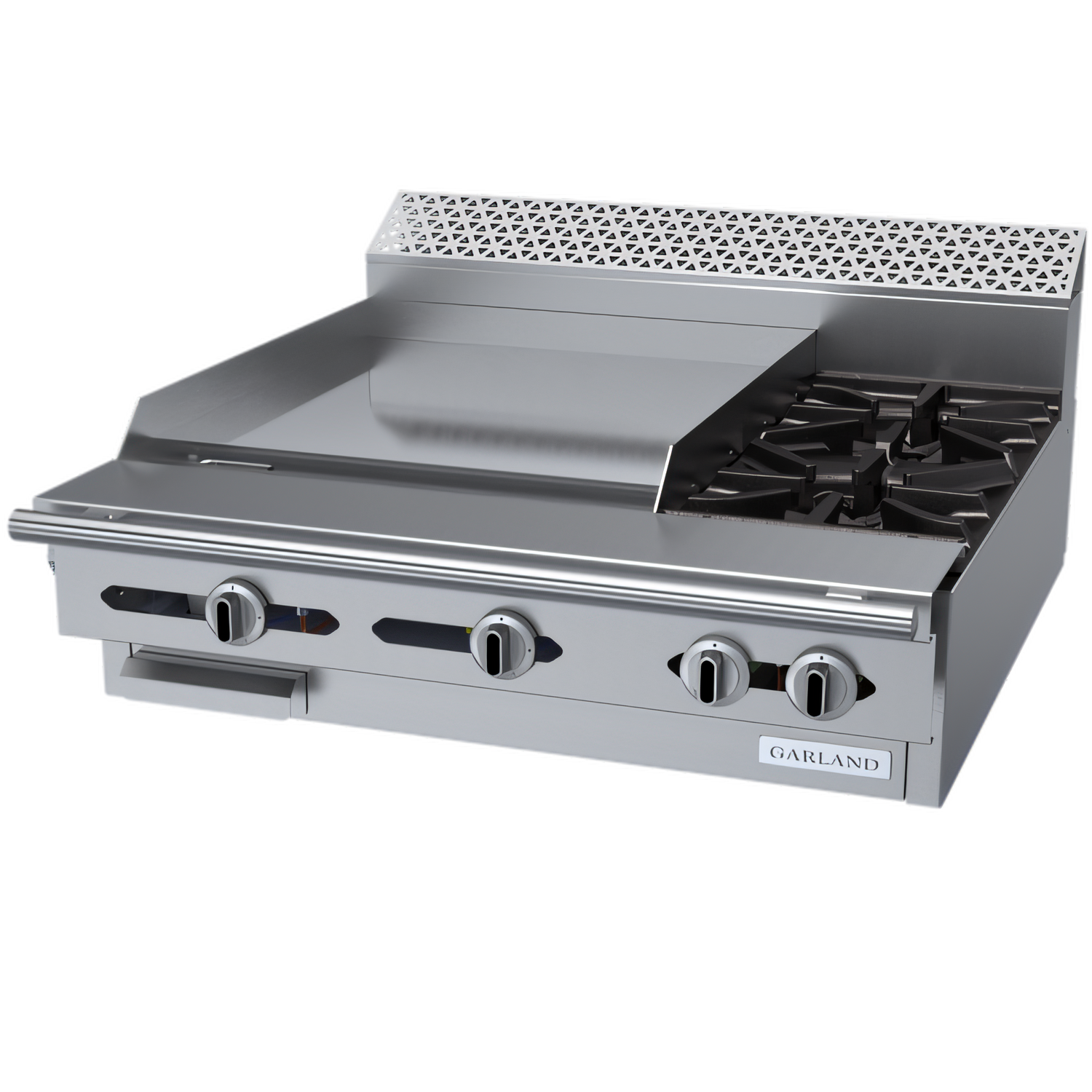

Cuisine Series 36" Heavy-Duty Gas Modular Range Top
24" Griddle (LH) + 2 Starfire Open Burners (RH) • 130,000 BTU/h NGBuilt for kitchens that refuse to compromise, the Garland Cuisine modular top delivers searing burner power, a true heavy-duty griddle, and rock-solid stainless construction—all in a space-saving 36 inch footprint that drops straight onto your counter, equipment stand, or refrigerated base.
Performance you can taste

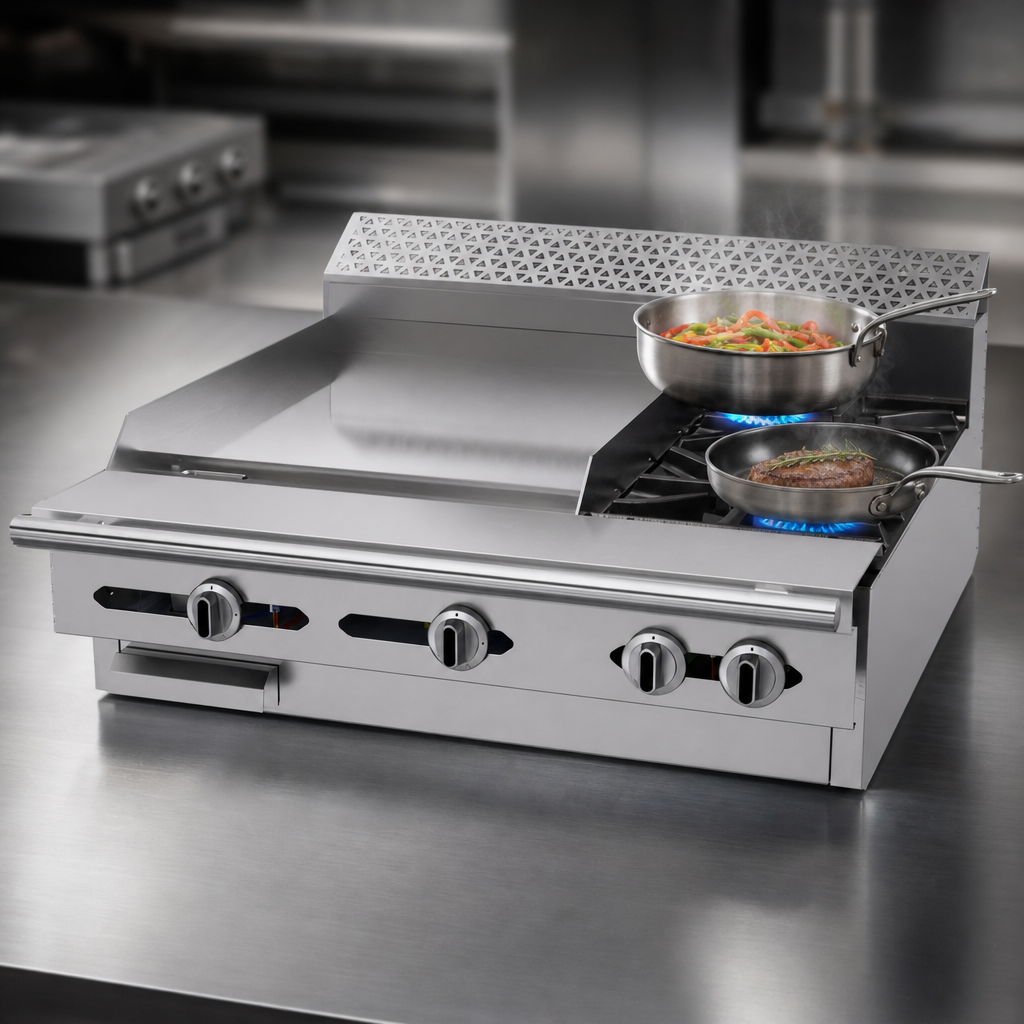

- 2 × 35,000 BTU Garland Starfire™ 12" open burners for instant heat recovery and rapid boil times.

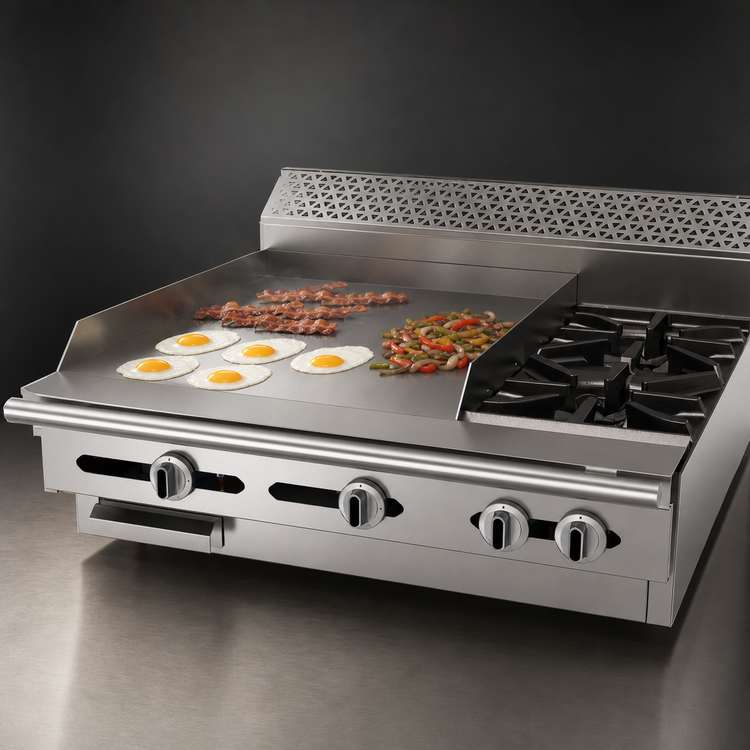

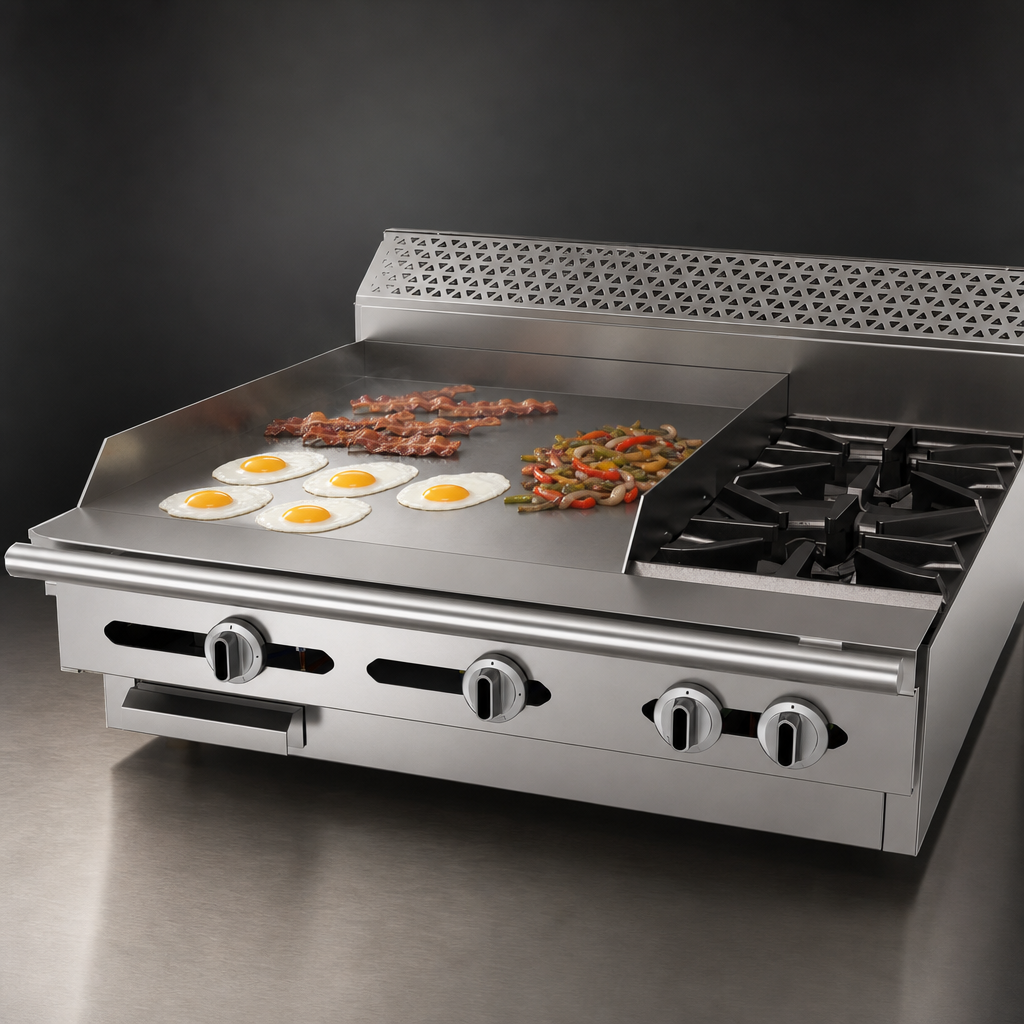

- 24" griddle (left) with a 1" thick polished steel plate for even, consistent browning.
- Hi-Lo manual valve control—dial in everything from a delicate sauté to full-blast stir-fry.
- 7" (178 mm) stainless steel backguard protects surrounding walls and makes cleanup easier.
- Continuous one-piece cast-iron grates & bowls stand up to everyday abuse and lift off for simple cleaning.
- Front-mounted 1-1/4" NPT gas manifold makes line-ups and battery installations painless.
- Fully welded stainless steel front, sides, plate rail & burner box resist corrosion and keep your cookline looking sharp.
- Modular top design pairs perfectly with Garland stands, refrigerated bases, or custom counters.
- Certified to CSA Flame, CSA Star and NSF standards for safe, code-compliant operation.
Technical specifications
| Model | Garland Cuisine C36-2M (manual valve) |
|---|---|
| Configuration | Left: 24" griddle | Right: 2 open burners |
| Total input | 130,000 BTU/h (Natural Gas) |
| Open burners | 2 × 35,000 BTU cast-iron Starfire burners |
| Griddle burners | 2 × 30,000 BTU, manual Hi-Lo valves |
| Griddle plate | 1" (25 mm) thick polished steel, 3" (76 mm) grease trough |
| Width | 36" (914 mm) |
| Depth | 32" (813 mm) |
| Height (to cooking surface) | 10" (254 mm) |
| Backguard height | 7" (178 mm) |
| Gas connection | Front 1-1/4" NPT, 7" WC min. supply (NG) |
| Shipping weight | ≈ 375 lb (170 kg) |
| Certifications | CSA Flame • CSA Star • NSF |
Perfect for
- High-volume restaurants that need versatile cooking zones without sacrificing footprint.
- Ghost kitchens & food halls building flexible, battery-style cooklines.
- C-stores, hotels and catering operations adding a dedicated breakfast, burger or sauté station.
Looking for matching stands, refrigerated bases, or additional battery components? Chat with our equipment team—we’re happy to configure the perfect Garland line-up for your kitchen.
