Garland  |  Garland Cuisine  |  SKU: C36-2-1M

Garland C36-2-1M Garland Cuisine Gas Ranges

$5,756.00
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Cutsheet Cutsheet Brochure Check list Owner's manual Garland cuisine models guide
Related Searches
Commercial Gas Ranges Commercial Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

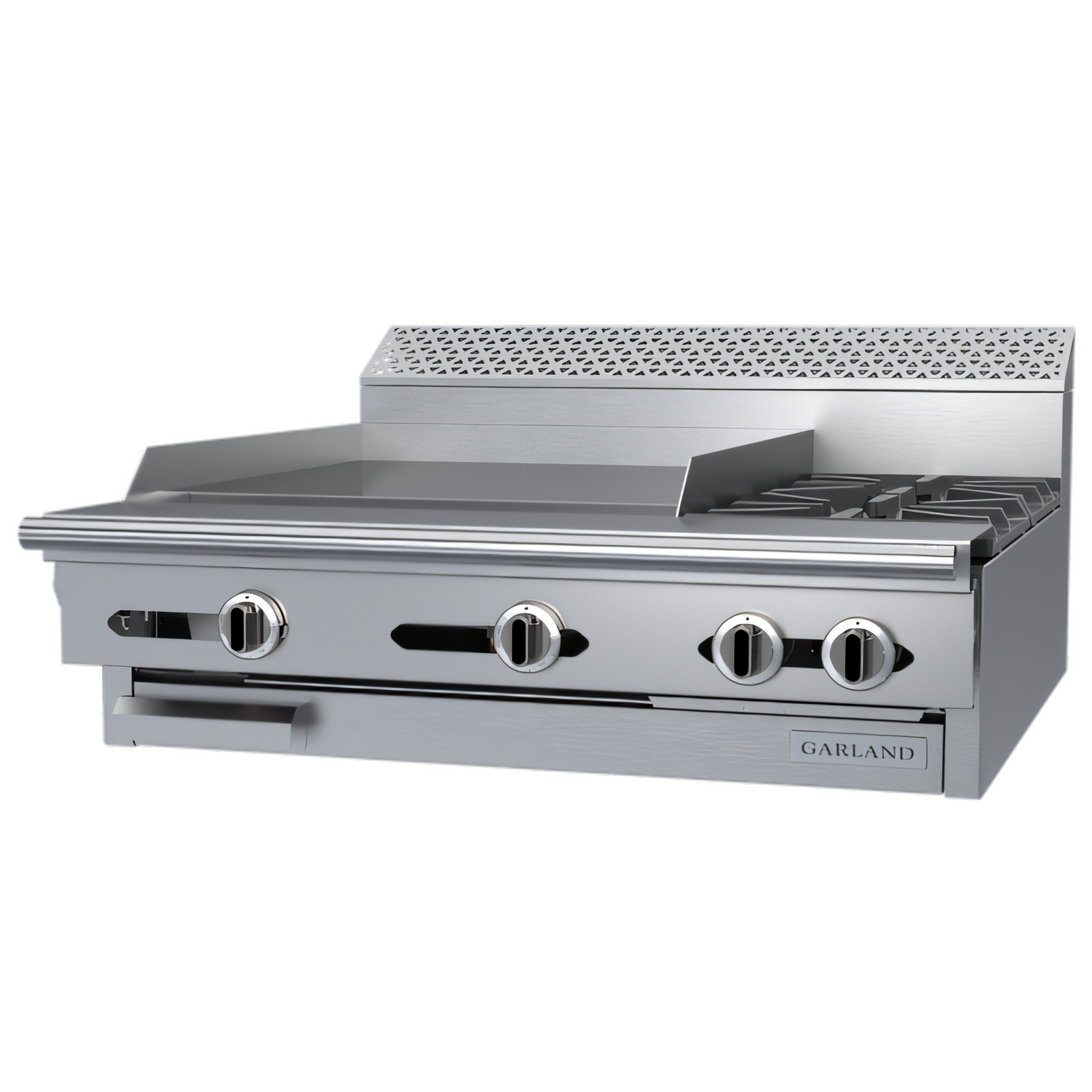

Garland Cuisine Series 36" Heavy-Duty Modular Range Top – 24" Thermostatic Griddle & 2 Open Burners

Model C36-2-1M | Natural Gas | 130,000 BTU/h

One station, three cooking styles. This Garland Cuisine Series range top unites a full-size thermostatic griddle with two high-output Starfire burners so your team can sear, sauté, fry and finish without leaving a 36-inch footprint.

Key Features
  • 2 × 35,000 BTU/h Garland Starfire 12" open burners (right) with one-piece cast-iron grates & bowls.

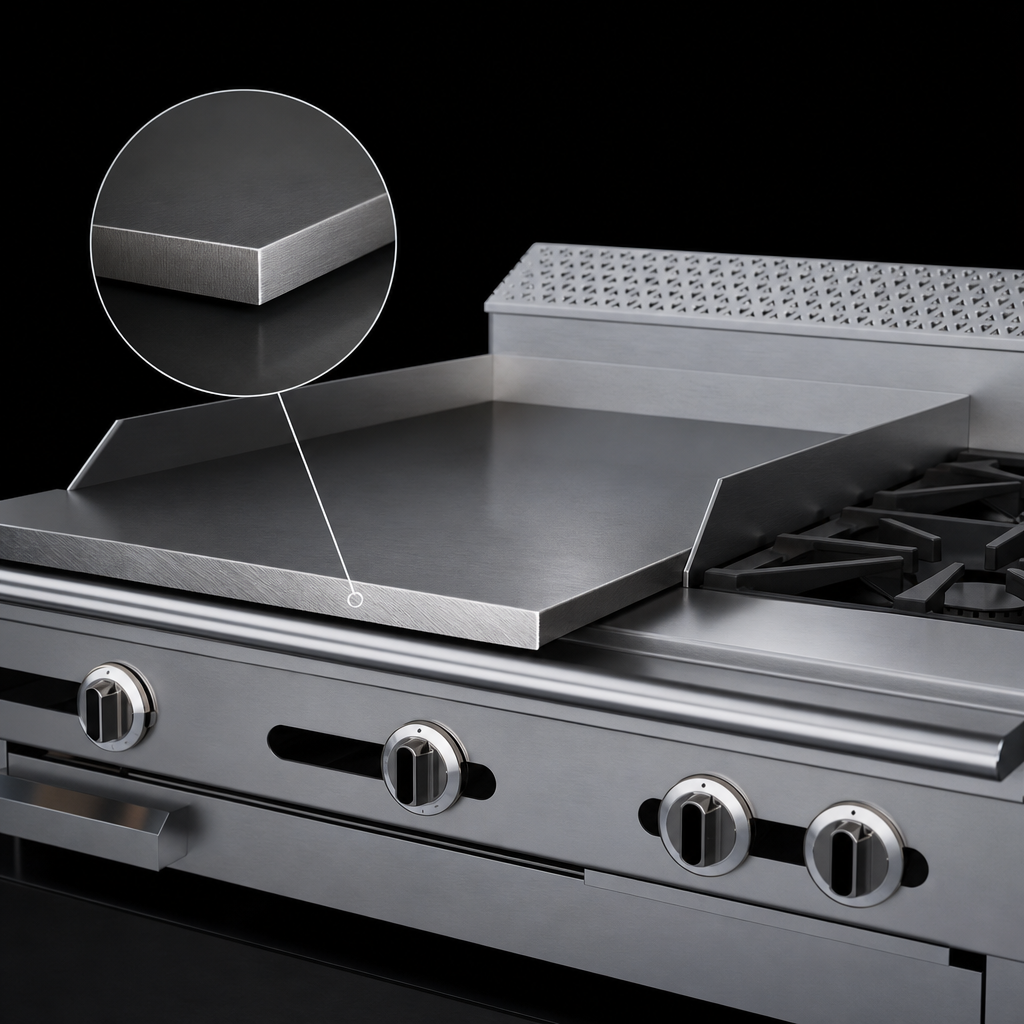

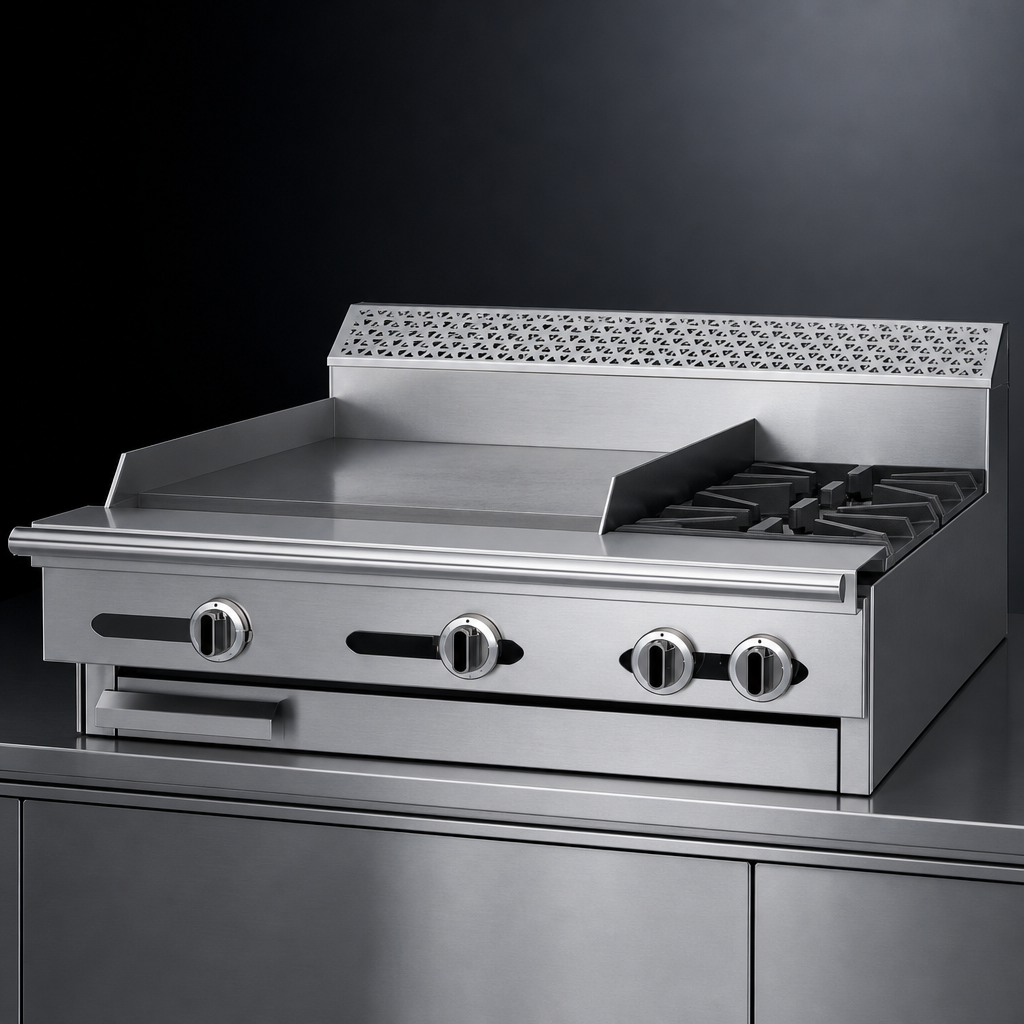

  • 24" (610 mm) griddle (left) with a 1" (25 mm) thick polished steel plate for superior heat retention.
  • Embedded thermostat sensor delivers precise control from low to 450 °F (232 °C).
  • Total input: 130,000 BTU/h for rapid preheat and quick recovery on heaviest loads.
  • 7" (178 mm) stainless-steel backguard protects walls and ventilation hoods.
  • Stainless-steel front, sides, continuous plate rail and burner box for a lifetime of easy cleaning.
  • Modular design ships with 6" adjustable stainless legs—mounts on refrigerated base or equipment stand.
  • 1-1/4" NPT front gas manifold with either individual hook-up or battery connection capability.
  • Field convertible rear gas connection for streamlined installations.
  • Certified: CSA Flame, CSA Star & NSF.
Specifications
Width 36" / 914 mm
Depth 32" / 813 mm
Height (top only) 10" / 254 mm
Height with 6" legs ≈ 16" / 406 mm
Open burners 2 × 35,000 BTU/h
Griddle size 24" W × 21" D (610 × 533 mm)
Griddle burners 2 × 30,000 BTU/h (thermostatic)
Total input 130,000 BTU/h (NG)
Gas connection 1-1/4" NPT (front, rear optional)
Shipping weight ≈ 375 lb / 170 kg
Perfect For
  • High-volume restaurants and hotel kitchens
  • Short-order & breakfast service lines
  • Catering operations needing a compact, multi-function cook station

Gas supply requirements: 7" WC (natural) or 11" WC (propane). Minimum clearances to combustibles – sides: 10" (254 mm); rear: 6" (152 mm).

Features & Specs

Manufacturer

Garland

Brand_name

Garland Cuisine

Certifications

NSF, CSA Star, CSA Flame

Height

10.0in

Width

36.0in

Depth

39.38in

Shipping Weight

375.0lbs

Exterior Finish

stainless steel front & sides

Plate Thickness

1.000" = 1"

Base

modular

Top

(2) open burners, (1) 24" griddle with thermostats

Specifications

Garland Cuisine Series Heavy Duty Range, gas, 36", modular top, (2) 35,000 BTU open burners - right, (1) 24" griddle - left only, 1" thick steel plate, thermostatic controls, 7"H backguard, stainless steel front, sides, plate rail & burner box, 130,000 BTU (NG), CSA Flame, CSA Star, NSF (Garland)
