Garland

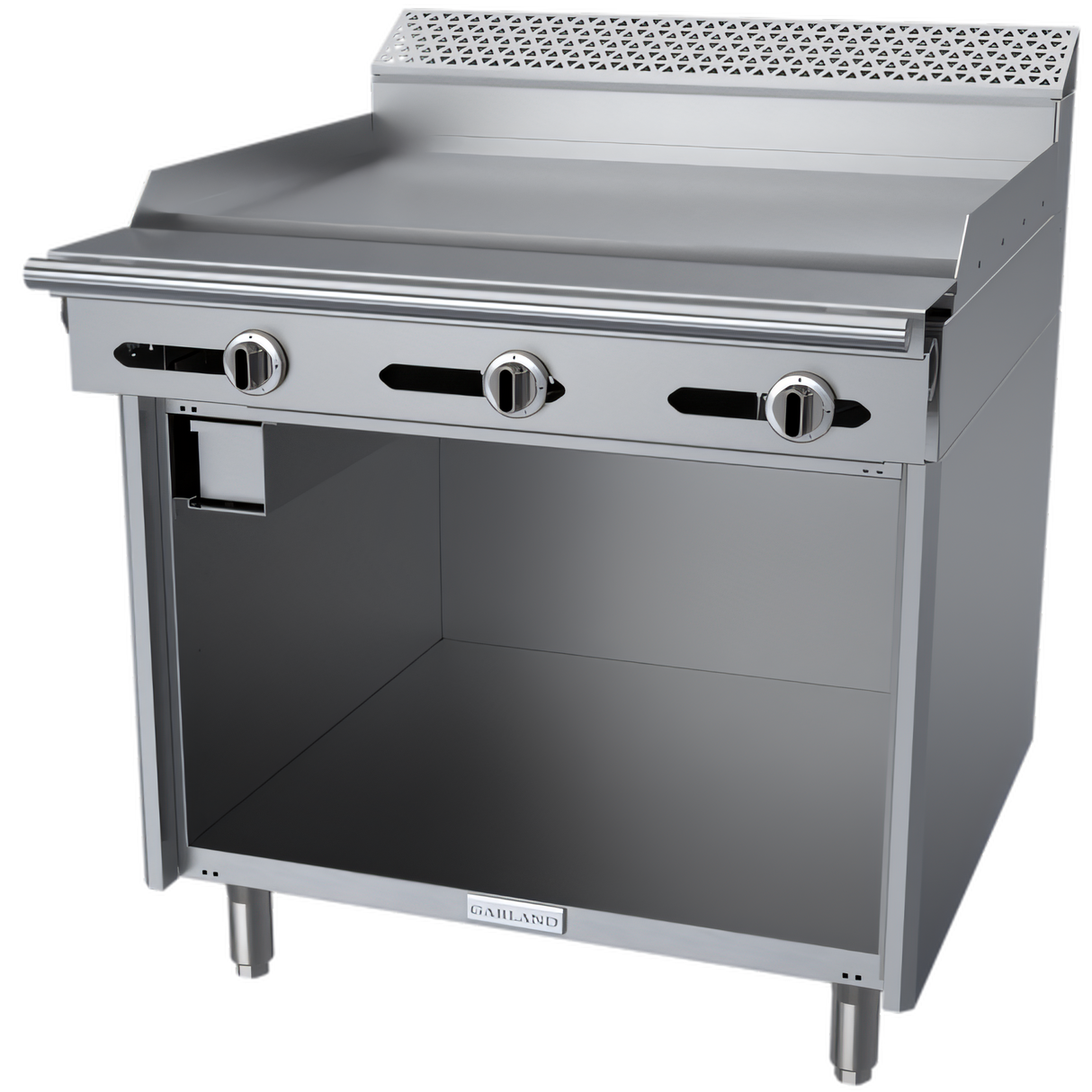

Garland Cuisine Series Heavy Duty 36-Inch Gas Griddle Top Range with Storage Base

SKU: C36-1S
$6,189.75
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Garland Gas Ranges New Arrivals Ranges Restaurant Equipment

Garland Cuisine Series Heavy Duty 36-Inch Gas Griddle Top Range with Storage Base

Manual Hi-Lo Valve, 1-Inch Steel Plate, 90,000 BTU

This rugged 36-inch gas griddle range combines a thick steel cooking surface, 90,000 BTU of output, and a practical storage base for dependable commercial service.

  • 36-inch heavy-duty gas griddle top range built for commercial kitchens.
  • 1-inch thick steel griddle plate helps deliver strong heat retention and even cooking.
  • Manual hi-lo valve control provides fast, responsive heat adjustment.
  • Storage base design adds under-range storage while keeping the unit floor-mounted.
  • Stainless steel front, sides, burner box, and stub back improve durability and cleanup.
  • 6-inch adjustable legs help level the range on uneven floors.

Overall Dimensions:

36.0"W x 39.88"D x 42.0"H

Product Weight:

527.0 lb

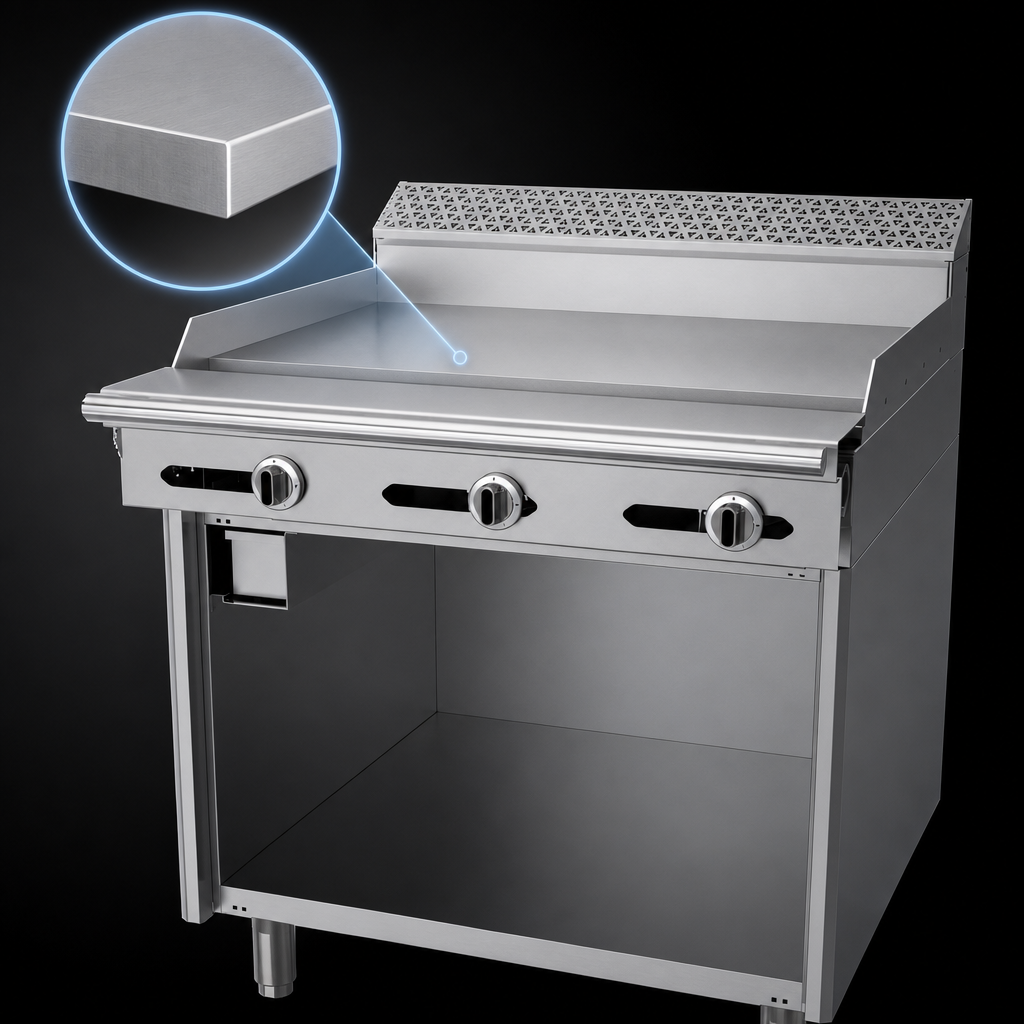

1-Inch Thick Steel Plate Griddle

Heavy-duty griddle surface is built for durability and dependable heat retention.

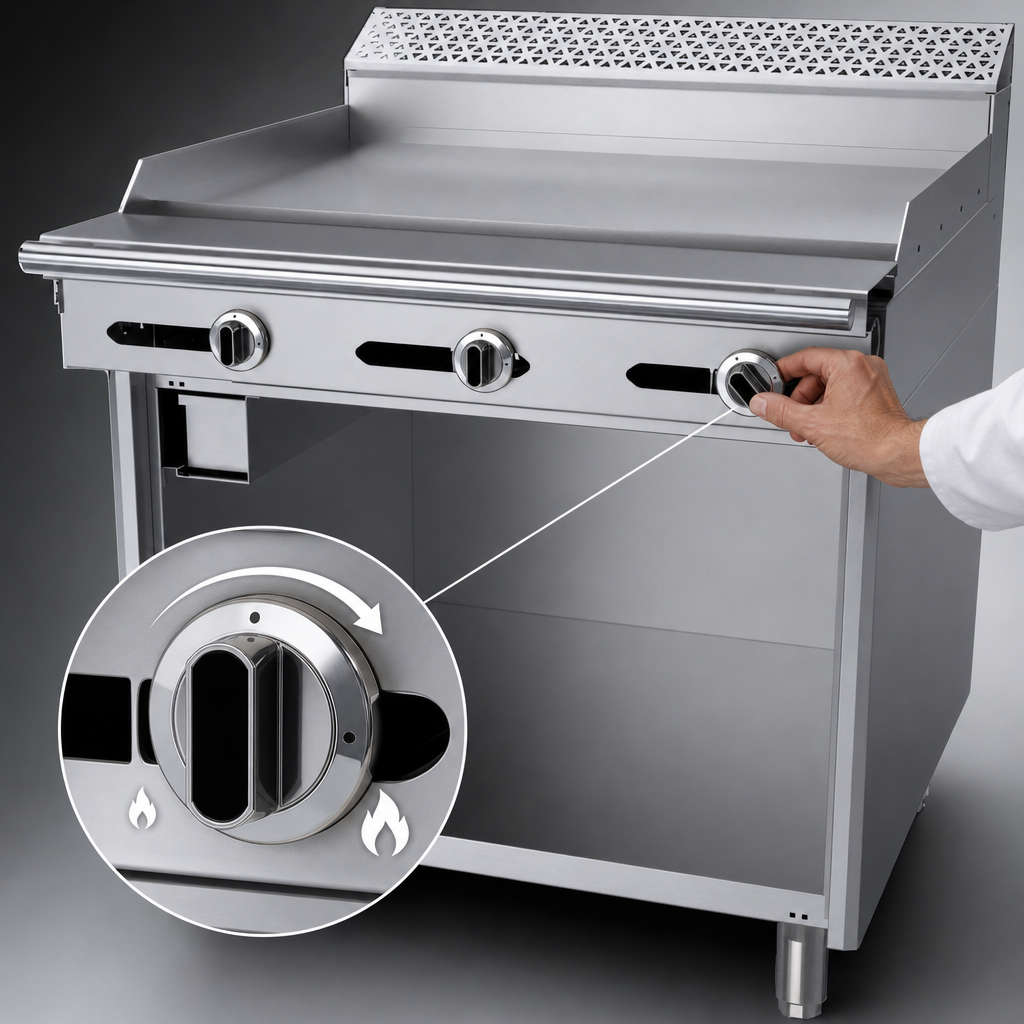

Hi-Lo Valve Control

Manual hi-lo valve control allows operators to adjust heat quickly during service.

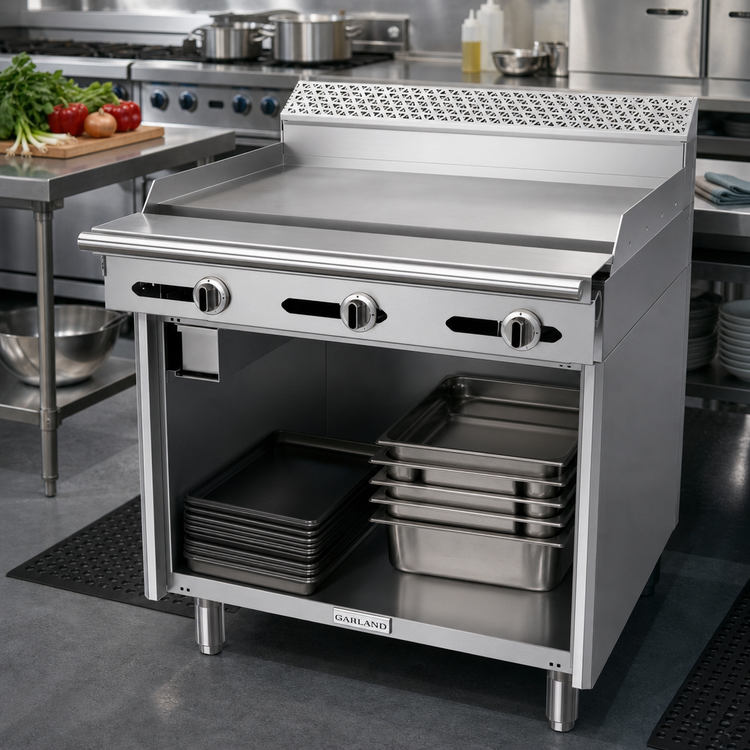

Storage Base Configuration

Storage base version provides under-range storage instead of an oven cavity.

Stainless Steel Construction

Stainless steel front and sides, plus a stainless steel burner box, support durability and easier cleaning.

7-Inch Stainless Steel Stub Back

Helps shield the rear area from heat and splatter while keeping the profile compact.

3-Inch Grease Trough

Built-in grease trough helps manage drippings and simplifies cleanup.

1-1/4-Inch Front Gas Manifold

Front gas connection supports individual installation or battery setups.

6-Inch Adjustable Legs

Adjustable legs help level the range on uneven kitchen floors.

90,000 BTU Output

Provides the heat output needed for high-volume commercial cooking.

Type Gas Griddle Top Range
Style Storage Base
Installation Type Floor Model
Controls Hi-Lo Valve
Material Stainless Steel
BTU 90,000 BTU
Gas Type Natural Gas / Propane
Gas Connection Size 1 1/4 Inches NPT
Gas Inlet Pressure Natural Gas 7 Inches W.C. / Propane 11 Inches W.C.
Shipping Width 36 Inches
Shipping Depth 40 Inches
Shipping Height 42 Inches
Shipping Weight 527 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Brochure PDF Download PDF Garland cuisine models guide PDF Download PDF Check list PDF Download PDF Owner's manual PDF Download

Frequently Asked Questions

No. The C36-1S is the storage base version of the 36-inch griddle top range.
The griddle top uses a 1-inch thick steel plate.
It is intended for natural gas or propane; specify the gas type when ordering.
The unit uses a 1-1/4-inch NPT front gas manifold connection.
Yes. The documentation says it can be connected individually or in a battery.
Minimum supply pressure is 7 Inches W.C. for natural gas and 11 Inches W.C. for propane; manifold operating pressure is 6 Inches W.C. natural and 10 Inches W.C. propane.
