Garland C36-1R Garland Cuisine Gas Ranges
Description

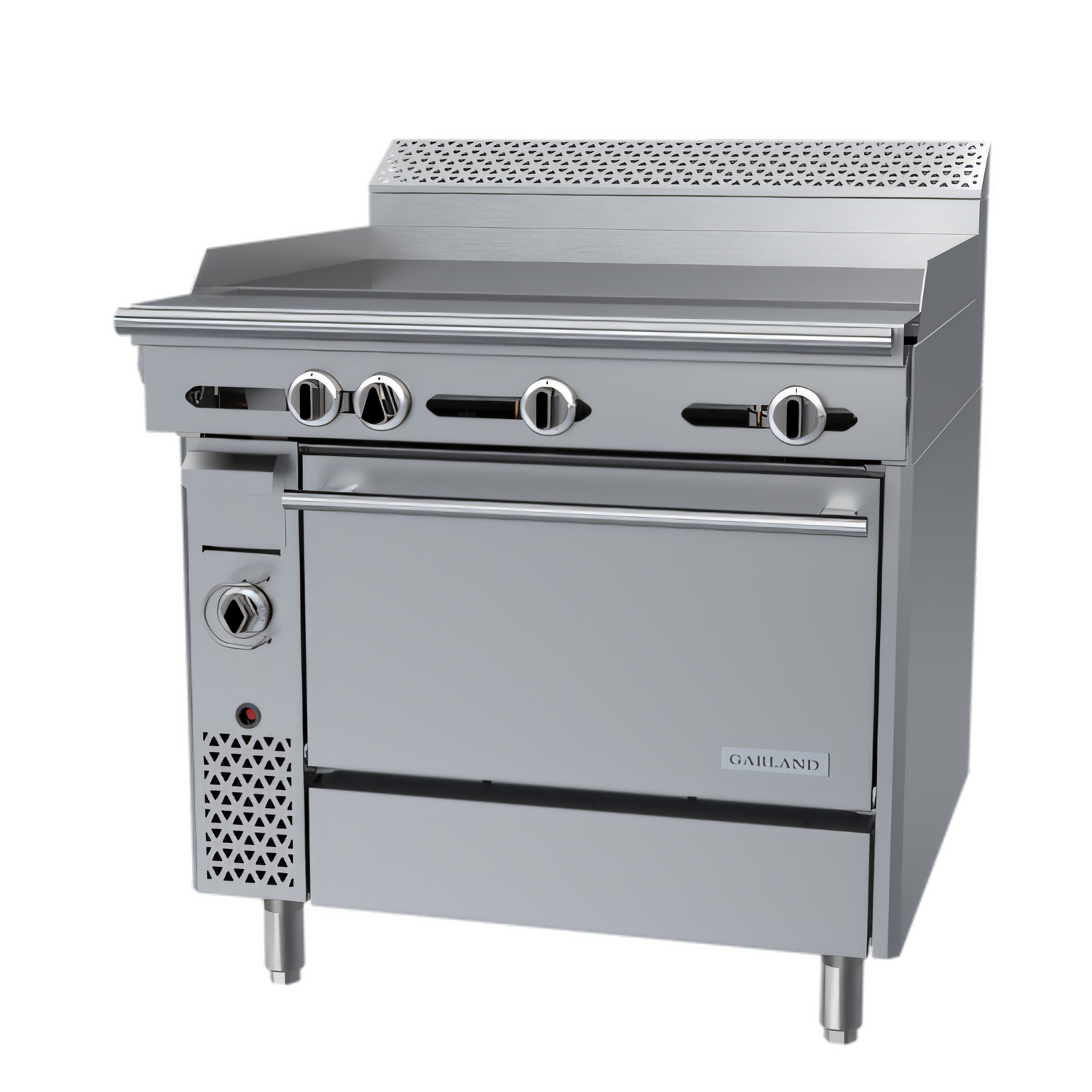

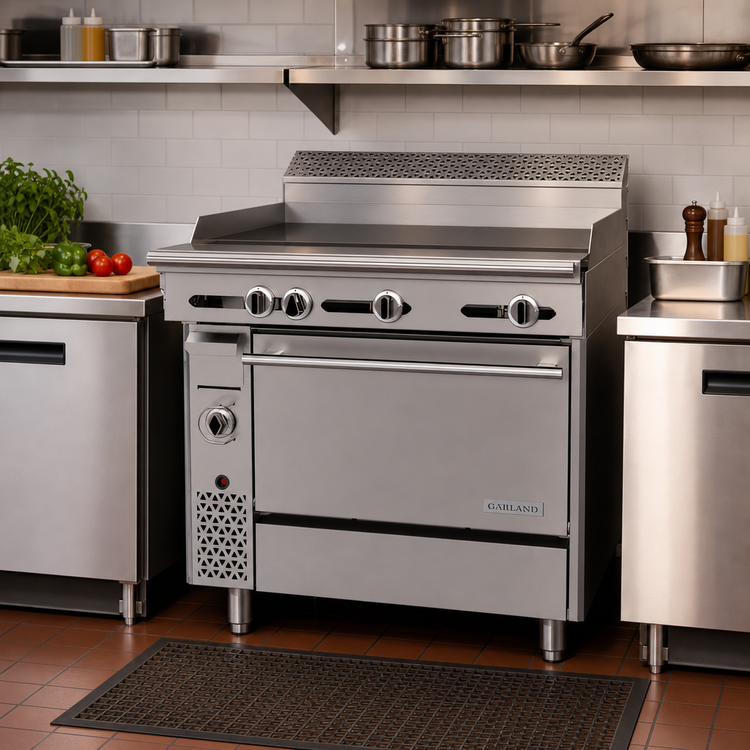

Garland Cuisine 36" Heavy-Duty Gas Griddle Range
Model C36-1R | 130,000 BTU Total InputEngineered for high-volume kitchens that demand rock-solid reliability, the Garland Cuisine C36-1R combines a full-width 1" (25 mm) thick steel griddle with a powerful standard oven – all in a compact 36" footprint. Hi-lo valve controls give you instant, precise flame adjustment, while an insulated, porcelain-lined oven turns out perfectly baked, roasted or finished dishes shift after shift.
Why You’ll Love It

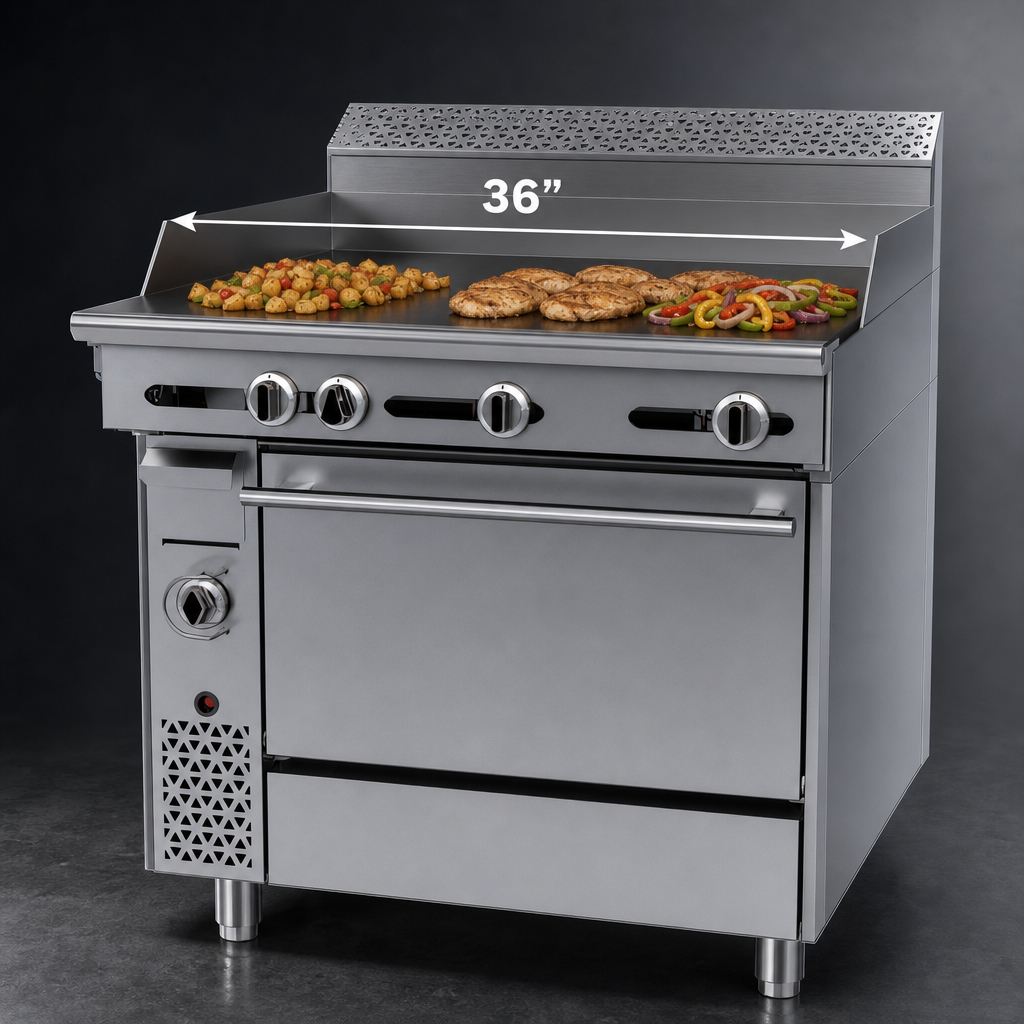

- 1" solid steel griddle plate delivers superior heat retention and fast recovery.
- Three 30,000 BTU burners (one per 12") for even, edge-to-edge cooking.

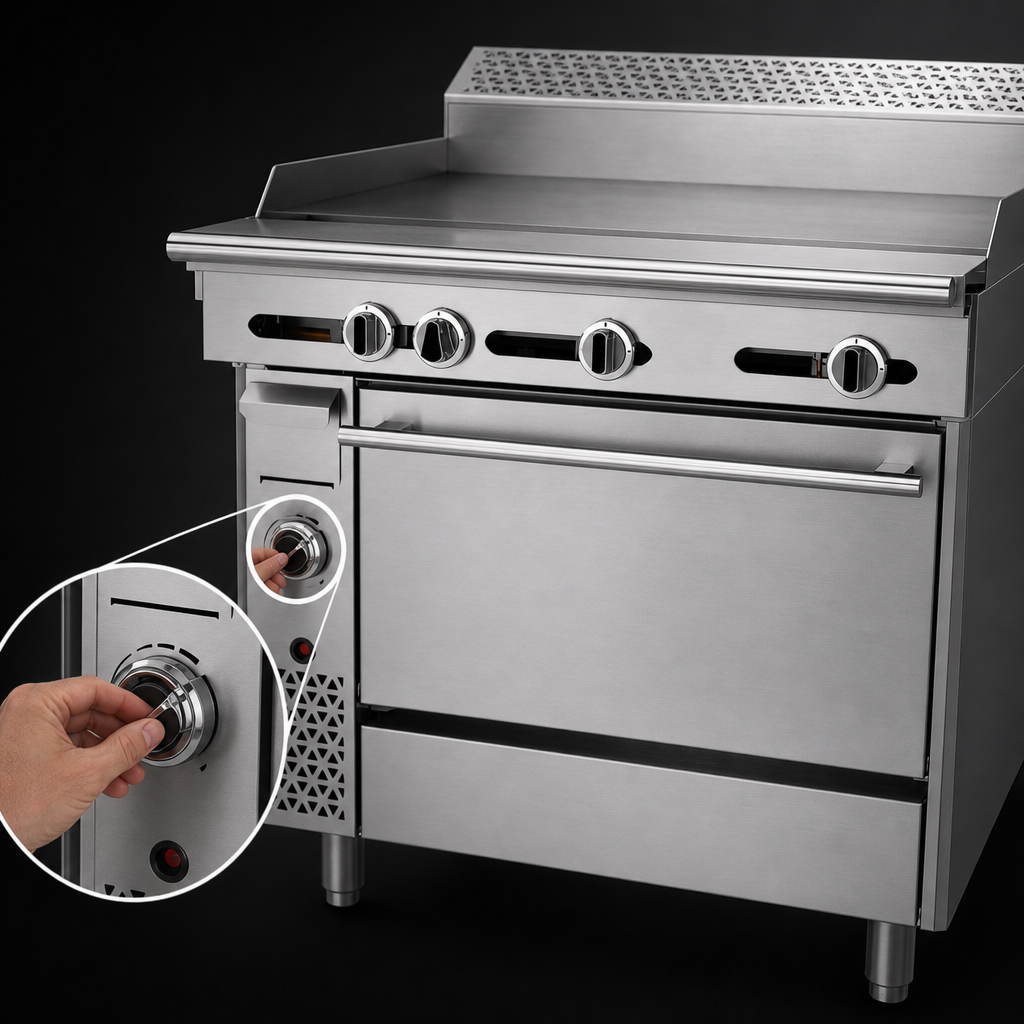

- Manual hi-lo valves give cooks instant control from low holding to full sear.
- 40,000 BTU standard oven with four rack positions & one chrome rack included.
- Full stainless steel front, sides, front rail and burner box resist corrosion and wipe clean.
- 7" (178 mm) stainless steel backguard protects your wall and doubles as a handy splash shield.
- 6" (152 mm) stainless steel legs with threaded feet make leveling simple.
- Front 1 ¼" NPT gas manifold for easy single or battery installation.
Built for the Long Haul
- Fully welded frame and burner box stand up to daily abuse in the busiest operations.
- Porcelain-coated oven cavity cleans up fast and won’t corrode like raw steel.
- Safety oven pilot with 100% shut-off keeps your crew and kitchen protected.
- Complete insulation around the oven locks heat in and keeps the door cool to the touch.
Certifications
- CSA Flame
- CSA Star
- NSF Listed – approved for all commercial kitchens
Technical Specifications
| Overall width | 36" (914 mm) |
|---|---|
| Overall depth | 32 5/8" (829 mm) |
| Overall height (to top of 7" backguard) | 45 3/8" (1,153 mm) |
| Griddle plate | 1" (25 mm) thick polished steel, 36" W × 21" D working surface |
| Controls | Manual hi-lo gas valves, 1 per burner |
| Burners | 3 × 30,000 BTU (griddle) + 1 × 40,000 BTU (oven) |
| Total input | 130,000 BTU/h (Natural or Propane) |
| Oven temperature range | 150 – 500 °F (66 – 260 °C) |
| Rack capacity | 4 positions / 1 chrome rack supplied |
| Gas connection | Front 1 ¼" NPT manifold, 7" WC Natural / 11" WC Propane minimum supply |
| Clearances | 0" sides & rear (non-combustible installation) |
| Shipping weight | Approx. 706 lb (320 kg) |
Popular Factory Options (sold separately)
- 5" or 6" swivel casters with front brakes
- Stainless steel high shelf or single/double deck overshelf
- Rear gas connection kit
- Extra chrome oven racks
Need a battery installation or special gas configuration? Contact our team – we’ll configure the perfect Garland Cuisine line-up for your kitchen.
