Garland C36-1M Garland Cuisine Gas Ranges
Description

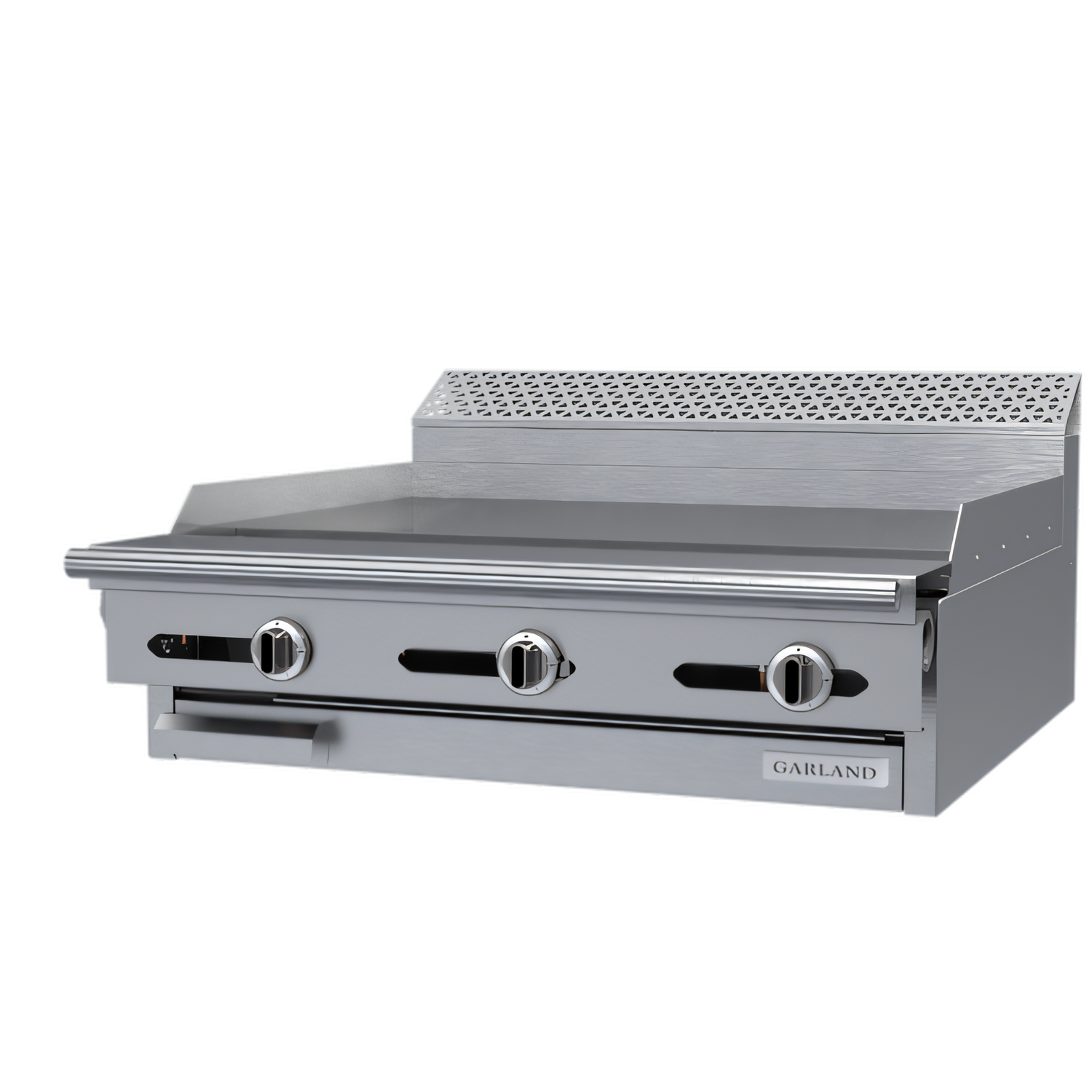

Garland Cuisine Series 36" Heavy-Duty Gas Griddle Range
1" steel plate • Hi-Lo manual valves • 90,000 BTUEngineered for the demands of today’s high-volume kitchens, the Garland Cuisine Series 36" Griddle Range puts a full-size, 1" (25 mm) thick steel griddle on a rugged heavy-duty base that’s built to last. Three 30,000 BTU burners deliver even heat across the entire plate, while simple Hi-Lo valves give the chef instant flame control for searing, holding or finishing.
Key features & benefits

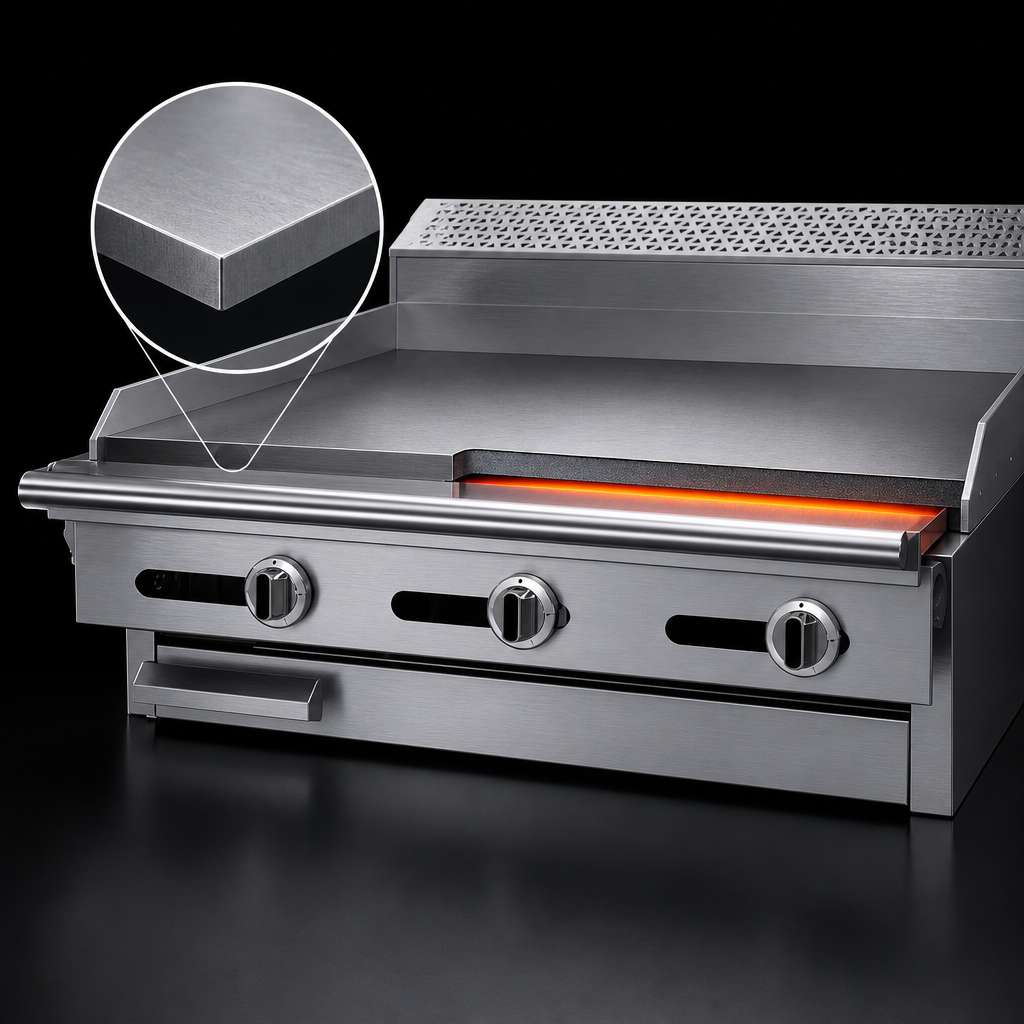

- 1" (25 mm) thick steel griddle plate – superior heat retention & recovery
- Full 36" (914 mm) cooking width with 3" (76 mm) grease trough
- Three 30,000 BTU stainless-steel tube burners, individually controlled (total 90,000 BTU)

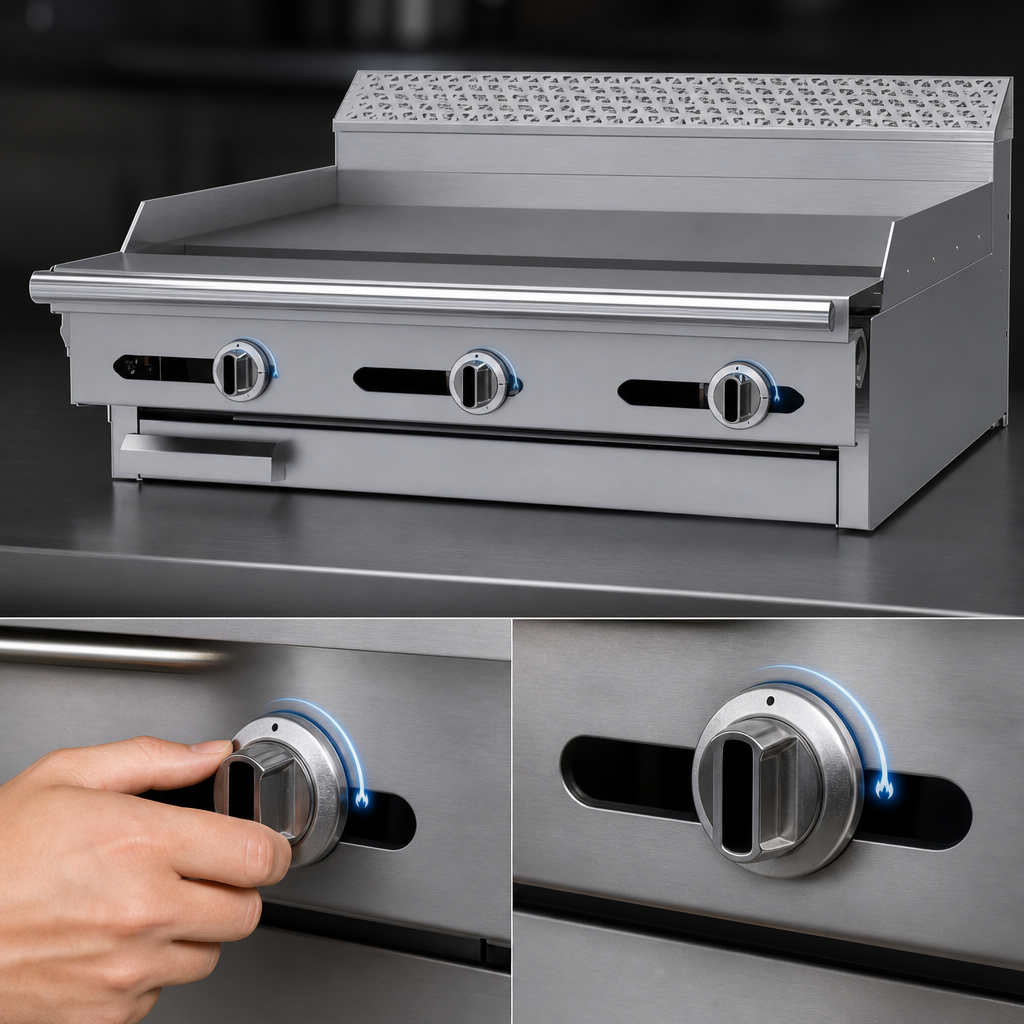

- Hi-Lo manual valve controls for quick, precise flame adjustment
- Stainless-steel burner box plus stainless front & sides for maximum durability and easy cleaning
- 7" (178 mm) stainless stub backguard protects walls and simplifies battery installations
- 6" (152 mm) adjustable stainless legs level the unit on any surface
- Front 1 ¼" NPT gas manifold—rear gas connection available (optional)
- Certified commercial: CSA Flame, CSA Star & NSF
At-a-glance specifications
| Model | Garland Cuisine C36-1 (36" Hi-Lo Griddle Range) |
|---|---|
| Cooking surface | 36" W × 21 3⁄16" D (914 × 538 mm) |
| Griddle plate | 1" (25 mm) polished steel, welded on three sides |
| Total input | 90,000 BTU/h (26.4 kW) |
| Burners | 3 × 30,000 BTU stainless-steel tube burners |
| Gas connection (std.) | 1 ¼" NPT front manifold |
| Manifold pressure | Natural 6" WC | Propane 10" WC |
| Minimum supply pressure | Natural 7" WC | Propane 11" WC |
| Dimensions (w × d × h) | 36" × 32" × 30 ¼" (914 × 813 × 768 mm) Height to work surface; add 7" (178 mm) for backguard. |
| Clearances | 0" sides & rear (non-combustible) |
| Certifications | CSA Flame, CSA Star, NSF |
| Shipping weight | Approx. 527 lb / 239 kg |
For commercial use only. Specify gas type (Natural or Propane) and any rear-gas or battery requirements at the time of order.
