Garland C36-1C Garland Cuisine Gas Ranges
Description

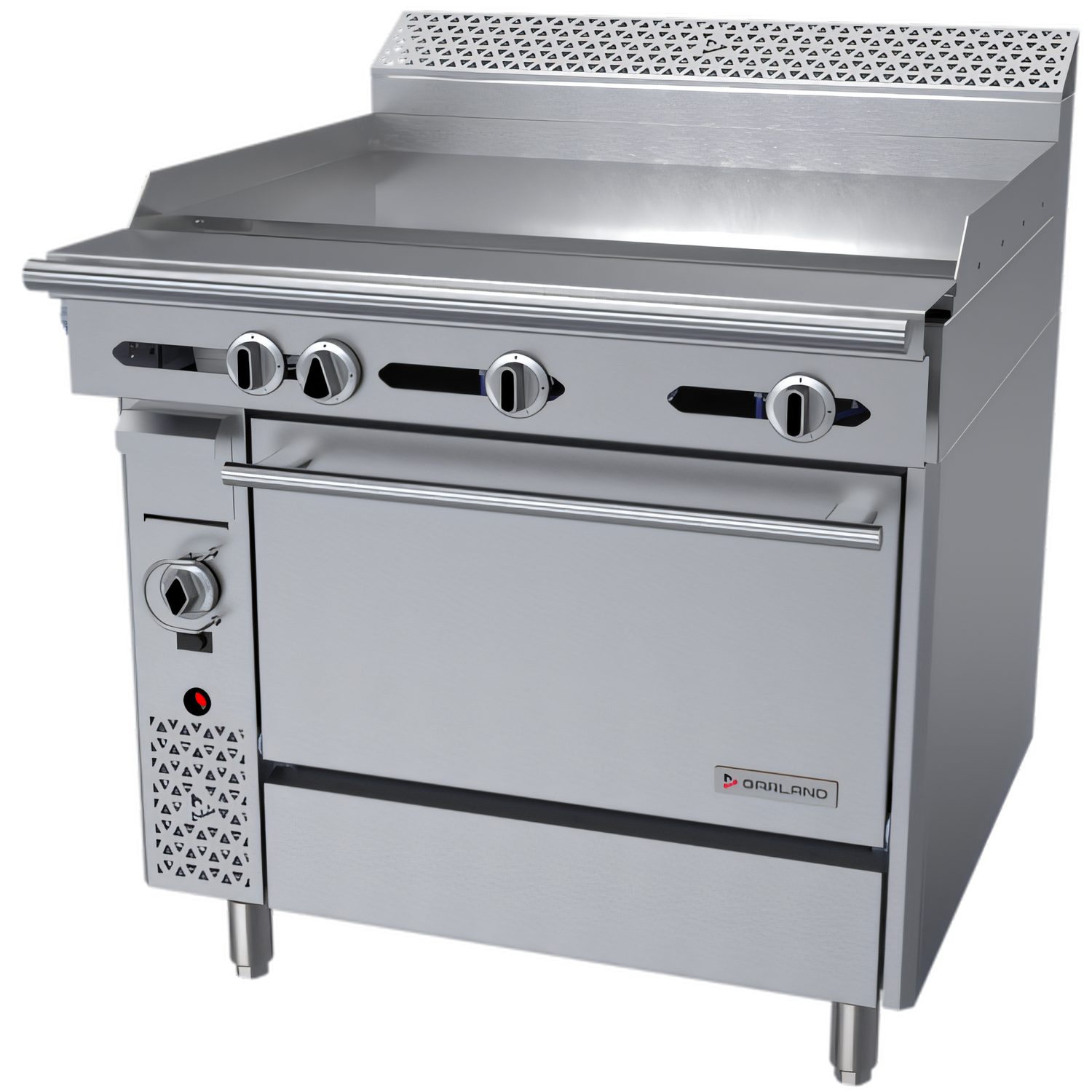

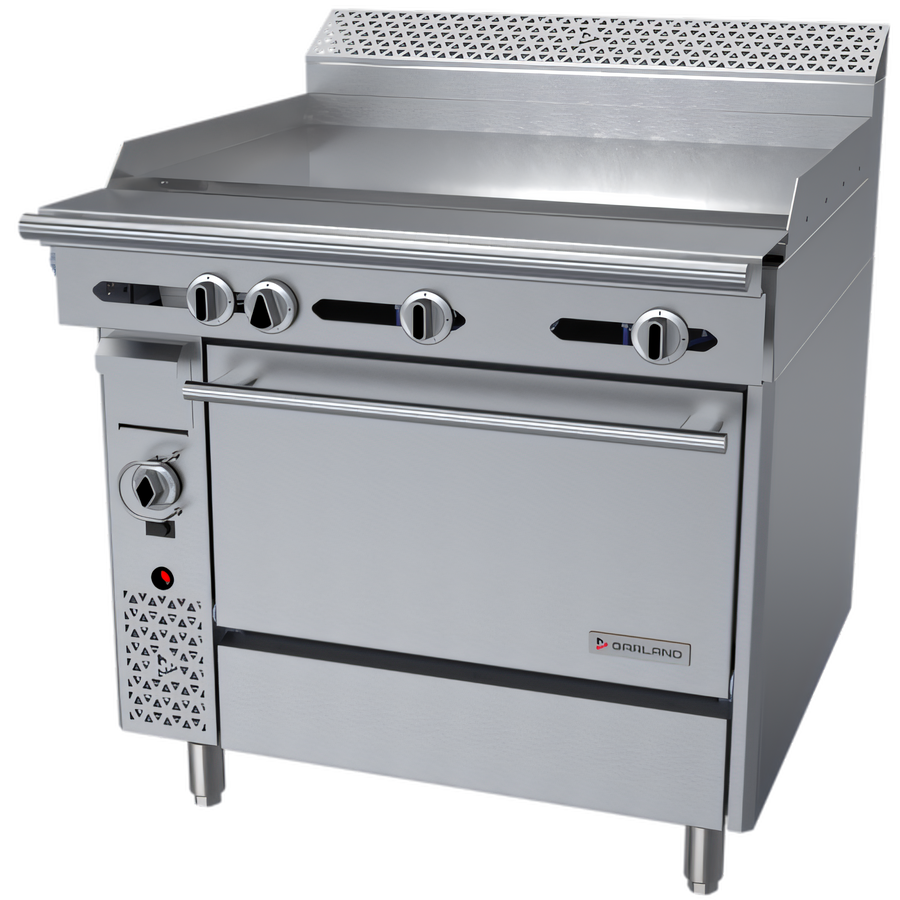

Garland Cuisine Series 36" Heavy-Duty Griddle Range with Convection Oven
Model C36-1C | 127,000 BTU | Natural / Propane GasBuilt to anchor the busiest commercial kitchens, the Garland C36-1C delivers high-output griddle performance on top and precise, fan-assisted baking below— all in a rugged, 36-inch footprint that’s easy to drop into a battery line-up or stand proudly on its own.
Why chefs choose this range

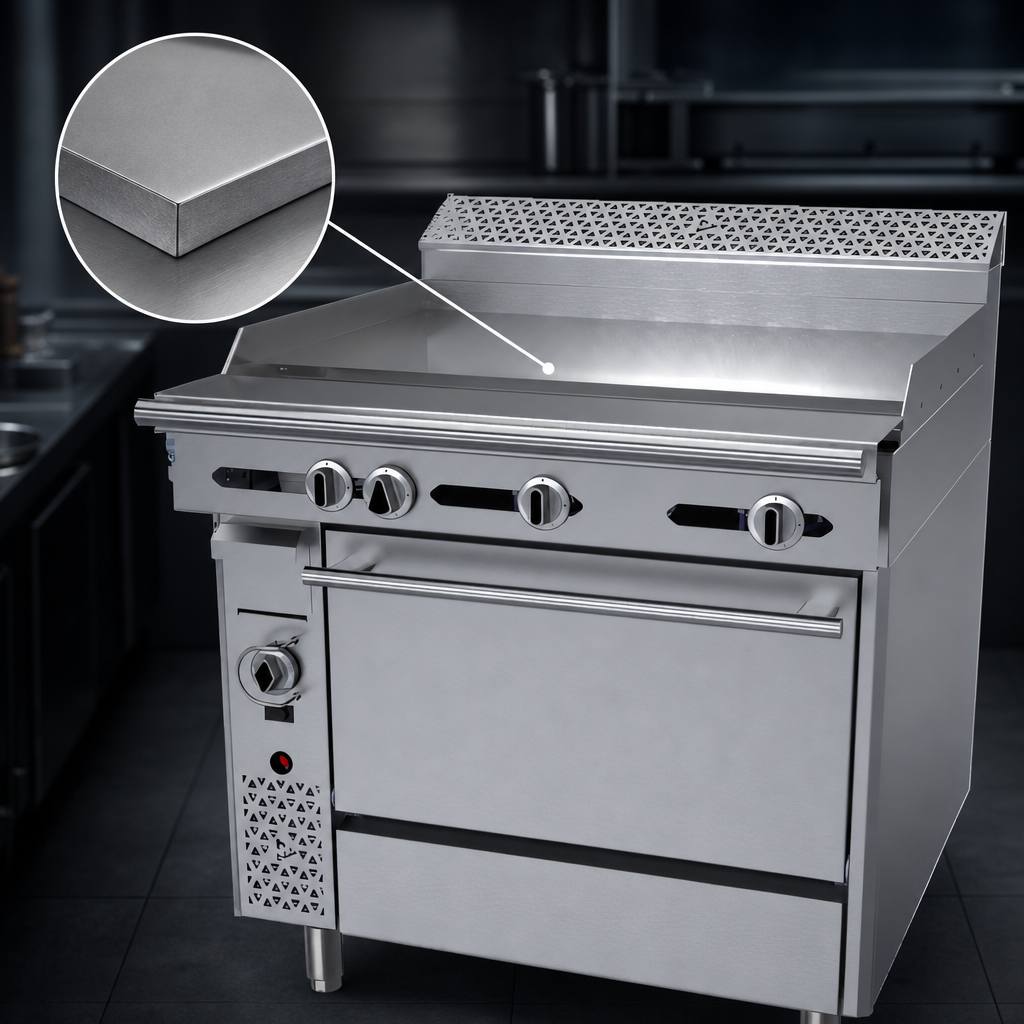

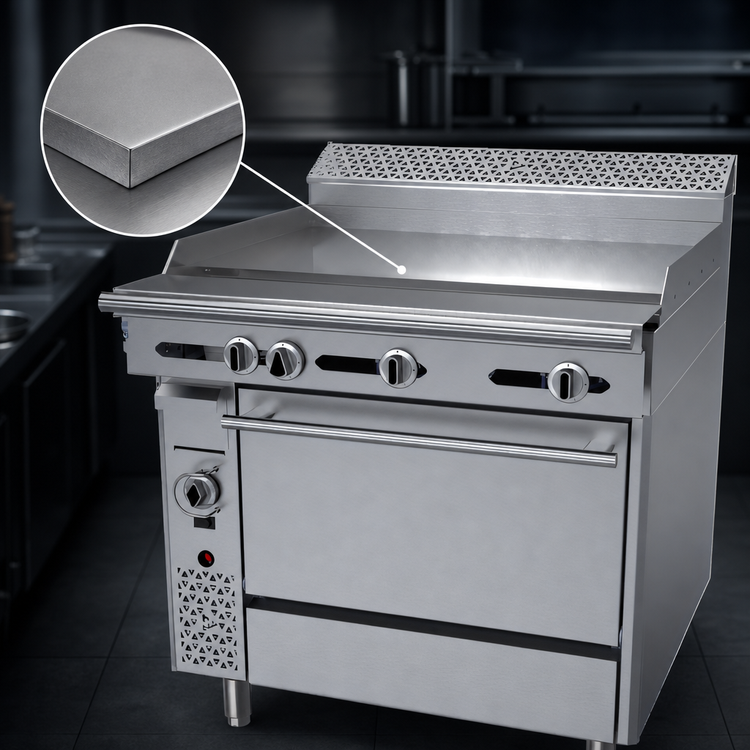

- Full-width 1" (25 mm) steel plate griddle handles breakfast rushes, lunch burgers and late-night sears with unbeatable heat retention.

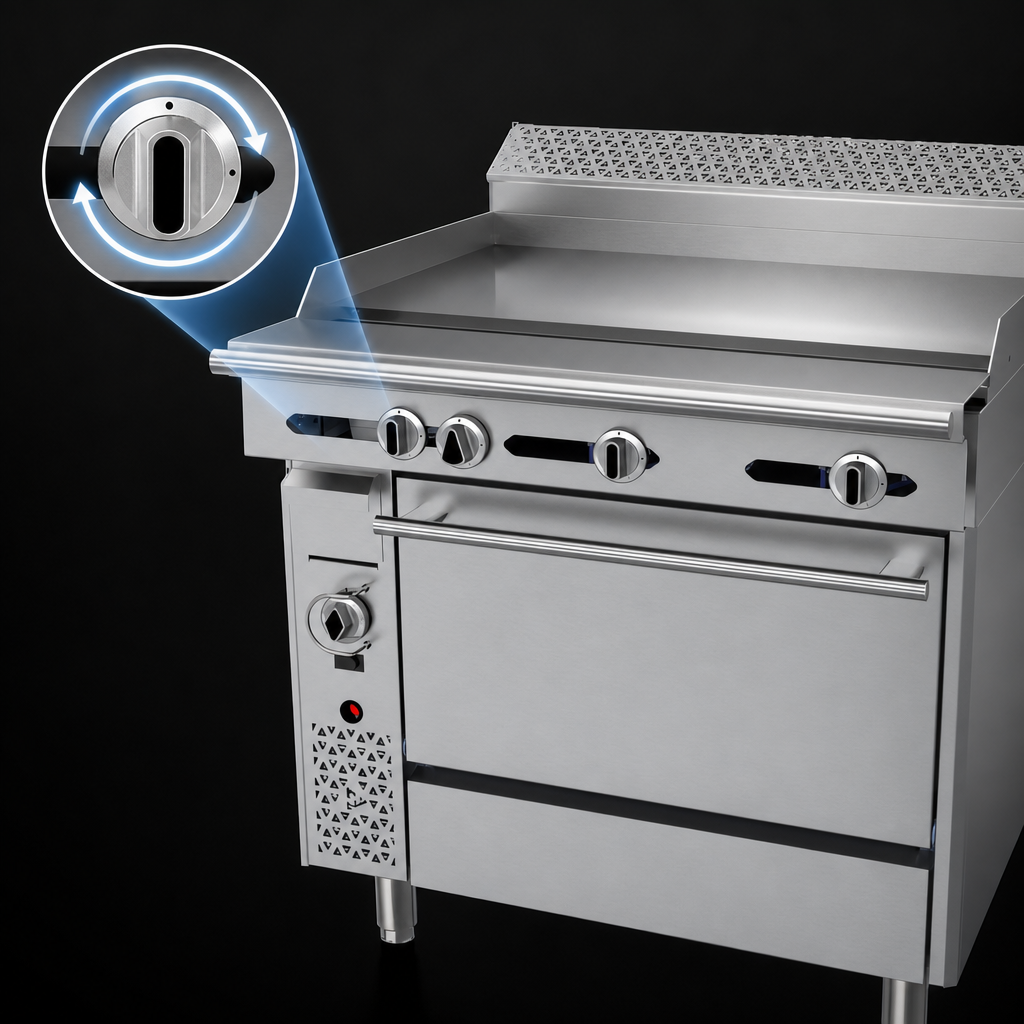

- Hi-lo manual valves on each of the three 30,000 BTU burners give infinite flame adjustment from gentle warming to full-blast searing.
- 3" wide grease trough and large front rail keep the work-top clean and organised.
- Convection oven base (37,000 BTU) with 1/3 HP blower and three chrome racks provides fast, even bakes from 150 °F–500 °F (66 °C–260 °C).
- Self-cooling fan motor allows zero-clearance “back-to-back” or against-wall installs.
- Stainless steel front, sides, burner box and 7" stub backguard stand up to years of heavy use and quick wipe-downs.
- 6" adjustable stainless legs for simple leveling; caster kits available.
- Simple hook-up: 1¼" NPT front gas manifold • 120 V, 0.6 A NEMA 5-15P plug for the oven fan.
- Certified for commercial kitchens: CSA Flame, CSA Star & NSF.
Technical specifications
| Width | 36" / 914 mm |
|---|---|
| Depth (with 7" backguard) | 32" / 814 mm |
| Cooking surface | 36" griddle, 1" (25 mm) steel plate |
| Griddle burners | 3 × 30,000 BTU (manual hi-lo valves) |
| Convection oven burner | 37,000 BTU |
| Total input | 127,000 BTU/h |
| Oven temperature range | 150 °F – 500 °F (66 °C – 260 °C) |
| Oven racks supplied | 3 chrome-plated racks, 3 positions |
| Gas connection | 1¼" NPT front manifold (rear ¾" optional) |
| Gas pressure (Nat / LP) | Supply 7" / 11" WC • Manifold 6" / 10" WC |
| Electrical | 120 V / 60 Hz / 1-ph, 0.6 A, NEMA 5-15P |
| Motor | 1/3 HP convection fan |
| Certifications | CSA Flame, CSA Star, NSF |
| Shipping weight | ≈ 706 lb / 320 kg |
| Clearances (combustible) | Sides 10" / 254 mm • Back 6" / 152 mm |
Included with your purchase
- (3) chrome oven racks
- 7" stainless backguard
- Factory-installed ¾" gas regulator
- Owner’s manual & quick-start guide
Need to build a battery line? This model’s 1¼" front manifold mates perfectly with other Cuisine Series units. Ask us about matching fryers, open burner ranges and refrigerated bases.
