Garland C36-19S Garland Cuisine Gas Ranges
Description

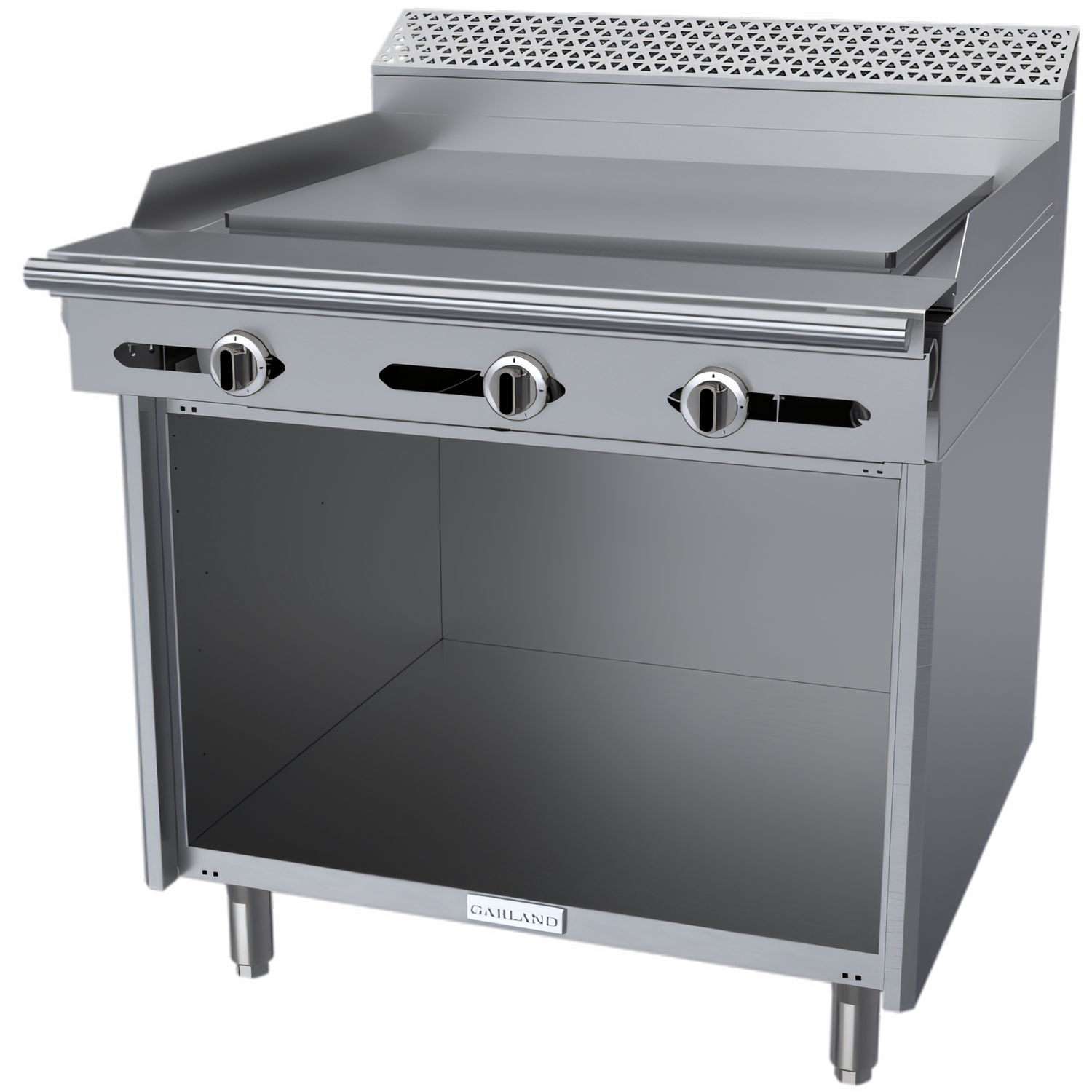

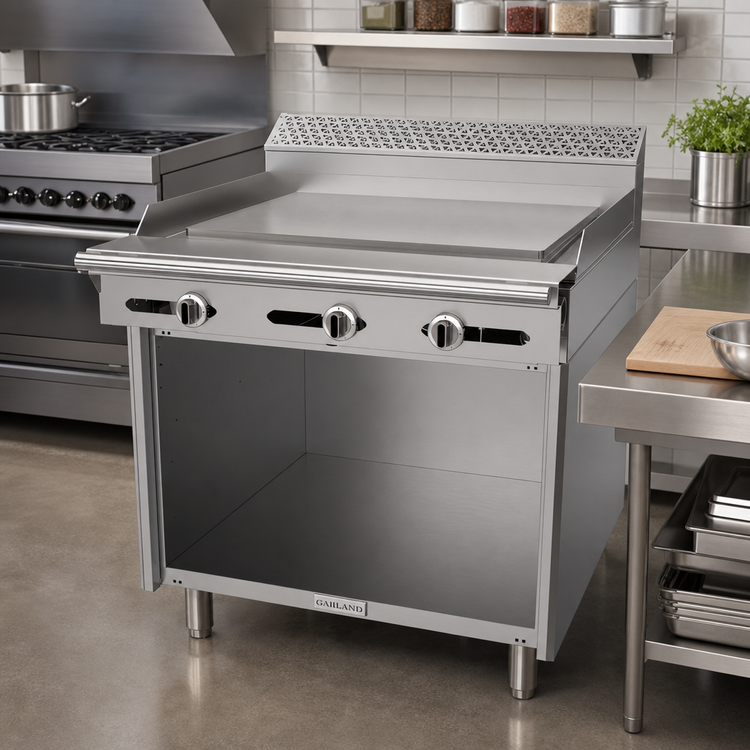

Garland Cuisine Series 36″ Heavy-Duty Plancha Range
Model C36-19S | Natural Gas | 60,000 BTUEngineered for the most demanding commercial kitchens, the Garland Cuisine 36″ Plancha Range delivers lightning-fast heat up, pinpoint manual control, and rock-solid durability in a space-saving footprint. The 5/8″ (16 mm) thick steel plate handles everything from breakfast service to small-plate menus, while the open storage base keeps sheet pans, hotel pans, and smallwares within arm’s reach.
Highlights at a Glance
- 5/8″ thick, one-piece steel plancha—even heat distribution and rapid recovery.
- Three 20,000 BTU cast-iron burners (one every 12″) with Hi-Lo manual valves for instant flame adjustment.
- Integrated 3″ wide grease trough & large capacity drawer for quick, mess-free clean-up.
- Heavy-gauge stainless steel front, sides, stub backguard (7″ H) & full-width plate rail.
- Open cabinet base—perfect for dry storage or optional stainless doors (sold separately).
- 6″ stainless steel adjustable legs for easy leveling on uneven floors.
- Front-mounted 1 ¼″ NPT gas manifold; rear connection kit available.
- Certified to CSA Flame & Star and NSF standards.
Technical Specifications

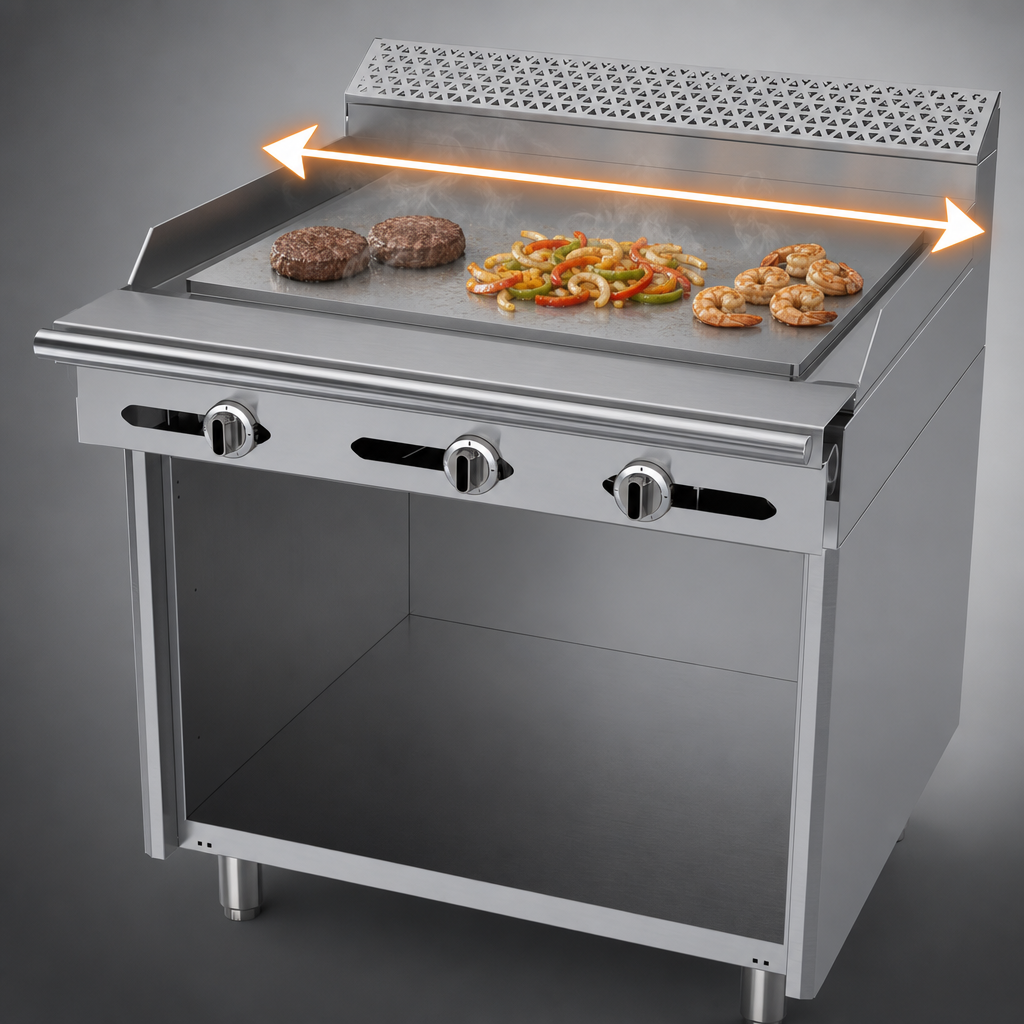

| Cooking Surface | 36″ W × 24″ D (914 mm × 610 mm) |
|---|---|

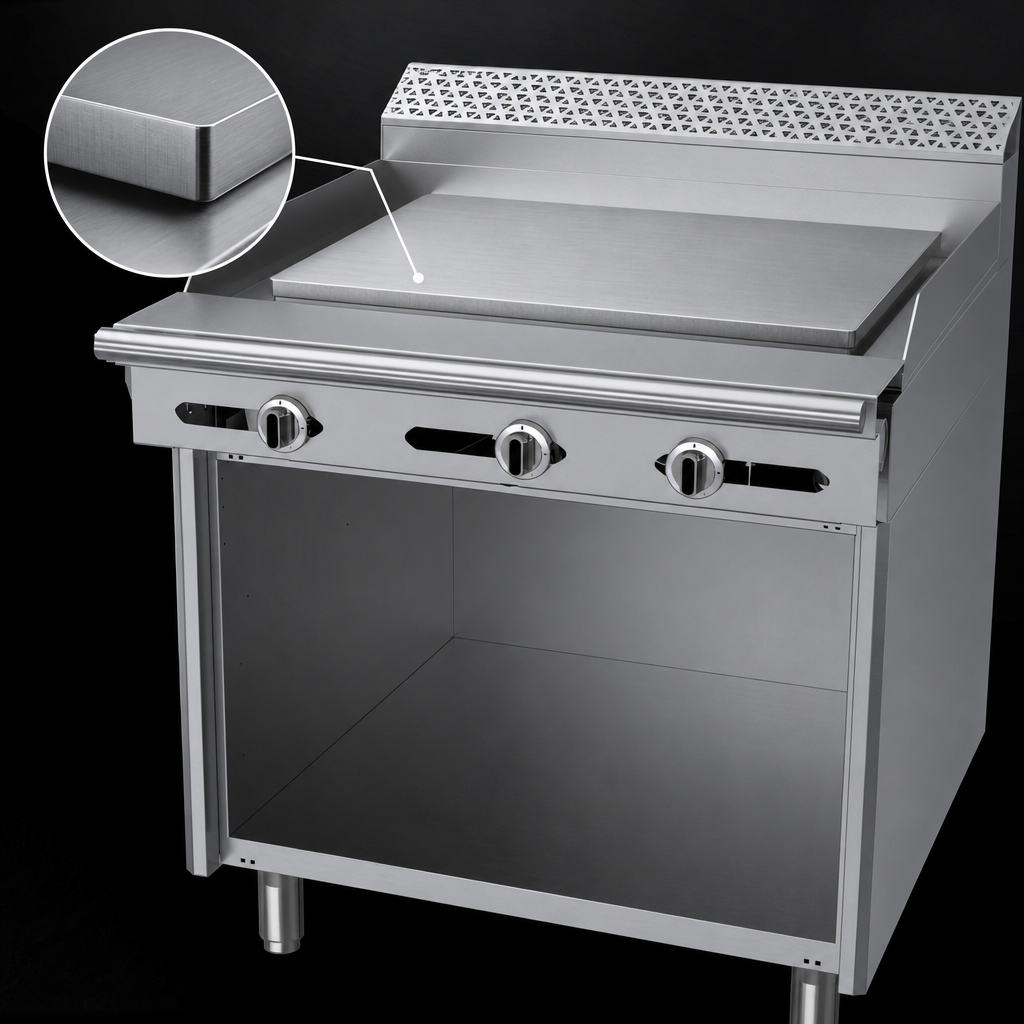

| Plate Thickness | 5/8″ (16 mm) polished steel |
| Total Input | 60,000 BTU/h (Natural Gas) | 57,000 BTU/h (LP – field convertible kit required) |
| Burners | 3 × 20,000 BTU cast-iron, individually valved |
| Overall Dimensions | 36″ W × 32-1/4″ D × 45-5/8″ H* (914 mm × 819 mm × 1160 mm) |
| Gas Connection | 1 ¼″ NPT front manifold (standard) – minimum supply 7″ WC (NG) / 11″ WC (LP) |
| Clearances (Combustible) | 10″ (254 mm) sides | 6″ (152 mm) rear |
| Shipping Weight | Approx. 527 lb (239 kg) |
| Certifications | CSA Flame, CSA Star, NSF |
*Height includes 7″ stub backguard and 6″ adjustable legs.
Perfect For
- Bistros & tapas bars needing high-heat searing in a compact footprint.
- Hotel & resort breakfast stations demanding rapid turn times.
- Ghost kitchens or concessions looking for a multi-use flat surface—sauté, sear, finish & hold.
Upgrade your cookline with Garland’s legendary build quality and the flexible performance of a true plancha—order the Cuisine Series 36″ Heavy-Duty Range today and taste the difference a professional surface makes.
