Garland  |  Garland Cuisine  |  SKU: C36-19C

Garland C36-19C Garland Cuisine Gas Ranges

$17,667.00
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Cutsheet Cutsheet Brochure Check list Garland cuisine models guide Owner's manual
Related Searches
Commercial Gas Ranges Commercial Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

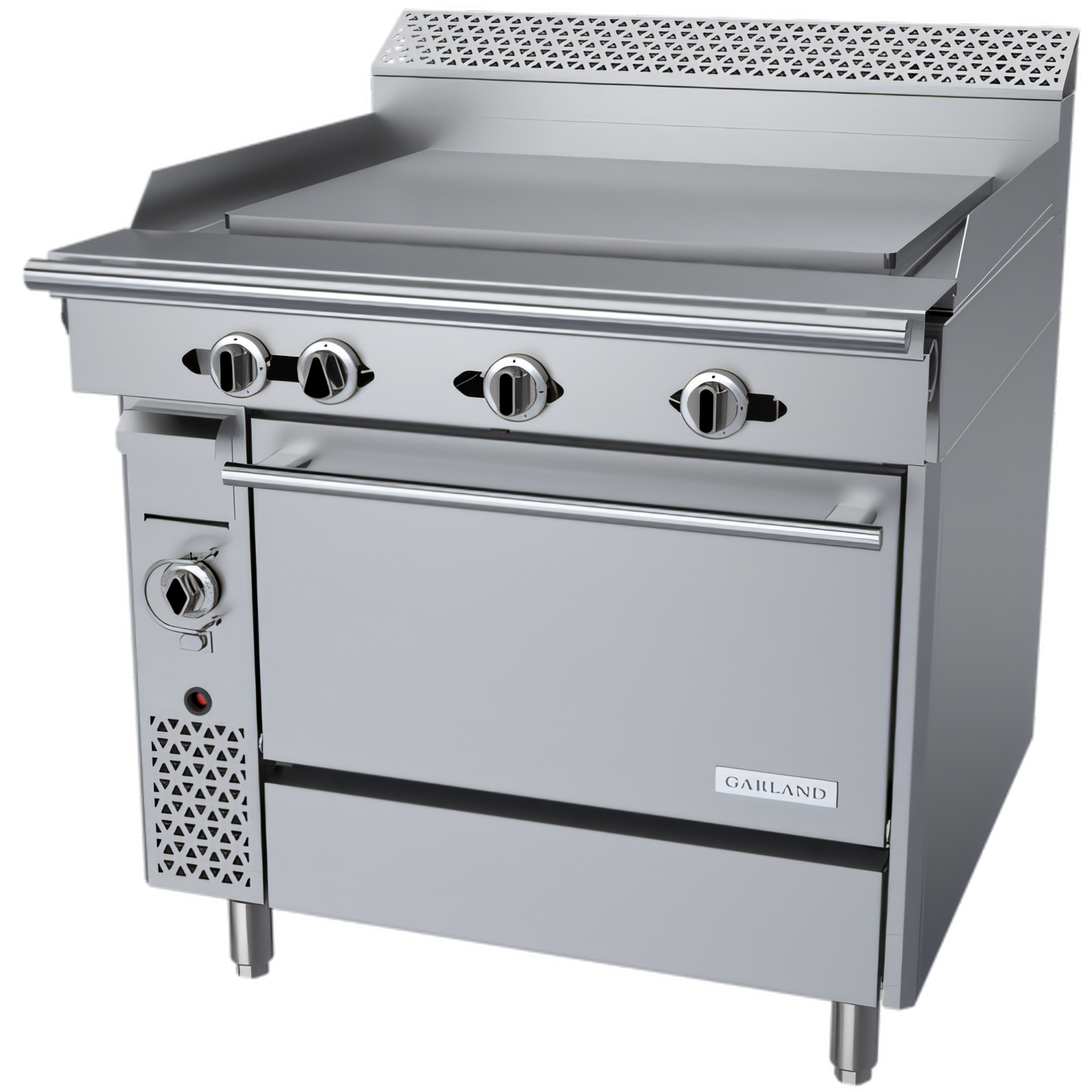

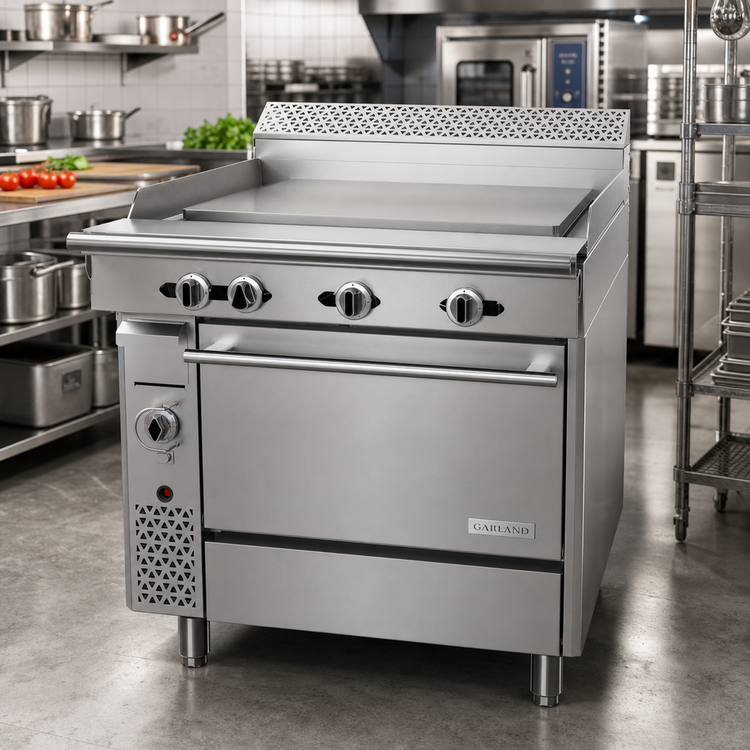

Garland Cuisine Series 36" Heavy-Duty Gas Plancha Range w/ Convection Oven

Model C36-19C | 97,000 BTU (Natural Gas)

Give your kitchen the speed of a griddle, the flavor of a flat-top and the even bake of a convection oven—all in one rugged, space-saving chassis. Garland’s Cuisine Series 36" Plancha Range delivers relentless heat through a 5/8" steel plate while a self-cooling, fan-assisted oven turns out perfectly baked or roasted menu items without taking up another line position.

Why chefs choose the Cuisine Series Plancha

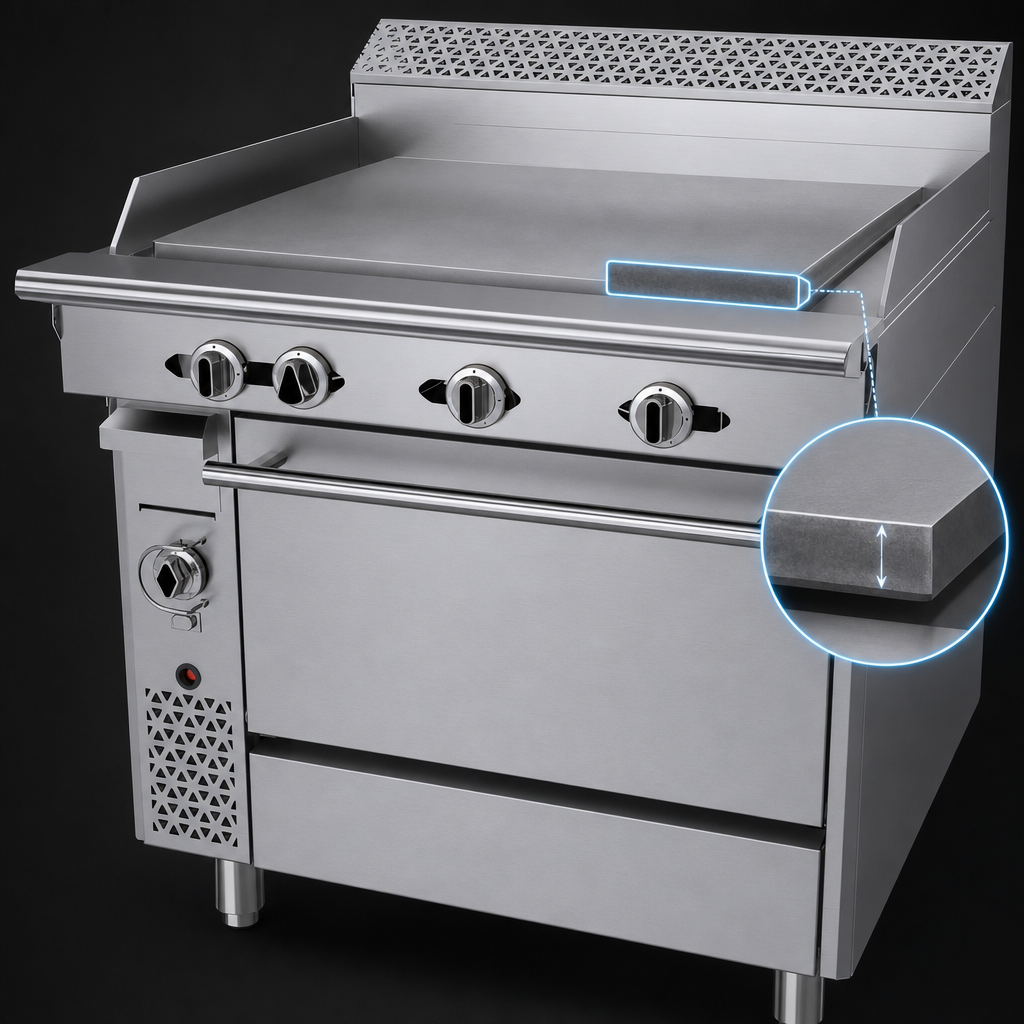

  • 5/8" (16 mm) thick steel plancha provides lightning-fast recovery and a uniform sear edge-to-edge.
  • Three 20,000 BTU Hi-Lo burners (one every 12") let you create independent temperature zones for unmatched versatility.
  • Self-cooling convection base moves hot air evenly while protecting the 1/3 HP fan motor—ideal for back-to-back or zero-clearance installs.
  • Stainless steel construction on front, sides, rail and 7" backguard stands up to the harshest commercial environments.
  • Fully insulated oven interior holds 150–500 °F and ships with 3 chrome-plated racks on adjustable guides.
  • Simple service connections: front 1-1/4" NPT gas manifold with regulator • 120 V NEMA 5-15P plug for the fan.
  • Certified safe & sanitary: CSA Flame, CSA Star and NSF listed.

Technical specifications

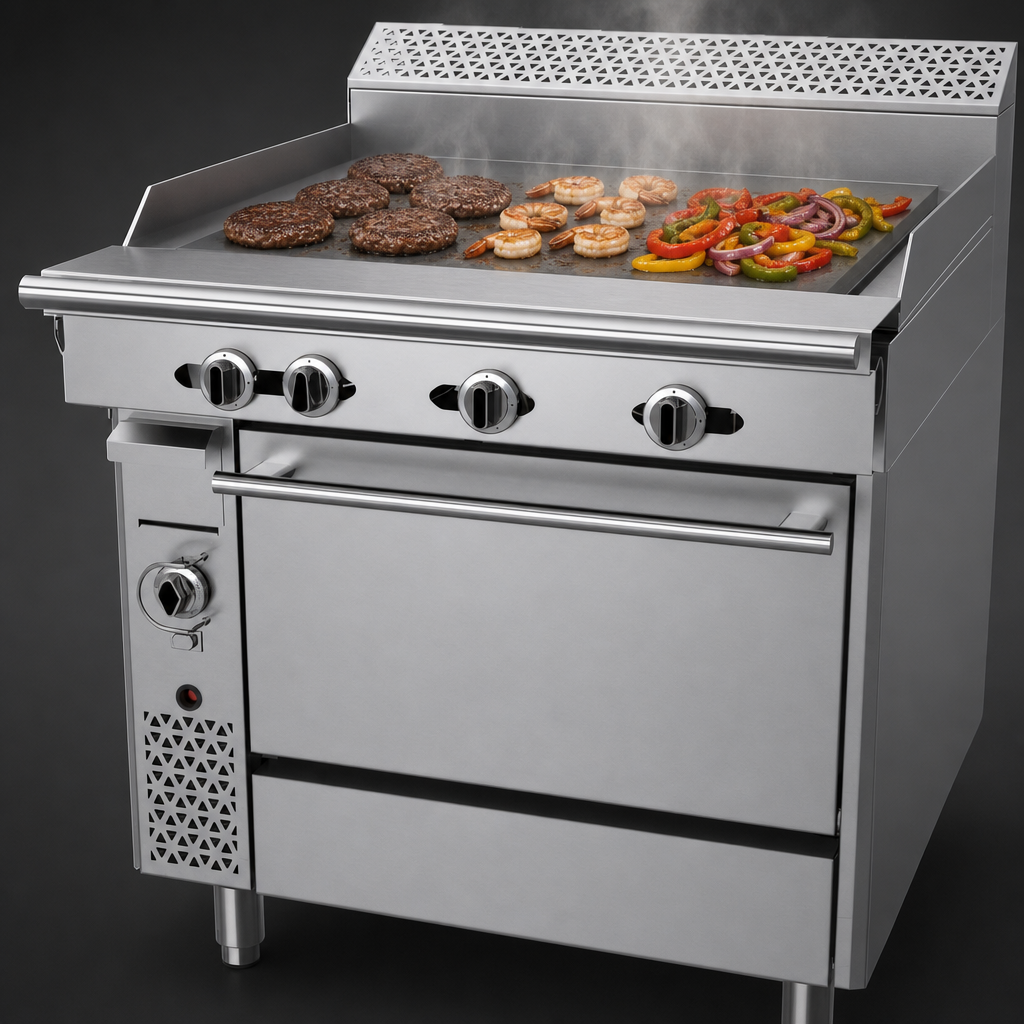

Cook surface 36" (914 mm) plancha, 5/8" polished steel, 3" (76 mm) grease trough
Plancha input 3 × 20,000 BTU burners  =  60,000 BTU/h
Convection oven input 37,000 BTU/h
Total input (NG) 97,000 BTU/h
Oven temperature range 150 °F – 500 °F  (66 °C – 260 °C) thermostat
Oven interior (H × W × D) 13.5" × 26.25" × 25" (343 × 667 × 635 mm) – fits full-size sheet pans front-to-back
Racks supplied 3 chrome-plated, adjustable
Electrical (fan motor) 120 V / 60 Hz / 1-ph, 0.6 A, 1/3 HP, NEMA 5-15P
Gas connection Front 1-1/4" NPT manifold with pressure regulator
Exterior Stainless steel front, sides & plate rail; 7" (178 mm) backguard
Legs 6" (152 mm) adjustable stainless steel
Certifications CSA Flame, CSA Star, NSF

Perfect for

  • All-day diners searing breakfast, lunch and dinner items on one surface.
  • Tapas or izakaya concepts needing high-heat sauté zones beside gentle holding areas.
  • Hotels and resorts that demand sheet-pan baking without dedicating space to a separate oven.
Installation note: Professional gas & electrical hookup is required. If casters are added, the range must be secured with an approved restraining device.

One-year limited parts & labor warranty (USA & Canada).

Features & Specs

Manufacturer

Garland

Brand_name

Garland Cuisine

Certifications

NSF, CSA Star, CSA Flame

Height

42.0in

Width

36.0in

Depth

39.38in

Shipping Weight

706.0lbs

Plate Thickness

.625" = 5/8"

Top

(1) plancha griddle

Base

(1) convection oven

Exterior Finish

stainless steel front & sides

Specifications

Garland Cuisine Series Heavy Duty Range, gas, 36” Plancha, 5/8" thick steel plate, Hi-Lo valve manual controls, convection oven, includes (3) racks, 7"H backguard, stainless steel front, sides & plate rail, 6" adjustable legs, 97,000 BTU (NG), 120V/60/1-ph, 1/3HP, 0.6 amps, NEMA 5-15P, CSA Flame, CSA Star, NSF (Garland)
